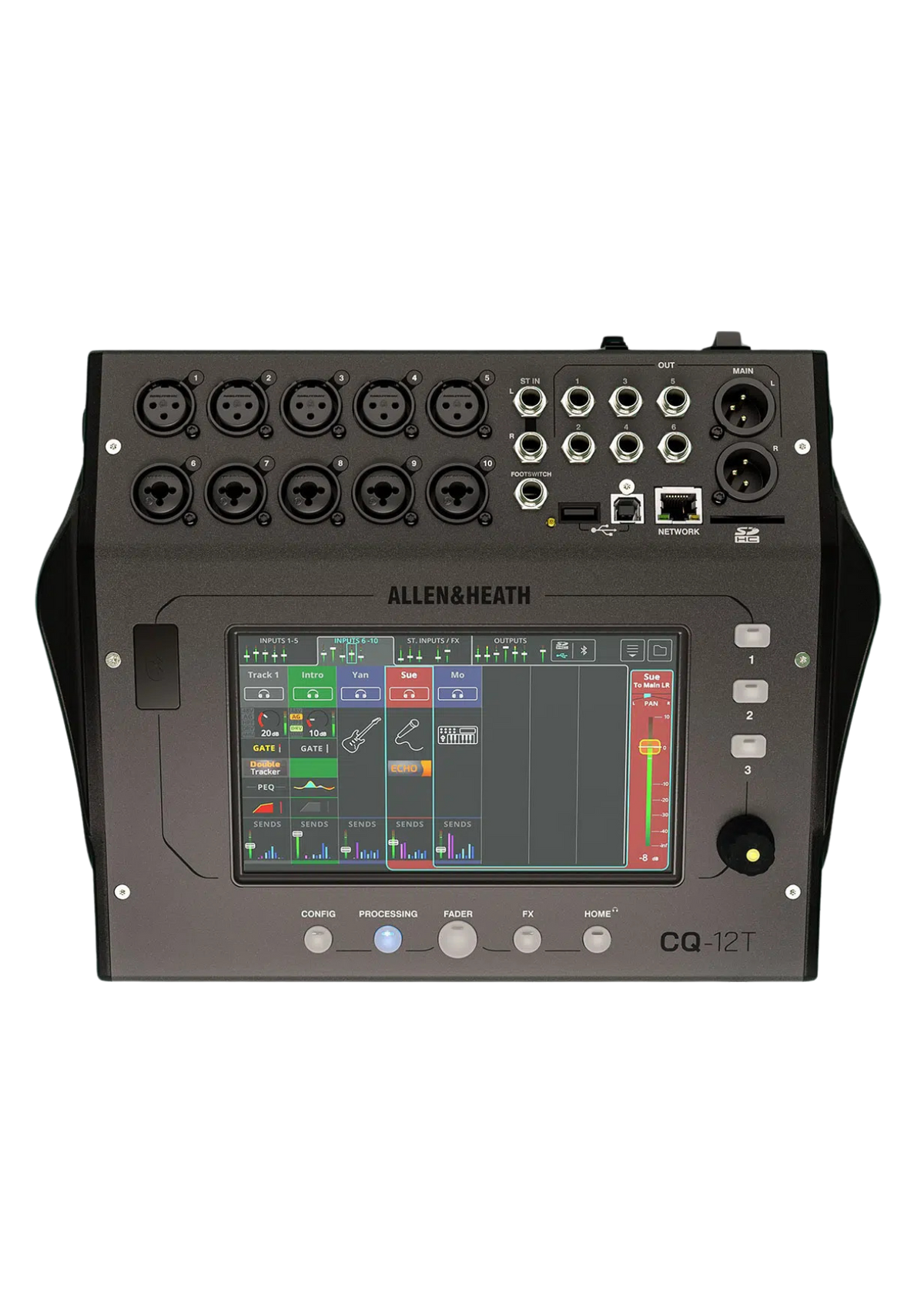

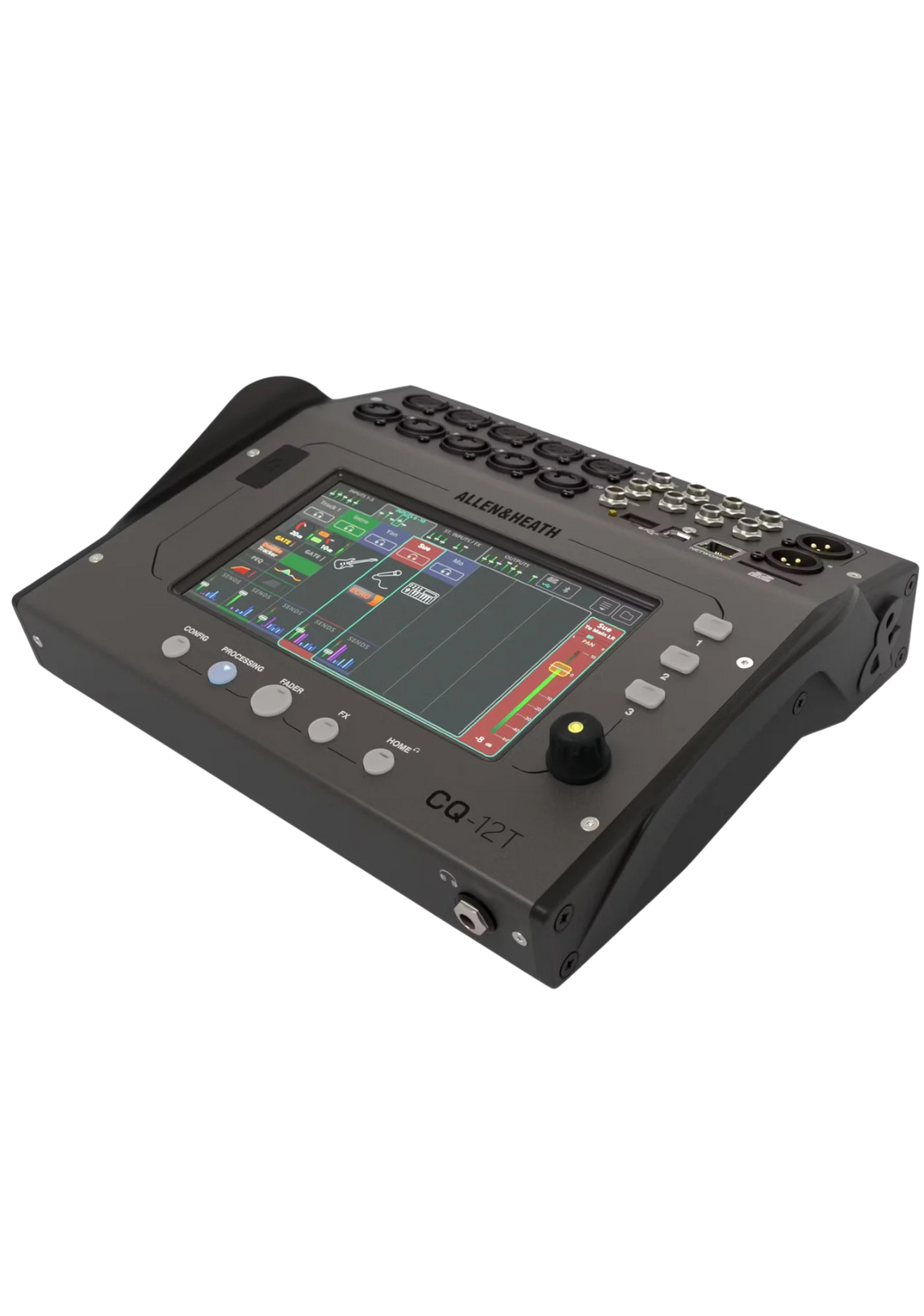

ALLEN & HEATH CQ-12T Ultra-Compact Digital Mixer 12in / 8out
ALLEN & HEATH CQ-12T Ultra-Compact Digital Mixer 12in / 8out
Couldn't load pickup availability
ALLEN & HEATH CQ-12T Ultra-Compact Digital Mixer 12in / 8out
Product Overview
The Allen & Heath CQ-12T is an ultra-compact digital mixer designed to deliver professional audio processing, intuitive control, and powerful mixing features in a portable desktop format. Featuring 12 inputs, 8 outputs, a built-in touchscreen, and advanced CQ processing, the CQ-12T provides an ideal solution for small live performances, rehearsals, streaming, recording, and speech applications. :contentReference[oaicite:0]{index=0}
Built around Allen & Heath's CQ processing platform, the CQ-12T combines simple Quick Channel processing with advanced Complete Channel control, allowing users to quickly create great mixes while still providing detailed adjustment options for experienced engineers. Features such as Gain Assistant, Feedback Assistant, Automatic Mic Mixer, and professional FX processing help simplify setup and improve performance. :contentReference[oaicite:1]{index=1}
With a 7-inch touchscreen, USB recording and playback, SD multitrack recording, Bluetooth audio, 96kHz processing, and remote control through CQ MixPad apps, the CQ-12T delivers a complete digital mixing solution in a compact and reliable design. :contentReference[oaicite:2]{index=2}
Key Features
12 Input Mixer
Compact digital mixer with flexible I/O options.
Touchscreen Control
7-inch touchscreen with simple workflow control.
96kHz Processing
High-quality audio processing for professional results.
Smart Assist Tools
Gain Assistant, Feedback Assistant and AMM.
USB & SD Recording
Multitrack recording and playback capabilities.
Remote Control
Mix wirelessly using CQ MixPad applications.
Technical Specifications
| Product Type | Ultra-Compact Digital Mixing Console |
|---|---|
| Total Inputs | 12 Inputs |
| Mono Inputs | 10 Mono / Linkable Channels |
| Stereo Inputs | 3 Stereo Sources |
| Mic / Line Inputs | 5 x XLR Inputs + 5 x XLR/TRS Combo Inputs |
| Stereo Line Input | 2 x TRS Stereo Line Inputs |
| Main Outputs | 2 x Balanced XLR Outputs |
| Monitor Outputs | 6 x Balanced TRS Outputs |
| Headphone Output | Assignable Stereo Headphone Output |
| Sample Rate | 96kHz Processing |
| USB Audio Interface | 16 x 16 USB-B Multichannel Audio Interface |
| USB Recording | Stereo Recording & Playback |
| SD Recording | 16 x 16 Multitrack Recording & Playback |
| Bluetooth | Integrated Stereo Bluetooth Playback |
| Display | 7-inch Capacitive Touchscreen |
| Effects | 2 x Multi-FX Engines |
| Processing | EQ, Compression, Gate, Feedback Assistant, Automatic Mic Mixer |
| Mix Control | Quick Channel & Complete Channel Processing |
| Mute Groups | 4 Mute Groups |
| DCA Groups | 4 DCAs |
| Remote Control | CQ MixPad App (Windows, MacOS, iOS & Android) |
| Network Connection | RJ45 Network Port |
| Footswitch | Assignable Single/Dual Footswitch Input |
| Rack Mounting | Optional Rack Ear Kit Available |
| Power Supply | 12V DC External Power Supply |
| Dimensions (W x H x D) | 340 x 89 x 360mm |
| Weight | 3.5kg |
Ideal For
- Small Live Performances
- Bands & Musicians
- Home Recording
- Streaming & Podcasts
- Rehearsal Spaces
- Corporate Events
- Houses of Worship
- Speech Applications
- Mobile Sound Engineers
- Portable PA Systems
