ALLEN & HEATH SQ6 48 Channel 96kHz Digital Mixer 24 Onboard PreAmps

ALLEN & HEATH SQ-6 48 Channel 96kHz Digital Mixer 24 Onboard PreAmps

Product Description

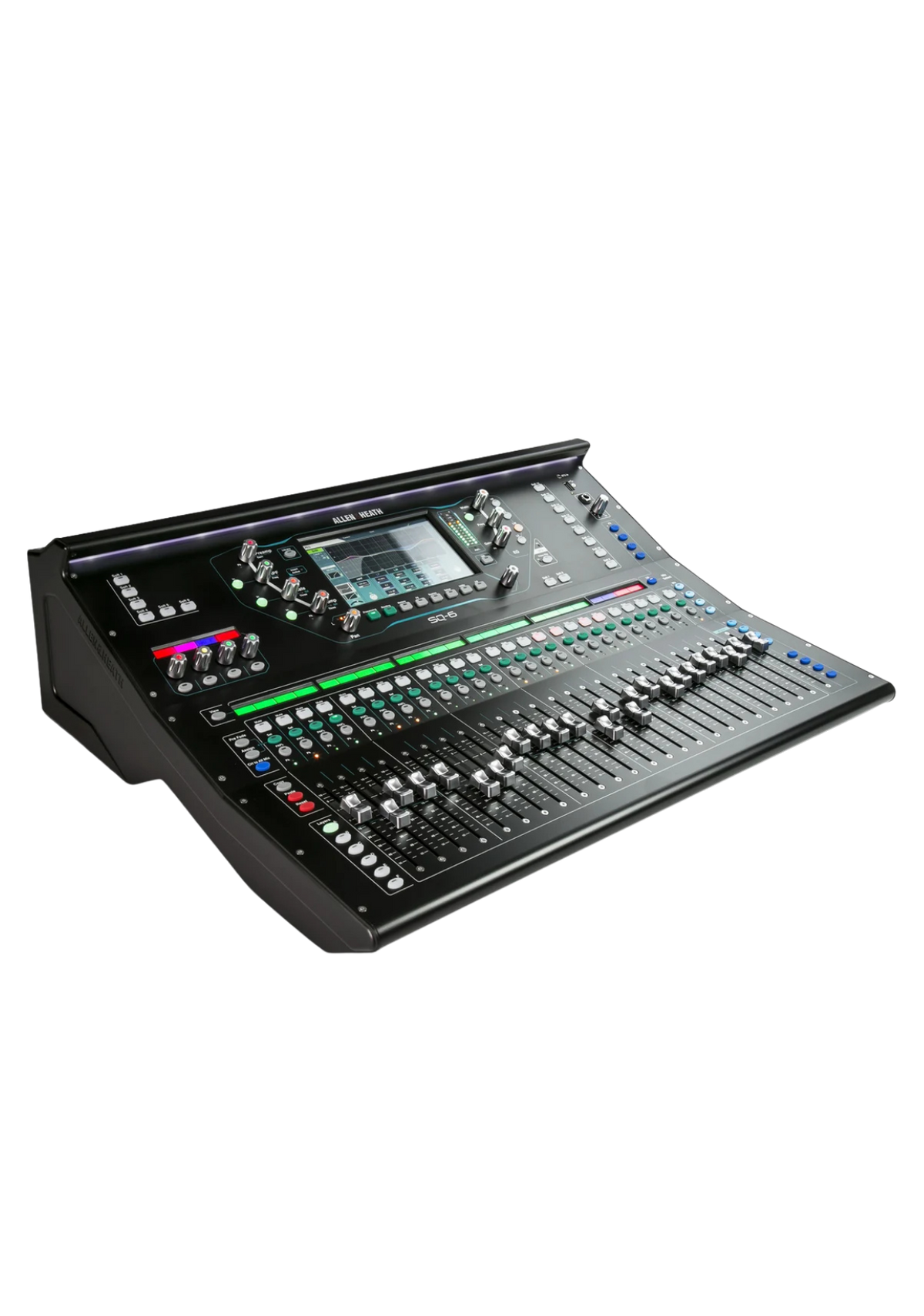

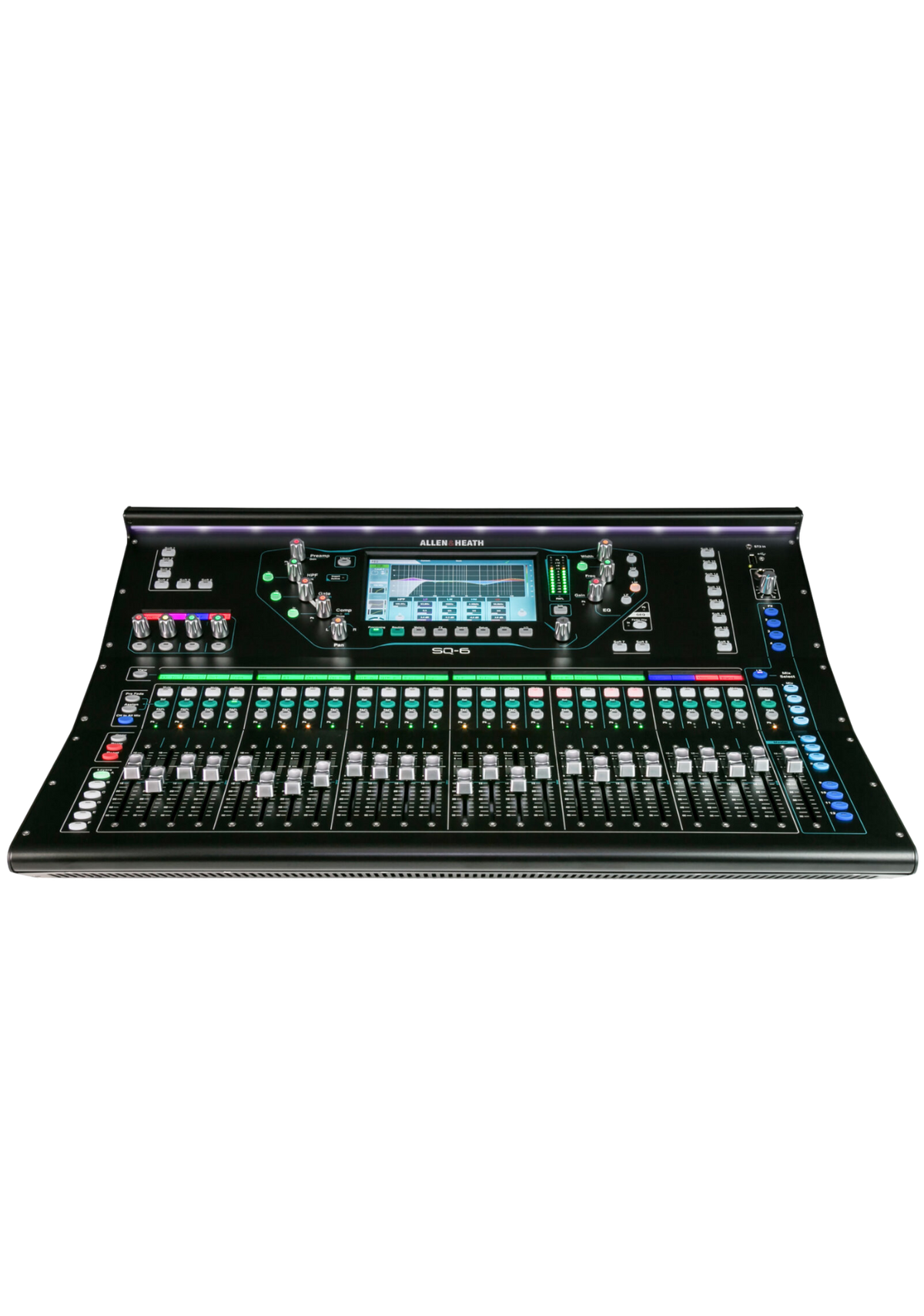

The Allen & Heath SQ-6 is a professional 48-channel, 96kHz digital mixing console designed for live sound, touring, theatres, houses of worship, broadcast, and AV installations. Powered by Allen & Heath's powerful XCVI FPGA processing engine, the SQ-6 delivers exceptional audio quality, ultra-low latency, and an intuitive workflow, making it the ideal solution for engineers who require premium performance in a compact format. (Allen & Heath)

Featuring 24 fully recallable onboard microphone preamps and 25 motorised faders across six layers, the SQ-6 provides the perfect balance between extensive local I/O and fast hands-on operation. The console includes eight RackExtra FX engines with dedicated stereo returns, DEEP Processing compatibility for premium compressor and preamp emulations, and a flexible routing architecture that easily adapts to live productions of any size. (Allen & Heath)

A responsive 7-inch capacitive touchscreen, assignable SoftKeys, dedicated processing controls, and comprehensive USB recording capabilities allow engineers to work quickly and efficiently in demanding environments. With SLink expansion, audio networking support, and Allen & Heath's Everything I/O ecosystem, the SQ-6 is equally suited to portable sound systems and permanent installations. (Allen & Heath)

Key Features

• 48 input channels with 96kHz XCVI FPGA processing

• 24 fully recallable onboard microphone preamps

• 25 motorised faders across 6 layers

• 8 RackExtra FX engines with dedicated stereo returns

• DEEP Processing ready for premium compressor and preamp models

• 7" capacitive touchscreen with intuitive workflow

• Ultra-low latency of less than 0.7ms

• 32×32 USB audio interface for recording and playback

• SQ-Drive direct USB recording

• SLink expansion for remote I/O and audio networking

Specifications

• Mixer Type: Digital Live Mixing Console

• Input Channels: 48

• Microphone Preamps: 24 Recallable Onboard Preamps

• Processing Engine: XCVI FPGA

• Sample Rate: 96kHz

• Latency: <0.7ms

• Faders: 25 x 100mm Motorised Faders

• Touchscreen: 7" Capacitive Touch Display

• Effects Processing: 8 Stereo RackExtra FX Engines

• DEEP Processing: Ready

• Mix Busses: 36

• USB Audio Interface: 32 x 32 @ 96kHz

• USB Recording: SQ-Drive Direct Recording

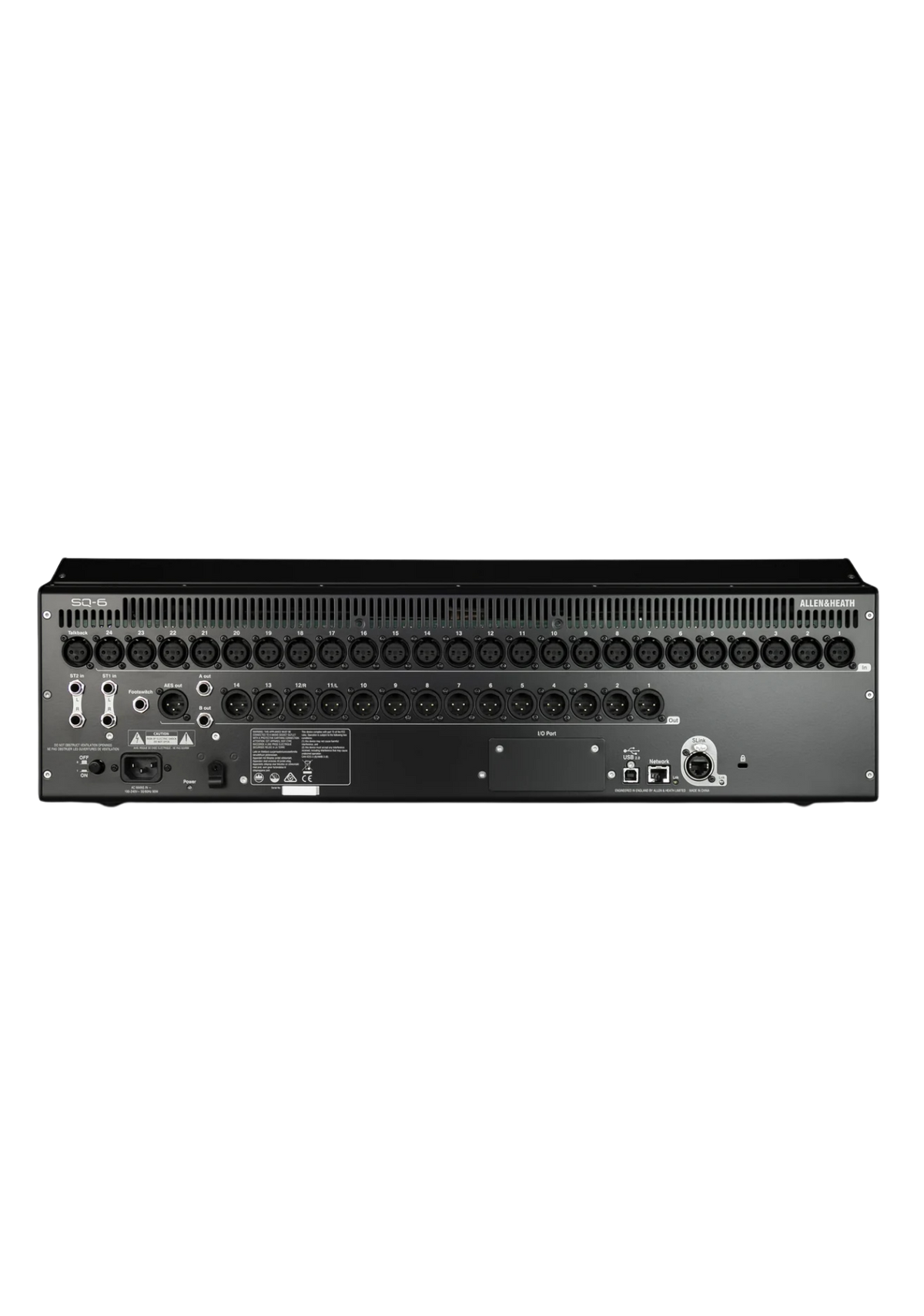

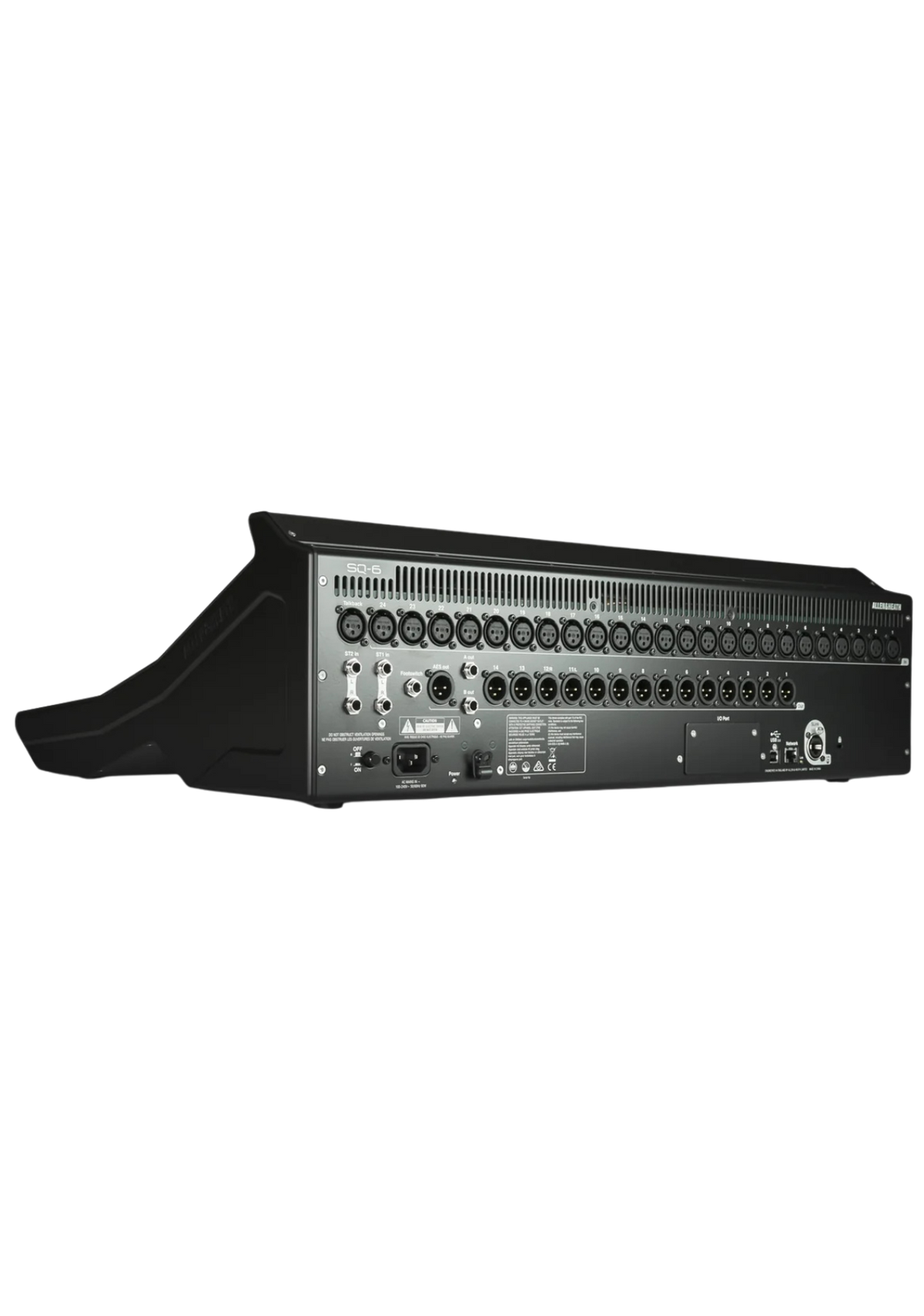

• Local Inputs: 24 XLR Mic Inputs + Stereo Line Inputs

• Local Outputs: 16 Analogue Outputs (14 XLR + 2 TRS)

• AES Output: Yes

• Expansion: 128×128 SLink Port + 64×64 Option Card Slot

• Remote Control: SQ MixPad, SQ4You & SQ Control Apps

• Power Supply: Internal Universal PSU

• Weight: Approx. 13.5kg

• Dimensions (W x D x H): 638 x 514.9 x 198mm (Allen & Heath)

Ideal For

• Professional Live Sound Engineers

• Touring Productions

• Music Venues

• Theatre Productions

• Houses of Worship

• Broadcast & Streaming

• Corporate Events

• Rental & Hire Companies

• Education Facilities

• Professional AV Installations
