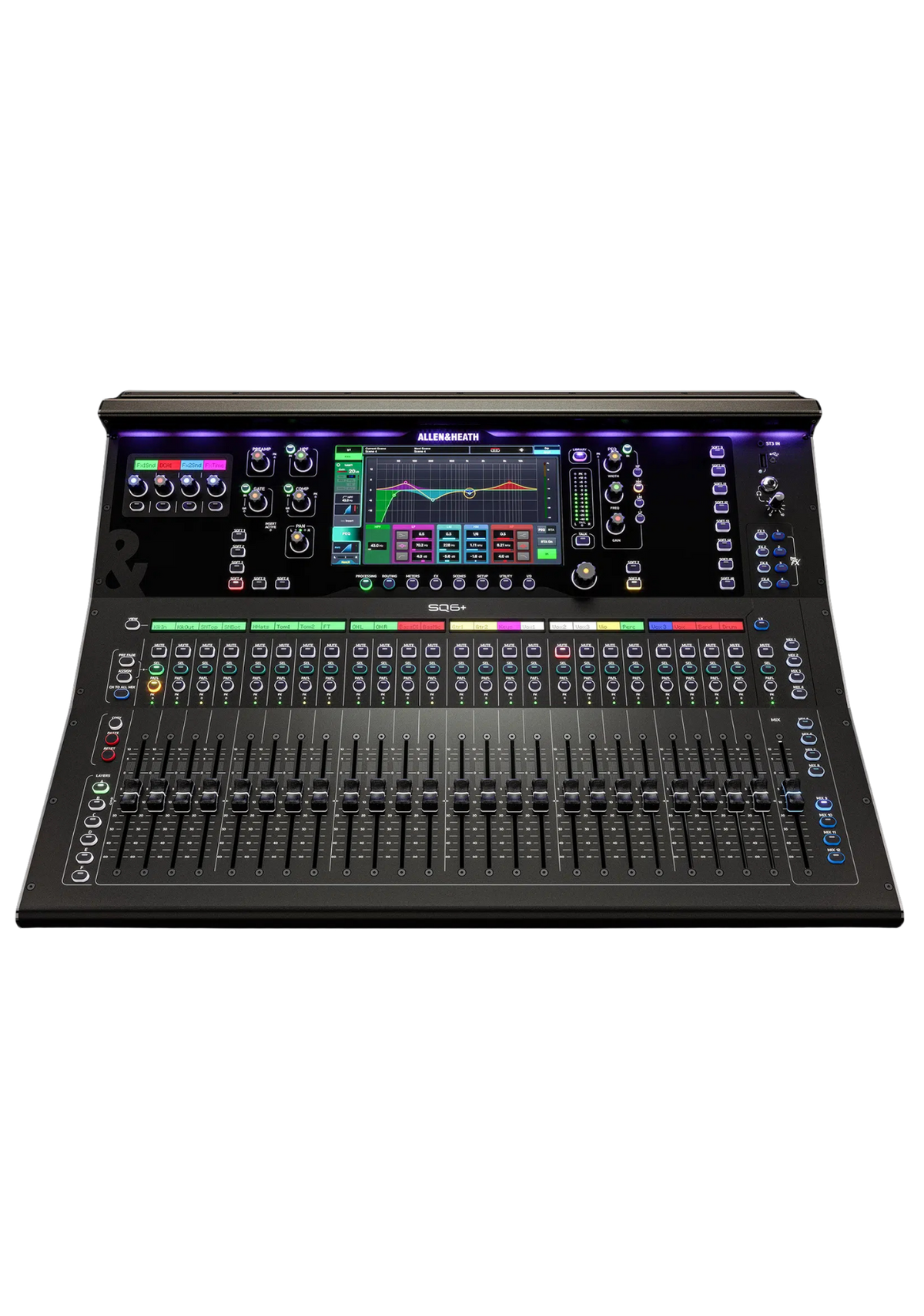

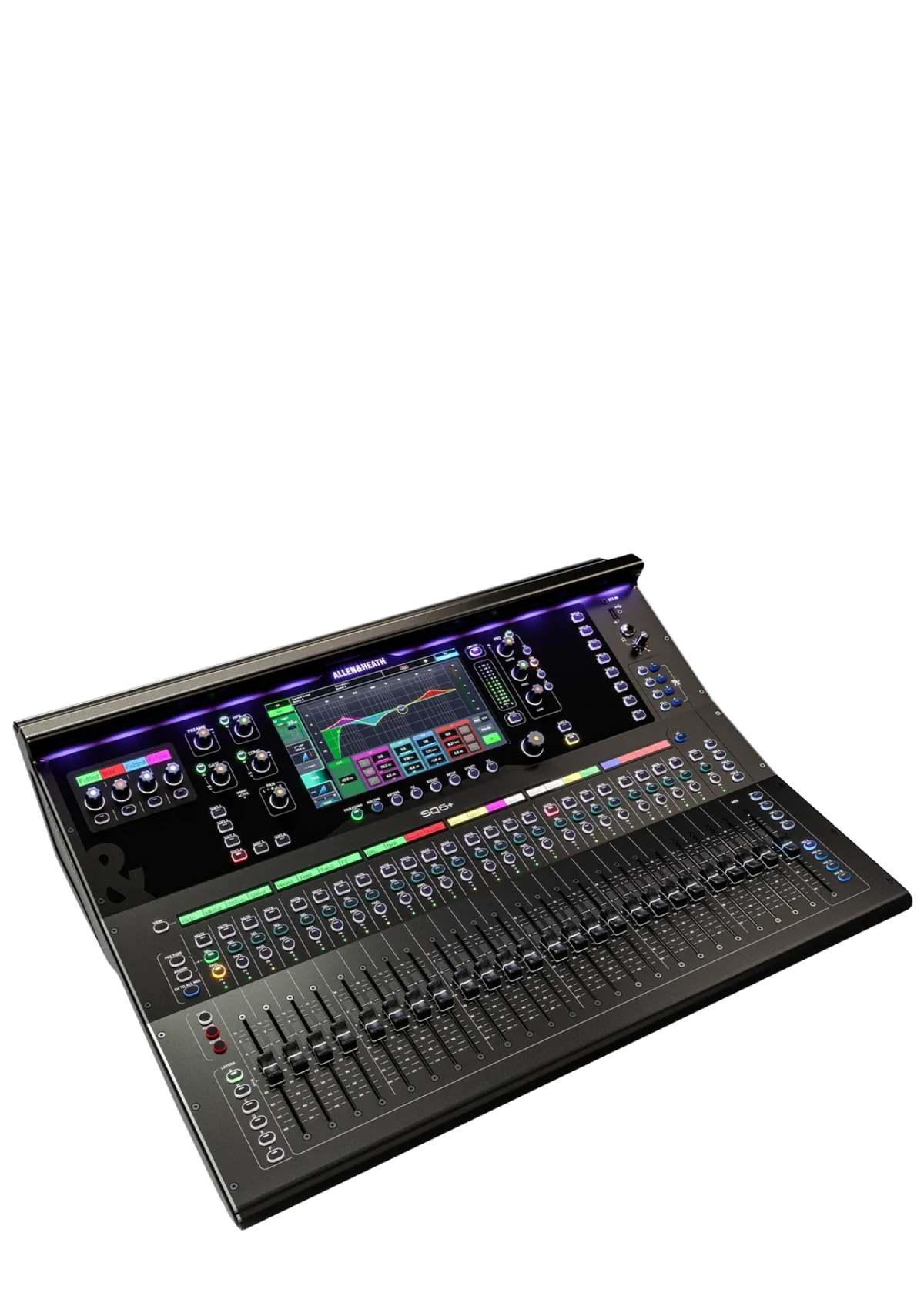

ALLEN & HEATH SQ6+ 48 Channel 96kHz Digital Mixer 24 PreAmps / 4 RackUltraFX

ALLEN & HEATH SQ-6+ 48 Channel 96kHz Digital Mixer 24 PreAmps / DEEP Processing / RackUltra FX

Product Description

The Allen & Heath SQ-6+ is a professional 48-channel 96kHz digital mixer engineered to deliver exceptional audio quality, advanced processing, and intuitive workflow for live sound, broadcast, corporate events, theatres, houses of worship, and professional AV installations. Built on Allen & Heath's renowned XCVI FPGA processing platform, the SQ-6+ provides ultra-low latency, outstanding clarity, and extensive processing power, making it an ideal solution for demanding audio professionals.

Featuring 24 premium recallable microphone preamps, the SQ-6+ offers pristine audio capture with exceptional headroom and low noise performance. Its enhanced processing capabilities include DEEP Processing integration and RackUltra FX, delivering premium studio-quality compressors, preamps, EQ models, reverbs, delays, modulation effects, and dynamics directly within the console without compromising channel count or DSP resources.

The SQ-6+ features a highly responsive 10.1-inch capacitive touchscreen, dedicated rotary controls, customisable SoftKeys, and motorised faders, allowing engineers to work quickly and efficiently in fast-paced live environments. Expandable via Allen & Heath's Everything I/O ecosystem, the SQ-6+ supports remote audio networking and scalable stagebox configurations, making it equally suited to portable productions and permanent installations.

Designed with Allen & Heath's renowned reliability and intuitive interface, the SQ-6+ delivers premium sound quality, flexible routing, comprehensive processing, and future-ready expansion for professional live mixing applications.

Key Features

• 48 input channels with 96kHz XCVI FPGA processing

• 24 fully recallable high-performance microphone preamps

• DEEP Processing integration with premium compressor and preamp models

• RackUltra FX suite with studio-quality effects processing

• 10.1" capacitive touchscreen with intuitive user interface

• 25 motorised 100mm faders arranged across 6 layers

• Ultra-low latency (<0.7ms) for live sound applications

• Extensive routing, groups, matrices and DCAs

• Built-in multitrack USB recording and playback

• Expandable with Allen & Heath Everything I/O stageboxes and networking

Specifications

• Mixer Type: Digital Live Mixing Console

• Input Channels: 48

• Microphone Preamps: 24 Recallable Preamps

• Processing Engine: XCVI FPGA

• Sample Rate: 96kHz

• Latency: <0.7ms

• Faders: 25 x 100mm Motorised Faders

• Touchscreen: 10.1" Capacitive Touch Display

• DEEP Processing: Yes

• RackUltra FX: Integrated

• Mix Outputs: 16 XLR Outputs

• Stereo Mix: LR Main Output

• USB Audio Interface: 32 x 32 USB

• AES Output: Yes

• Expansion Port: SLink for Everything I/O

• Remote Control: Compatible with SQ apps and network control

• Power Supply: Internal Universal PSU

• Weight: Approx. 13kg

• Dimensions (W x D x H): 638 x 514.9 x 198mm

Ideal For

• Professional Live Sound Engineers

• Touring Productions

• Houses of Worship

• Theatres & Performing Arts Venues

• Broadcast & Streaming

• Corporate Events

• Rental & Hire Companies

• Music Venues

• Education Facilities

• Professional AV Installations
