ALLEN & HEATH SQ7 48 Channel 96KHz Digital Mixer 32 Onboard PreAmps (IPADS NOT INCLUDED)

ALLEN & HEATH SQ-7 48 Channel 96kHz Digital Mixer 32 Onboard PreAmps (iPads Not Included)

Product Description

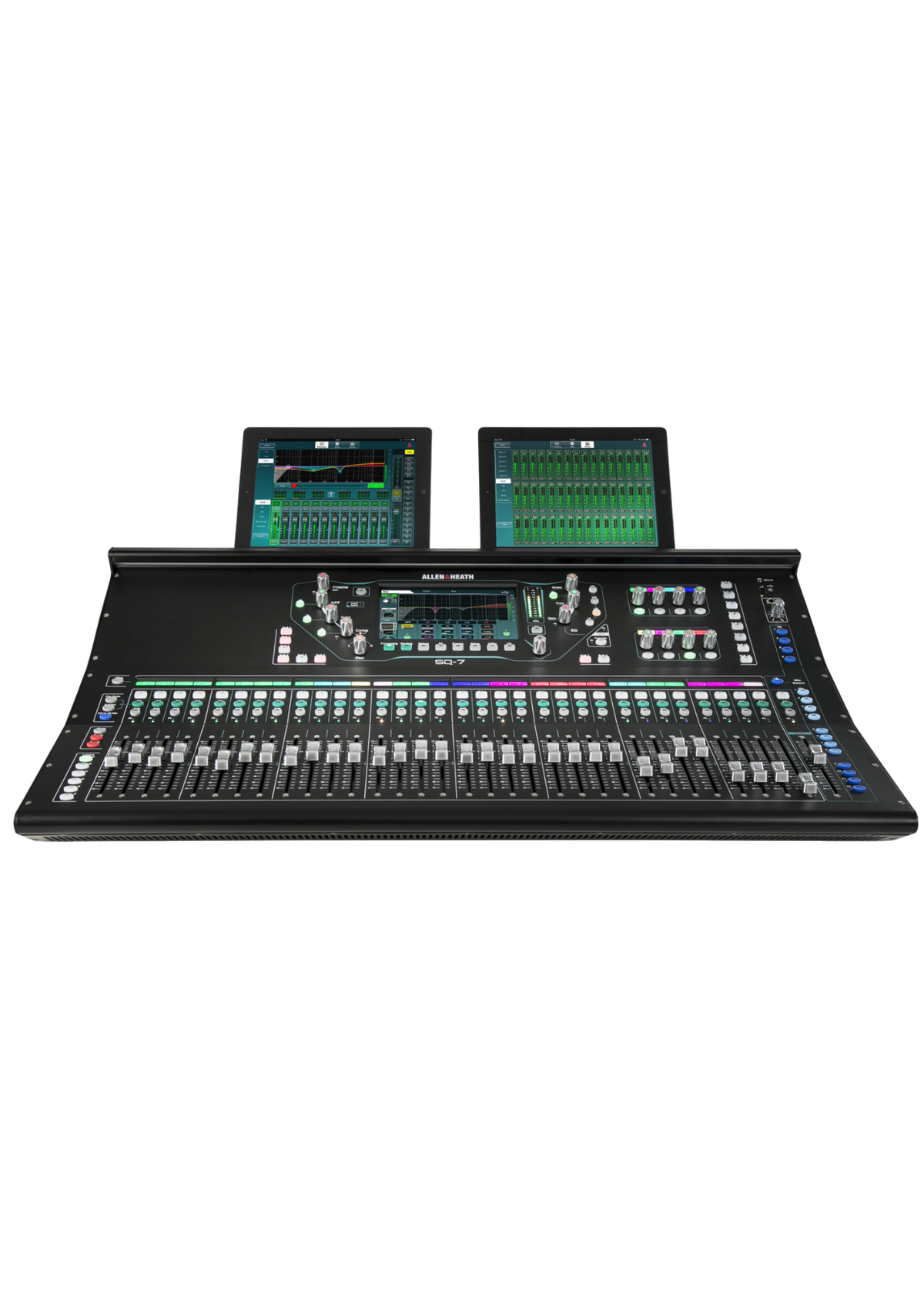

The Allen & Heath SQ-7 is the flagship model in the acclaimed SQ Series, offering a powerful 48-channel, 96kHz digital mixing platform designed for professional live sound, theatre, broadcast, houses of worship, touring, and AV installations. Powered by Allen & Heath's XCVI FPGA processing engine, the SQ-7 delivers exceptional audio quality with ultra-low latency, extensive routing capabilities, and intuitive hands-on control for demanding production environments. (Allen & Heath)

Featuring 32 onboard, fully recallable microphone preamps and an expansive 33-fader control surface, the SQ-7 provides ample local connectivity while maintaining fast and efficient workflow. The console supports DEEP Processing, allowing users to add premium compressor and preamp emulations, while the integrated RackExtra FX suite delivers professional-quality reverbs, delays, modulation, and dynamics processing without sacrificing input channels. (Allen & Heath)

Its 7-inch capacitive touchscreen, assignable SoftKeys, Soft Rotaries, and flexible channel layout enable engineers to customise the console to suit any application. Built-in USB multitrack recording, SLink expansion, and optional audio networking cards make the SQ-7 equally at home in portable productions, permanent installations, and large-scale touring systems.

Combining premium sound quality, extensive onboard I/O, expandable architecture, and Allen & Heath's renowned reliability, the SQ-7 is an outstanding digital mixing solution for professional audio applications.

Key Features

• 48 input channels with 96kHz XCVI FPGA processing

• 32 fully recallable onboard microphone preamps

• 33 motorised faders across 6 layers

• DEEP Processing ready for premium compressor and preamp models

• RackExtra FX suite with 8 stereo effects engines

• 7" capacitive touchscreen with intuitive workflow

• Ultra-low latency of less than 0.7ms

• 32×32 USB audio interface for recording and playback

• SLink expansion for Allen & Heath stageboxes and remote I/O

• Compatible with optional Dante, Waves, and MADI networking cards (Allen & Heath)

Specifications

• Mixer Type: Digital Live Mixing Console

• Input Channels: 48

• Microphone Preamps: 32 Recallable Onboard Preamps

• Processing Engine: XCVI FPGA

• Sample Rate: 96kHz

• Latency: <0.7ms

• Faders: 33 x 100mm Motorised Faders

• Touchscreen: 7" Capacitive Touch Display

• Effects Processing: 8 Stereo RackExtra FX Engines

• DEEP Processing: Ready

• Mix Busses: 36

• USB Audio Interface: 32 x 32

• USB Recording: SQ-Drive Direct Recording

• Local Outputs: 16 XLR + 2 TRS Outputs

• AES Output: Yes

• Expansion: SLink Port + 64×64 Option Card Slot

• Remote Control: SQ MixPad, SQ4You & SQ Control Apps

• Power Supply: Internal Universal PSU

• Weight: Approx. 17.8kg

• Dimensions (W x D x H): 819 x 514.9 x 198mm (Allen & Heath)

Ideal For

• Professional Live Sound Engineers

• Touring Productions

• Music Venues

• Theatre Productions

• Houses of Worship

• Broadcast & Streaming

• Corporate Events

• Rental & Hire Companies

• Education Facilities

• Professional AV Installations

Note: iPads shown in promotional images are for demonstration purposes only and are not included with the mixer.
