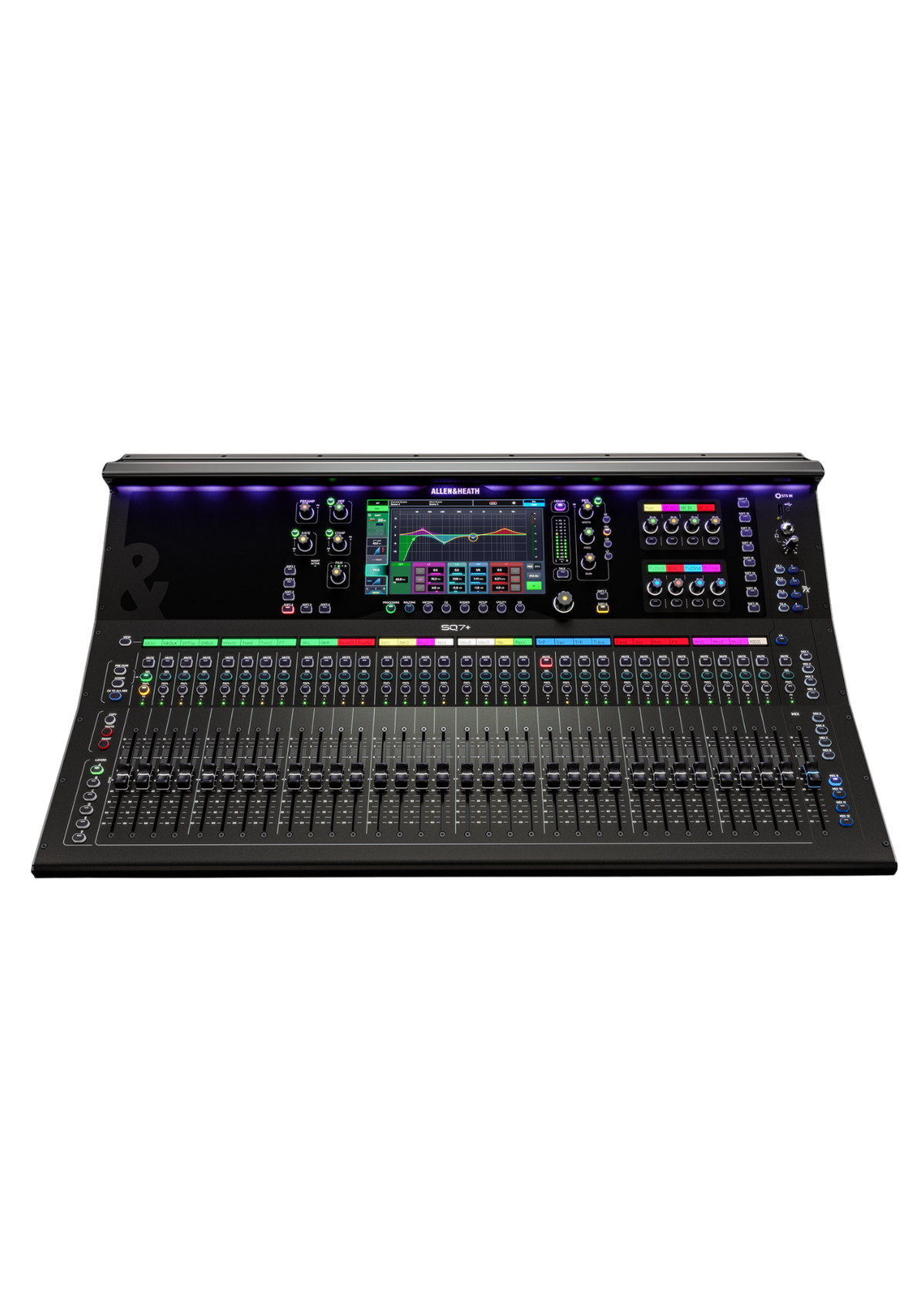

ALLEN & HEATH SQ-7+ 48 Channel 96kHz Digital Mixer 32 PreAmps / 4 RackUltra FX

Product Description

The Allen & Heath SQ-7+ is the flagship console in the latest SQ+ Series, delivering a powerful 48-channel, 96kHz digital mixing platform with enhanced processing, an upgraded user interface, and premium RackUltra FX for the most demanding live sound applications. Built around Allen & Heath's renowned XCVI FPGA processing core, the SQ-7+ combines ultra-low latency, exceptional audio quality, and intuitive operation, making it the ideal choice for touring productions, theatres, broadcast, houses of worship, rental companies, and large-scale AV installations. (Allen & Heath)

Equipped with 32 fully recallable microphone preamps and 33 motorised faders, the SQ-7+ offers extensive onboard connectivity and precise hands-on control. The upgraded 9-inch capacitive touchscreen with a redesigned dark user interface provides faster navigation and improved visibility in any venue, while DEEP Processing support allows premium analogue-inspired compressor and preamp emulations to run directly within every channel. (Allen & Heath)

Exclusive to the SQ+ range, four dedicated RackUltra FX engines deliver flagship dLive-quality reverbs, vocal processing, saturation, pitch effects and more, alongside the existing eight RackExtra FX engines for maximum creative flexibility. Built-in USB recording, SLink expansion, and optional audio networking ensure the SQ-7+ is ready for both portable productions and permanent installations. (Allen & Heath)

Key Features

• 48 input channels with 96kHz XCVI FPGA processing

• 32 fully recallable microphone preamps

• 4 dedicated RackUltra FX engines

• 8 RackExtra FX engines with dedicated stereo returns

• DEEP Processing support with premium processing models

• 9" capacitive touchscreen with redesigned dark interface

• 33 motorised 100mm faders across 6 layers

• Ultra-low latency of less than 0.7ms

• 32×32 USB audio interface for recording and playback

• 128×128 SLink expansion for Everything I/O stageboxes and networking

Specifications

• Mixer Type: Digital Live Mixing Console

• Input Channels: 48

• Microphone Preamps: 32 Recallable Onboard Preamps

• Processing Engine: XCVI FPGA Core

• Sample Rate: 96kHz

• Latency: <0.7ms

• Faders: 33 x 100mm Motorised Faders

• Touchscreen: 9" Capacitive Touch Display

• DEEP Processing: Yes

• RackExtra FX: 8 Stereo FX Engines

• RackUltra FX: 4 Dedicated FX Engines

• Mix Outputs: 12 Stereo Mixes + LR

• Matrix Outputs: 6 Mono / 3 Stereo

• USB Audio Interface: 32 x 32 @ 48/96kHz

• USB Recording: 16 Channels @ 96kHz / 32 Channels @ 48kHz

• Local Inputs: 32 XLR Mic/Line Inputs

• Local Outputs: 16 XLR Outputs + 2 TRS Outputs

• AES Output: Yes

• Expansion: 128×128 SLink Port + Option Card Slot

• Remote Control: Windows, macOS, iOS & Android Apps

• Power Supply: Internal Universal PSU

• Weight: Approx. 17.8kg

• Dimensions (W x D x H): 819 x 514.9 x 198mm (Allen & Heath)

Ideal For

• Professional Live Sound Engineers

• Touring Productions

• Concert Venues

• Theatre Productions

• Houses of Worship

• Broadcast & Streaming

• Corporate Events

• Rental & Hire Companies

• Education Facilities

• Professional AV Installations
