ELECTRO-VOICE ELX200-12P 12" 2-Way Class D Active Speaker 1200W Black
ELECTRO-VOICE ELX200-12P 12" 2-Way Class D Active Speaker 1200W Black
Couldn't load pickup availability
ELECTRO-VOICE ELX200-12P 12" 2-Way Class D Active Speaker 1200W Black
Product Overview

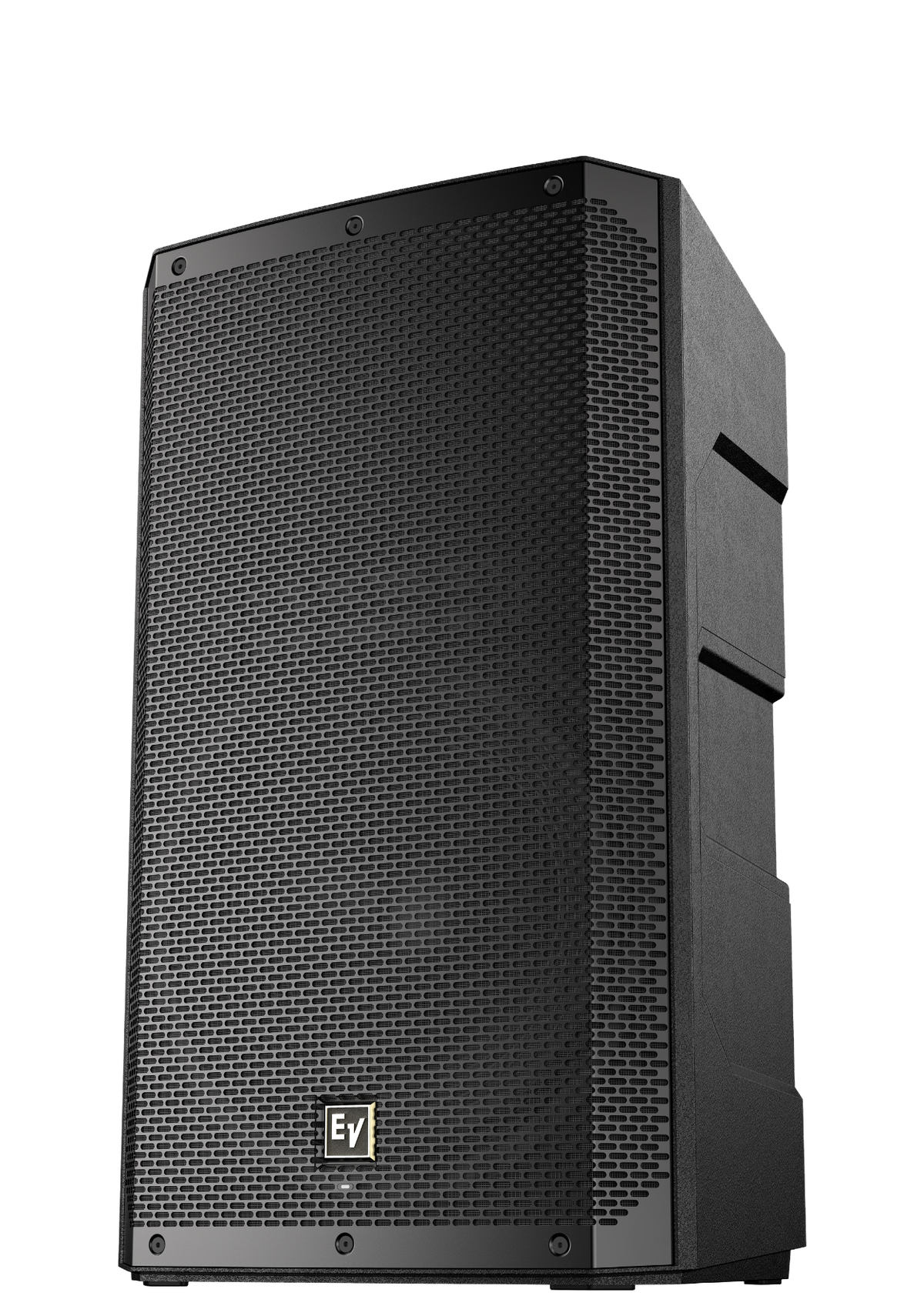

The Electro-Voice ELX200-12P is a professional 12-inch 2-way powered loudspeaker designed for live performances, mobile DJs, musicians, events, installations, and portable PA systems. Featuring a powerful 1200W Class-D amplifier, professional Electro-Voice transducers, and advanced QuickSmart DSP, the ELX200-12P delivers high-output performance with exceptional clarity and reliability.
Equipped with an EVS-12M 12-inch woofer and DH-1L titanium compression driver, the ELX200-12P provides balanced low-frequency response, clear vocals, and detailed high-frequency reproduction. The integrated DSP system includes presets, EQ control, crossover options, limiter monitoring, and professional system optimisation.

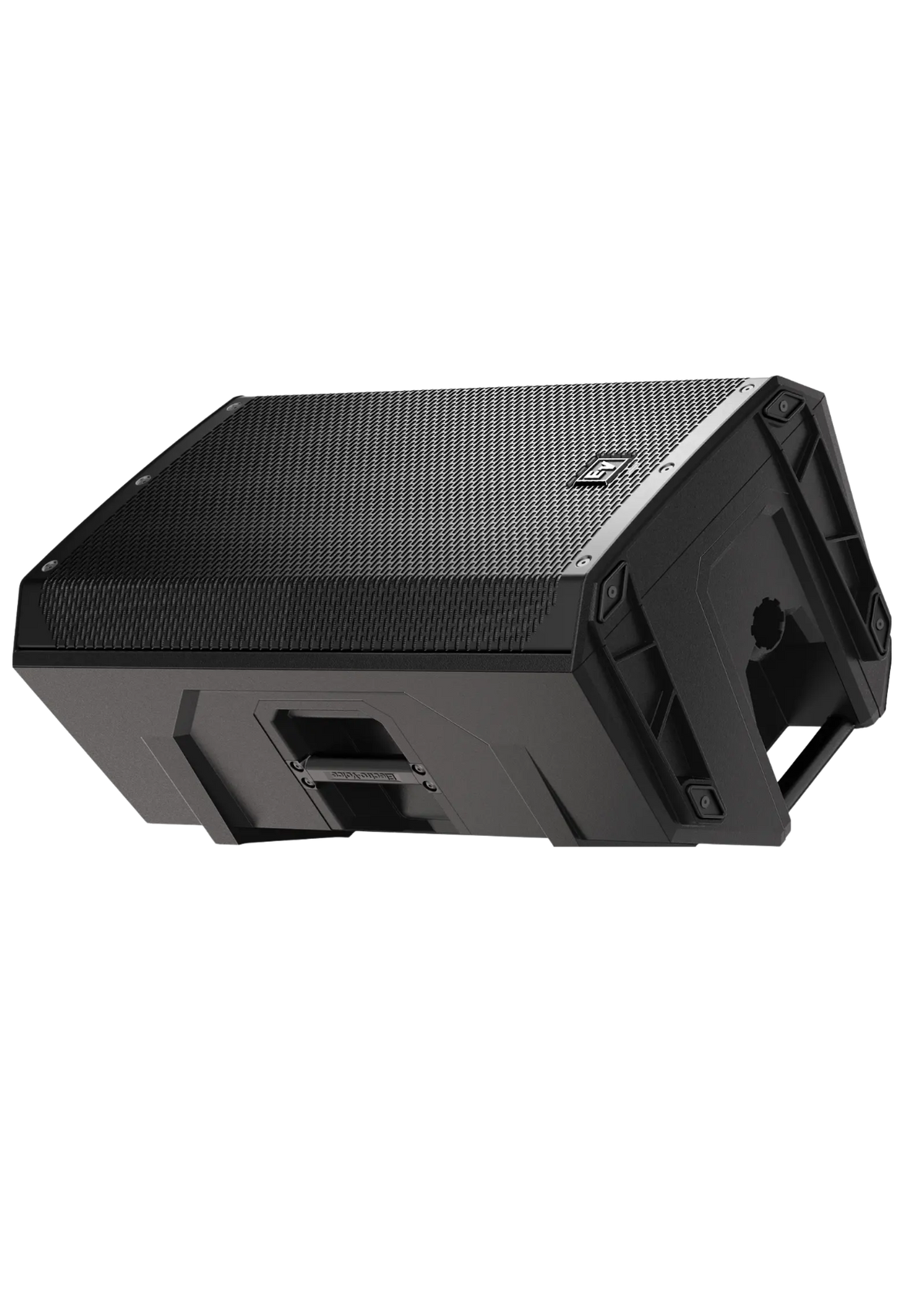

Designed for portable and installed applications, the ELX200-12P features a lightweight polypropylene enclosure, rugged steel grille, multiple mounting points, pole mount capability, and QuickSmart Mobile control for convenient setup and adjustment.
Key Features
12" Two-Way System
Professional full-range speaker design with EV transducers.
1200W Class-D Amplifier
High-efficiency amplification for powerful live performance.
QuickSmart DSP
Advanced DSP with presets, EQ and system monitoring.
EVS-12M Woofer
12-inch low-frequency driver for strong and controlled bass.
DH-1L Compression Driver
Titanium high-frequency driver for clear vocal detail.
Portable Professional Design
Lightweight cabinet with pole mount and suspension options.
Technical Specifications
| Product Type | Active 2-Way Full Range Loudspeaker |
|---|---|
| Woofer Size | 12" EVS-12M Low Frequency Driver |
| High Frequency Driver | 1" DH-1L Titanium Compression Driver |
| Amplifier Type | Class-D Integrated Amplifier |
| Power Rating | 1200W |
| Frequency Response | 57Hz - 16kHz (-3dB) |
| Frequency Range | 51Hz - 20kHz (-10dB) |
| Maximum SPL | 130dB |
| Coverage Pattern | 90° x 60° |
| Crossover Frequency | 1700Hz |
| DSP Processing | QuickSmart DSP with Presets, EQ, Crossover and Limiter Monitoring |
| Speaker Presets | Music / Live / Speech / Club |
| Wireless Control | QuickSmart Mobile Bluetooth Low Energy Control |
| Inputs |
2 x XLR/TRS Combo Inputs 1 x Stereo RCA Input |
| Output | 1 x XLR Link Output |
| Enclosure Material | Polypropylene Composite Cabinet |
| Grille | 18 AWG Steel Powder-Coated Grille |
| Mounting | 35mm Pole Mount + 3 x M10 Suspension Points |
| Power Supply | 100-240V AC, 50-60Hz |
| Dimensions (H x W x D) | 629 x 363 x 344mm |
| Weight | 15.6kg |
| Colour | Black |
Ideal For
- Mobile DJs
- Live Bands
- Wedding Events
- Corporate Presentations
- Concert Events
- Houses of Worship
- Education Facilities
- Portable PA Systems
- Stage Monitoring
- Professional Installations
