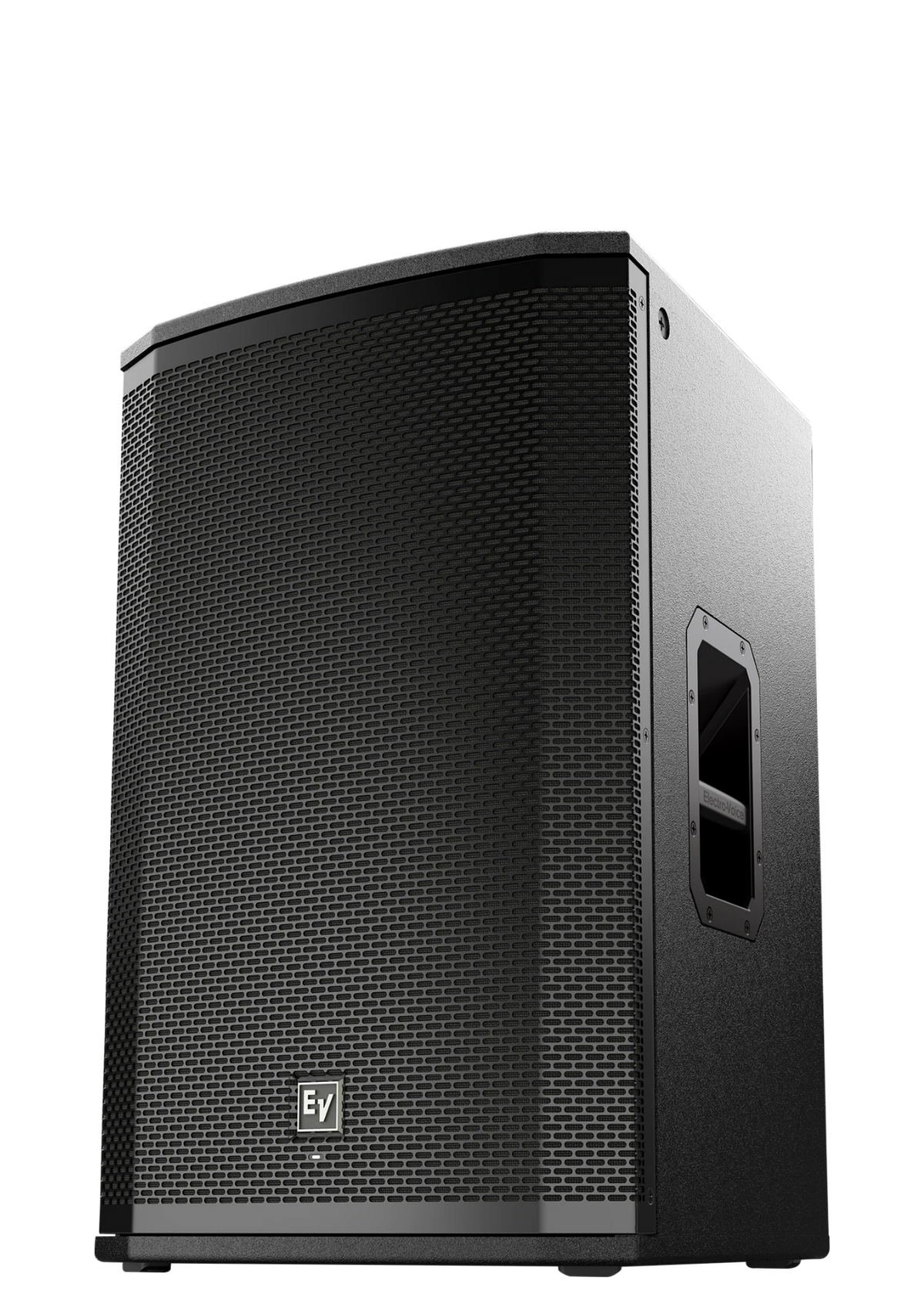

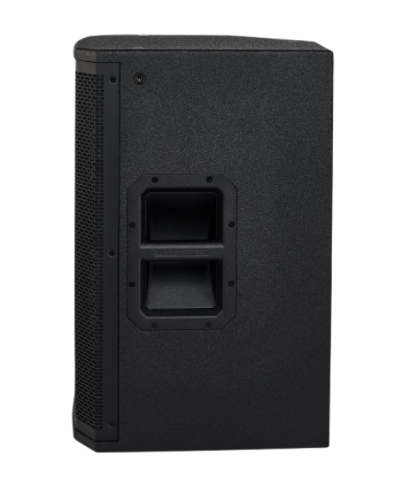

ELECTRO-VOICE ETX12P 12" 2000w Birch-Ply Active Speaker
ELECTRO-VOICE ETX12P 12" 2000w Birch-Ply Active Speaker
Couldn't load pickup availability
ELECTRO-VOICE ETX12P 12" 2000W Birch-Ply Active Speaker
Product Overview
The Electro-Voice ETX12P is a premium professional 12-inch powered loudspeaker designed for live performances, mobile DJs, touring systems, installations, and high-performance portable PA applications. Featuring a powerful 2000W Class-D amplifier, advanced FIR-Drive DSP processing, and professional Electro-Voice transducers, the ETX12P delivers exceptional clarity, high output, and reliable performance.
Equipped with an SMX2120 12-inch low-frequency woofer and DH3-B titanium compression driver, the ETX12P provides powerful bass response, accurate midrange reproduction, and detailed high frequencies. Integrated FIR-Drive DSP technology provides system optimisation, presets, crossover control, and precise loudspeaker management.
Built with a professional 18mm birch plywood enclosure, EVCoat protective finish, steel grille, and multiple M10 suspension points, the ETX12P is designed for demanding applications including touring productions, corporate events, venues, DJs, and professional sound reinforcement.
Key Features
12" Two-Way System
Professional full-range speaker design with powerful output.
2000W Class-D Amplifier
High-efficiency amplification for professional sound applications.
FIR-Drive DSP
Advanced digital processing for accurate system optimisation.
SMX2120 Woofer
12-inch low-frequency driver delivering powerful controlled bass.
DH3-B Compression Driver
Titanium high-frequency driver for clear and detailed sound.
Birch-Ply Cabinet
Touring-grade plywood enclosure with EVCoat protective finish.
Technical Specifications
| Product Type | Active 2-Way Full Range Loudspeaker |
|---|---|
| Woofer Size | 12" SMX2120 Low Frequency Driver |
| High Frequency Driver | DH3-B 1.25" Titanium Compression Driver |
| Amplifier Type | Class-D Integrated Amplifier |
| Power Rating | 2000W |
| Frequency Response | 55Hz - 20kHz (-3dB) |
| Frequency Range | 43Hz - 20kHz (-10dB) |
| Maximum SPL | 135dB Peak |
| Coverage Pattern | 90° x 60° |
| Crossover Frequency | 1600Hz |
| DSP Processing | FIR-Drive DSP with Speaker Presets and System Optimisation |

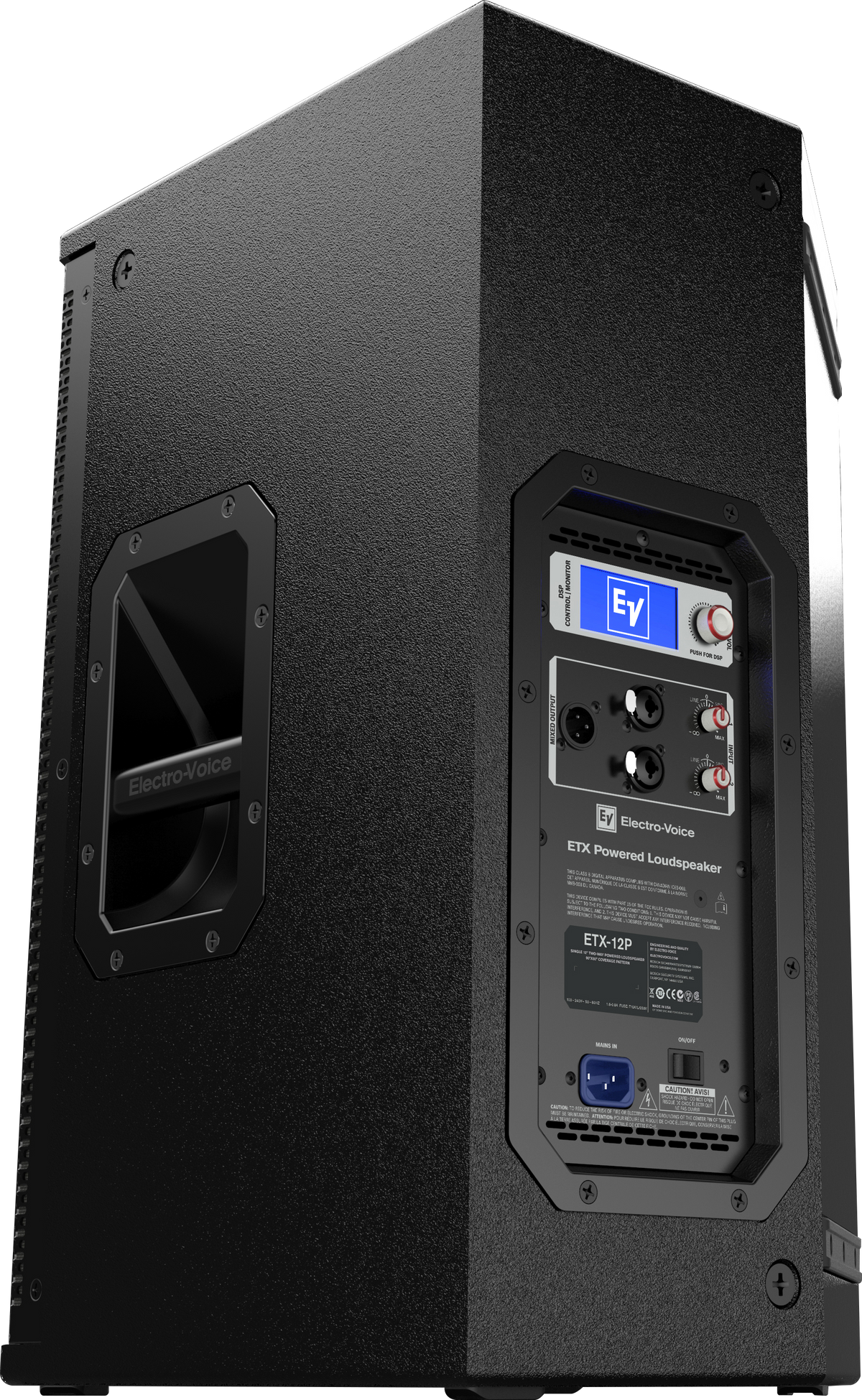

| Inputs | 2 x XLR/TRS Combo Inputs |
| Output | 1 x XLR Link Output |
| Enclosure Material | 18mm Birch Plywood with EVCoat Finish |
| Grille Material | 16 AWG Steel with Powder Coat Finish |
| Suspension | 8 x M10 Suspension Points |
| Power Supply | 100-240V AC, 50-60Hz |
| Dimensions (H x W x D) | 613 x 381 x 400mm |
| Weight | 23.6kg |
| Colour | Black |
Ideal For
- Mobile DJs
- Live Bands
- Touring Systems
- Corporate Events
- Concert Productions
- Professional Venues
- Houses of Worship
- Portable PA Systems
- Installations
- Premium Sound Reinforcement
