Electro-Voice

ELECTRO-VOICE EVOLVE 70 2,000 W Column Speaker System Ð black, DSP & Bluetooth, 15" Sub

ELECTRO-VOICE EVOLVE 70 2,000 W Column Speaker System Ð black, DSP & Bluetooth, 15" Sub

Regular price £2,199.98 GBP
Regular price Sale price £2,199.98 GBP
Sale Sold out
Taxes included.
Quantity

ELECTRO-VOICE EVOLVE 70 2,000W Column Speaker System - Black

Product Overview

The Electro-Voice EVOLVE 70 is a powerful professional column loudspeaker system designed for DJs, live performers, bands, production companies, event organisers, venues, and demanding portable PA applications. Combining a high-output 15-inch subwoofer with an eight-driver column array, the EVOLVE 70 delivers powerful low-frequency performance, wide coverage, exceptional clarity, and professional output in a highly portable three-piece system.

The column array features eight 4.7-inch neodymium drivers, providing consistent 120-degree horizontal coverage and an asymmetrical 25-degree vertical coverage pattern. Advanced FIR processing provides linear frequency response and phase alignment, while the 15-inch subwoofer extends the system's low-frequency response down to 35Hz.

With a 2,000W amplifier system, 133dB maximum SPL, integrated DSP, Bluetooth Stereo streaming, QuickSmart Link connectivity, and microphone, line-level and digital audio connections, the EVOLVE 70 provides a complete professional sound reinforcement solution. Its lightweight construction and EVOLVE 3-2-1 assembly system make setup and transportation fast and practical for mobile productions and events.

Key Features

2,000W Amplifier System

High-output amplification with dedicated 1,000W LF and 1,000W HF channels.

15" Subwoofer

High-output 15-inch woofer with a 3-inch voice coil for powerful and extended bass reproduction.

8 x 4.7" Neodymium Drivers

Column array provides clear, powerful mid/high-frequency reproduction with wide, consistent coverage.

133dB Maximum SPL

High acoustic output for larger events, live performances, venues and professional sound reinforcement.

Advanced FIR DSP Processing

Digital processing provides linear frequency response and precise phase alignment.

Bluetooth Stereo & QuickSmart Link

Wireless stereo streaming, TWS capability and professional system connectivity.

Technical Specifications

Product Type Powered Column Loudspeaker System
Model EVOLVE 70
Colour Black
Column Array 8 x 4.7" Neodymium Drivers
Subwoofer 1 x 15" Woofer
Subwoofer Voice Coil 3"
Amplifier Rating 2,000W
LF Channel Rating 1,000W
HF Channel Rating 1,000W
Frequency Response (-3dB) 40Hz - 18kHz
Frequency Range (-10dB) 35Hz - 20kHz
Maximum SPL 133dB
Coverage Pattern 120° Horizontal x 25° Vertical
Crossover Frequency 160Hz
DSP Processing Advanced FIR Processing, Linear Frequency Response, Phase Alignment, System DSP
System Control QuickSmart Mobile App, QuickSmart Link
Bluetooth Bluetooth Stereo Input with True Wireless Stereo

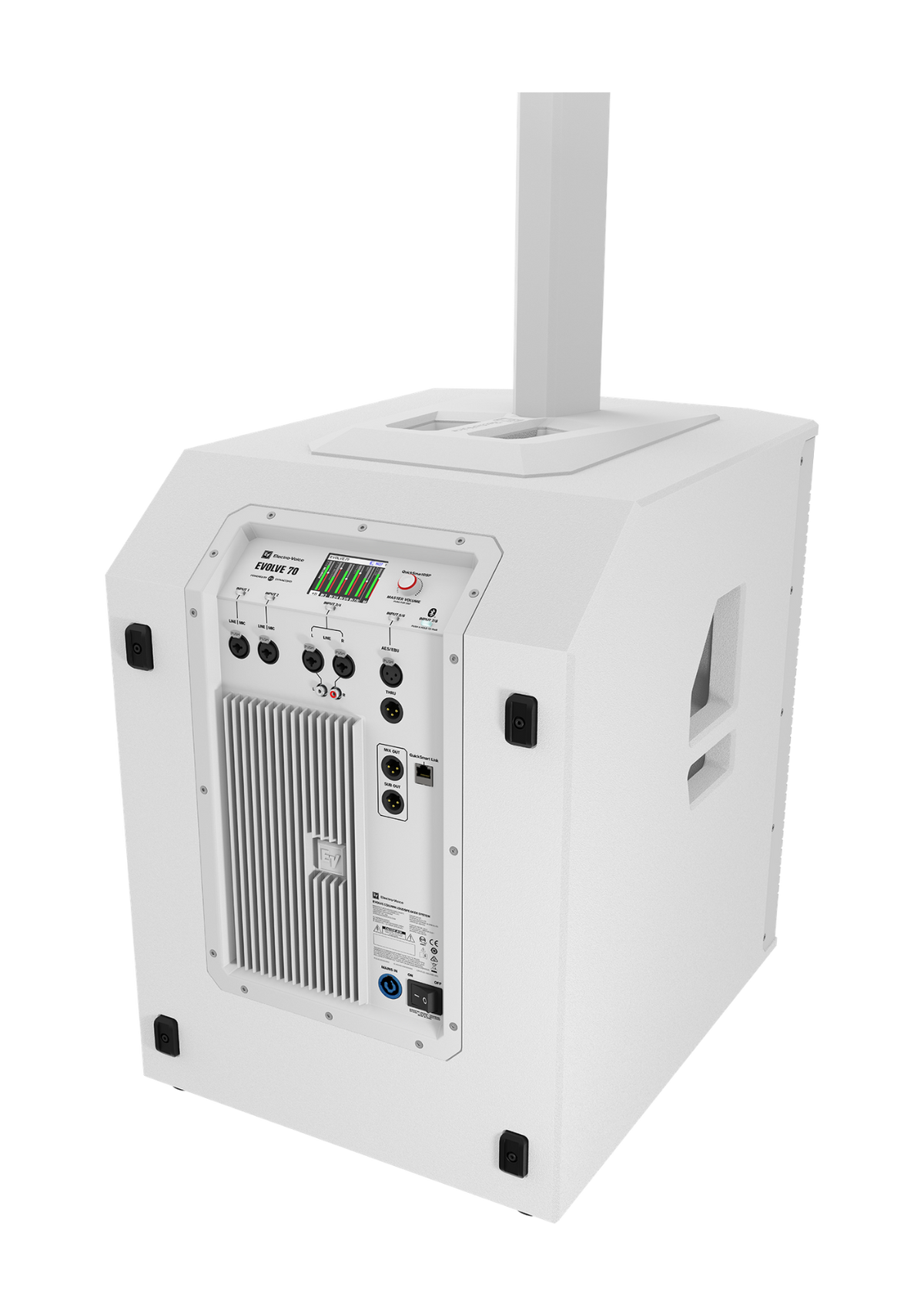

Microphone / Line Inputs 2 x XLR/TRS Combo Inputs with Switchable 48V Phantom Power
Stereo Line Input XLR/TRS Combo and Stereo RCA
Digital Input XLR AES/EBU Digital Input
AES/EBU Thru XLR AES/EBU Thru Output
Mix Output XLR Mix Out
Subwoofer Output XLR Sub Out
QuickSmart Link RJ45 QuickSmart Link Connector
Power Connector PowerCON
Power Supply 100 - 240VAC, 50 - 60Hz
Subwoofer Construction Plywood with Polyurea Coating
Column Construction Composite
Distance Pole Aluminium
Grille Steel with Black Powder-Coated Finish
System Assembly EVOLVE 3-2-1 Rapid Assembly System
Subwoofer Dimensions (H x W x D) 623 x 450 x 607mm
Column Dimensions (H x W x D) 1090.1 x 131.4 x 259mm
Distance Pole Dimensions (H x W x D) 745 x 66 x 95.8mm
Assembled Dimensions (H x W x D) 2259 x 450 x 607mm
Total Weight 35.5kg
Shipping Weight - Subwoofer 33kg
Shipping Weight - Column & Pole 11.4kg

Ideal For

  • Professional DJs
  • Live Performances
  • Live Bands
  • Wedding Events
  • Corporate Events
  • Production Companies
  • Event Organisers
  • Hotels & Venues
  • Restaurants & Bars
  • Mobile Entertainment
  • Portable PA Systems
  • Professional Sound Reinforcement
