RCF F10XR 10-Channel Analogue Multi-FX Mixer 4xMic / 2xMono / 4xStereo-In
Product Overview

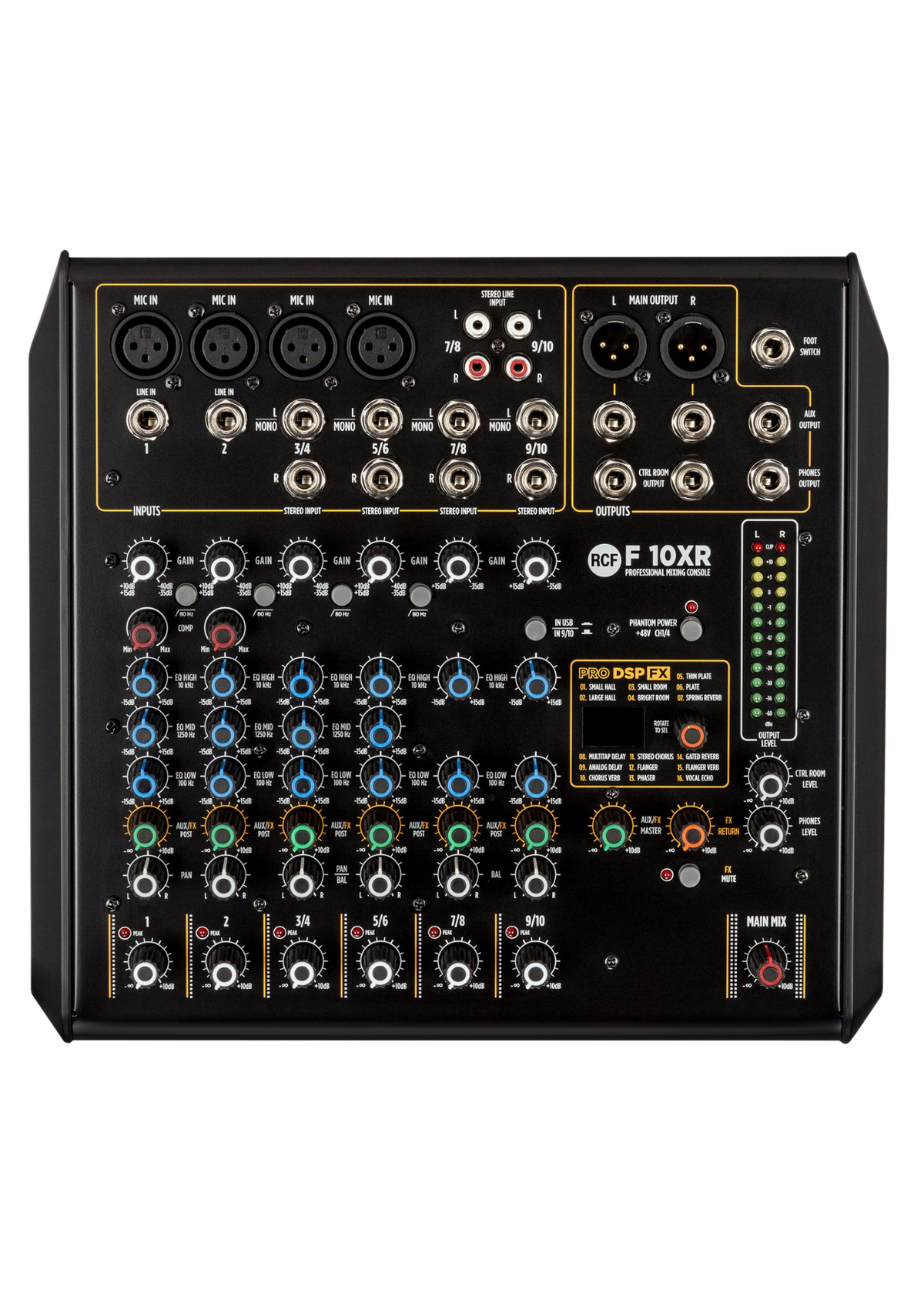

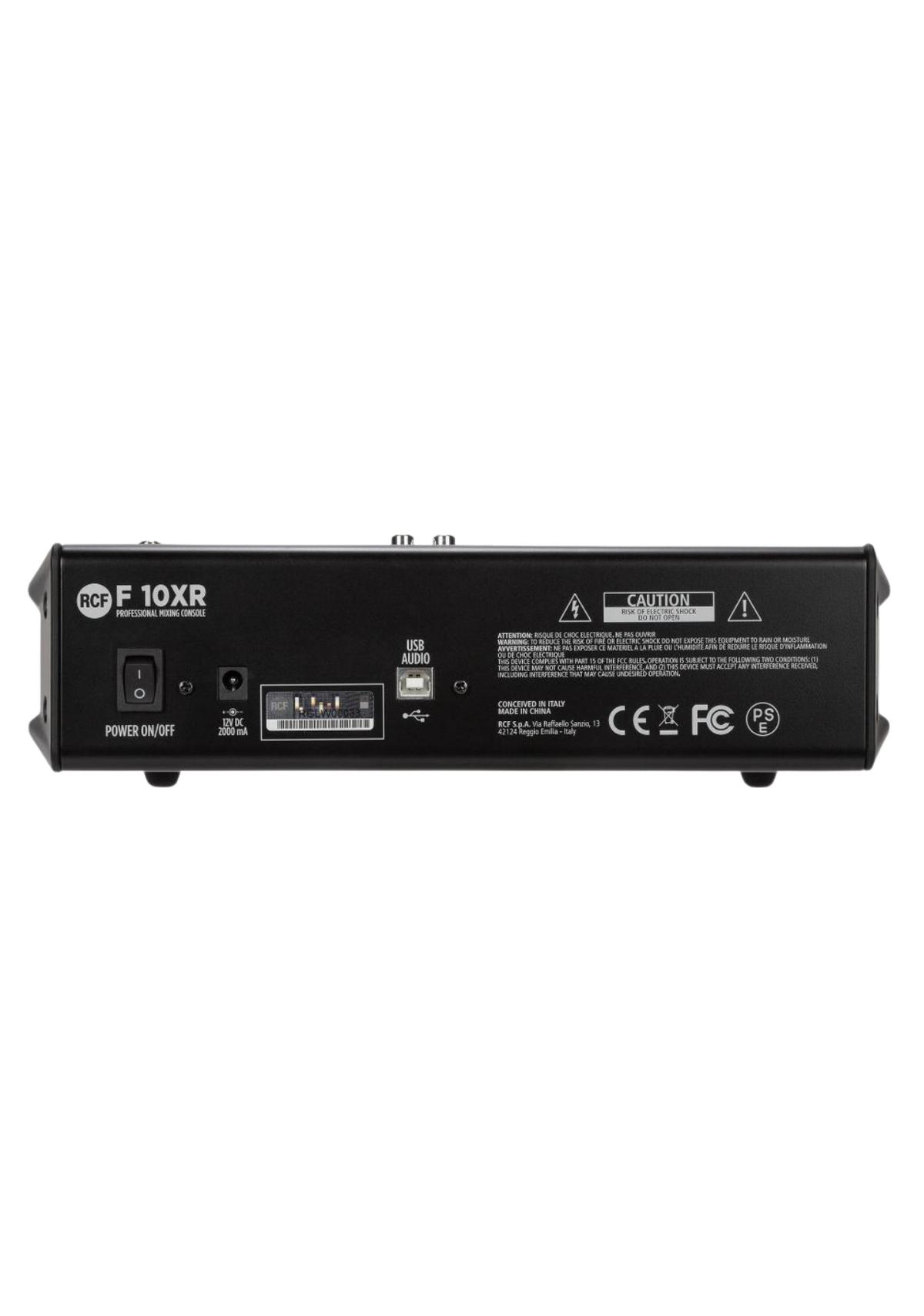

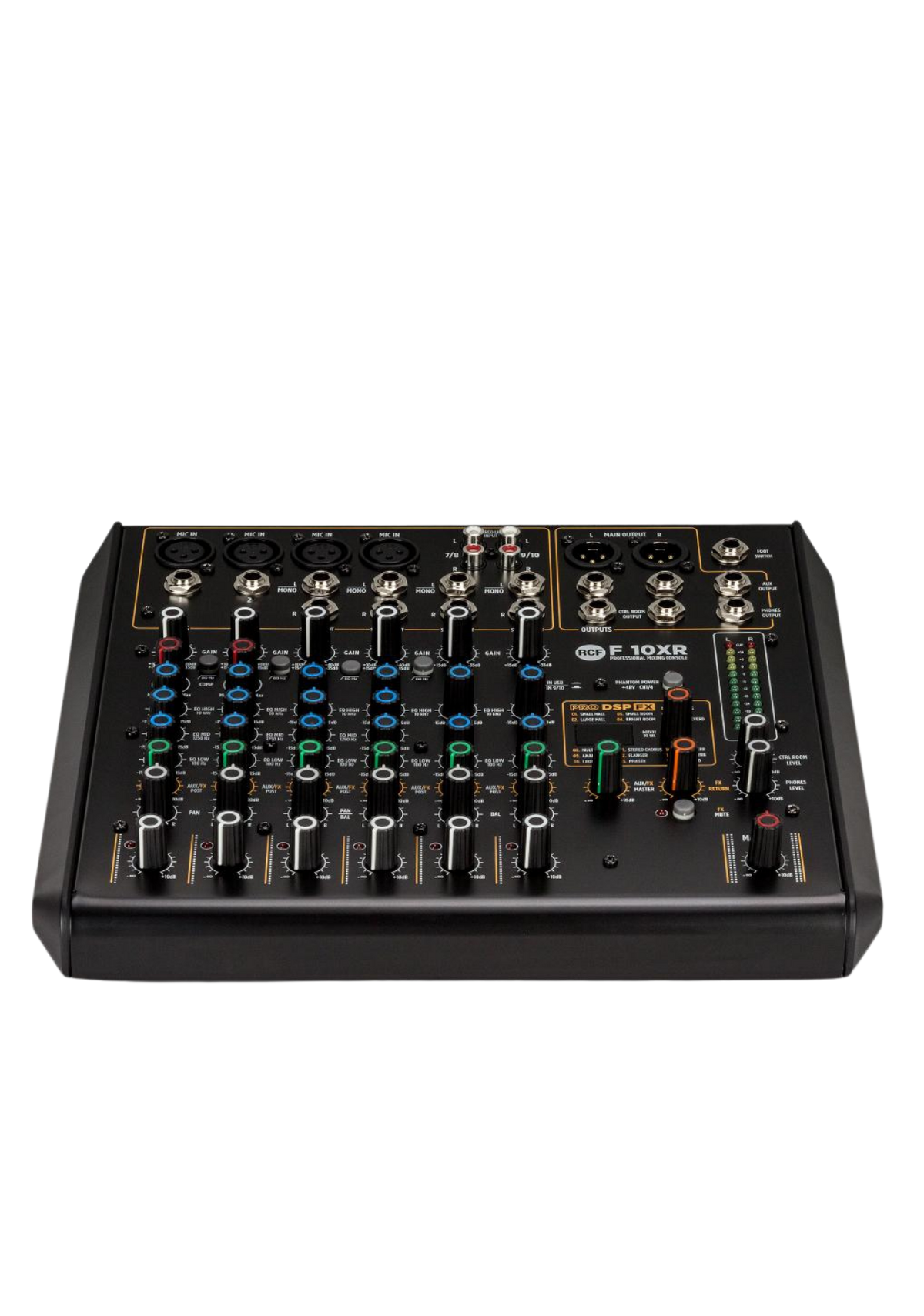

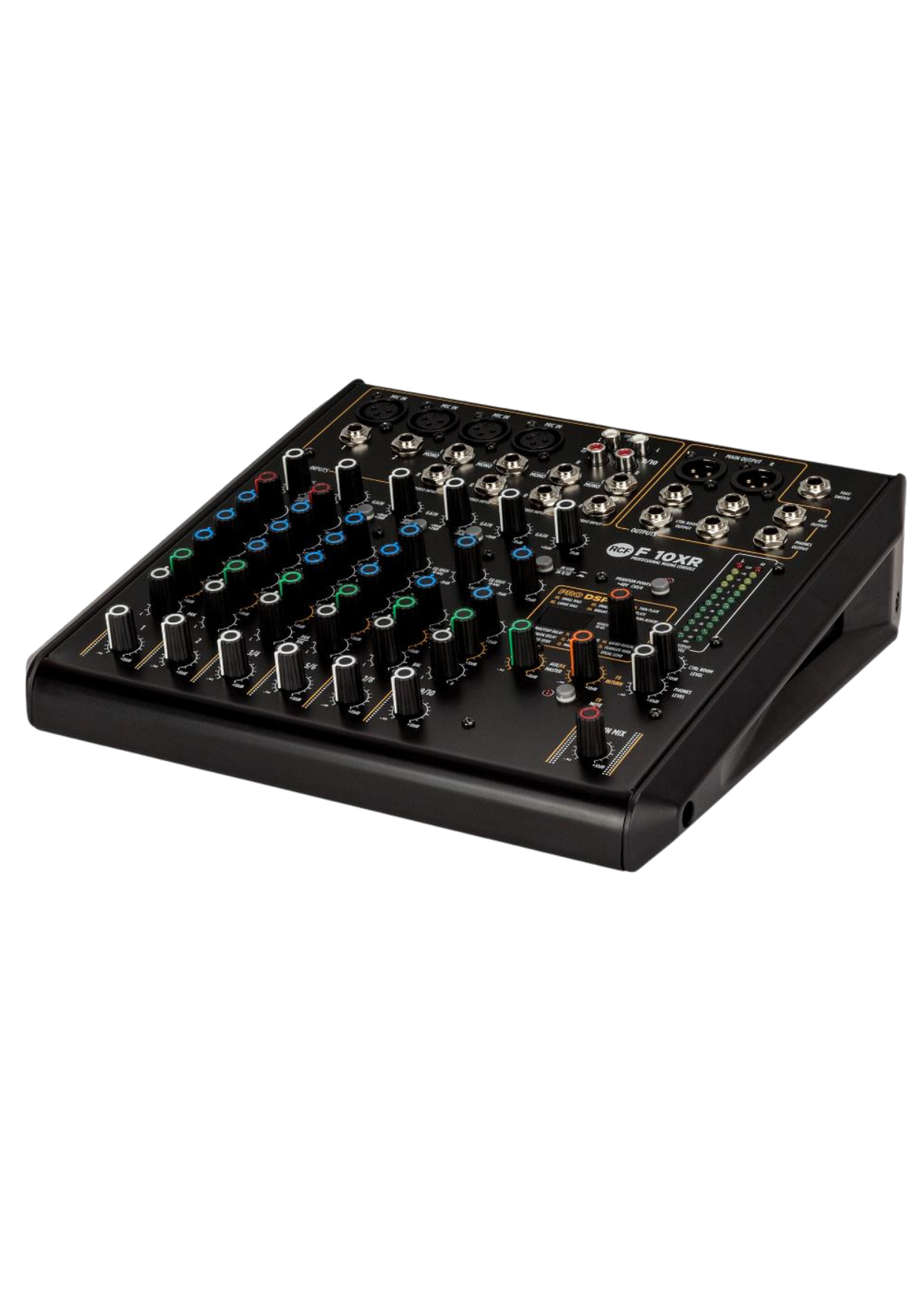

The RCF F10XR is a compact 10-channel analogue mixer designed for musicians, live performers, small venues, recording applications, and portable sound systems. Featuring 4 high-quality microphone preamps, 2 mono line inputs, 4 stereo channels, and professional onboard DSP effects, the F10XR delivers powerful mixing capability in a compact format.
Equipped with PRO DSP FX featuring 16 professional effects presets, USB stereo recording and playback, two single-control compressors, balanced audio paths, and flexible routing options, the F10XR provides a professional workflow for live sound and studio environments.
Built with a rugged metal chassis and designed in Italy, the RCF F10XR combines analogue sound quality with modern connectivity, making it ideal for bands, performers, streaming setups, rehearsal rooms, installations, and mobile production systems.
Key Features
10-Channel Mixer
4 microphone inputs, 2 mono inputs and 4 stereo channels.

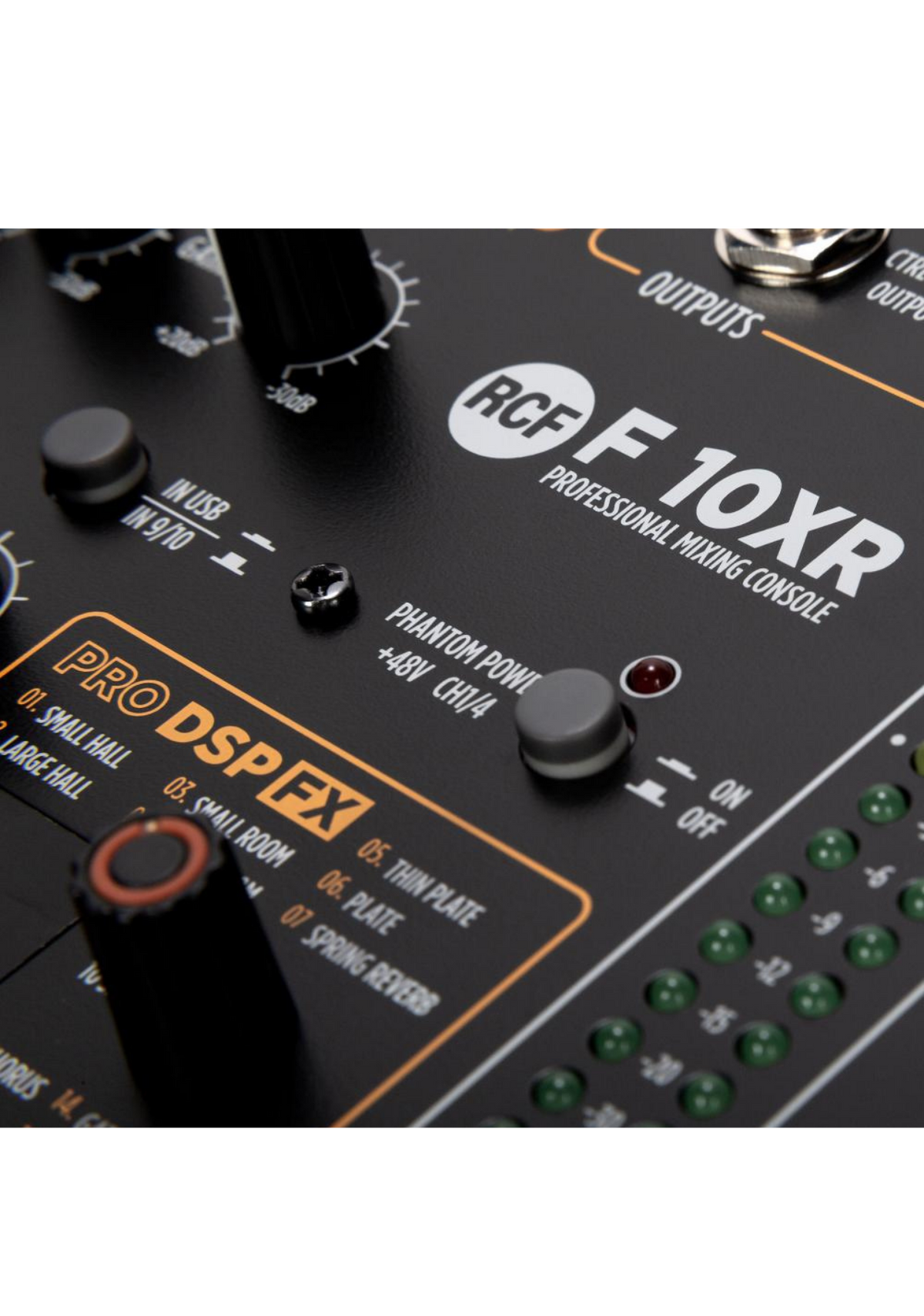

PRO DSP Multi-FX
16 professional onboard effects including reverbs, delays and modulation.
USB Recording
Stereo recording and playback through USB audio interface.
Built-In Compressors
Two single-control compressors on microphone channels.
Professional EQ
3-band EQ on mono channels and 2-band EQ on stereo channels.
Compact Design
Lightweight metal construction for portable applications.
Technical Specifications
| Product Type | 10-Channel Analogue Mixing Console |
|---|---|
| Total Channels | 10 Channels |
| Microphone Inputs | 4 x Mic Preamps |
| Mono Line Inputs | 2 Mono Line Inputs |
| Stereo Inputs | 4 Stereo Line Inputs |
| Input Connectors | XLR, Jack, RCA |
| Phantom Power | +48V |
| DSP Effects | PRO DSP FX with 16 Presets |
| USB Interface | Stereo Recording & Playback |
| USB Sample Rate | 44.1 / 48 kHz |
| Compressors | 2 Single-Control Compressors (Channels 1-2) |
| Equalisation |
Mono Channels: 3-Band EQ Stereo Channels: 2-Band EQ |
| AUX / FX Sends | 1 AUX / FX Post Send |
| Main Outputs | Balanced Stereo XLR + TRS |
| Control Room Output | Yes |
| Headphone Output | 1 x Headphone Output |
| FX Send | Dedicated FX Send |
| Footswitch Input | Yes |
| Power Supply | External Universal Power Supply (100-240V) |
| Construction | Metal Chassis |
| Dimensions (W x H x D) | 294 x 82 x 275mm |
| Weight | 2.8kg |
| Colour | Black |
Ideal For
- Live Performances
- Bands & Musicians
- Small Venues
- Recording Studios
- Podcast Production
- Streaming Setups
- Rehearsal Rooms
- DJ & Mobile Events
- Conference Systems
- Portable PA Systems
