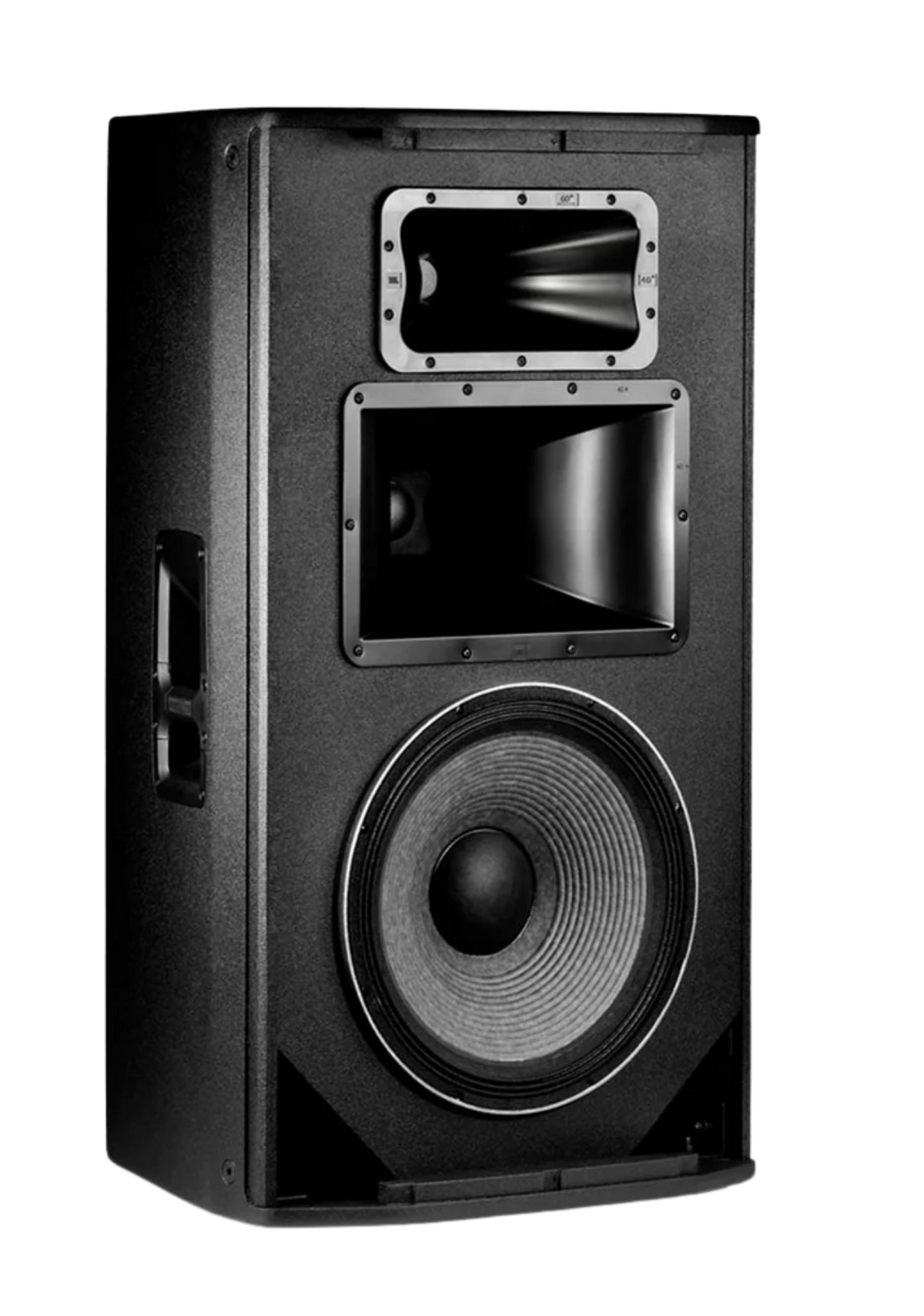

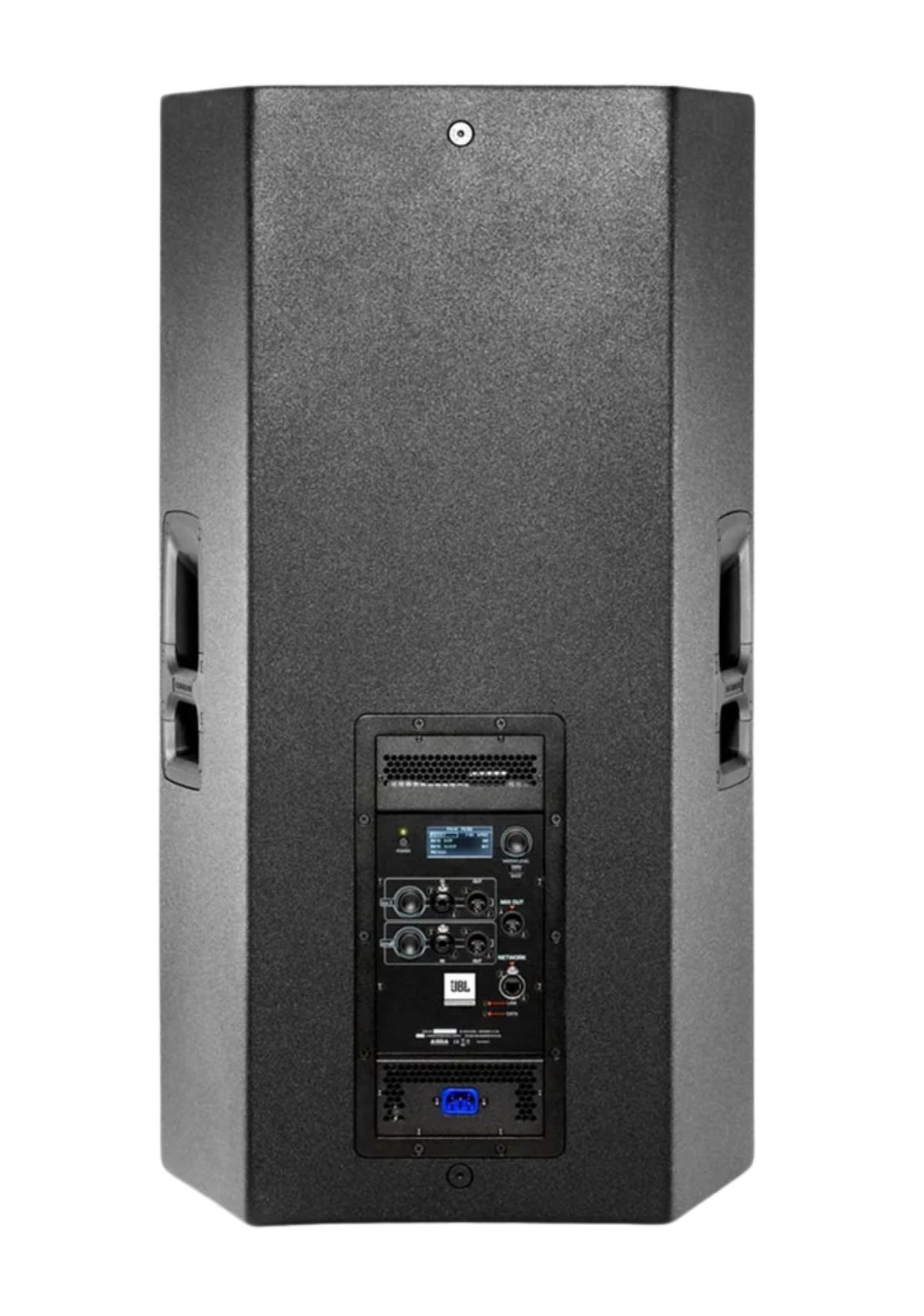

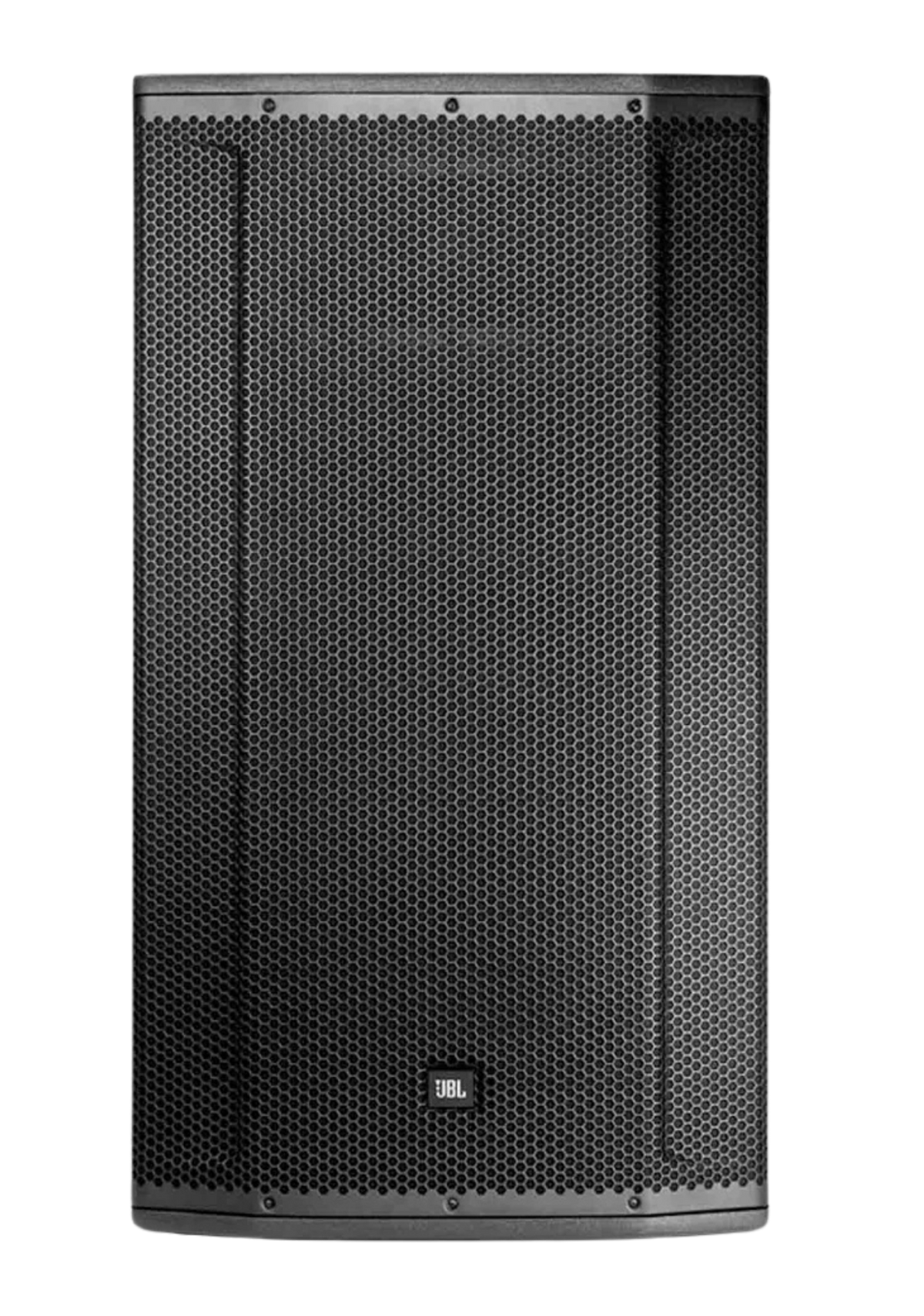

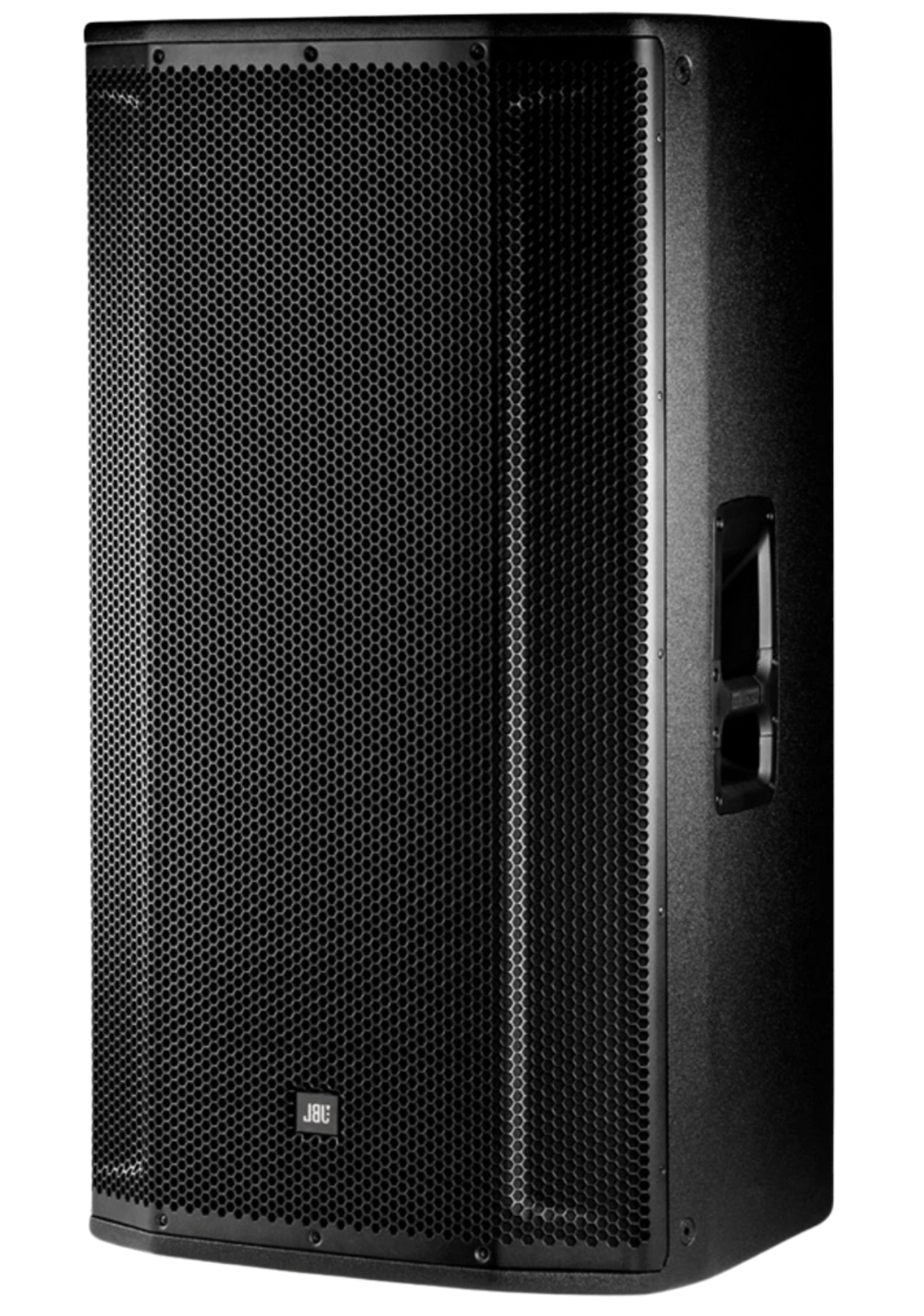

JBL SRX835P 15" 3-Way Active Portable Loudspeaker 2000W
JBL SRX835P 15" 3-Way Active Portable Loudspeaker 2000W
Couldn't load pickup availability
JBL SRX835P 15" 3-Way Active Portable Loudspeaker 2000W
Product Overview
The JBL SRX835P is a high-performance 15-inch three-way active loudspeaker designed for professional live sound, touring, installations, and demanding portable PA applications. Featuring JBL Differential Drive transducers, powerful Crown DriveCore amplification, and advanced DSP processing, the SRX835P delivers exceptional clarity, high output, and precise sound control.
Powered by a 2000W peak amplifier system, the SRX835P combines a 15-inch low-frequency driver, dedicated mid-frequency driver, and high-frequency compression driver to provide a detailed full-range audio experience with excellent vocal intelligibility and powerful low-end response.
With user-configurable DSP, HiQnet network control, professional JBL tuning presets, M10 suspension points, and rugged portable construction, the SRX835P is ideal for touring companies, live venues, DJs, corporate events, houses of worship, and professional sound reinforcement systems.
Key Features
15" Three-Way System
Dedicated LF, MF and HF drivers for detailed full-range sound.
2000W Crown Amplification
Integrated Crown DriveCore technology with massive headroom.
Advanced DSP Control
User-configurable DSP with JBL professional tuning presets.
JBL Differential Drive
High-output drivers with reduced weight and low distortion.
HiQnet Network Control
Remote monitoring and configuration through network control.
Touring Ready Design
Rugged enclosure with pole mount and suspension options.
Technical Specifications
| Product Type | 15" Three-Way Active Portable Loudspeaker |
|---|---|
| System Type | Self-Powered Bass Reflex Full Range System |
| Low Frequency Driver | 15" JBL Differential Drive Woofer |
| Mid Frequency Driver | Dedicated Midrange Compression Driver |
| High Frequency Driver | 3" Voice Coil Compression Driver |
| Amplification | Crown DriveCore Technology |
| Power Rating | 1500W Continuous / 2000W Peak |
| Frequency Response | 41Hz - 20kHz (±3dB) |
| Maximum SPL | 137dB Peak |
| Coverage Pattern | 60° x 40° |
| DSP Processing | Premium User-Configurable DSP |
| Network Control | HiQnet Network Control |
| Inputs | XLR / 1/4" Combo Input |
| Outputs | XLR Loop Output |
| Power Supply | 100-240V AC |
| Mounting Options | M10 Suspension Points / Pole Mount Socket |
| Enclosure Material | 18mm Plywood Construction |
| Finish | Obsidian DuraFlex Finish |
| Dimensions (W x H x D) | 544 x 984 x 476mm |
| Weight | 38.6kg |
| Colour | Black |
Ideal For
- Live Sound Events
- Touring Production
- Concert Venues
- Professional DJs
- Corporate Events
- Houses of Worship
- Mobile PA Systems
- Stage Monitoring
- Installations
- Large Venue Sound Systems
