LAB GRUPPEN CA2401 Commercial Amplifier Ñ 1 _ 240 W @ 100V
LAB GRUPPEN CA2401 Commercial Amplifier Ñ 1 _ 240 W @ 100V
Couldn't load pickup availability

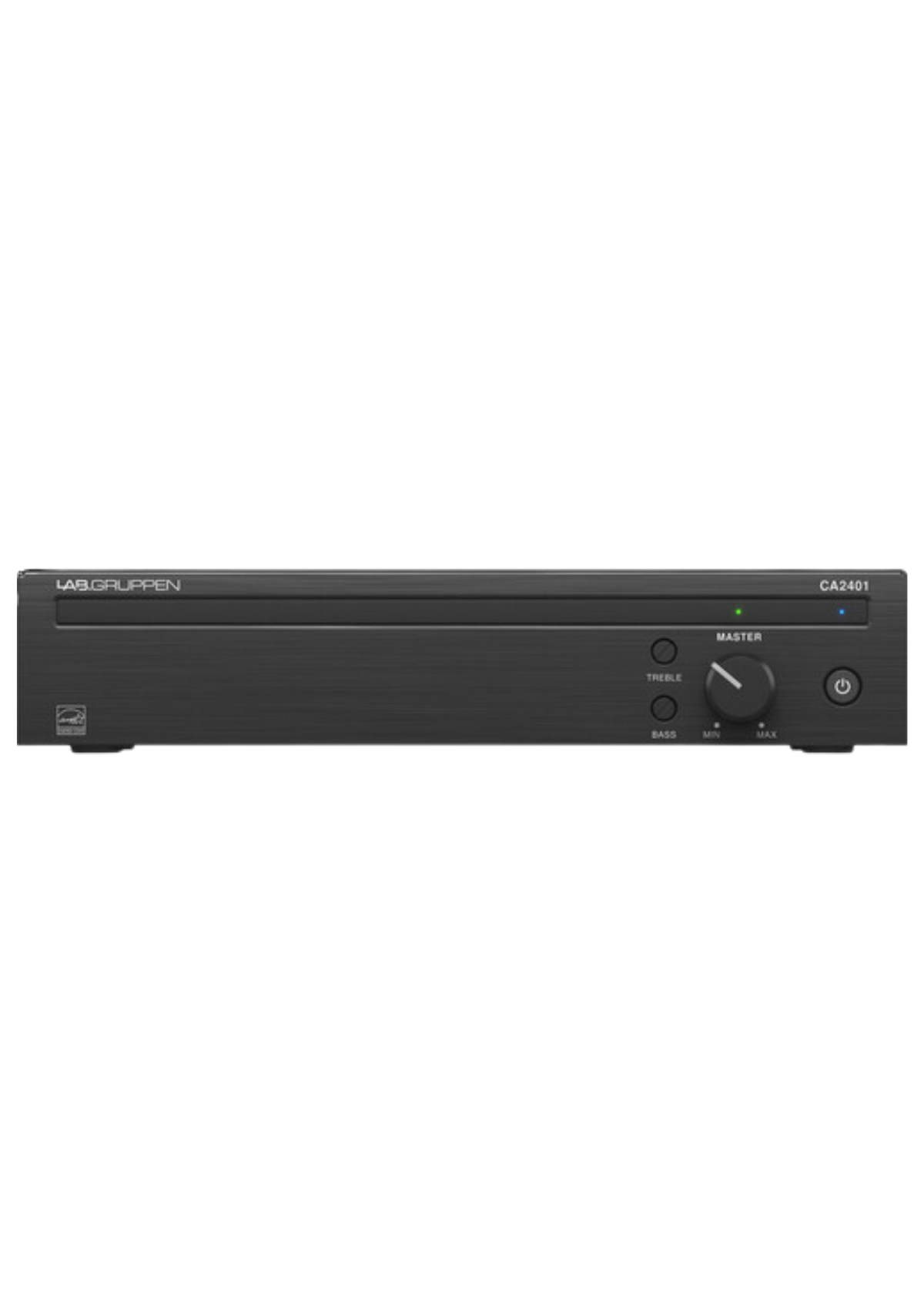

LAB GRUPPEN CA2401 240W Commercial Amplifier
Product Overview
The LAB GRUPPEN CA2401 is a compact professional single-channel commercial power amplifier designed for distributed audio systems, background music, paging, corporate AV, hospitality, retail, and other fixed-installation applications. Delivering 240W of output, it supports both high-impedance 70V/100V systems and low-impedance 4/8 Ohm loudspeaker loads.
Featuring efficient Class-D amplification and fanless convection cooling, the CA2401 provides reliable operation with minimal maintenance and acoustic noise. Its compact 1U half-rack format makes it suitable for space-conscious installations where dependable commercial-grade amplification is required.

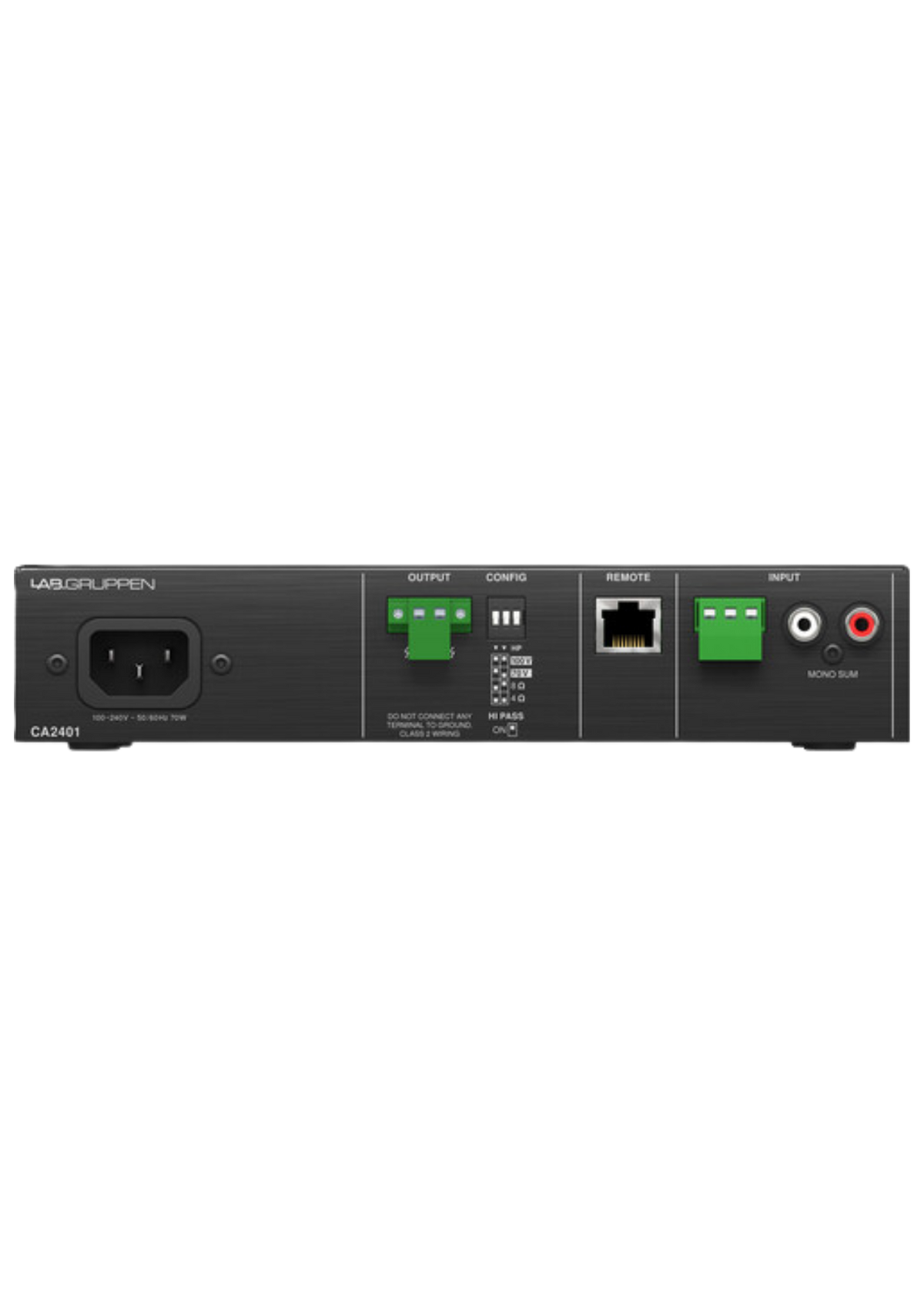

The CA2401 includes switchable high-pass filtering, balanced Euroblock connectivity, RCA auxiliary input, Phoenix-style speaker connections, and RJ-45 remote volume control. Its flexible output configuration makes it ideal for both conventional loudspeakers and 70V/100V distributed audio systems.
Key Features
240W Single-Channel Output
Powerful amplification for commercial and distributed audio installations.
70V / 100V Operation
High-impedance constant-voltage operation for distributed speaker systems.
4 / 8 Ohm Low-Z Operation
Flexible low-impedance output for conventional loudspeaker systems.
Class-D Amplification
Efficient amplifier technology in a compact commercial installation format.
Fanless Convection Cooling
Quiet, reliable operation without the need for a cooling fan.
Compact 1U Half-Rack Design
Space-efficient chassis suitable for professional fixed installations.
Technical Specifications
| Product Type | Commercial Power Amplifier |
|---|---|
| Channels | 1 Channel |
| Amplifier Type | Class-D |
| Output Power | 240W |
| 100V Output | 240W |
| 70V Operation | Supported |
| Low-Z Operation | 4 Ohm / 8 Ohm |
| High-Z Operation | 70V / 100V |
| Frequency Response | 20Hz - 20kHz |
| High-Pass Filter | 80Hz, Switchable |
| DSP / Crossover | No |
| Inputs | Balanced Euroblock Input, RCA / Cinch Auxiliary Input |
| Outputs | Phoenix / Euroblock Speaker Output |
| Remote Control | RJ-45 Remote Volume Control |
| Link Output | No |
| Cooling | Fanless Convection Cooling |
| Form Factor | 1U Half-Rack |
| Mounting | Rack, Wall or Table Mounting |
| Dimensions (W x H x D) | 218 x 44 x 299mm |
| Weight | 2.3kg |
| Application | Commercial Distributed Audio |
Ideal For
- 70V / 100V Audio Systems
- Commercial Installations
- Retail Spaces
- Hotels & Hospitality
- Restaurants
- Corporate AV
- Background Music Systems
- Paging Systems
- Schools & Institutions
- Churches & Houses of Worship
- Public Buildings
- Professional Sound Installations
