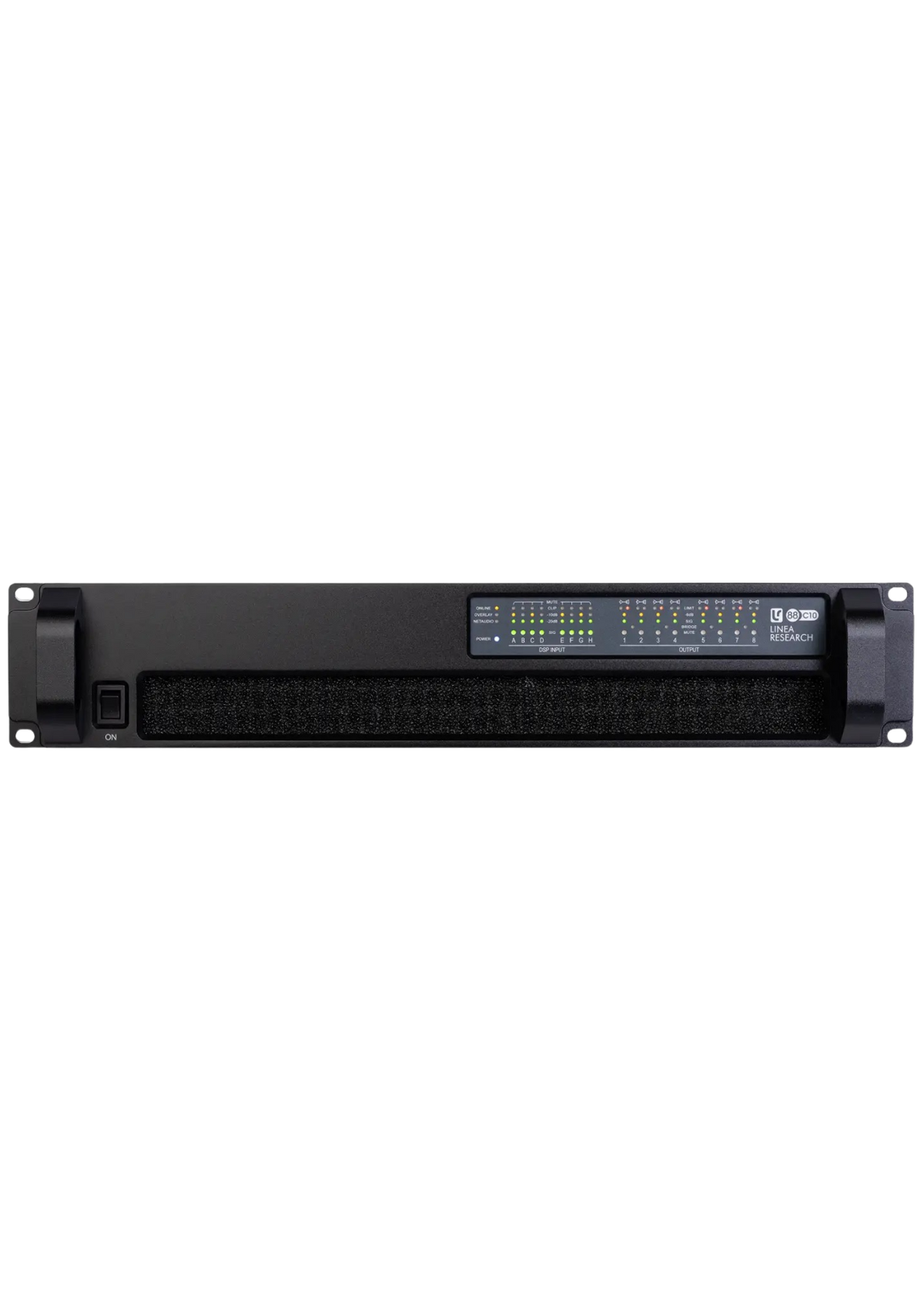

LINEA RESEARCH 88 C6 8-Channel DSP Power Amplifier — 8 _ 750 W @ 4Ω/100V
LINEA RESEARCH 88 C6 8-Channel DSP Power Amplifier — 8 _ 750 W @ 4Ω/100V
Couldn't load pickup availability
LINEA Research 88 C6 8-Channel DSP Power Amplifier
Product Overview
The LINEA Research 88 C6 is a professional eight-channel DSP power amplifier designed specifically for demanding commercial, entertainment, hospitality, corporate AV, and distributed sound reinforcement installations. Delivering 750W RMS per channel at 4 Ohms and 100V with all eight channels driven, the 88 C6 combines high power density with sophisticated digital signal processing and comprehensive system control.
Featuring eight channels of high-performance Class-D amplification, the 88 C6 can deliver its full rated power into 2, 4, or 8 Ohm loudspeaker loads as well as 25V, 70V, and 100V constant-voltage systems. This makes it particularly well suited to multi-zone installations where different loudspeaker types and distributed audio systems need to be powered from a single amplifier.
The integrated 96kHz DSP provides extensive signal routing, equalisation, crossover, delay, phase control, FIR processing, and advanced VX loudspeaker protection. Ethernet, RS232, and RS485 connectivity provide system control and monitoring, while analogue and AES3 audio inputs are standard. Dante and AES67 network audio connectivity is available as a factory-fitted option.
Key Features
8-Channel Amplification
Eight independently controlled amplifier channels for professional multi-zone audio installations.
750W RMS per Channel
Delivers 750W RMS per channel at 2, 4, and 8 Ohms, with all eight channels driven simultaneously.
96kHz DSP
High-performance digital signal processing across all inputs and outputs for precise system control.
70V / 100V Operation
750W RMS per channel for constant-voltage distributed loudspeaker systems.
Advanced VX Limiters
Comprehensive loudspeaker protection including peak, RMS, excursion and multiband limiting.
Network System Control
Ethernet, RS232 and RS485 connectivity for configuration, monitoring and system management.
Technical Specifications
| Product Type | 8-Channel DSP Installation Power Amplifier |
|---|---|
| Model | 88C06 |
| Number of Output Channels | 8 |
| Amplifier Topology | Linea Research High-Performance Class-D |
| Total Power Output | 6,000W RMS, All Channels Driven |
| Output Power @ 2 Ohm | 750W RMS per Channel |
| Output Power @ 4 Ohm | 750W RMS per Channel |
| Output Power @ 8 Ohm | 750W RMS per Channel |
| Bridged Output @ 4 Ohm | 1,500W RMS per Channel Pair |
| Bridged Output @ 8 Ohm | 1,500W RMS per Channel Pair |
| 100V Line Output | 750W RMS per Channel |
| 70V Line Output | 750W RMS per Channel |
| 25V Line Output | 485W RMS per Channel |
| Dynamic Range - Analogue | >113dBA Typical |
| Dynamic Range - AES3 / Dante | >114dBA Typical |
| Gain | 32dB |
| Frequency Response | <7Hz to >30kHz, 4 Ohm Load, -2.5dB Points |
| Total Harmonic Distortion | <0.05% Typical @ 1kHz, AES17 Filter, 4 Ohm Load |
| Inter-Channel Crosstalk | Better Than -85dBr @ 1kHz; Better Than -75dBr @ 10kHz |
| Slew Rate | >60V per Microsecond Typical |
| Damping Factor | >800 at Amplifier Output, Ref. 8 Ohm |
| Maximum Analogue Input Level | +20dBu |
| Analogue Input Sensitivity | 0dBu to +20dBu, Continuously Adjustable |
| Analogue Inputs | 8 x Electronically Balanced, 20k Ohm |
| AES3 Inputs | 2 Audio Channels |
| Dante / AES67 Inputs | 8 Network Audio Channels, Factory-Fitted Option |
| DSP Resolution | 40-Bit Proprietary Linea Research Processing |
| DSP Sample Rate | 96kHz |
| DSP Input Routing | 8 Analogue, 2 AES3, 8 Dante / AES67 Inputs |
| Input Processing | Signal Routing, Delay, Gain, HPF, Phase, Mute, 2 x Low Shelf, 6 x PEQ / Band Pass, FIR Shelving Filters |
| Output Processing | Source, Delay, Gain, Phase, Mute, Crossover Filters, VX Limiters, Low Shelf, 8 x PEQ / Band Pass, Shelving Filters |
| Crossover Filters | Hardman, LIR Linear Phase, Conventional Filter Shapes |
| Loudspeaker Protection | VX Limiter Suite, Peak, RMS, Excursion, Multiband Limiting |
| FIR Support | 48kHz and 96kHz FIR Files, Supported Models |
| Preset Management | 20 Device Snapshots; 50 Loudspeaker Presets |
| EQ Overlays | 12 Additional Independent EQ, Delay and Gain Overlays |
| Network Control | Ethernet Network |
| Serial Control | RS232 & RS485 |
| Alarm / Control Interfaces | Volt-Free Relay, Contact Closure, Heartbeat System Health Output |
| Power-Save Modes | Standby; Deep ECO Sleep |
| System Wake-Up | Network Command, Audio Detection, Contact Closure |
| Power Supply | 85V - 240V Auto-Sensing |
| Mains Frequency | 47Hz - 63Hz |
| Cooling | Dual Variable-Speed Fans |
| Airflow | Front to Rear |
| Analogue Input / Link | Phoenix Pluggable Terminal Block |
| AES3 Input / Link | Phoenix Pluggable Terminal Block |
| Amplifier Outputs | Neutrik Speakon NL4 Connectors |
| Mains Connector | Neutrik 32A PowerCON |
| Form Factor | 2U / 19-inch Rack Mount |
| Dimensions (H x W x D) | 88 x 483 x 357mm |
| Weight | 12.5kg |
| Control Software | Linea Research System Engineer |
| Manufacturing | Designed and Manufactured in the UK |
Ideal For
- Large Commercial Installations
- Multi-Zone Audio Systems
- Hotels & Resorts
- Nightclubs
- Restaurants & Bars
- Retail Installations
- Entertainment Venues
- Corporate AV Systems
- 70V / 100V Distributed Audio
- Low-Impedance Loudspeaker Systems
- Professional Sound Reinforcement
- Large Fixed Installations
