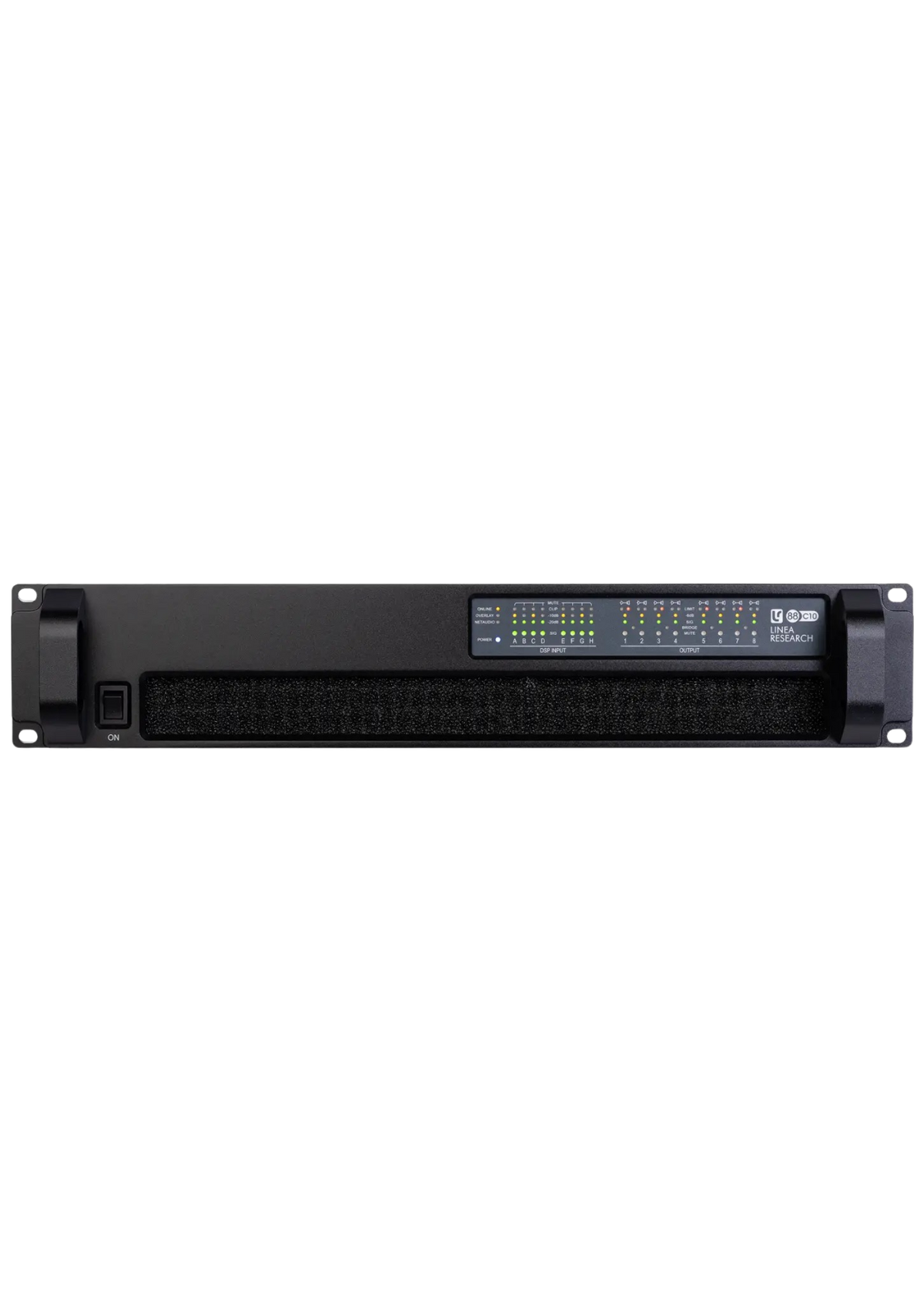

LINEA Research 88 C6 8-Channel DSP Power Amplifier
Product Overview
The LINEA Research 88 C6 is a high-performance eight-channel DSP installation power amplifier designed for demanding commercial, entertainment, hospitality, and professional sound reinforcement applications. Delivering 750W RMS per channel at 4 Ohms and 100V, with all eight channels driven simultaneously, the 88 C6 combines substantial power output with advanced 96kHz DSP processing and comprehensive system control.
Built around Linea Research's high-performance Class-D amplification platform, the 88 C6 provides consistent power delivery across all eight channels. It supports low-impedance loudspeakers as well as 70V and 100V constant-voltage distributed systems, allowing a single amplifier to handle multiple zones and a wide range of professional installation requirements.
The integrated DSP provides extensive signal-management capabilities including routing, gain, delay, phase, EQ, crossover filtering, FIR processing, and advanced VX loudspeaker protection. Analogue and AES3 inputs are standard, while Dante and AES67 network audio connectivity is available as a factory-fitted option. Ethernet, RS232, and RS485 connectivity provide comprehensive configuration, monitoring, and system-management capabilities.
Key Features
8-Channel Amplification
Eight independently controlled amplifier channels for flexible multi-zone professional installations.
750W RMS per Channel
Delivers 750W RMS per channel at 2, 4, and 8 Ohms, with all eight channels driven simultaneously.
96kHz DSP Processing
High-performance digital signal processing across all inputs and outputs.
70V / 100V Operation
Provides 750W RMS per channel for constant-voltage distributed loudspeaker systems.
Advanced VX Limiters
Comprehensive loudspeaker protection including peak, RMS, excursion and multiband limiting.
Network Control
Ethernet, RS232 and RS485 connectivity for configuration, monitoring and system management.
Technical Specifications
| Product Type | 8-Channel DSP Installation Power Amplifier |
|---|---|
| Model | 88C06 |
| Number of Output Channels | 8 |
| Amplifier Topology | Linea Research High-Performance Class-D |
| Total Power Output | 6,000W RMS, All Channels Driven |
| Output Power @ 2 Ohm | 750W RMS per Channel |
| Output Power @ 4 Ohm | 750W RMS per Channel |
| Output Power @ 8 Ohm | 750W RMS per Channel |
| Bridged Output @ 4 Ohm | 1,500W RMS per Channel Pair |
| Bridged Output @ 8 Ohm | 1,500W RMS per Channel Pair |
| 100V Line Output | 750W RMS per Channel |
| 70V Line Output | 750W RMS per Channel |
| 25V Line Output | 485W RMS per Channel |
| Dynamic Range - Analogue | >113dBA Typical |
| Dynamic Range - AES3 | >114dBA Typical |
| Gain | 32dB |
| Frequency Response | <7Hz to >30kHz, 4 Ohm Load, -2.5dB Points |
| Total Harmonic Distortion | <0.05% Typical @ 1kHz, AES17 Filter, 4 Ohm Load |
| Inter-Channel Crosstalk | Better Than -85dBr @ 1kHz; Better Than -75dBr @ 10kHz |
| Slew Rate | >60V per Microsecond Typical |
| Damping Factor | >800 at Amplifier Output, Ref. 8 Ohm |
| Maximum Analogue Input Level | +20dBu |
| Analogue Input Sensitivity | 0dBu to +20dBu, Continuously Adjustable |
| Analogue Inputs | 8 x Electronically Balanced, 20k Ohm |
| AES3 Inputs | 2 Audio Channels |
| Dante / AES67 | Factory-Fitted Option |
| DSP Resolution | 40-Bit Proprietary Linea Research Processing |
| DSP Sample Rate | 96kHz |
| DSP Input Routing | 8 Analogue, 2 AES3, Optional 8 Dante / AES67 Inputs |
| Input Processing | Signal Routing, Delay, Gain, HPF, Phase, Mute, 2 x Low Shelf, 6 x PEQ / Band Pass, FIR Shelving Filters |
| Output Processing | Source, Delay, Gain, Phase, Mute, Crossover Filters, VX Limiters, Low Shelf, 8 x PEQ / Band Pass, Shelving Filters |
| Crossover Filters | Hardman, LIR Linear Phase, Conventional Filter Shapes |
| Loudspeaker Protection | VX Limiter Suite, Peak, RMS, Excursion, Multiband Limiting |
| FIR Support | 48kHz and 96kHz FIR Files, Supported Models |
| Preset Management | 20 Device Snapshots; 50 Loudspeaker Presets |
| EQ Overlays | 12 Additional Independent EQ, Delay and Gain Overlays |
| Network Control | Ethernet Network |
| Serial Control | RS232 & RS485 |
| Alarm / Control Interfaces | Volt-Free Relay, Contact Closure, Heartbeat System Health Output |
| Power-Save Modes | Standby; Deep ECO Sleep |
| System Wake-Up | Network Command, Audio Detection, Contact Closure |
| Power Supply | 85V - 240V Auto-Sensing |
| Mains Frequency | 47Hz - 63Hz |
| Cooling | Dual Variable-Speed Fans, Front-to-Rear Airflow |
| Form Factor | 2U / 19-inch Rack Mount |
| Depth | 357mm |
| Weight | 12.5kg |
| Control Software | Linea Research System Engineer |
| Manufacturing | Designed and Manufactured in the UK |
Ideal For
- Large Commercial Installations
- Multi-Zone Audio Systems
- Hotels & Resorts
- Nightclubs
- Restaurants & Bars
- Retail Installations
- Entertainment Venues
- Corporate AV Systems
- 70V / 100V Distributed Audio
- Low-Impedance Loudspeaker Systems
- Professional Sound Reinforcement
- Large Fixed Installations
