PIONEER DJ XPRS102 10" 2-Way Active PA Speaker with Powersoft Class-D Amp
PIONEER DJ XPRS102 10" 2-Way Active PA Speaker with Powersoft Class-D Amp
Couldn't load pickup availability
PIONEER DJ XPRS102 10" 2-Way Active PA Speaker with Powersoft Class-D Amp
Product Overview
The PIONEER DJ XPRS102 is a professional 10-inch 2-way active PA loudspeaker designed for mobile DJs, live performers, rental companies, venues, houses of worship, and fixed installation applications. Featuring powerful Powersoft Class-D amplification, the XPRS102 delivers high-output performance, excellent clarity, and dependable operation for demanding professional environments.
Equipped with a 10-inch woofer and a 1-inch exit compression driver, the XPRS102 provides powerful low-frequency response, detailed vocals, and accurate high-frequency reproduction. The integrated DSP system offers four factory presets including Live, Music, Speech, and Studio Monitor, plus 16 custom user DSP memories for flexible sound tuning.
Built with a durable plywood enclosure, professional mounting options, robust handles, XLR connectivity, and advanced protection systems, the XPRS102 is ideal for DJs, bands, corporate events, portable PA systems, and professional sound installations.
Key Features
Powersoft Class-D Amplifier
High-output amplification delivering powerful professional performance.
10" Woofer
Powerful low-frequency driver with excellent punch and control.
1" Compression Driver
Clear high-frequency reproduction and vocal intelligibility.
Advanced DSP Processing
Factory presets and custom EQ settings for every application.
2000W Peak Output
High-performance amplification for professional sound systems.
Rugged Plywood Cabinet
Durable enclosure designed for touring and installation use.
Technical Specifications
| Product Type | Active 2-Way Full-Range Loudspeaker |
|---|---|
| Low Frequency Driver | 10" Woofer with 2.5" Voice Coil |
| High Frequency Driver | 1" Exit Compression Driver with 1.75" Voice Coil |
| Amplifier Type | Powersoft Class-D |
| Total Power Output | 2000W Peak |
| Frequency Response | 50Hz - 20kHz |
| Maximum SPL | 129dB Peak |
| Coverage Pattern | 90° Horizontal x 60° Vertical |
| Crossover Frequency | 2kHz |
| DSP Presets | Live / Music / Speech / Studio Monitor |
| User DSP Memories | 16 Custom User Settings |
| EQ Processing | 4-Band Equaliser and Speaker Tuning |
| Subwoofer Integration | Adjustable High-Pass Sub Settings |

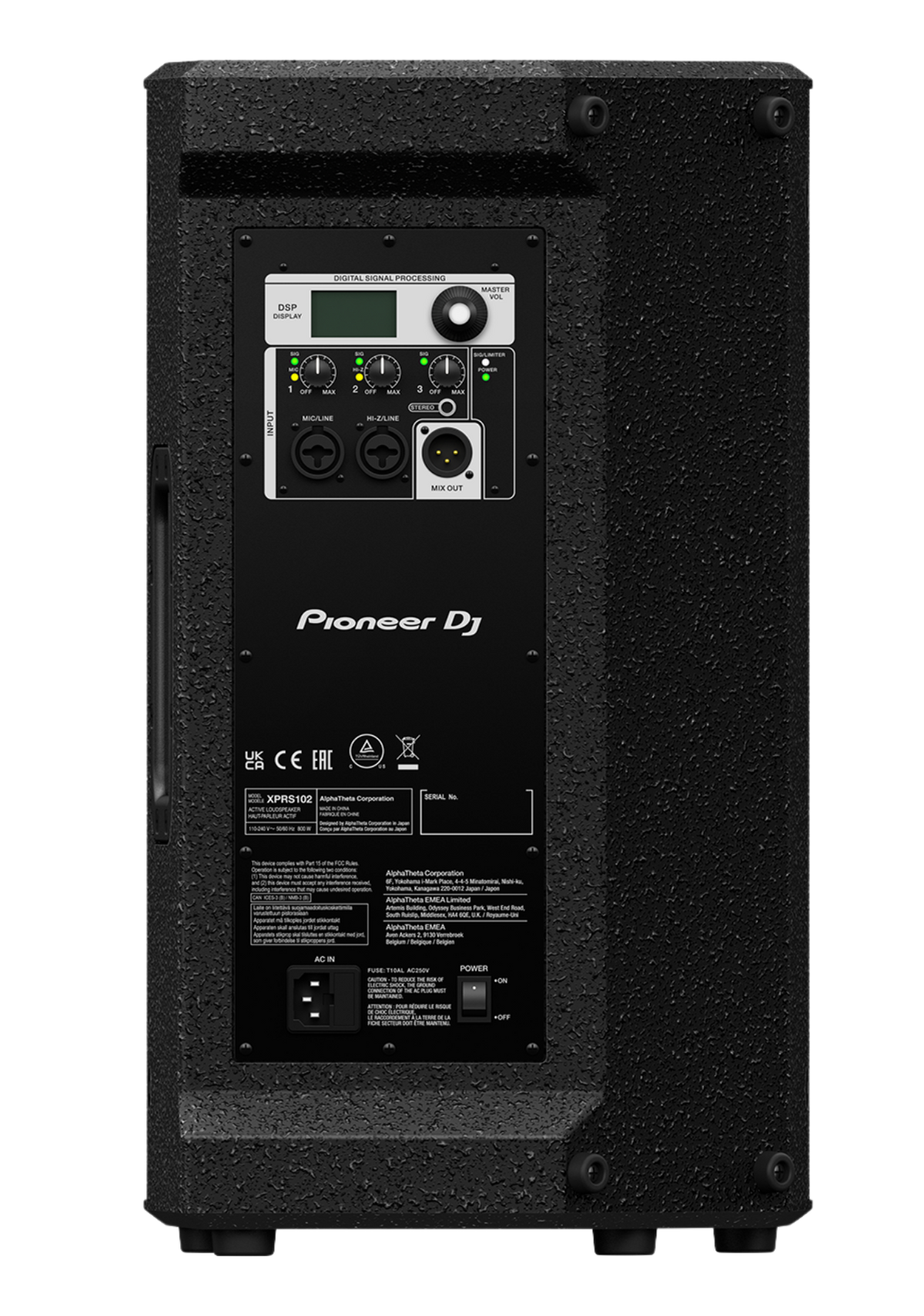

| Input 1 | XLR/TRS Combo Input (Mic/Line) |
| Input 2 | XLR/TRS Combo Input (Hi-Z/Line) |
| Aux Input | 3.5mm Stereo Mini Jack |
| Output | XLR MIX Output |
| Protection | Thermal Limiting, Digital Limiter, Digital Compressor, Short Circuit Protection |
| Enclosure Material | Protective Plywood Cabinet |
| Finish | Black Protective Coating |
| Rigging | 10 x M10 Rigging Points |

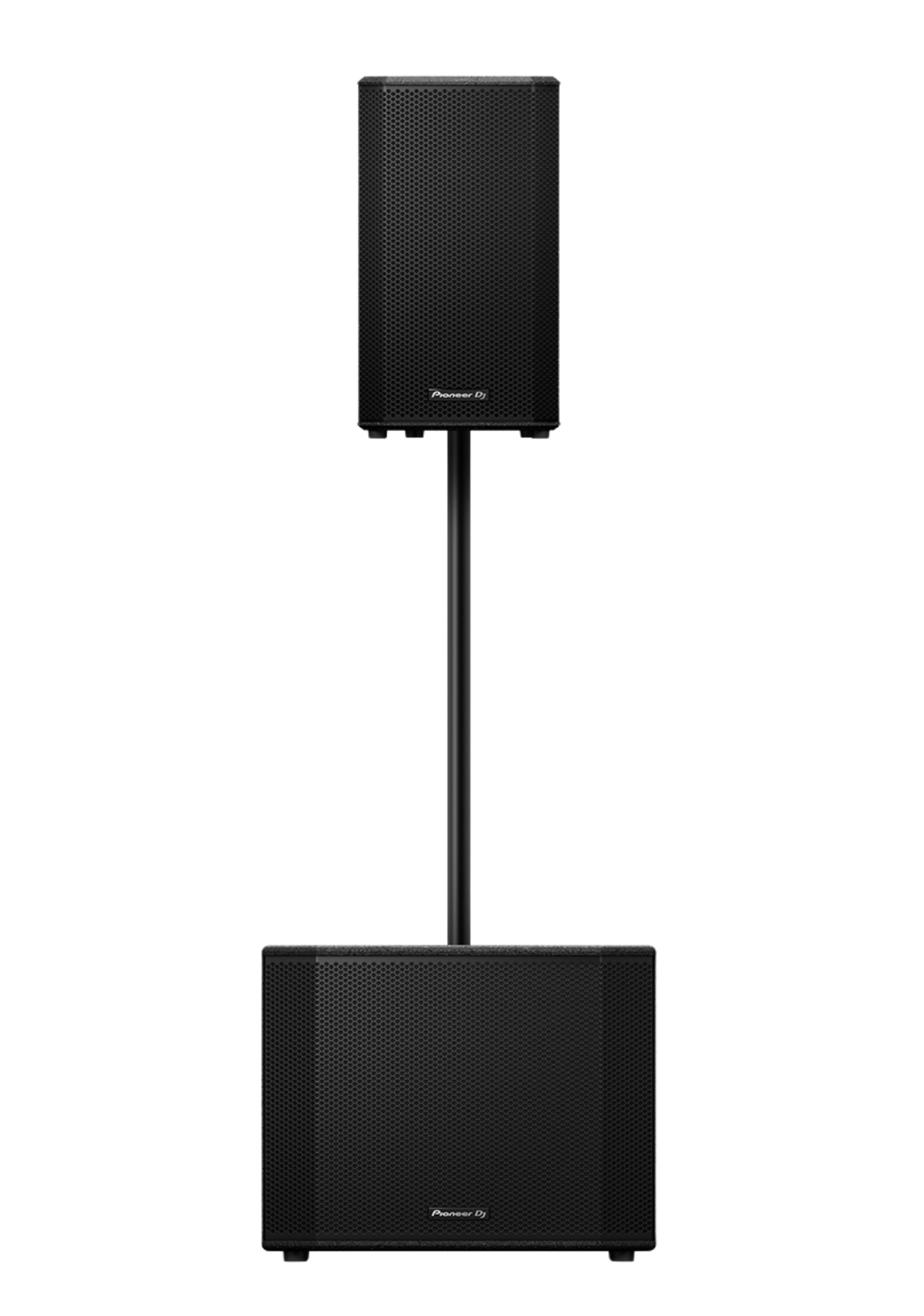

| Mounting | 35mm Pole Mount |
| Power Supply | 110V - 240V AC |
| Power Consumption | 800W |
| Dimensions (W x H x D) | 299 x 520 x 310mm |
| Weight | 15.5kg |
| Colour | Black |
Ideal For
- Professional DJs
- Mobile DJs
- Live Bands
- Rental Companies
- Corporate Events
- Houses of Worship
- Clubs & Venues
- Fixed Installations
- Portable PA Systems
- Stage Monitoring
