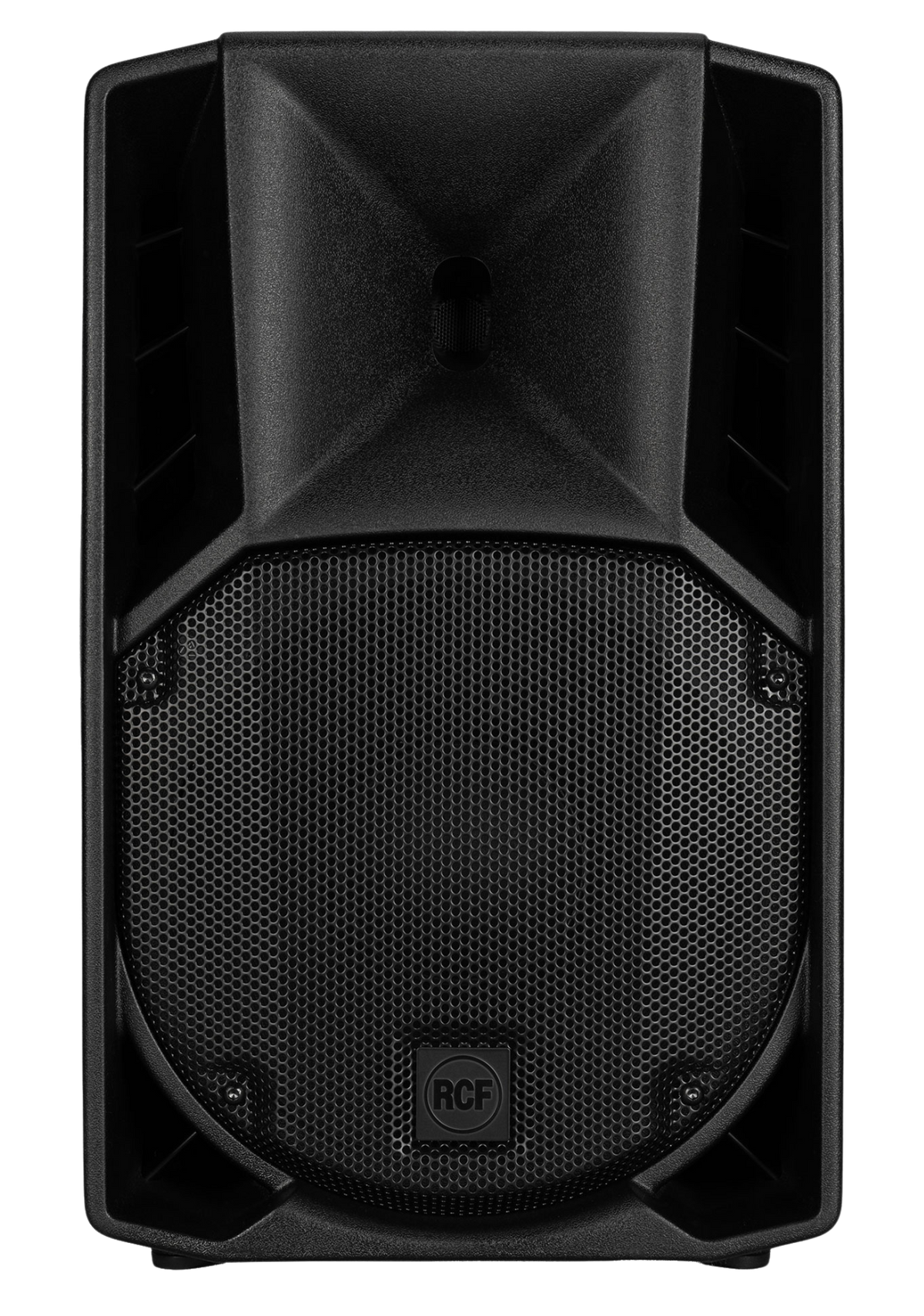

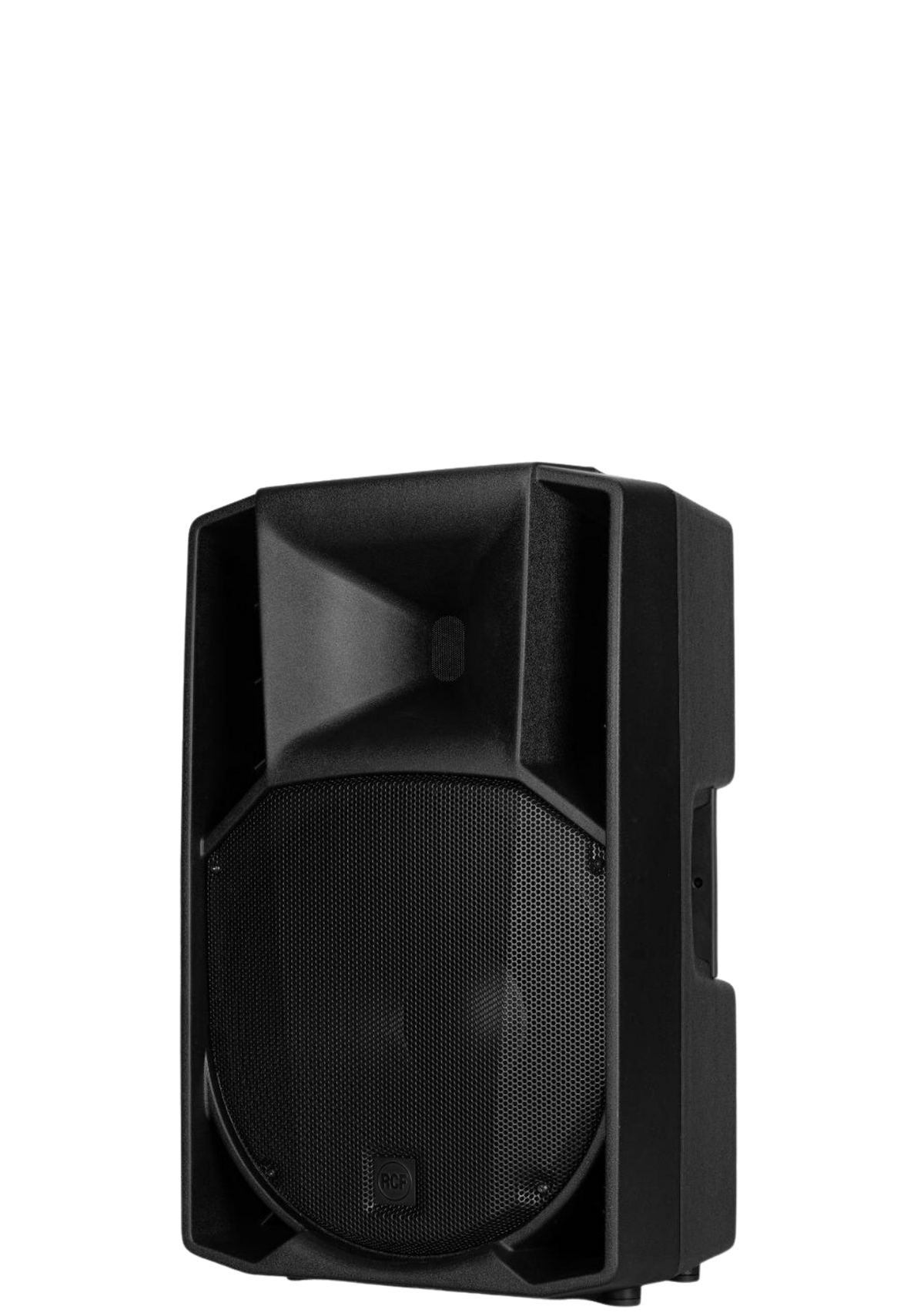

RCF ART 710-A MK5 1400W Active Speaker
Product Overview
The RCF ART 710-A MK5 is a professional 10-inch active two-way loudspeaker designed for live performances, mobile DJs, musicians, rental companies, installations, and portable PA applications. Combining RCF's advanced transducer technology with powerful Class-D amplification and intelligent DSP processing, it delivers outstanding clarity, controlled bass response, and reliable high-output performance.
Featuring a 10-inch woofer and a 1.75-inch compression driver, the ART 710-A MK5 provides precise low-frequency reproduction and excellent vocal projection. The integrated DSP manages crossover, equalisation, phase control, soft limiting, and complete speaker protection.
With FiRPHASE technology, XBOOST low-frequency enhancement, a lightweight composite cabinet, and flexible mounting options, the ART 710-A MK5 is ideal for mobile sound systems, stage monitoring, events, presentations, and professional audio installations.
Key Features
10" High Performance Woofer
Provides accurate bass response with excellent low-frequency control.
1.75" Compression Driver
Delivers clear vocals and detailed high-frequency reproduction.
1400W Peak Class-D Power
High-efficiency amplification for professional sound output.
FiRPHASE DSP Technology
Improves phase accuracy and provides natural sound performance.
XBOOST Low Frequency Enhancer
Improves bass response from the compact enclosure design.
129dB Maximum SPL
Powerful output suitable for demanding live applications.
Technical Specifications
| Product Type | Active 2-Way Loudspeaker |
|---|---|
| Woofer | 10" Woofer with 2.5" Voice Coil |
| Compression Driver | 1" Exit Compression Driver with 1.75" Voice Coil |
| Amplifier Type | Class-D Digital Amplifier |
| Total Power | 1400W Peak |
| LF Amplifier Power | 1000W Peak |
| HF Amplifier Power | 400W Peak |
| Frequency Response | 50Hz - 20kHz |
| Maximum SPL | 129dB |
| Coverage Pattern | 90° Horizontal x 70° Vertical |
| Crossover Frequency | 1600Hz |
| DSP Processing | FiRPHASE Processing, EQ, Phase Control, Soft Limiter, Speaker Protection |
| Low Frequency Enhancement | XBOOST |

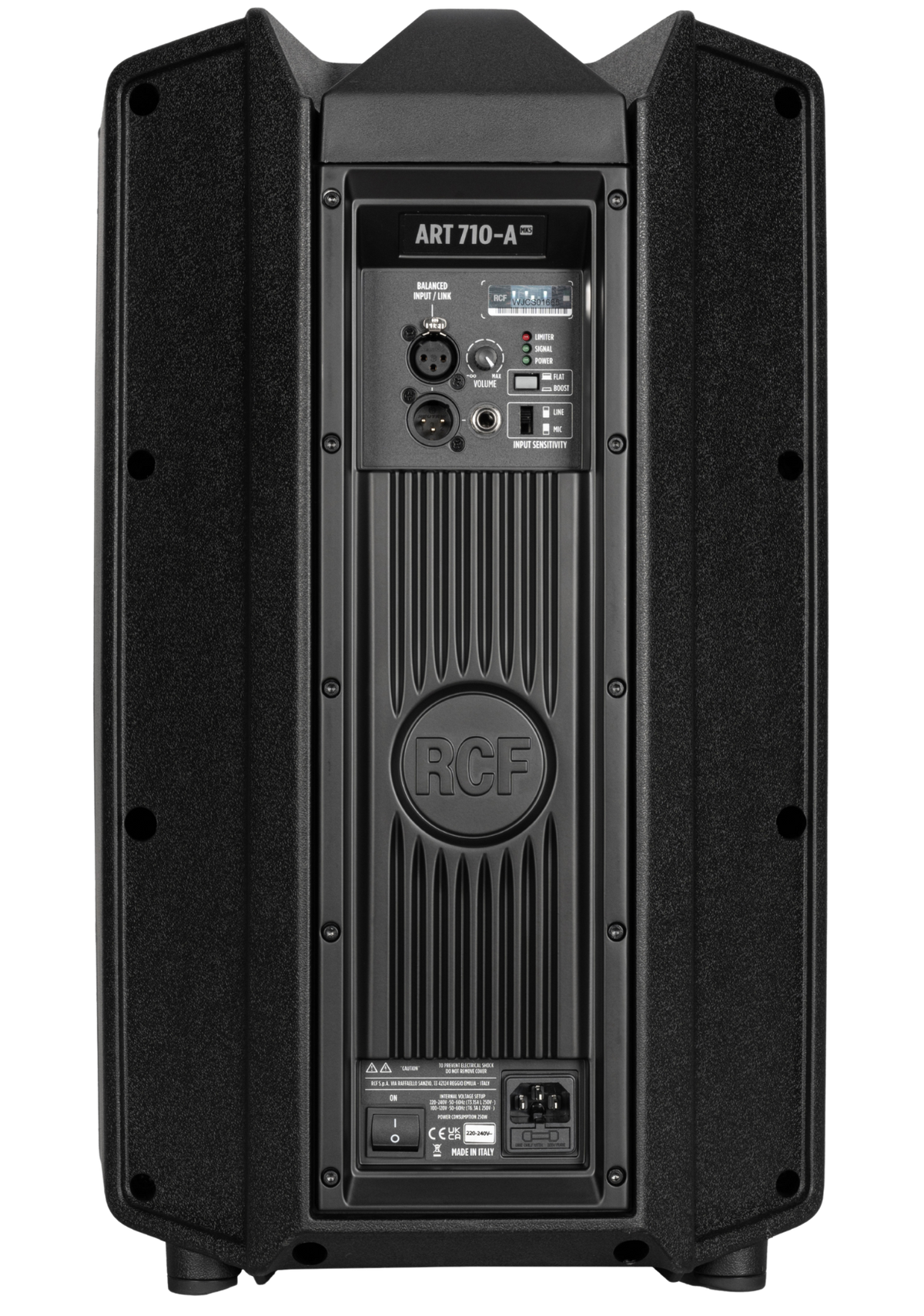

| Controls | Volume, Boost, MIC/Line Selection |
| Protection Systems | Thermal Protection, RMS Protection |
| Inputs | XLR / Jack Combo Input |
| Output | XLR Link Output |
| Input Sensitivity | -2dBu / +4dBu |
| Cabinet Material | PP Composite Cabinet |

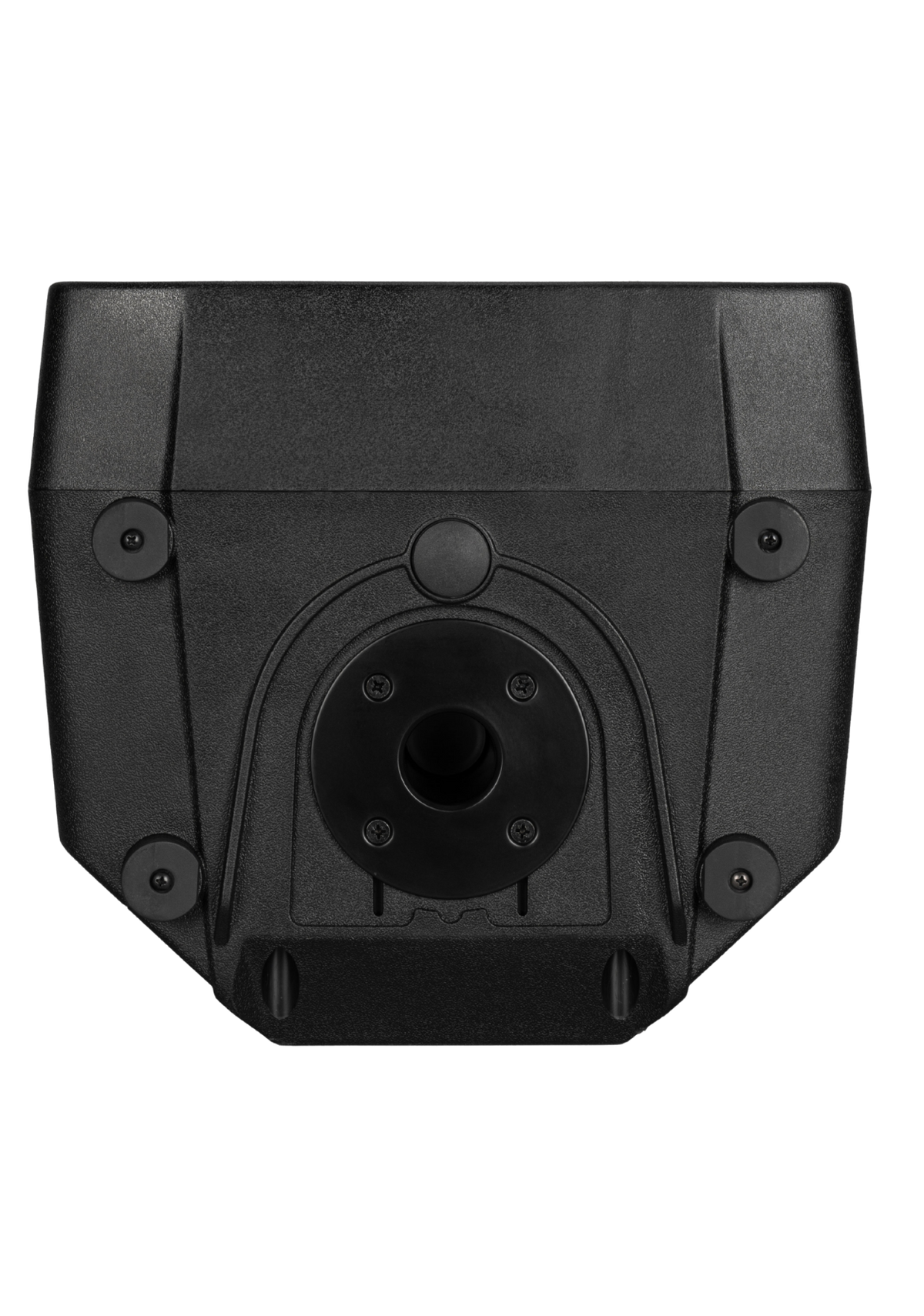

| Mounting | 35mm Pole Mount, 2 x M10 Rigging Points |
| Monitor Position | Floor Monitor Angle |
| Grille | Steel Protective Grille |
| Cooling | Convection Cooling |
| Dimensions (H x W x D) | 548 x 340 x 305mm |
| Weight | 14.2kg |
| Colour | Black |
Ideal For
- Mobile DJs
- Live Performances
- Bands
- Corporate Events
- Stage Monitoring
- Rental Companies
- Clubs & Venues
- Houses of Worship
- Portable PA Systems
- Professional Sound Reinforcement
