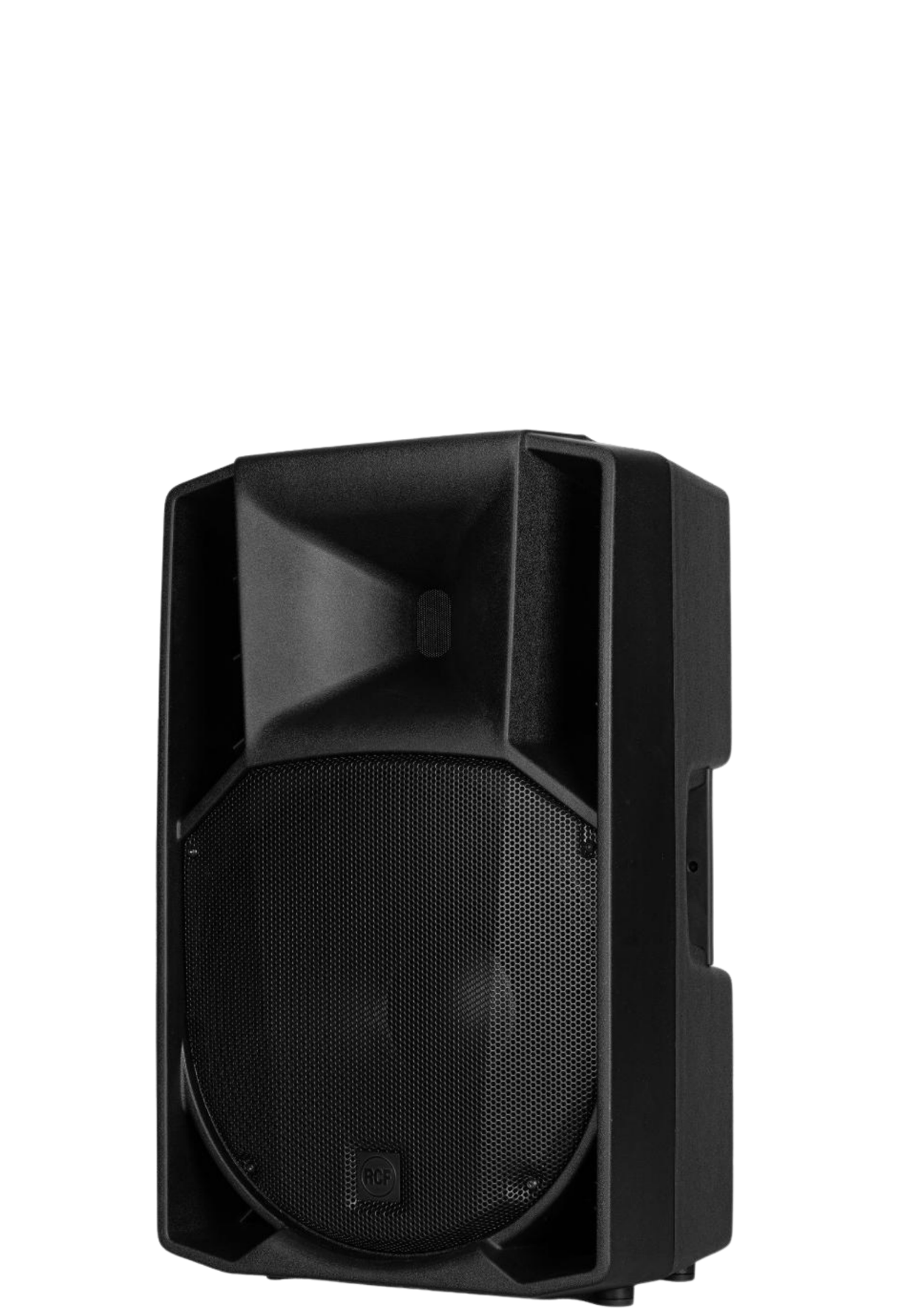

RCF ART 712-A MK5 1400w ACTIVE SPEAKER
RCF ART 712-A MK5 1400w ACTIVE SPEAKER
Couldn't load pickup availability
RCF ART 712-A MK5 1400W Active Speaker
Product Overview
The RCF ART 712-A MK5 is a professional 12-inch active two-way loudspeaker designed for live sound reinforcement, mobile DJs, performers, rental companies, and fixed installation applications. Combining RCF's advanced transducer technology with powerful DSP processing and efficient Class-D amplification, it delivers exceptional clarity, high output, and reliable performance.
Featuring a 12-inch woofer and a 1.75-inch compression driver, the ART 712-A MK5 provides powerful low-frequency response with excellent vocal intelligibility and accurate high-frequency reproduction. The integrated DSP system manages crossover, equalisation, phase control, soft limiting, and speaker protection.
With FiRPHASE technology, XBOOST low-frequency enhancement, a lightweight composite cabinet, and flexible mounting options, the ART 712-A MK5 is ideal for professional portable PA systems, stage monitoring, events, and performance applications.
Key Features
12" High Performance Woofer
Provides powerful bass response with accurate low-frequency control.
1.75" Compression Driver
Delivers detailed highs and excellent vocal projection.
1400W Peak Power
High-efficiency Class-D amplification for professional output.
FiRPHASE DSP Technology
Advanced processing for phase accuracy and natural sound.
XBOOST Low Frequency Enhancer
Improves bass response and system performance.
129dB Maximum SPL
High output capability for demanding live applications.
Technical Specifications
| Product Type | Active 2-Way Loudspeaker |
|---|---|
| Woofer | 12" Woofer with 2.5" Voice Coil |
| Compression Driver | 1" Exit Compression Driver with 1.75" Voice Coil |
| Amplifier Type | Class-D Digital Amplifier |
| Total Power | 1400W Peak |
| LF Amplifier Power | 1000W Peak |
| HF Amplifier Power | 400W Peak |
| Frequency Response | 50Hz - 20kHz |
| Maximum SPL | 129dB |
| Coverage Pattern | 90° Horizontal x 60° Vertical |
| Crossover Frequency | 1600Hz |
| DSP Processing | FiRPHASE Processing, EQ, Phase Control, Soft Limiter, Speaker Protection |
| Low Frequency Enhancement | XBOOST |

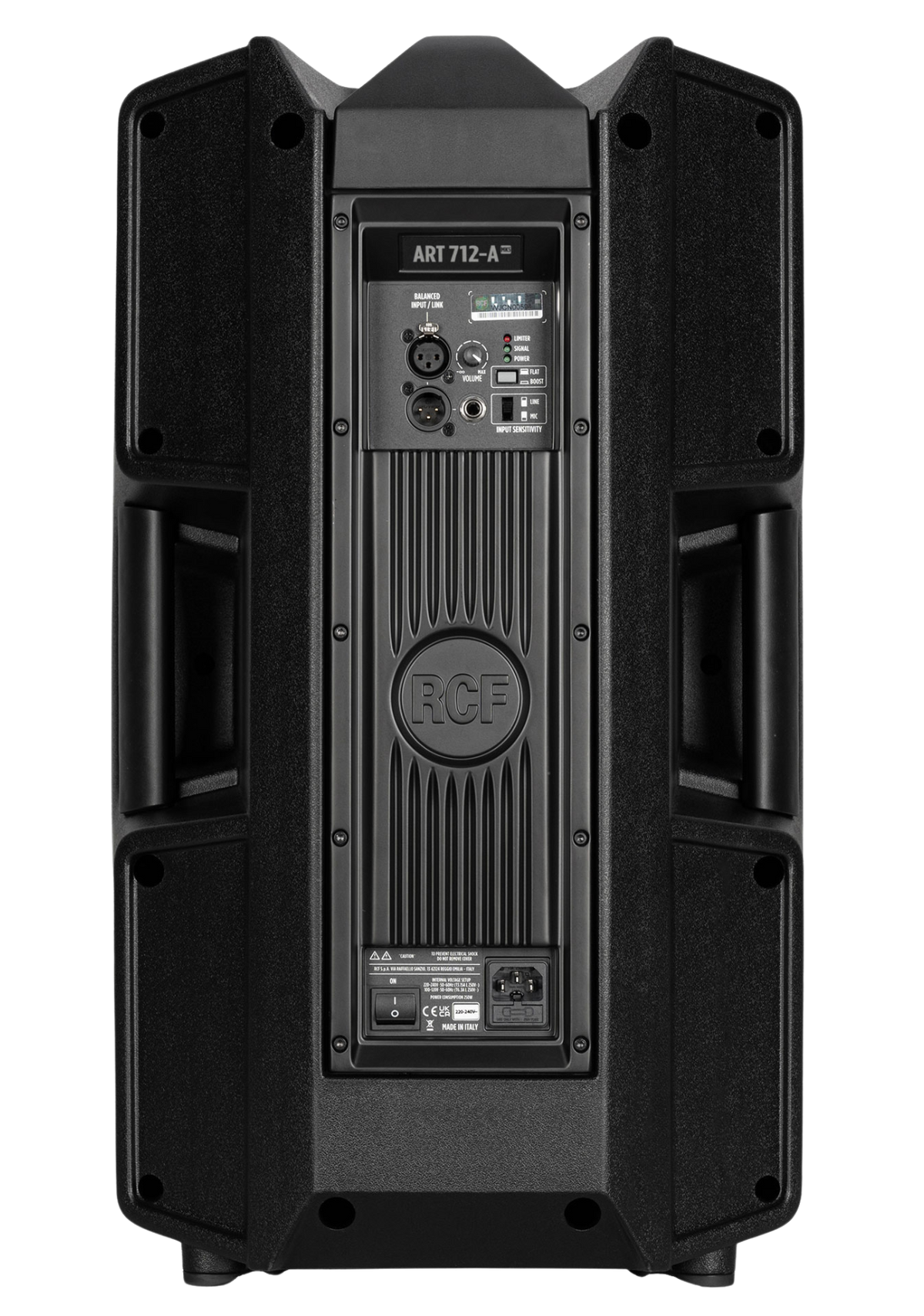

| Controls | Volume, Boost, MIC/Line Selection |
| Protection Systems | Thermal Protection, RMS Limiting |
| Inputs | XLR / Jack Combo Input |
| Output | XLR Link Output |
| Input Sensitivity | -2dBu / +4dBu |
| Cabinet Material | PP Composite Cabinet |

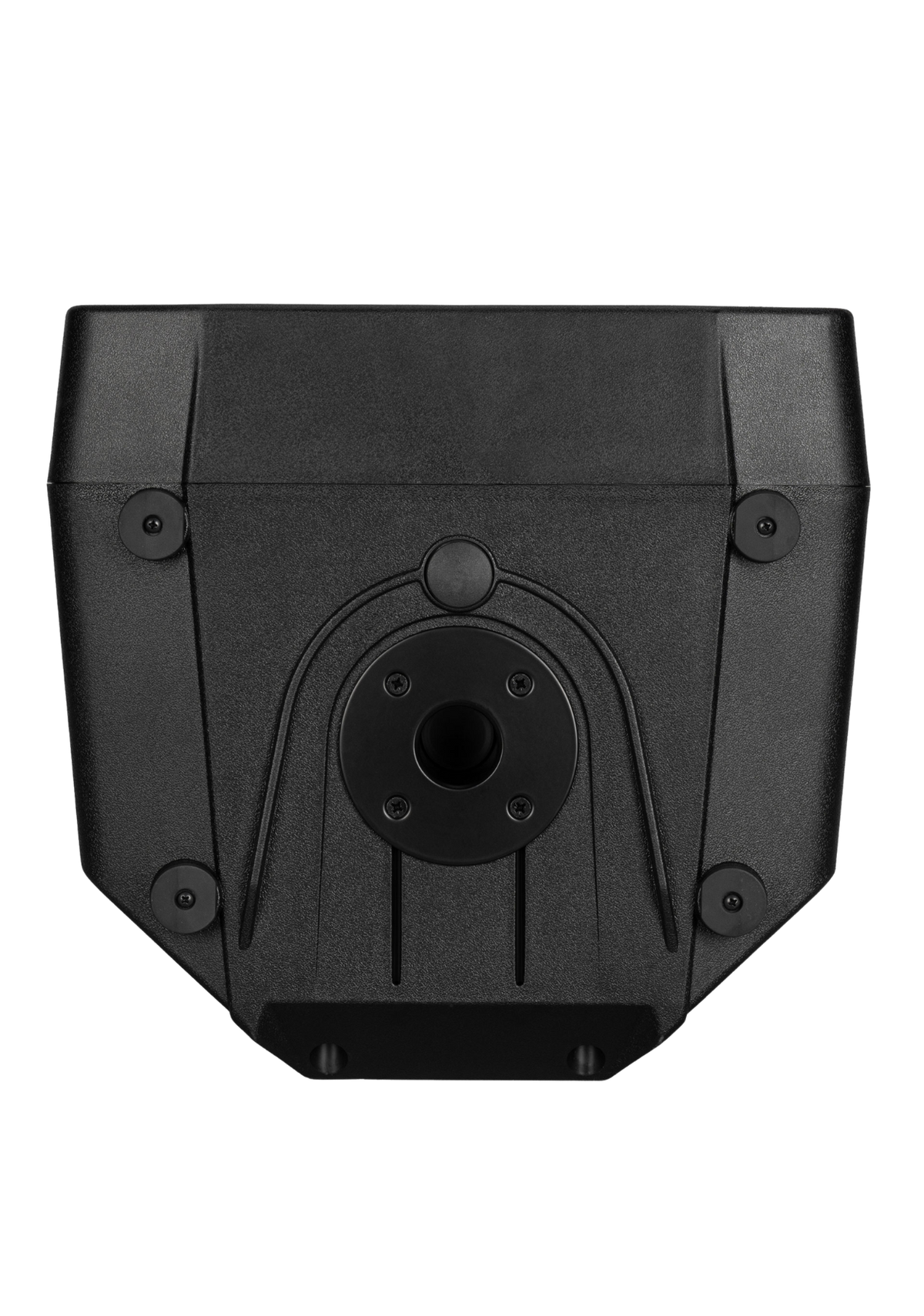

| Mounting | 35mm Pole Mount, M10 Rigging Points |
| Monitor Position | Floor Monitor Angle |
| Grille | Steel Protective Grille |
| Cooling | Convection Cooling |
| Dimensions (H x W x D) | 637 x 387 x 363mm |
| Weight | 17.8kg |
| Colour | Black |
Ideal For
- Mobile DJs
- Live Performances
- Bands
- Corporate Events
- Stage Monitoring
- Rental Companies
- Clubs & Venues
- Houses of Worship
- Portable PA Systems
- Professional Sound Reinforcement
