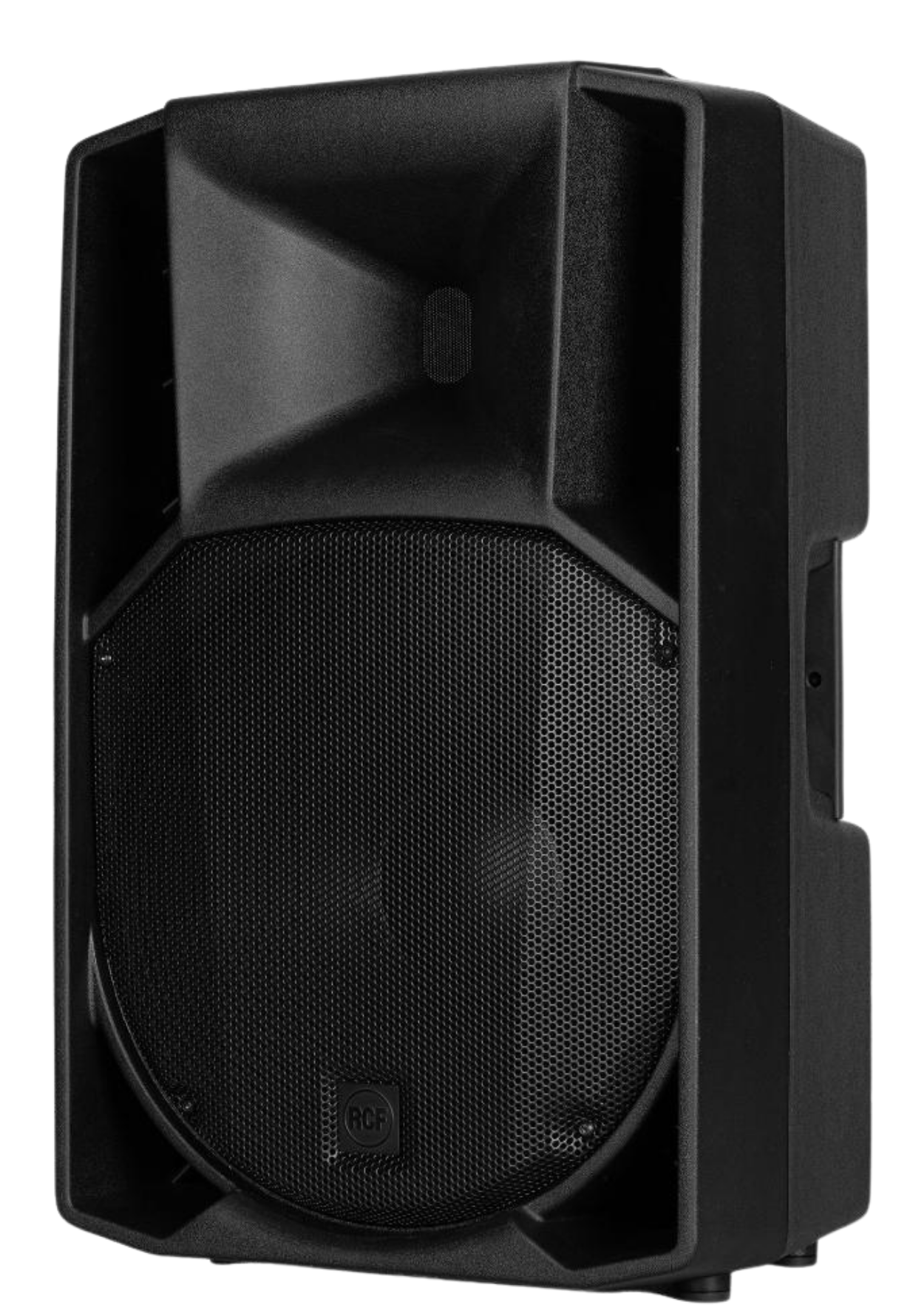

RCF ART 735-A MK5 1400W Active Speaker
Product Overview
The RCF ART 735-A MK5 is a professional active loudspeaker designed for live performances, DJs, musicians, rental companies, events, and portable PA applications. Combining RCF's advanced transducer technology with a powerful 1400W amplifier, the ART 735-A MK5 delivers exceptional vocal clarity, high output, and reliable performance.
Featuring a high-performance 15-inch woofer and a 3-inch titanium diaphragm compression driver, the ART 735-A MK5 provides powerful low-frequency control, excellent sound projection, and detailed high-frequency reproduction. RCF FiRPHASE processing ensures accurate phase response, while XBOOST enhances low-frequency performance.
Built with a lightweight composite cabinet, professional DSP processing, XLR connectivity, M10 rigging points, and multiple mounting options, the ART 735-A MK5 is ideal for DJs, live bands, theatres, corporate events, stage monitoring, and professional mobile sound systems.
Key Features
2-Way Active Design
Professional full-range loudspeaker system with powerful output.
1400W Peak Power
High-efficiency Class-D amplification for live applications.
15" Woofer
Deep bass response with accurate low-frequency control.
3" Compression Driver
Titanium diaphragm driver for excellent vocal projection.
FiRPHASE DSP
Advanced processing for natural and transparent sound.
XBOOST Enhancement
Improved low-frequency response and bass performance.
Technical Specifications
| Product Type | Active 2-Way Professional Loudspeaker |
|---|---|
| Low Frequency Driver | 15" Woofer, 3" Voice Coil |
| High Frequency Driver | 1.4" Neodymium Compression Driver, 3" Voice Coil |
| HF Diaphragm | Titanium Diaphragm |
| Amplifier Type | Class-D Digital Amplifier |
| Total Power | 1400W Peak |
| Low Frequency Power | 1000W Peak |
| High Frequency Power | 400W Peak |
| Frequency Response | 45Hz - 20kHz |
| Maximum SPL | 132dB |
| Coverage Pattern | 90° Horizontal x 60° Vertical |
| Horn Type | Wide Dispersion Constant Directivity Horn |
| DSP Processing | FiRPHASE Technology, Crossover, Equalisation, Phase Control and Protection |
| XBOOST | Low Frequency Enhancement Technology |
| Crossover Frequency | 800Hz |

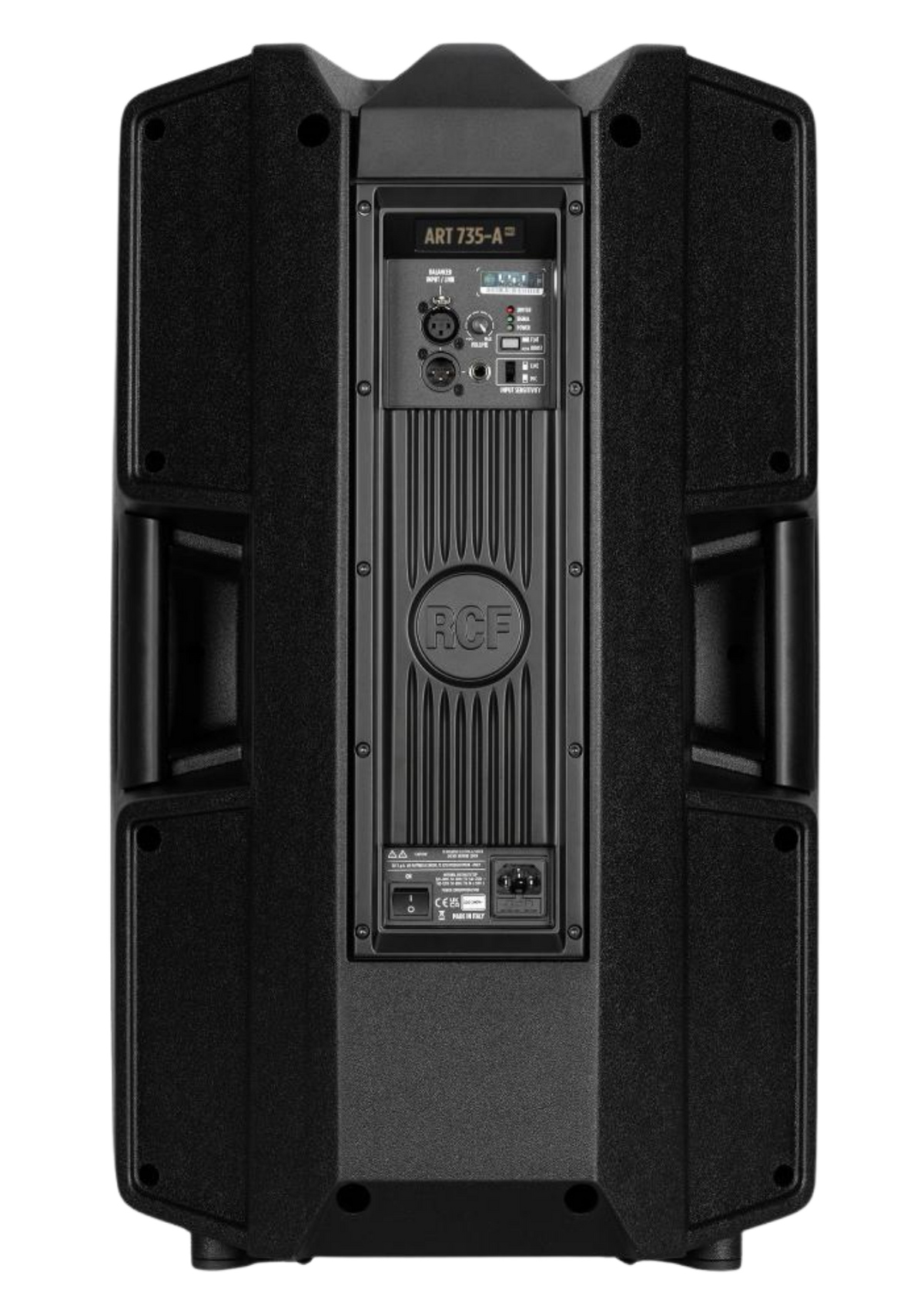

| Inputs | XLR / Jack Balanced Input |
| Output | XLR Link Output |
| Controls | Volume / Boost / MIC-Line Selection |
| Protection | Thermal Protection, RMS Limiter, Soft Limiter |
| Cooling | Convection Cooling |
| Power Connection | VDE Connection |
| Rigging | 2 x M10 Rigging Points |
| Mounting | 35mm Pole Mount / Floor Monitor Position |
| Enclosure Material | PP Composite Cabinet |
| Dimensions (H x W x D) | 708 x 437 x 389mm |
| Weight | 21.4kg |
| Colour | Black |
Ideal For
- Professional DJs
- Live Bands
- Touring Events
- Wedding & Mobile DJs
- Concert Venues
- Rental Companies
- Corporate Events
- Theatres
- Portable PA Systems
- Stage Monitoring
