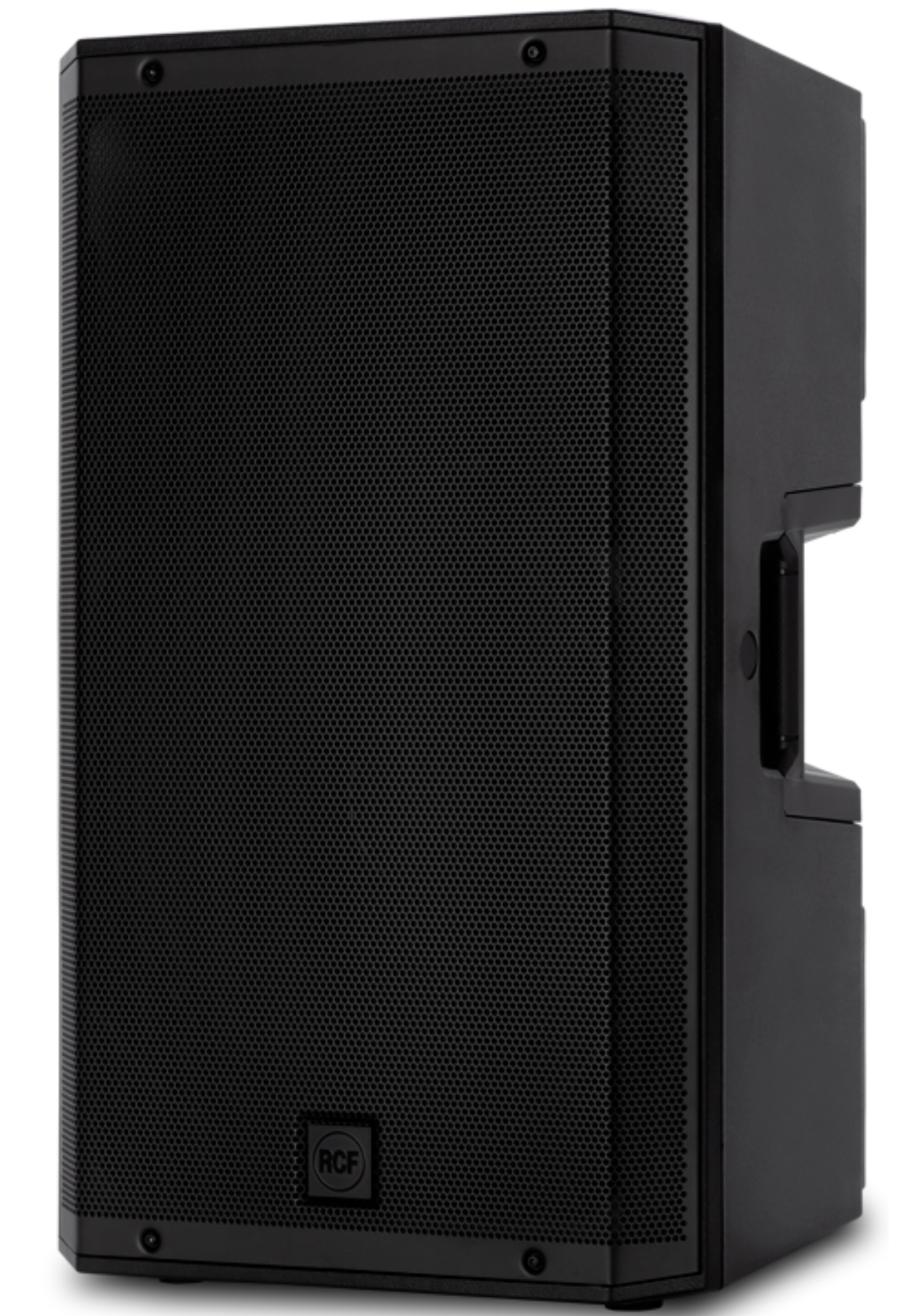

RCF ART 945-A 2100W Active Speaker
Product Overview
The RCF ART 945-A is a premium professional active loudspeaker designed for demanding live sound applications, touring, DJs, bands, rental companies, clubs, and professional PA systems. Combining advanced RCF transducer technology with a powerful 2100W Class-D bi-amplifier, the ART 945-A delivers exceptional output, clarity, and reliability.
Featuring a high-performance 15-inch neodymium woofer and a 4-inch titanium/neodymium compression driver, the ART 945-A provides powerful bass response, detailed vocals, and smooth high-frequency reproduction. RCF FiRPHASE processing and Bass Motion Control technology ensure precise phase alignment and controlled low-frequency performance.
With a True Resistive Waveguide, 100° x 60° coverage, professional DSP processing, lightweight composite cabinet, and multiple mounting options, the ART 945-A is ideal as a main PA speaker, stage monitor, satellite system with subwoofers, or installed professional sound solution.
Key Features
2-Way Active Design
High-output full-range professional loudspeaker system.
2100W Class-D Amplifier
Powerful bi-amplification with high efficiency and reliability.
15" Neodymium Woofer
Deep bass response with excellent power handling.
4" Compression Driver
Titanium diaphragm driver for detailed high frequencies.
FiRPHASE DSP
Zero-phase technology for accurate and natural sound.
Bass Motion Control
Advanced woofer excursion management for extended bass.
Technical Specifications
| Product Type | Active 2-Way Professional Loudspeaker |
|---|---|
| Low Frequency Driver | 15" Neodymium Woofer, 3.5" Voice Coil |
| High Frequency Driver | 1.4" Neodymium Compression Driver, 4" Voice Coil |
| HF Diaphragm | Titanium |
| Amplifier Type | Class-D Bi-Amplification |
| Total Power | 2100W Peak |
| Low Frequency Amplifier | 1400W Peak |
| High Frequency Amplifier | 700W Peak |
| Frequency Response | 45Hz - 20kHz |
| Maximum SPL | 135dB |
| Coverage Pattern | 100° Horizontal x 60° Vertical |
| Waveguide | True Resistive Waveguide |
| DSP Processing | FiRPHASE Zero Degrees Phase Technology and Bass Motion Control |
| Crossover Frequency | 650Hz |

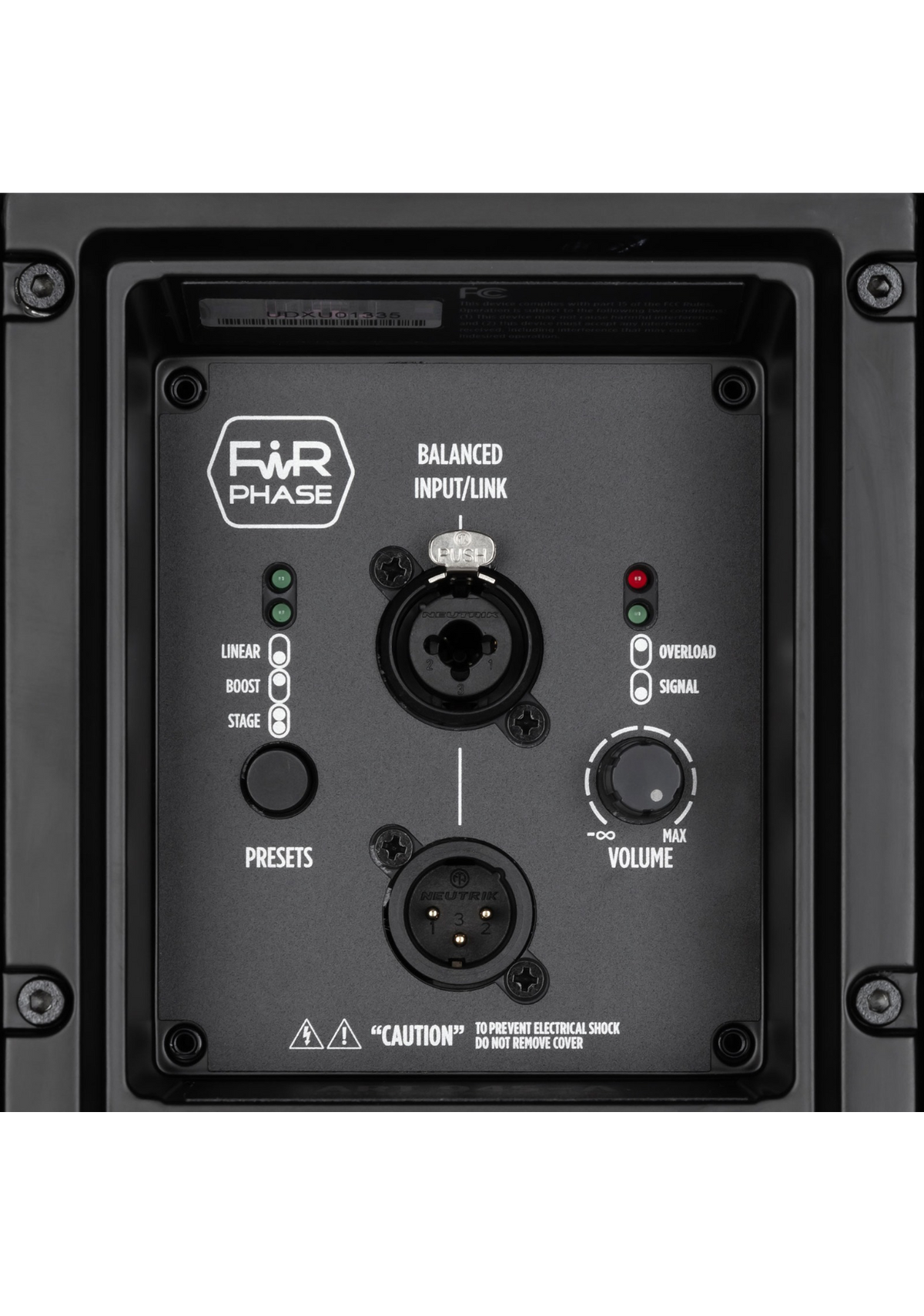

| Inputs | XLR / Jack Balanced Input |
| Output | XLR Link Output |
| Controls | Linear / Boost / Stage / Volume |
| Protection | Thermal Protection, RMS Limiter, Soft Limiter |

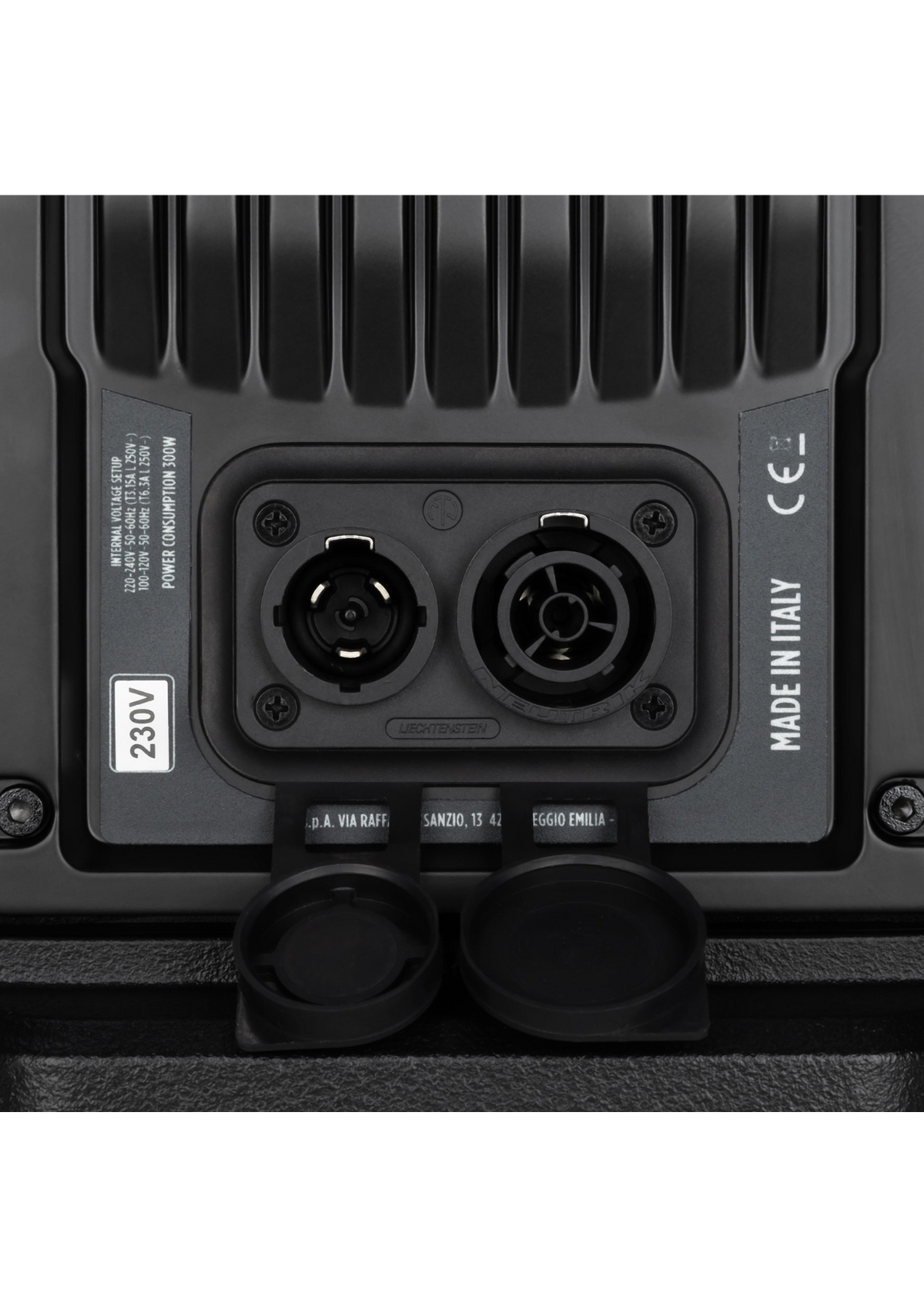

| Power Connection | PowerCON TRUE1 TOP IN/OUT |
| Rigging | M10 Rigging Points |

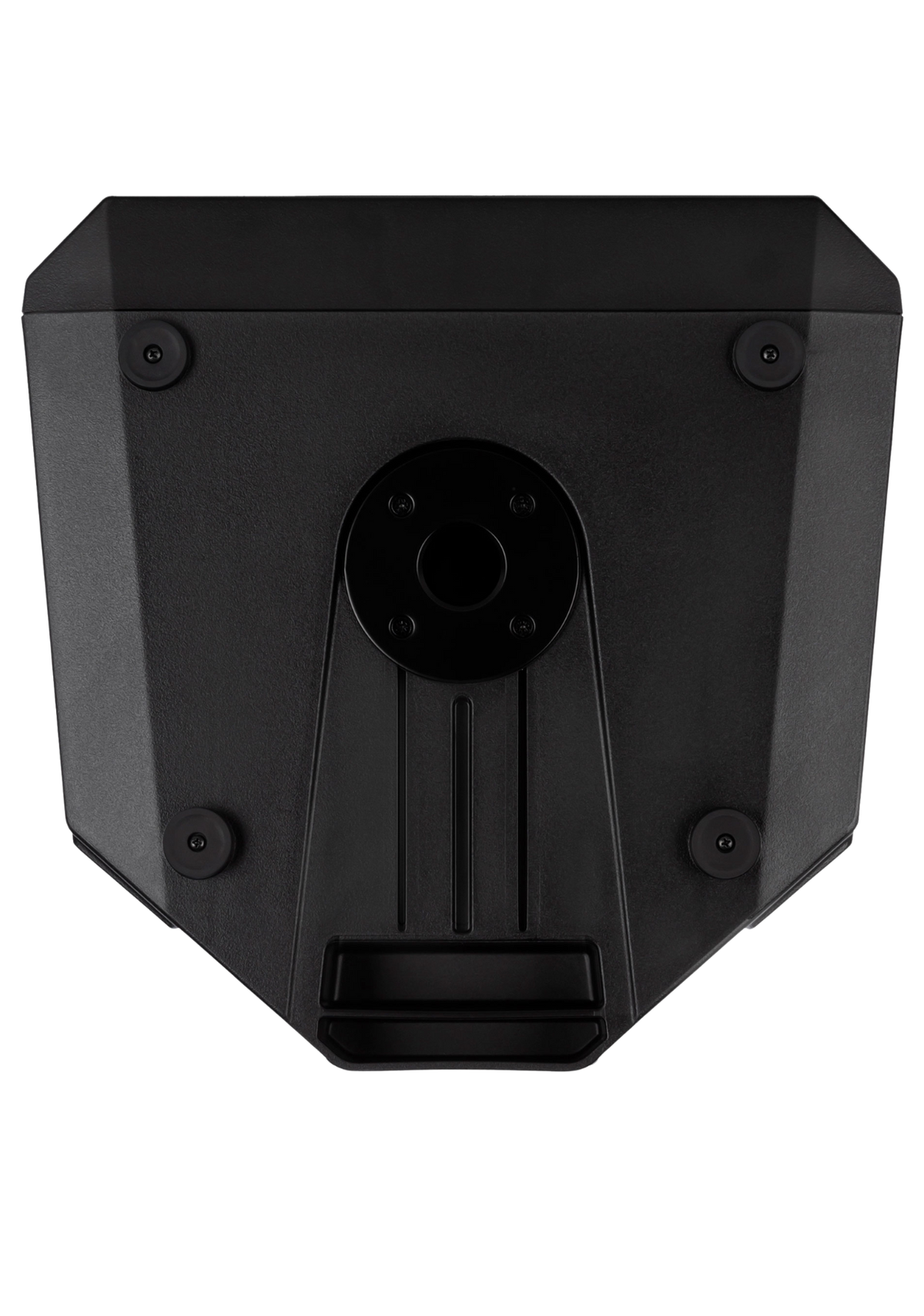

| Mounting | Pole Mount / Flown / Wall / Truss Installation |
| Enclosure Material | PP Composite Cabinet with Internal M-Brace Reinforcement |
| Dimensions (H x W x D) | 717 x 415 x 410mm |
| Weight | 22.4kg |
| Colour | Black |
Ideal For
- Professional DJs
- Touring Productions
- Live Bands
- Concert Venues
- Festival Sound Systems
- Rental Companies
- Clubs & Nightlife
- Corporate Events
- Theatres
- Premium Portable PA Systems
