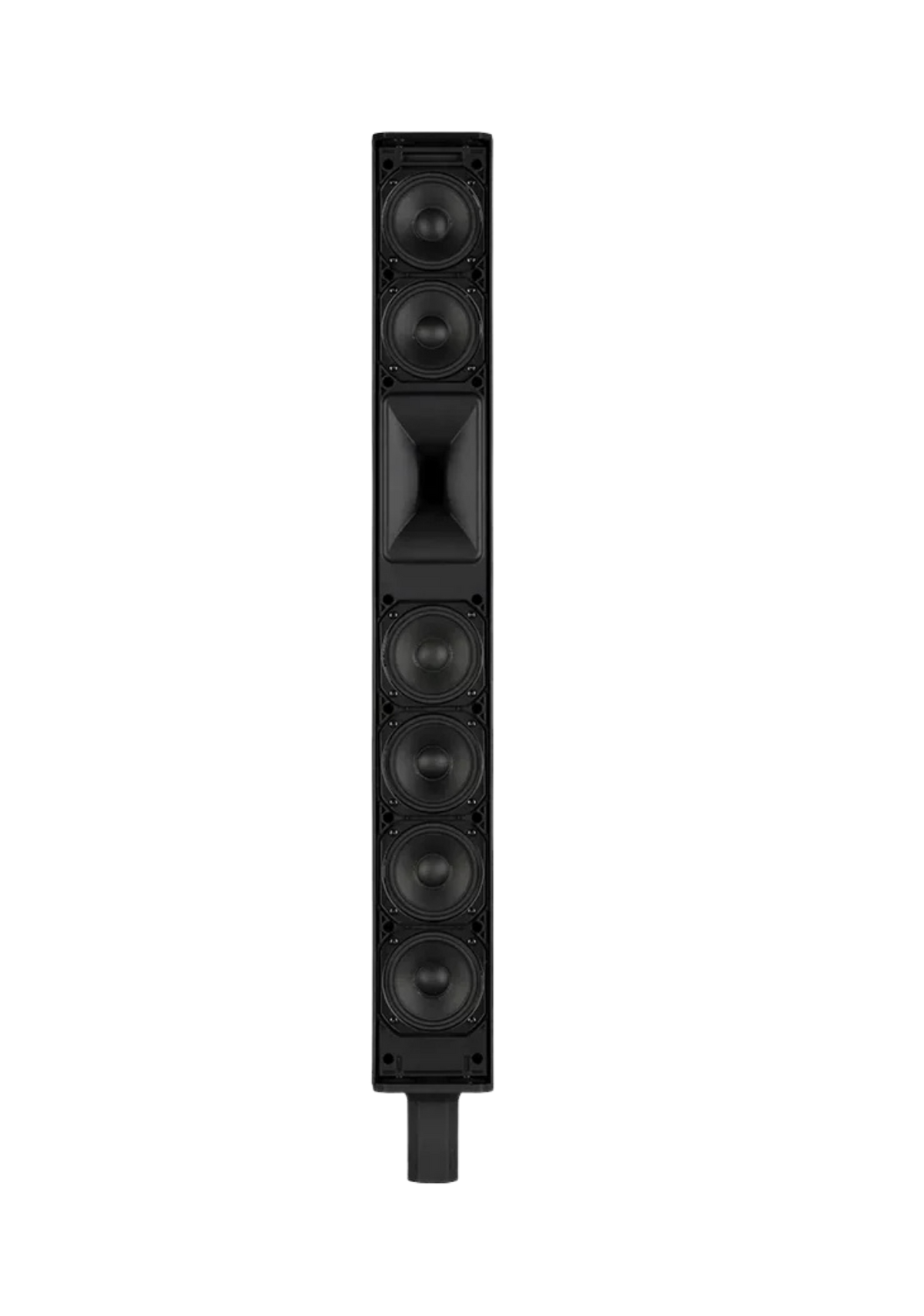

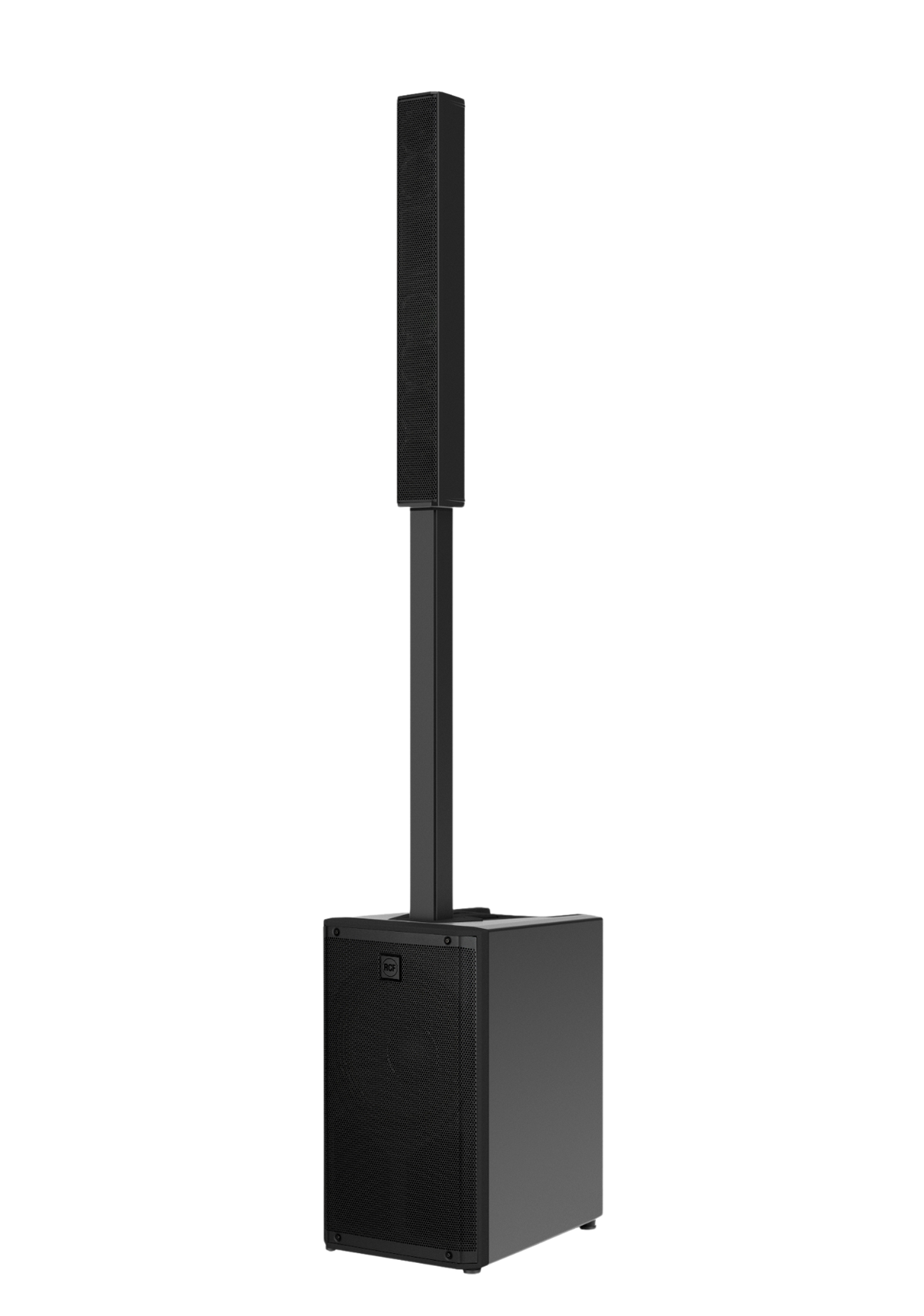

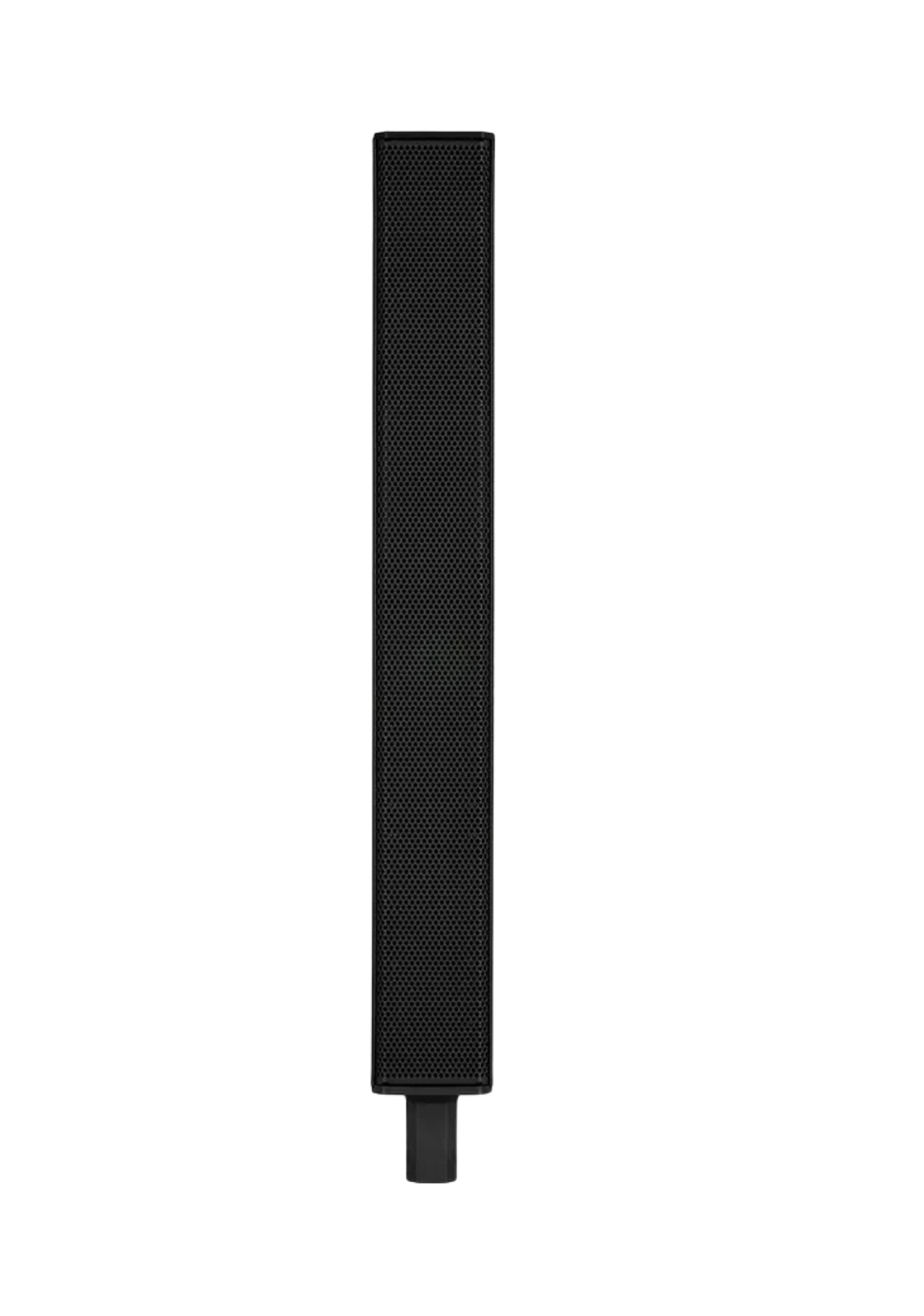

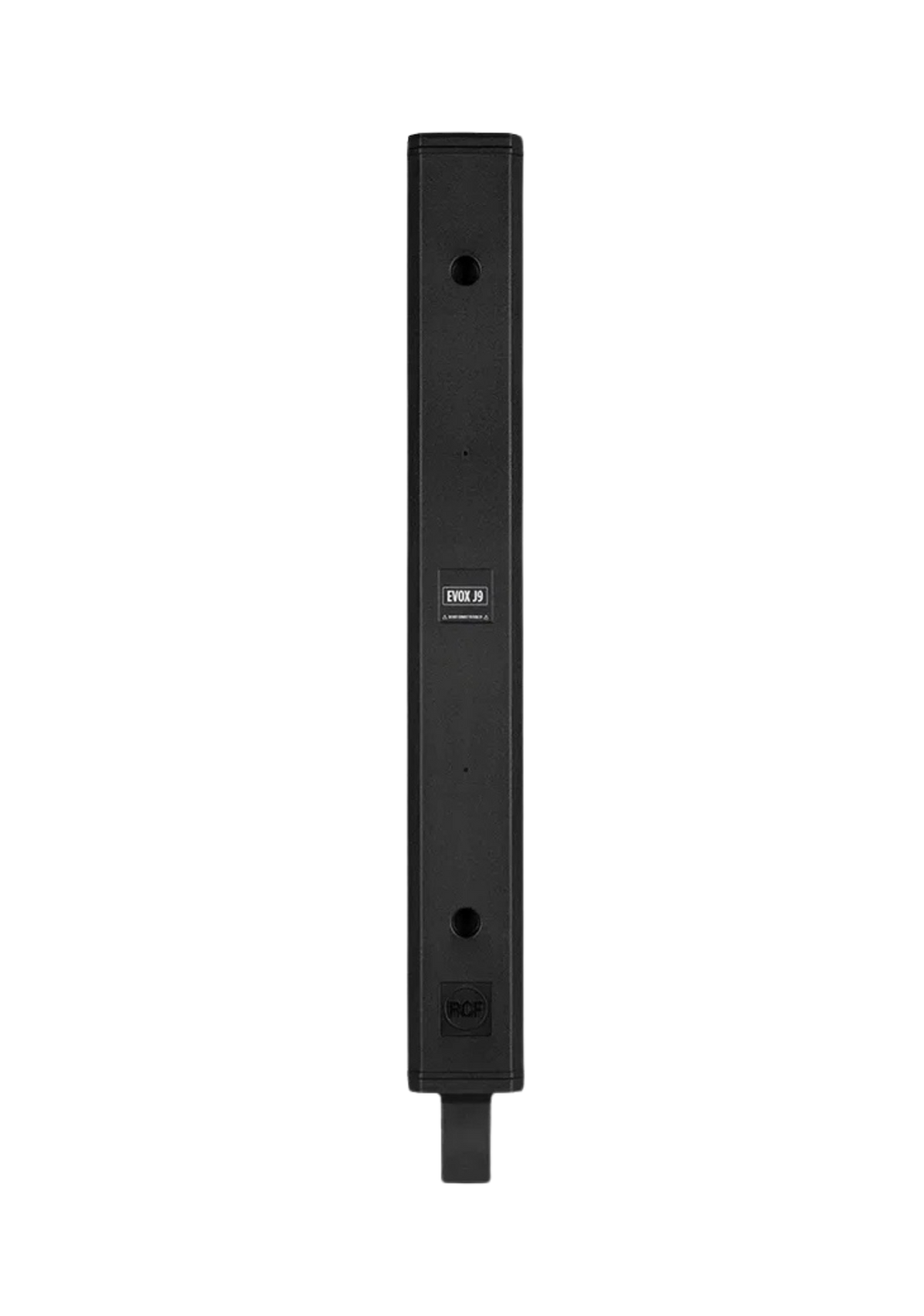

RCF EVOX J9 6x3"+12" Active 3-Way Column PA Speaker 2100W Black

RCF EVOX J9 6x3"+12" Active 3-Way Column PA Speaker 2100W Black

Product Description

The RCF EVOX J9 is a premium active three-way column PA system designed to deliver powerful, detailed, and highly controlled sound reinforcement in a compact, portable format. Combining advanced RCF engineering with a 2100W Peak Class-D amplifier and integrated DSP processing, the EVOX J9 provides exceptional clarity, wide coverage, and impressive output for professional live performances, mobile DJs, corporate events, and installation applications. (RCF)

Featuring a true three-way acoustic design, the EVOX J9 combines six 3-inch neodymium full-range transducers, a dedicated 1.75-inch neodymium compression driver with True Resistive Waveguide technology, and a high-power 12-inch woofer housed in a bass-reflex enclosure. This configuration delivers clear vocals, accurate midrange detail, smooth high frequencies, and deep controlled low-end performance with a maximum SPL of 130dB. (RCF)

The integrated DSP platform provides advanced system optimisation, FiRPHASE processing, soft limiting, thermal protection, and selectable EQ presets including Live/Linear, Club, and Voice modes. Built with a sleek composite cabinet, quick-fit pole mounting system, and road-ready design, the EVOX J9 offers fast deployment and reliable performance for professional mobile sound applications. (RCF)

Key Features

• 2100W Peak Class-D amplifier with integrated DSP

• True 3-way column speaker system

• 6 x 3" neodymium full-range transducers

• 1.75" neodymium compression driver with True Resistive Waveguide

• 12" high-power woofer for extended low-frequency response

• Maximum SPL of 130dB

• Wide 120° x 40° coverage pattern

• RCF FiRPHASE digital processing technology

• Built-in DSP presets: Linear/Live, Club, Voice

• Soft limiter and thermal/RMS protection

• Compact composite cabinet with aluminium stand mount

• Quick setup design with padded top speaker carry bag included (RCF)

Specifications

• Speaker Type: Active 3-Way Column PA System

• System Configuration: Column Array + Powered Subwoofer

• LF Driver: 12" Woofer with 2.5" Voice Coil

• MF Drivers: 6 x 3" Neodymium Full-Range Transducers

• HF Driver: 1 x 1.75" Neodymium Compression Driver

• Amplifier Power: 2100W Peak

• Amplifier Type: Class-D

• Frequency Response: 40Hz – 20kHz

• Maximum SPL: 130dB

• Coverage Pattern: 120° Horizontal x 40° Vertical

• DSP: Integrated Digital Signal Processing with FiRPHASE

• Presets: Linear/Live, Club, Voice

• Crossover Frequencies: 200Hz / 1800Hz

• Protection: Thermal Protection, RMS Protection, Soft Limiter

• Inputs: XLR/Jack Combo Input

• Outputs: XLR Link Output

• Cabinet Material: PP Composite

• Grille: Steel

• Mounting: Quick-Fit Socket

• Colour: Black

• Weight: 26kg

• Dimensions (H x W x D): 2080 x 350 x 463mm (RCF)

Ideal For

• Mobile DJs

• Solo Performers & Acoustic Artists

• Live Bands & Musicians

• Corporate Events

• Wedding & Event Production

• Rental & Hire Companies

• Houses of Worship

• Conference & Presentation Systems

• Restaurants & Entertainment Venues

• Professional Portable PA Systems

• Small to Medium Live Sound Applications
