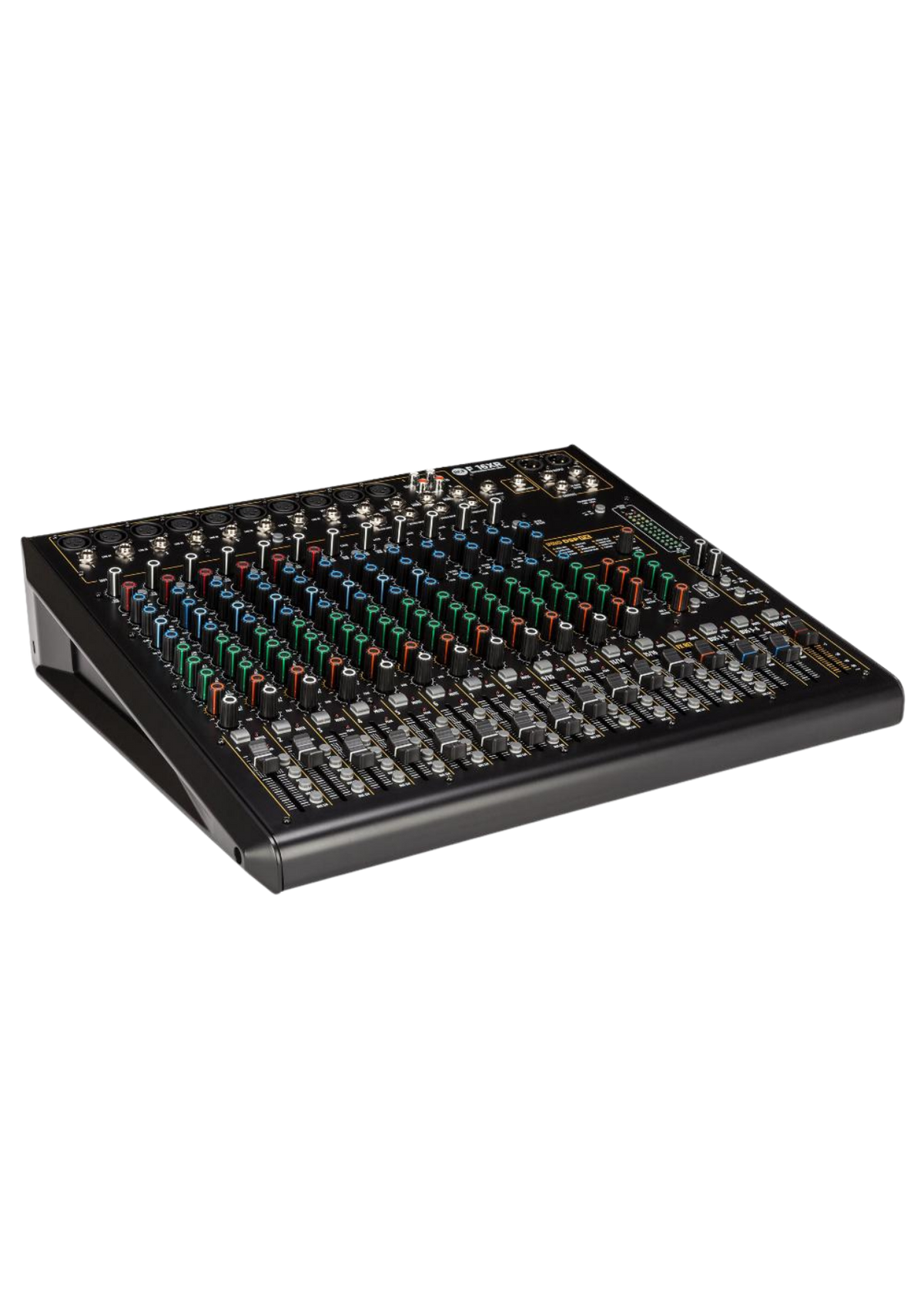

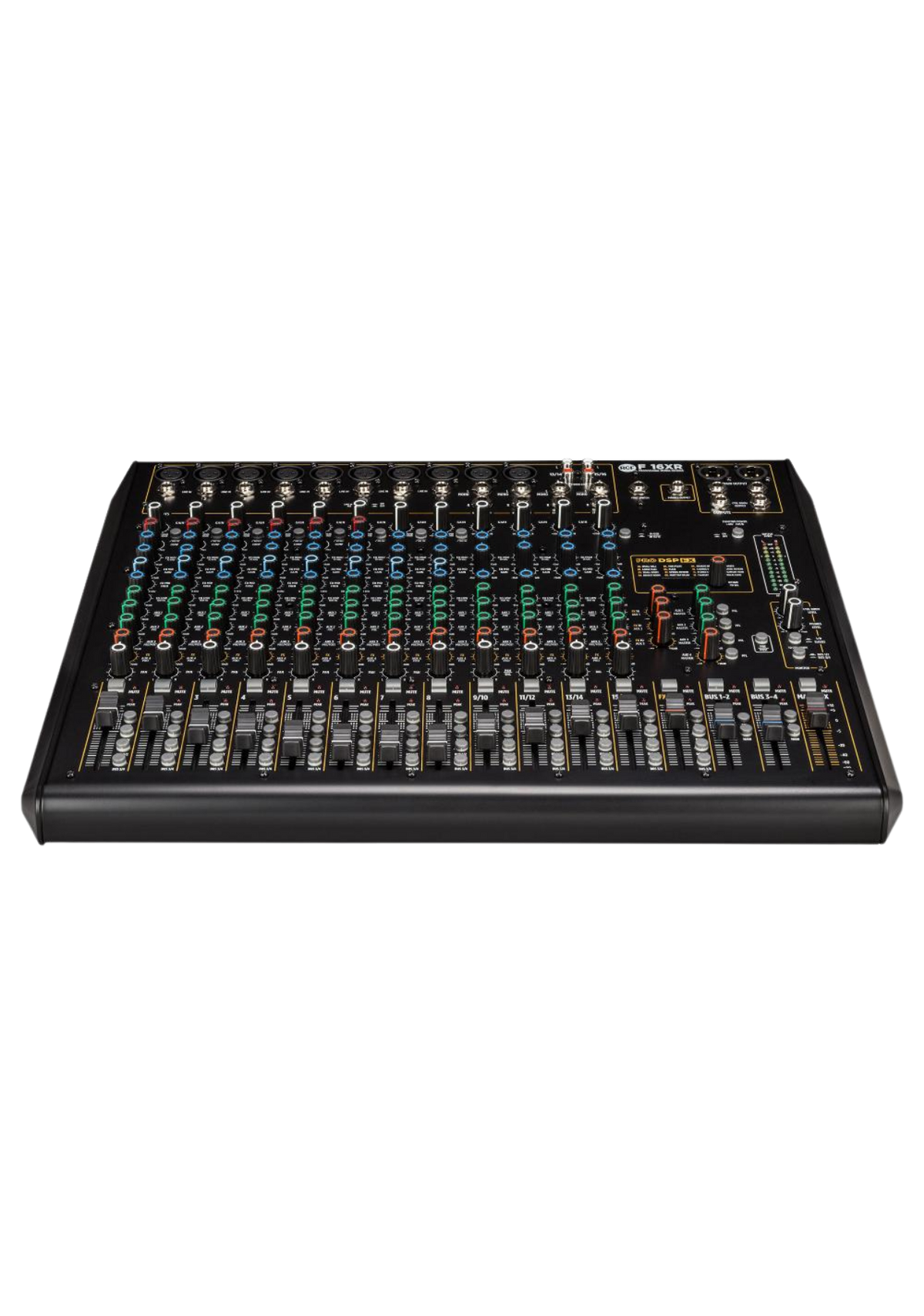

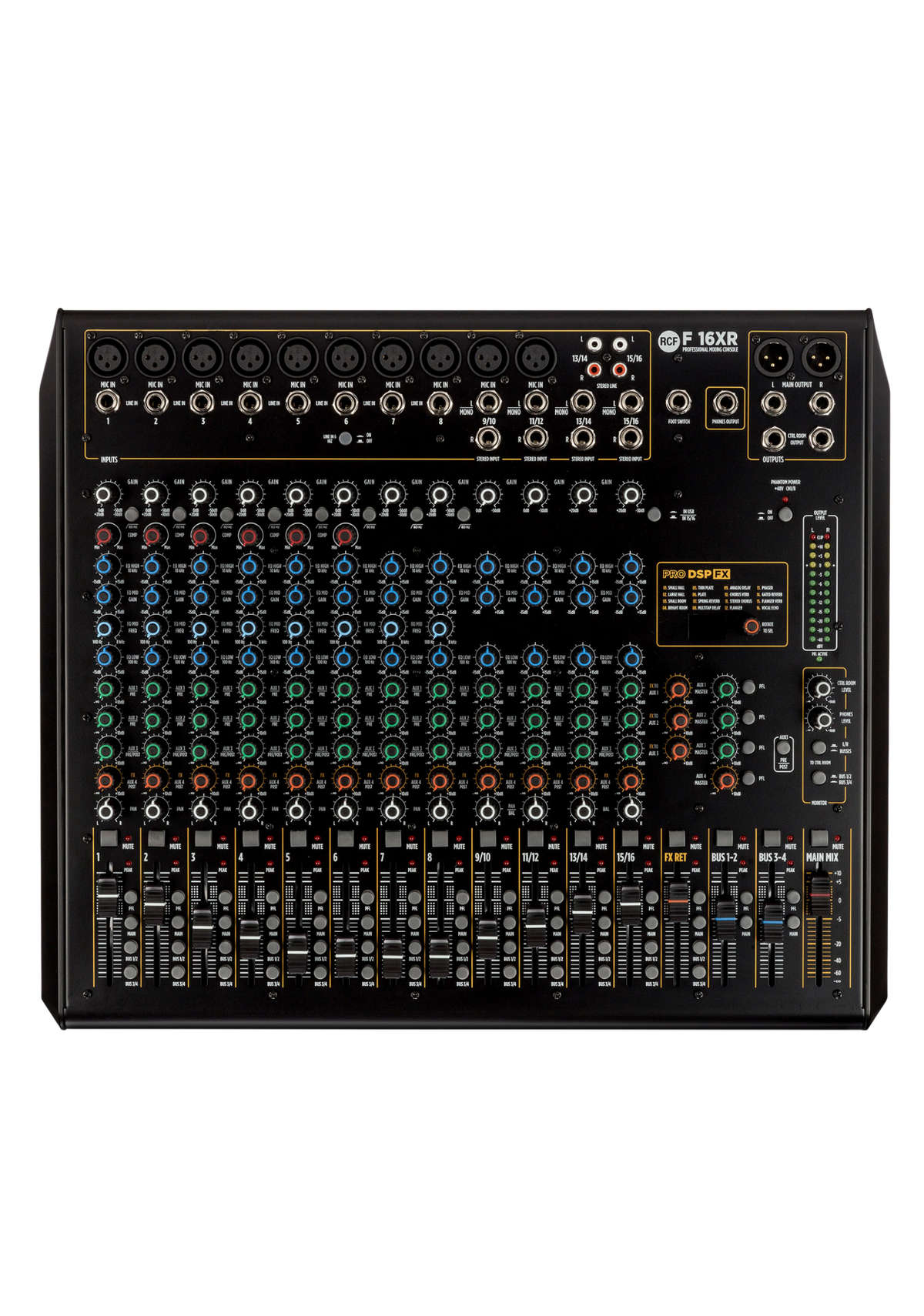

RCF F16XR 16-Channel Analogue Multi-FX Mixer
Product Overview
The RCF F16XR is a professional 16-channel analogue mixer designed for live sound, studio recording, installations, rehearsal spaces, and content creation. Combining high-quality analogue circuitry with onboard digital effects and USB recording, the F16XR delivers exceptional audio performance in a robust and intuitive format.
Featuring 10 premium microphone preamps, four stereo input channels, built-in single-knob compressors, a powerful PRO DSP multi-effects processor, and a 2-in/2-out USB audio interface, the mixer provides everything needed for professional mixing, recording, and playback.
Designed and engineered in Italy, the F16XR offers balanced outputs, flexible routing options, multiple auxiliary sends, and a durable metal chassis, making it ideal for bands, venues, engineers, houses of worship, schools, and mobile sound applications.
Key Features
16-Channel Mixer
Professional analogue mixing console.
10 Mic Preamps
Low-noise, high-headroom microphone inputs.
PRO DSP Effects
16 professional digital FX presets.
USB Recording
2-in / 2-out USB audio interface.
Built-in Compressors
Six single-knob compressors for fast control.
Metal Construction
Durable chassis for touring and installation.
Technical Specifications
| Product Type | 16-Channel Analogue Mixer with Multi-FX & USB Recording |
|---|---|
| Channels | 16 |
| Microphone Inputs | 10 |
| Mono Line Inputs | 8 |
| Stereo Inputs | 4 Stereo Channels |
| Hi-Z Instrument Input | 1 |
| Input Connectors | XLR, 6.35mm Jack & RCA |
| Phantom Power | +48V |
| Low Cut Filter | 80Hz |
| EQ | 3-Band EQ with Semi-Parametric Mid |
| Compressors | 6 Single-Knob Compressors |
| Effects Processor | PRO DSP with 16 Presets |
| Aux Sends | 4 (2 Pre, 1 Pre/Post, 1 FX) |
| Main Outputs | Balanced XLR & TRS |
| Group Outputs | 4 |
| Control Room Output | Balanced TRS |
| Headphone Output | 6.35mm Stereo Jack |
| USB Audio Interface | 2-In / 2-Out USB Type-B |
| Supported Sample Rates | 44.1kHz / 48kHz |
| Footswitch Input | Yes |
| Frequency Response | 20Hz – 20kHz |
| Dynamic Range | >85dB |
| THD+N | <0.02% (A-Weighted) |
| Power Supply | Internal Universal (100–240V AC) |
| Power Consumption | 30W Max |
| Construction | Metal Chassis |
| Dimensions (W × H × D) | 479 × 107 × 406mm |
| Weight | 6.4kg |
| Colour | Black |
Ideal For
- Live Bands
- Small & Medium Venues
- Home Recording Studios
- Podcast Production
- Live Streaming
- Churches & Houses of Worship
- Schools & Colleges
- Rehearsal Rooms
- Mobile PA Systems
- Professional Audio Engineers
