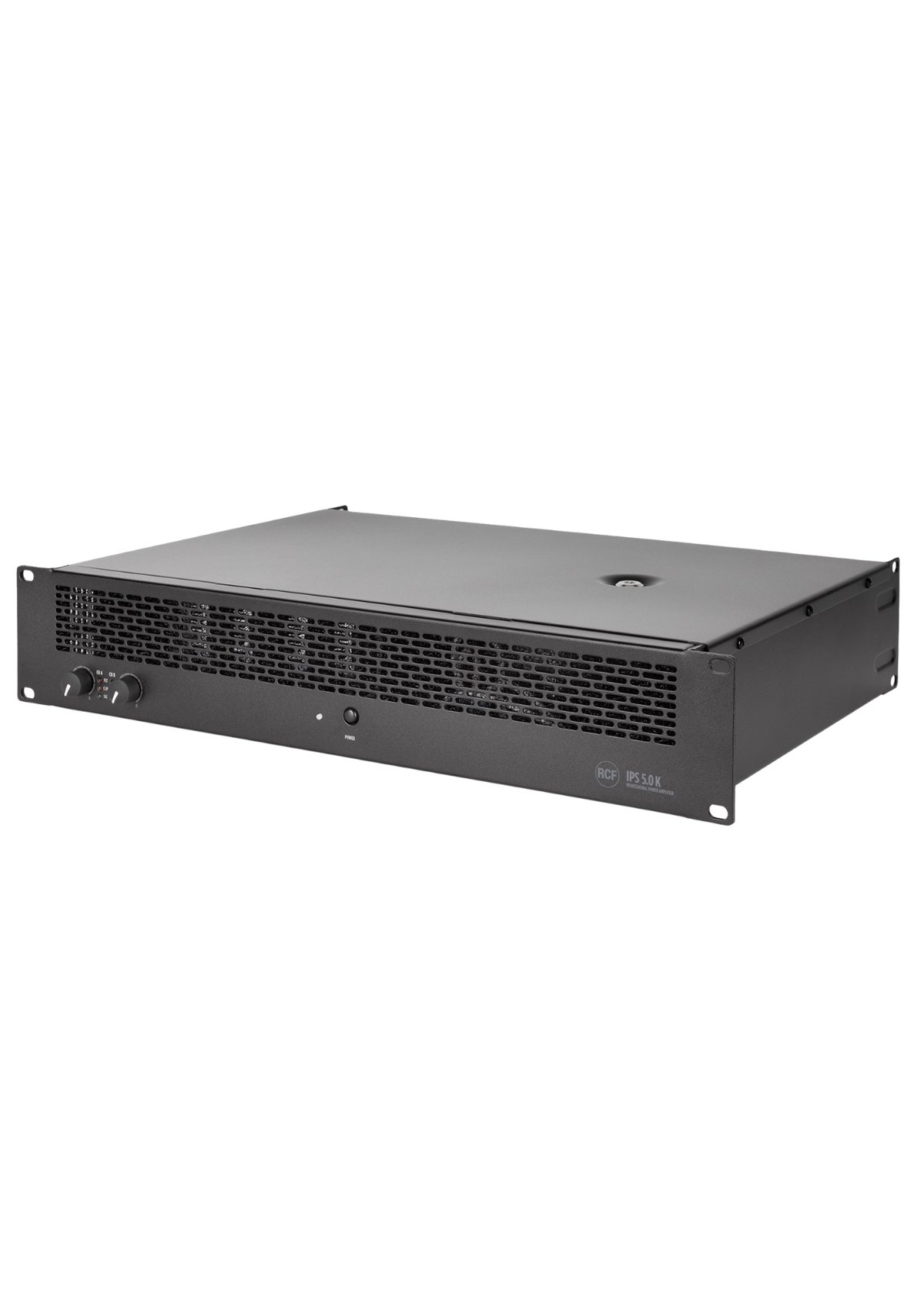

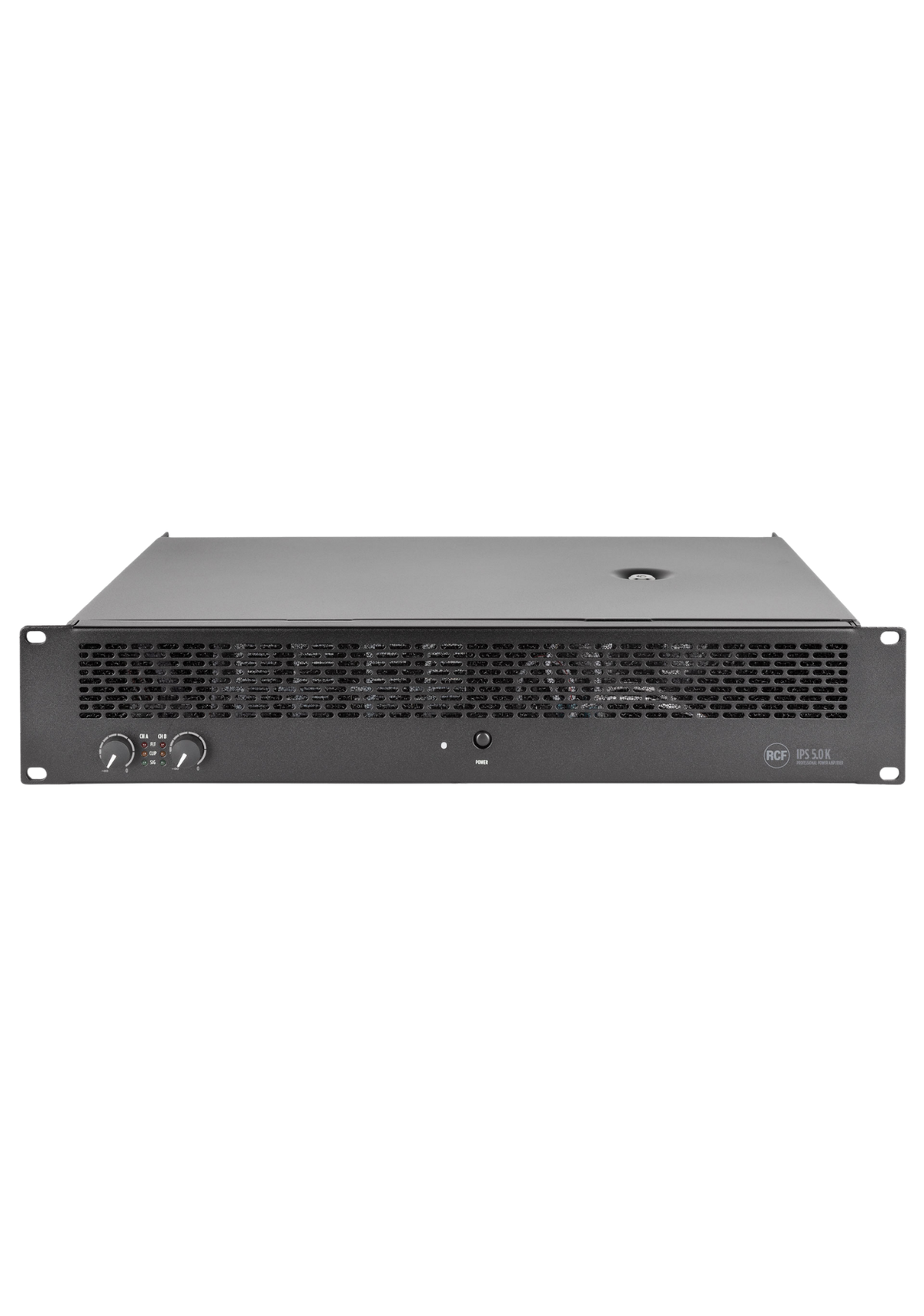

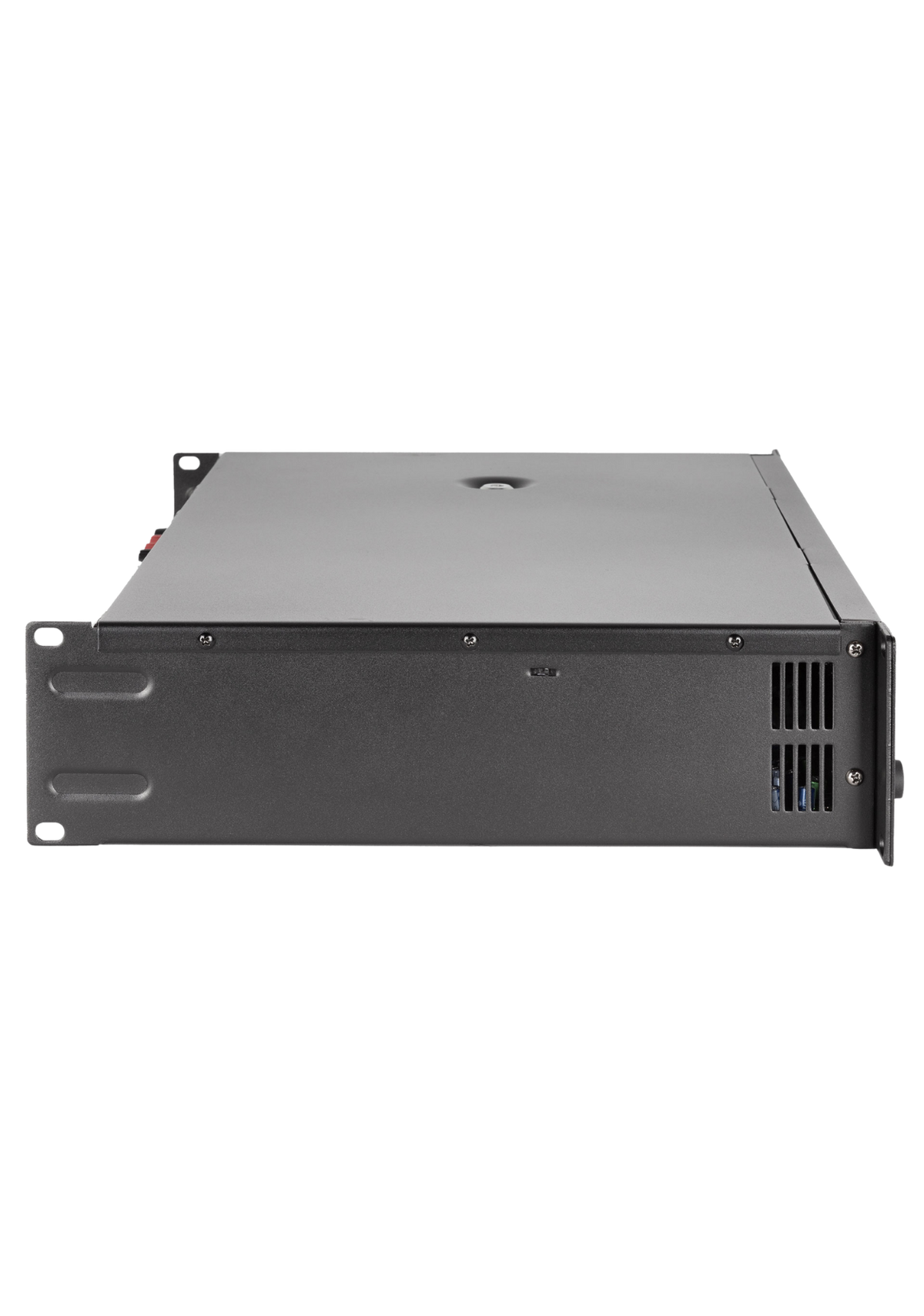

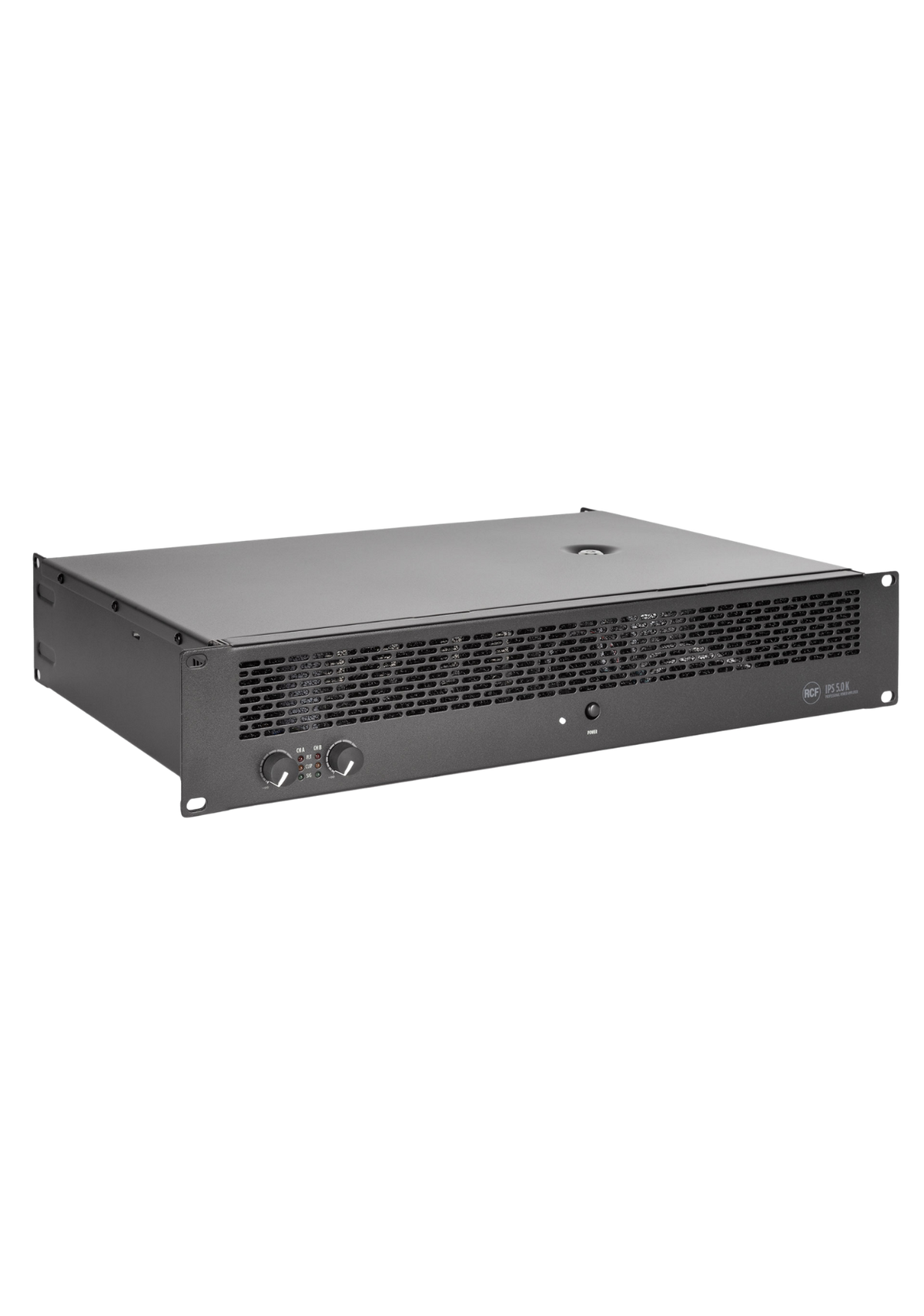

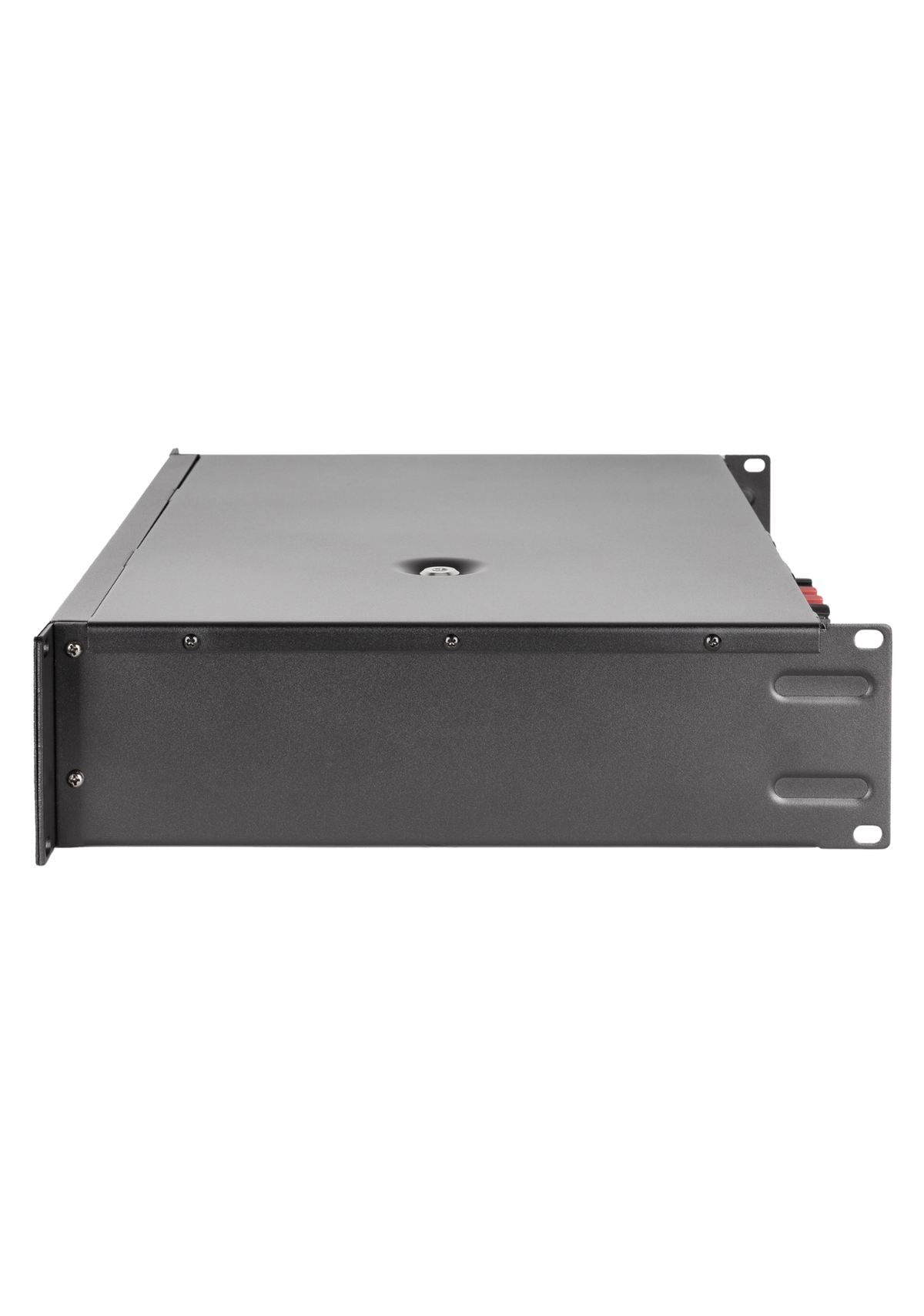

RCF IPS 5.0K 2-Channel Power Amplifier - 5,200W
Product Overview
The RCF IPS 5.0K is a high-performance professional two-channel power amplifier designed for demanding mobile sound reinforcement, professional PA systems, touring applications, and permanent installations. Delivering up to 2 x 2,600W at 4 Ohms, it provides substantial output power while maintaining reliable and efficient operation.
Built around RCF's Class-H amplification technology, the IPS 5.0K combines high output capability with low distortion and reliable performance. Each channel features independent gain control, signal and clip indication, fault monitoring, and individual limiting for controlled system operation.
The amplifier supports stereo, parallel, and bridge configurations, allowing it to adapt to a wide range of professional loudspeaker systems. XLR inputs and link outputs are combined with both speakON and binding-post speaker connections, while comprehensive short-circuit, thermal, DC, fuse, and VHF protection helps ensure dependable operation in demanding environments.
Key Features
2 x 2,600W @ 4 Ohms
High-output two-channel amplification for demanding professional loudspeaker systems.
Class-H Amplification
High-performance Class-H topology provides powerful output with efficient operation.
5,200W Bridged Output
Bridge mode provides up to 5,200W into an 8-ohm load for high-power single-channel applications.
Stereo, Parallel & Bridge Modes
Flexible amplifier configuration for different professional sound system requirements.
Professional Connectivity

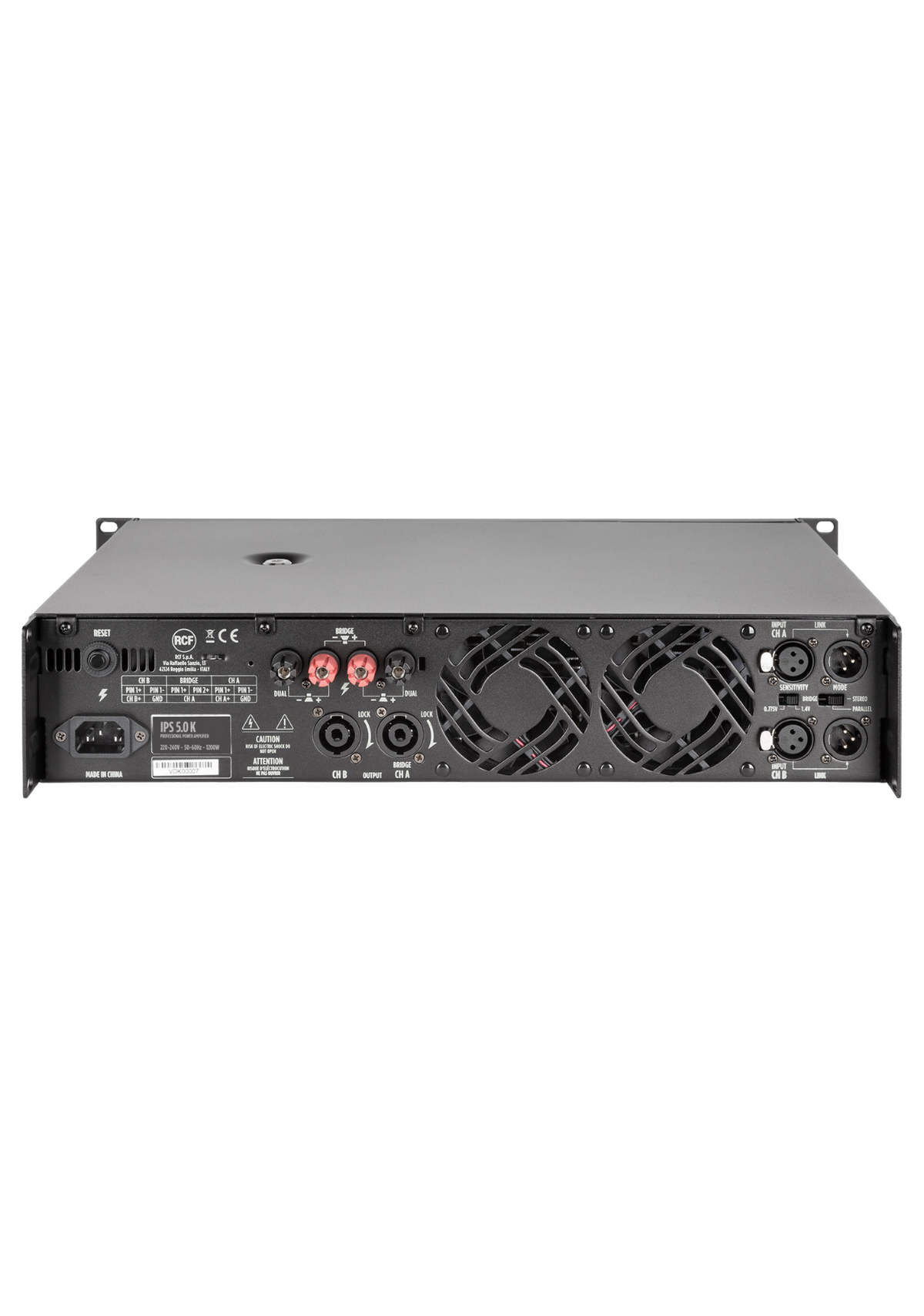

XLR inputs and link outputs with speakON and binding-post loudspeaker connections.
Comprehensive Protection
Short-circuit, thermal, DC, fuse and VHF protection helps safeguard the amplifier and connected system.
Technical Specifications
| Product Type | 2-Channel Professional Power Amplifier |
|---|---|
| Model | IPS 5.0K |
| Amplifier Class | Class-H |
| Output Power @ 4 Ohms | 2 x 2,600W |
| Output Power @ 8 Ohms | 2 x 1,500W |
| Bridge Output @ 8 Ohms | 1 x 5,200W |
| Frequency Response (-3dB) | 20Hz - 22kHz |
| Crosstalk | <70dB |
| THD+N @ 1kHz Nominal Power | <0.04% |
| Total Number of Inputs | 2 |
| Balanced Inputs | 2 |
| Mono Inputs | 2 |
| Line Inputs | 2 |
| Input Connectors | XLR |
| Signal Outputs | 2 |
| Signal Output Connectors | XLR |
| Power Output Connectors | Binding Post, speakON |
| Channel Configuration | Stereo, Parallel, Bridge |
| Configuration Controls | DIP Switch, Front Panel Controls |
| Channel Controls | Independent Gain Control |
| Indicators | Signal, Clip, Fault LED Indicators |
| Limiter | Limiter on Each Channel |
| Cooling | Forced Cooling with Variable-Speed Fans |
| Short-Circuit Protection | Yes |
| Thermal Protection | Yes |
| DC Protection | Yes |
| Fuse Protection | Yes |
| VHF Protection | Yes |
| Operating Voltage | 220-240V / 115V AC, 50/60Hz |
| Maximum Power Consumption | 1,800W |
| Cabinet Material | Metal |
| Colour | Black - RAL 9005 |
| Rack Mounting | 19", 2U |
| Height | 88mm / 3.46" |
| Width | 482mm / 18.98" |
| Depth | 325mm / 12.8" |
| Weight | 23.2kg / 51.15lbs |
Ideal For
- Professional PA Systems
- Touring Sound Systems
- Live Sound Reinforcement
- Concert Venues
- Large Events
- Rental Companies
- Mobile Sound Systems
- Permanent Installations
- Professional DJs
- Live Bands
- Passive Loudspeaker Systems
- High-Power Sound Reinforcement
