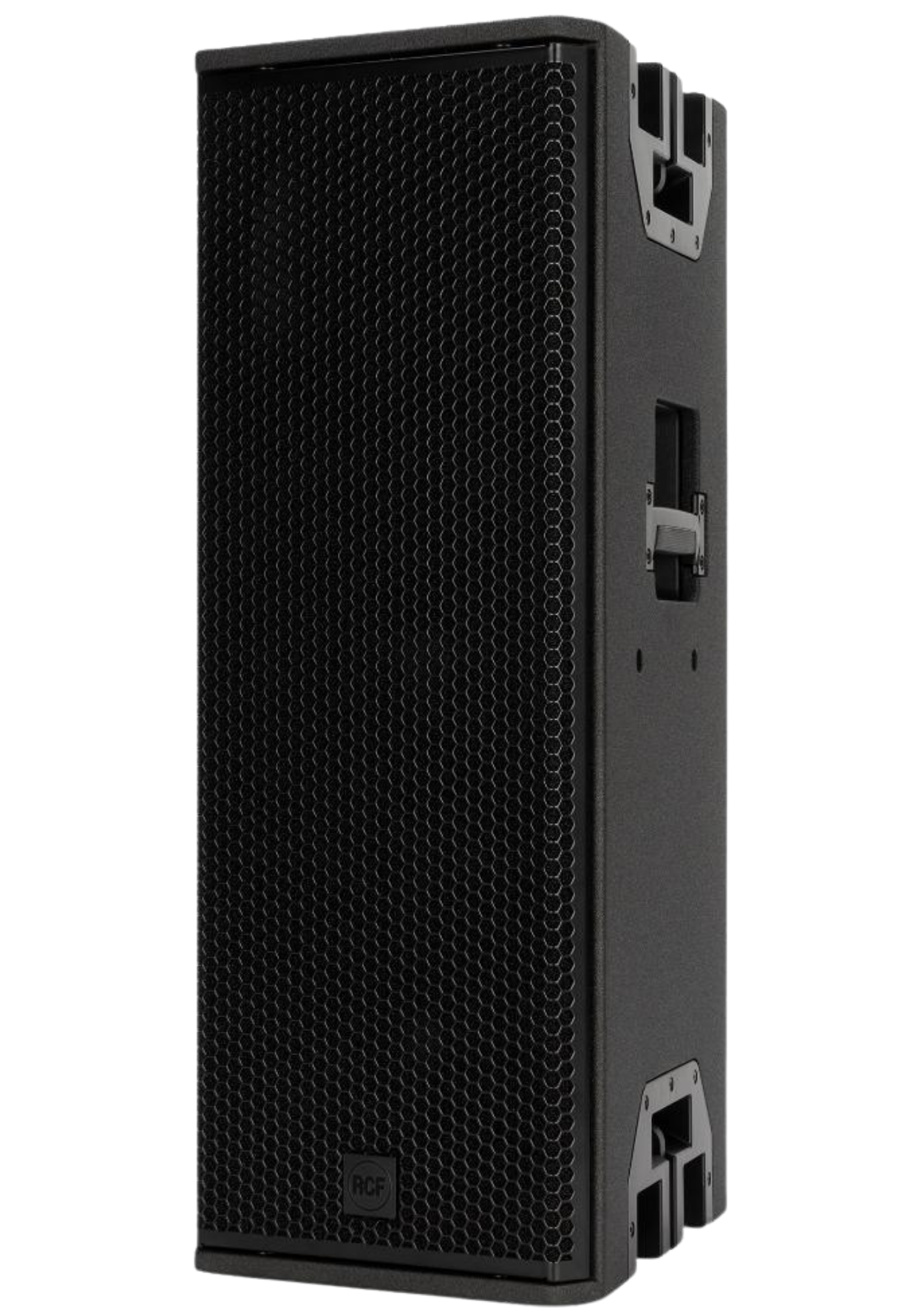

RCF KXL 4-A 2x10" 2-Way Active Array Loudspeaker + RDNET 3200W

RCF KXL 4-A 2x10" 2-Way Active Array Loudspeaker + RDNet 3200W

Product Description

The RCF KXL 4-A is a premium high-performance active array loudspeaker designed to deliver exceptional sound quality, powerful output, and advanced system control for professional audio applications. Powered by a 3,200W Class-D amplifier, the KXL 4-A provides outstanding vocal intelligibility, impressive low-frequency performance, and precise high-frequency reproduction, making it an ideal choice for touring productions, live sound engineers, event production companies, and fixed installation venues.

Featuring advanced FiRPHASE processing, Bass Motion Control (BMC), and integrated RDNet network management, the KXL 4-A ensures accurate audio performance, system protection, and comprehensive remote monitoring across a wide range of applications. Its rugged Baltic birch plywood enclosure is engineered to withstand the demands of touring, live events, and frequent transportation while maintaining a professional appearance.

Whether used as part of a scalable line array system or as a high-output standalone solution, the KXL 4-A delivers the power, clarity, and reliability expected from RCF's flagship KX Series.

Key Features

3,200W Class-D power amplifier

Dual 10" neodymium woofers and 4" titanium compression driver

Advanced FiRPHASE DSP processing

Bass Motion Control (BMC) technology

Integrated RDNet remote monitoring and control

Exceptional vocal clarity and powerful low-frequency response

Rugged Baltic birch plywood cabinet construction

High SPL performance for demanding applications

Flexible array and installation configurations

Professional-grade build quality for touring and rental use

Specifications

Speaker Type: Active 2-Way Array Loudspeaker

LF Driver: 2 x 10" Neodymium Woofers

HF Driver: 4.0" Titanium Compression Driver

Amplifier Power: 3,200W Class-D

Frequency Response (-3dB): 60Hz – 20kHz

Frequency Range (-10dB): 50Hz – 20kHz

Maximum SPL: 137dB

Coverage Pattern: 100° x 30°

DSP: FiRPHASE & Bass Motion Control Digital Signal Processing

Network Control: RDNet Integrated

Inputs: XLR Input

Outputs: XLR Link Output

Cabinet Material: Baltic Birch Plywood

Grille: Powder-Coated Steel

Weight: 35kg

Dimensions (H x W x D): 300 x 700 x 502mm

Ideal For

• Touring Sound Systems
• Live Sound Applications
• Event Production Companies
• Rental & Hire Companies
• Concert Venues
• Theatres and Auditoriums
• Houses of Worship
• Festivals and Outdoor Events
