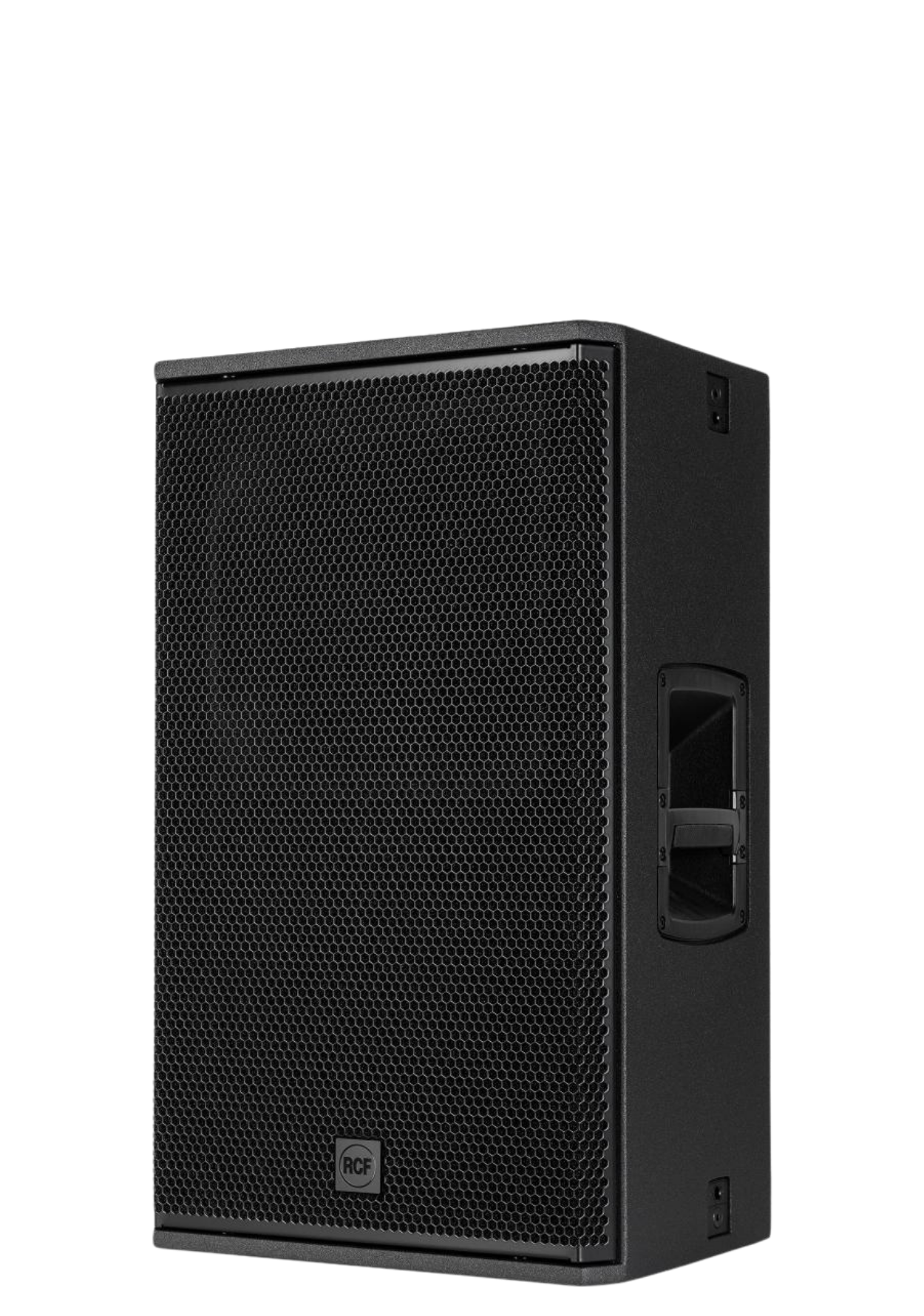

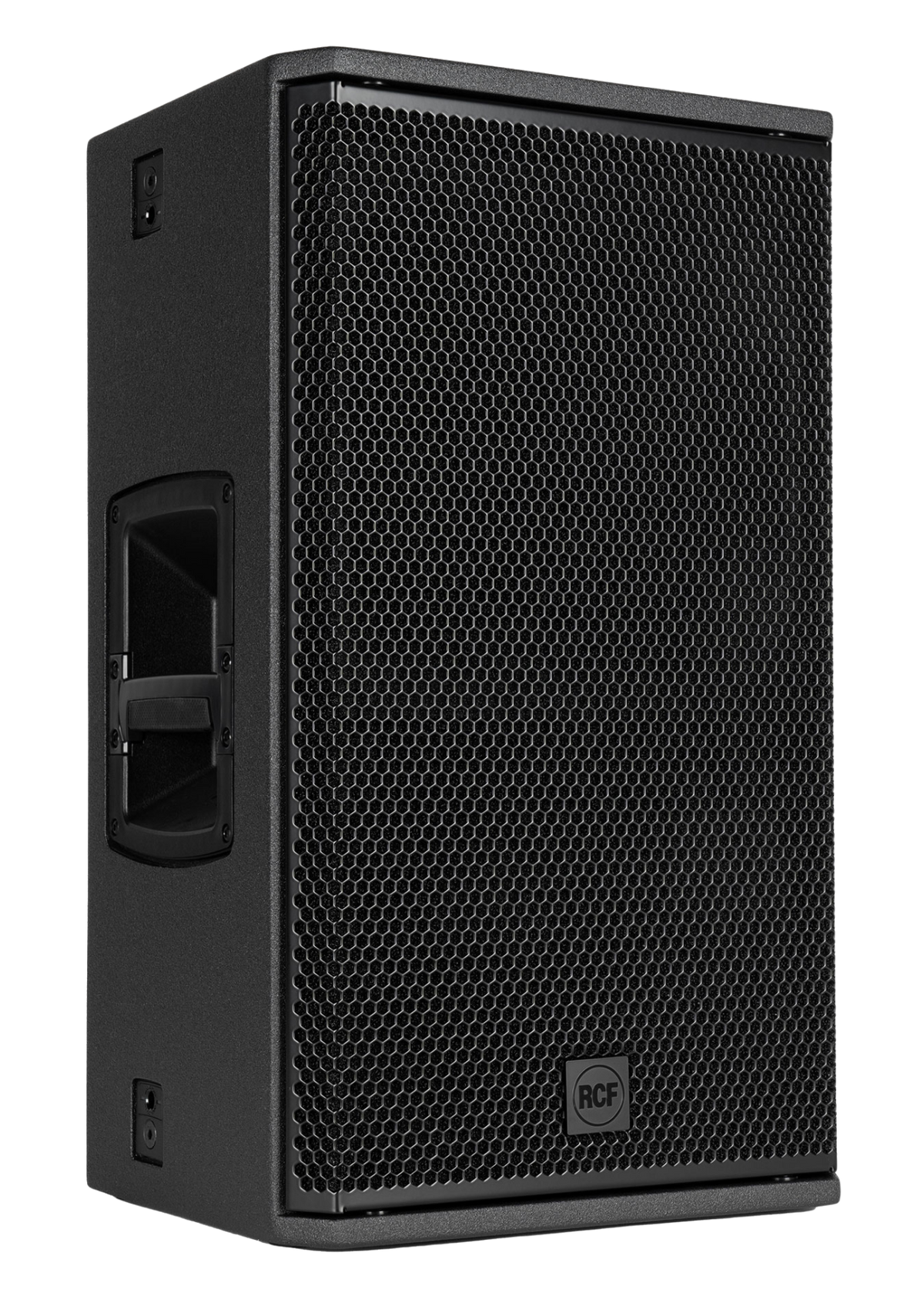

RCF NX 932-A 2100W Active Speaker
Product Overview
The RCF NX 932-A is a premium professional active loudspeaker designed for touring, live performances, DJs, rental companies, clubs, and advanced sound reinforcement systems. Featuring RCF's latest generation transducer technology and a powerful 2100W Class-D bi-amplifier, the NX 932-A delivers exceptional clarity, high output, and reliable performance for demanding professional applications.

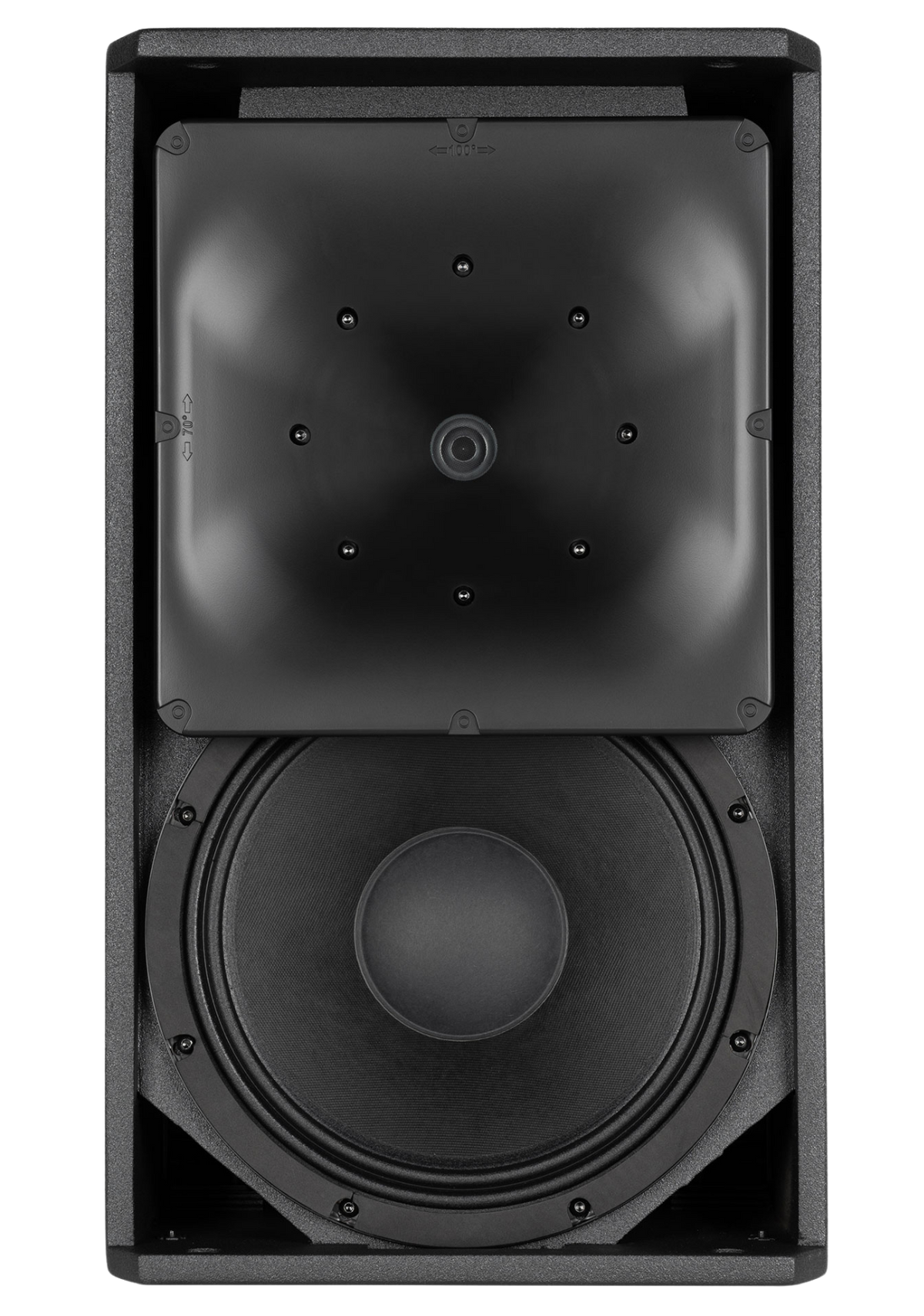

Equipped with a 12-inch high-power woofer and a 3-inch titanium/neodymium compression driver, the NX 932-A provides a balanced full-range response with powerful bass, detailed midrange, and smooth high-frequency reproduction. RCF FiRPHASE processing and Bass Motion Control technology provide accurate phase alignment and controlled low-frequency extension.
Built with a rugged plywood cabinet, True Resistive Waveguide design, PowerCON TRUE1 TOP connections, M10 rigging points, and professional DSP presets, the NX 932-A is ideal as a FOH speaker, stage monitor, satellite system with subwoofers, flown installation, or premium mobile PA solution.
Key Features
2-Way Active Design
Professional full-range loudspeaker with powerful output.
2100W Class-D Amplifier
High-efficiency bi-amplification for professional applications.
12" High Power Woofer
Powerful low-frequency driver with excellent punch and clarity.
3" Compression Driver
Titanium/neodymium HF driver for detailed sound reproduction.
FiRPHASE DSP
Zero-phase technology for natural and transparent sound.
Bass Motion Control
Advanced woofer excursion management for deep bass.
Technical Specifications
| Product Type | 2-Way Active Professional Loudspeaker |
|---|---|
| Low Frequency Driver | 12" Woofer, 2.5" Voice Coil |
| High Frequency Driver | 1.4" Exit Titanium/Neodymium Compression Driver, 3" Voice Coil |
| Amplifier Type | Class-D Bi-Amplification |
| Total Power | 2100W Peak |
| Low Frequency Amplifier | 1400W Peak |
| High Frequency Amplifier | 700W Peak |
| Frequency Response | 45Hz - 20kHz |
| Maximum SPL | 132dB |
| Coverage Pattern | 100° Horizontal x 70° Vertical |
| Waveguide | Constant Directivity True Resistive Waveguide |
| DSP Processing | FiRPHASE Zero Degrees Phase Technology and Bass Motion Control |
| Crossover Frequency | 700Hz |

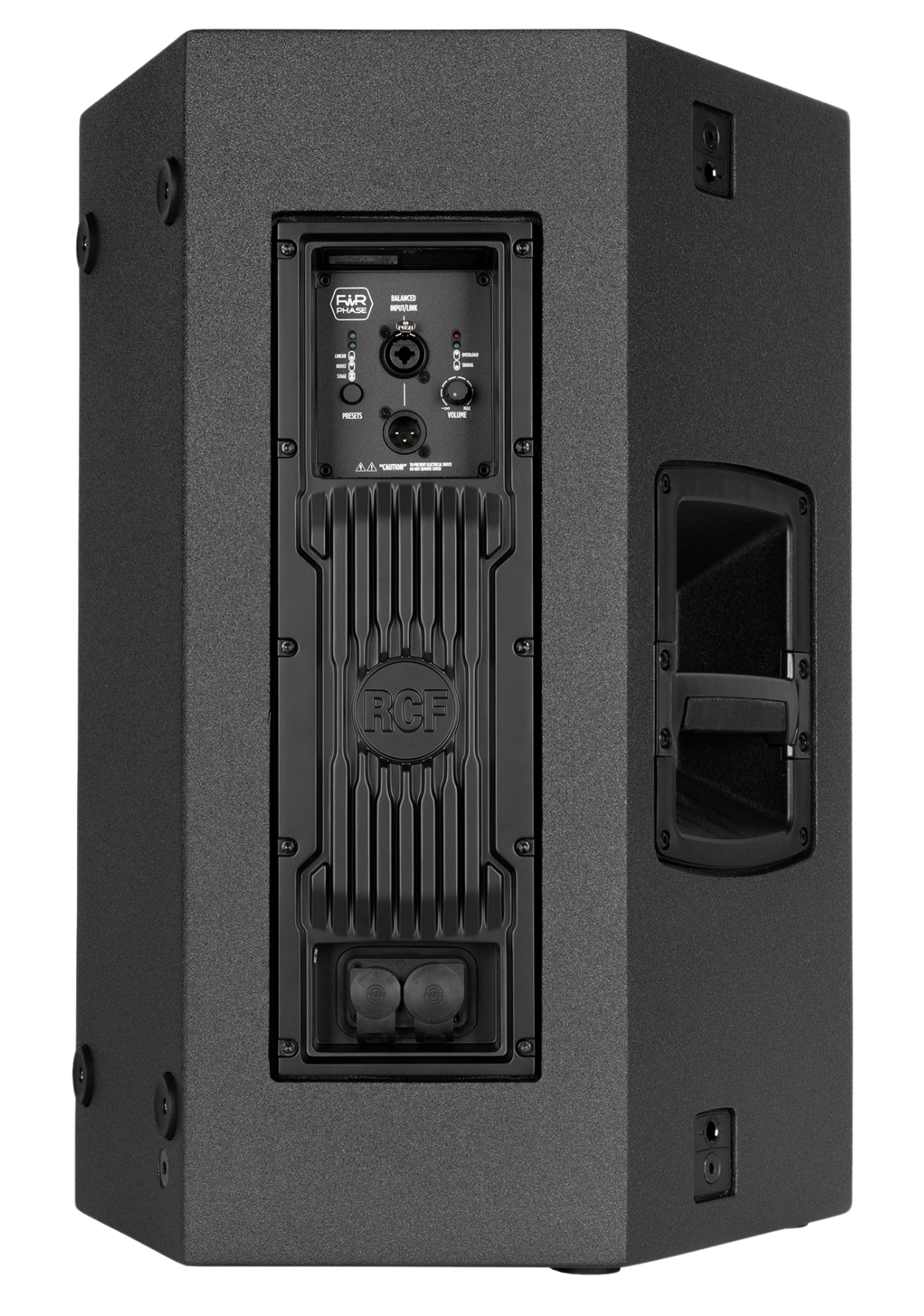

| Inputs | Balanced XLR / Jack Combo Input |
| Output | XLR Link Output |
| Controls | Linear / Boost / Stage / Volume |
| Protection | Thermal Protection, RMS Limiter, Soft Limiter |
| Power Connection | PowerCON TRUE1 TOP IN/OUT |
| Rigging | 6 x M10 Rigging Points + Quick Lock Mounting Points |
| Mounting | Pole Mount / Flown / Wall / Truss Installation |
| Enclosure Material | Tour-Grade Plywood Cabinet |
| Dimensions (H x W x D) | 620 x 362 x 405mm |
| Weight | 22.9kg |
| Colour | Black |
Ideal For
- Touring Productions
- Professional DJs
- Live Bands
- Concert Venues
- Festival Sound Systems
- Rental Companies
- Clubs & Nightlife
- Theatres
- Corporate Events
- Premium PA Systems
