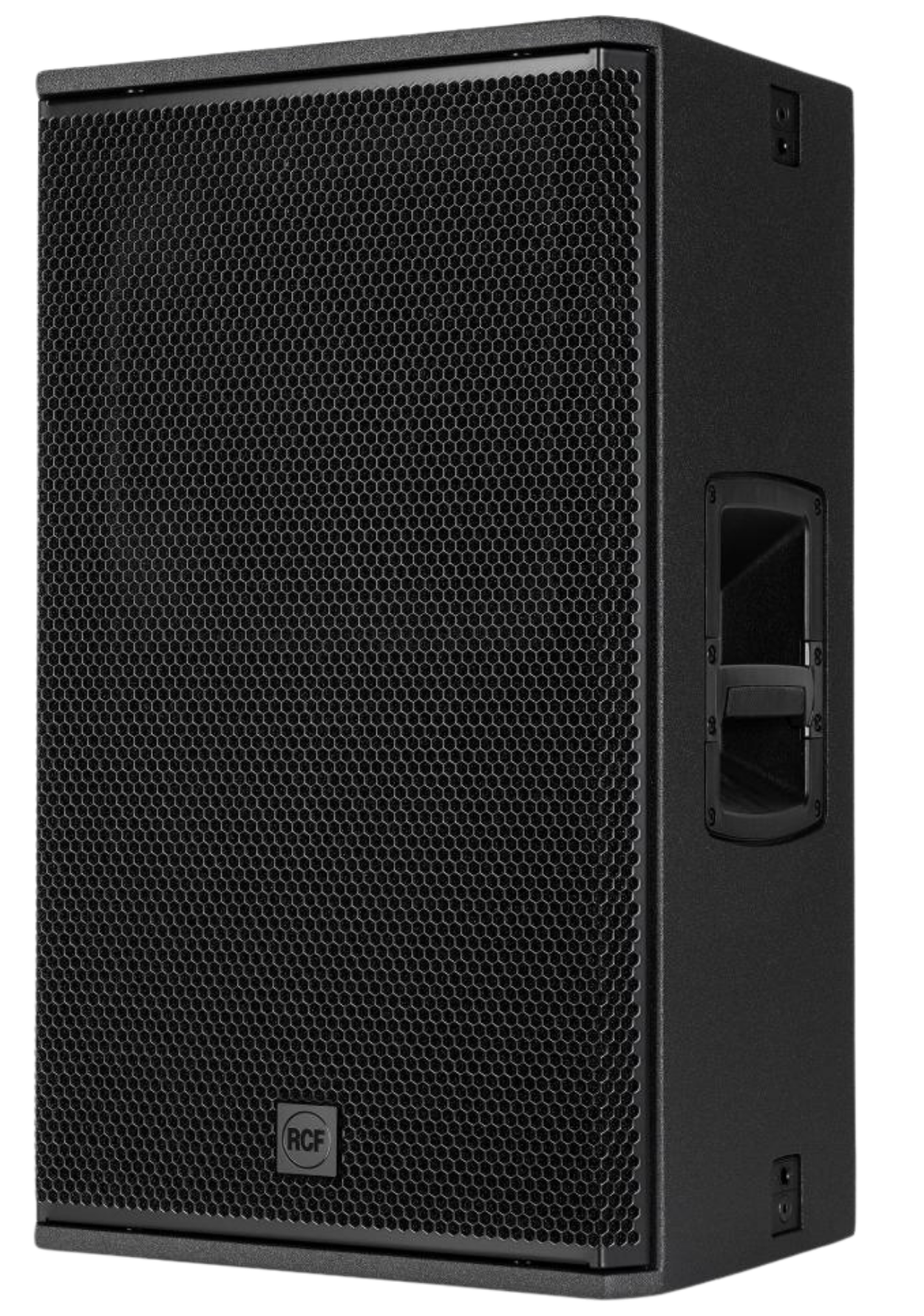

RCF NX 945-A 2100W Active Speaker
Product Overview
The RCF NX 945-A is a premium professional active loudspeaker designed for touring, live performances, DJs, rental companies, clubs, and professional sound reinforcement systems. Combining RCF's advanced transducer technology with a powerful 2100W Class-D bi-amplifier, the NX 945-A delivers exceptional output, clarity, and reliability for demanding applications.

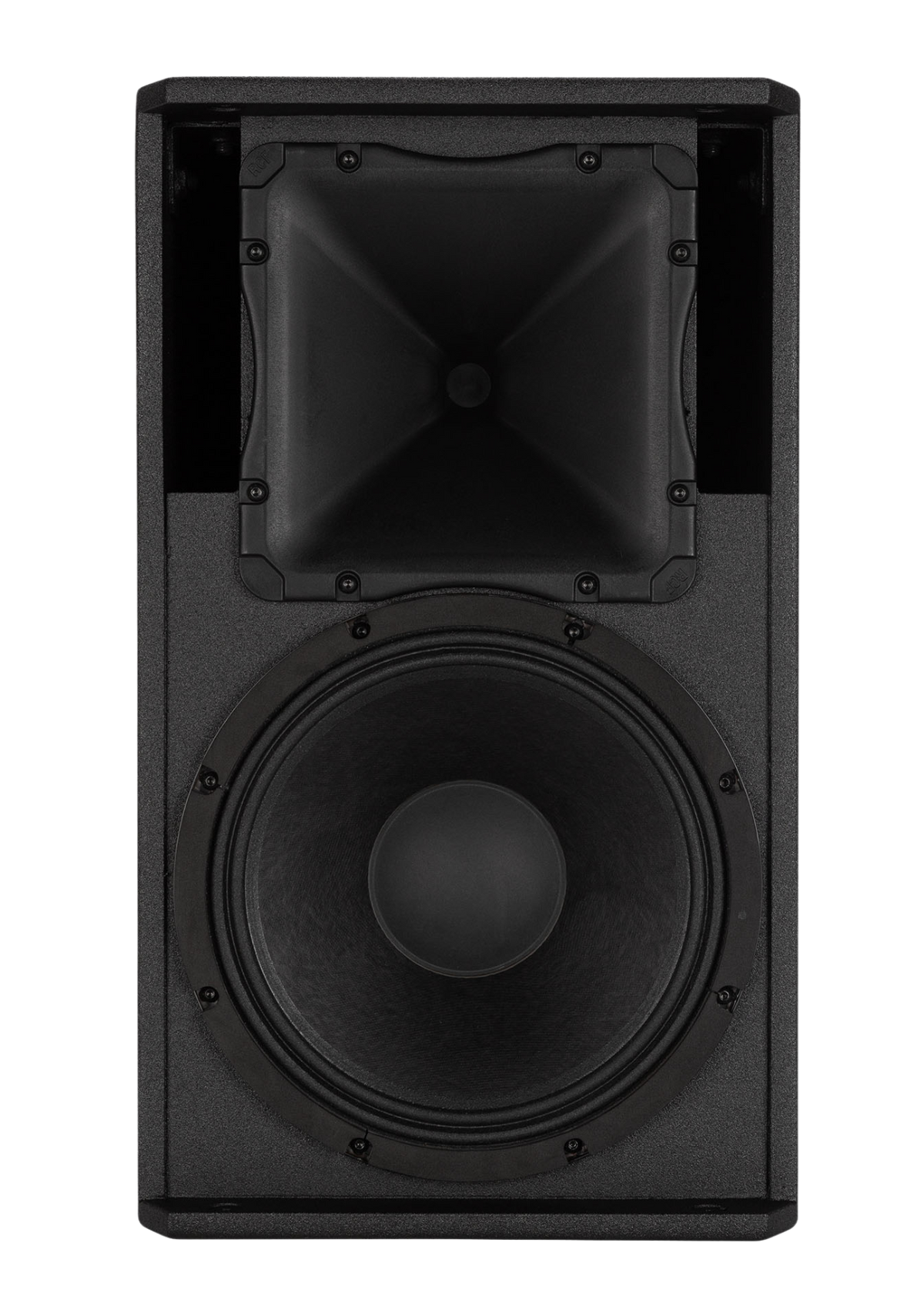

Featuring a high-performance 15-inch neodymium woofer and a powerful 4-inch titanium/neodymium compression driver, the NX 945-A provides outstanding low-frequency impact, clear midrange definition, and detailed high-frequency reproduction. RCF FiRPHASE DSP processing and Bass Motion Control technology ensure accurate phase response and controlled bass performance.
Built with a rugged plywood cabinet, integrated rigging points, PowerCON TRUE1 TOP connections, and professional DSP presets, the NX 945-A is ideal as a standalone FOH speaker, stage monitor, satellite system with subwoofers, flown installation, and premium mobile PA solution.
Key Features
2-Way Active Design
Professional full-range loudspeaker with optimized sound output.
2100W Class-D Amplifier
High-efficiency amplification for touring and live applications.
15" Neodymium Woofer
Powerful low-frequency performance with high efficiency.
4" Compression Driver
Titanium/neodymium HF driver for detailed high frequencies.
FiRPHASE DSP
Advanced processing for phase accuracy and transparent sound.
Bass Motion Control
Advanced woofer excursion management for deep controlled bass.
Technical Specifications
| Product Type | 2-Way Active Professional Loudspeaker |
|---|---|
| Low Frequency Driver | 15" Neodymium Woofer, 3.5" Voice Coil |
| High Frequency Driver | 1.4" Exit Neodymium Compression Driver, 4" Voice Coil |
| Diaphragm Material | Titanium |
| Amplifier Type | Class-D Bi-Amplification |
| Total Power | 2100W Peak |
| Low Frequency Amplifier | 1400W Peak |
| High Frequency Amplifier | 700W Peak |
| Frequency Response | 45Hz - 20kHz |
| Maximum SPL | 135dB |
| Coverage Pattern | 100° Horizontal x 70° Vertical |
| DSP Processing | FiRPHASE Processing and Bass Motion Control |
| Presets | Linear / Boost / Stage / Volume |

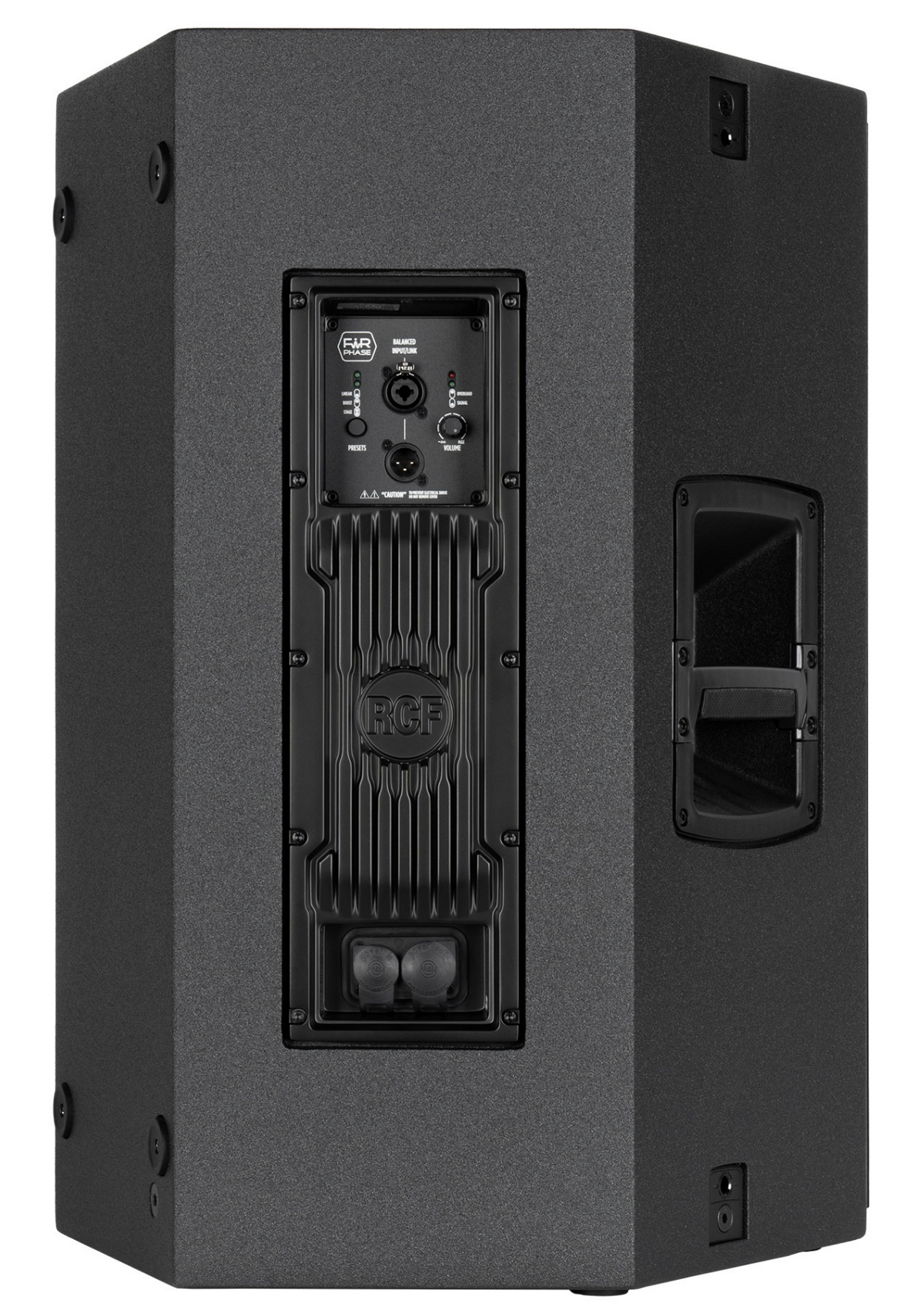

| Inputs | XLR / Jack Combo Balanced Input |
| Output | XLR Balanced Link Output |
| Power Connection | PowerCON TRUE1 TOP IN/OUT |
| Rigging | 6 x M10 Rigging Points + 4 x Quick-Lock Points |

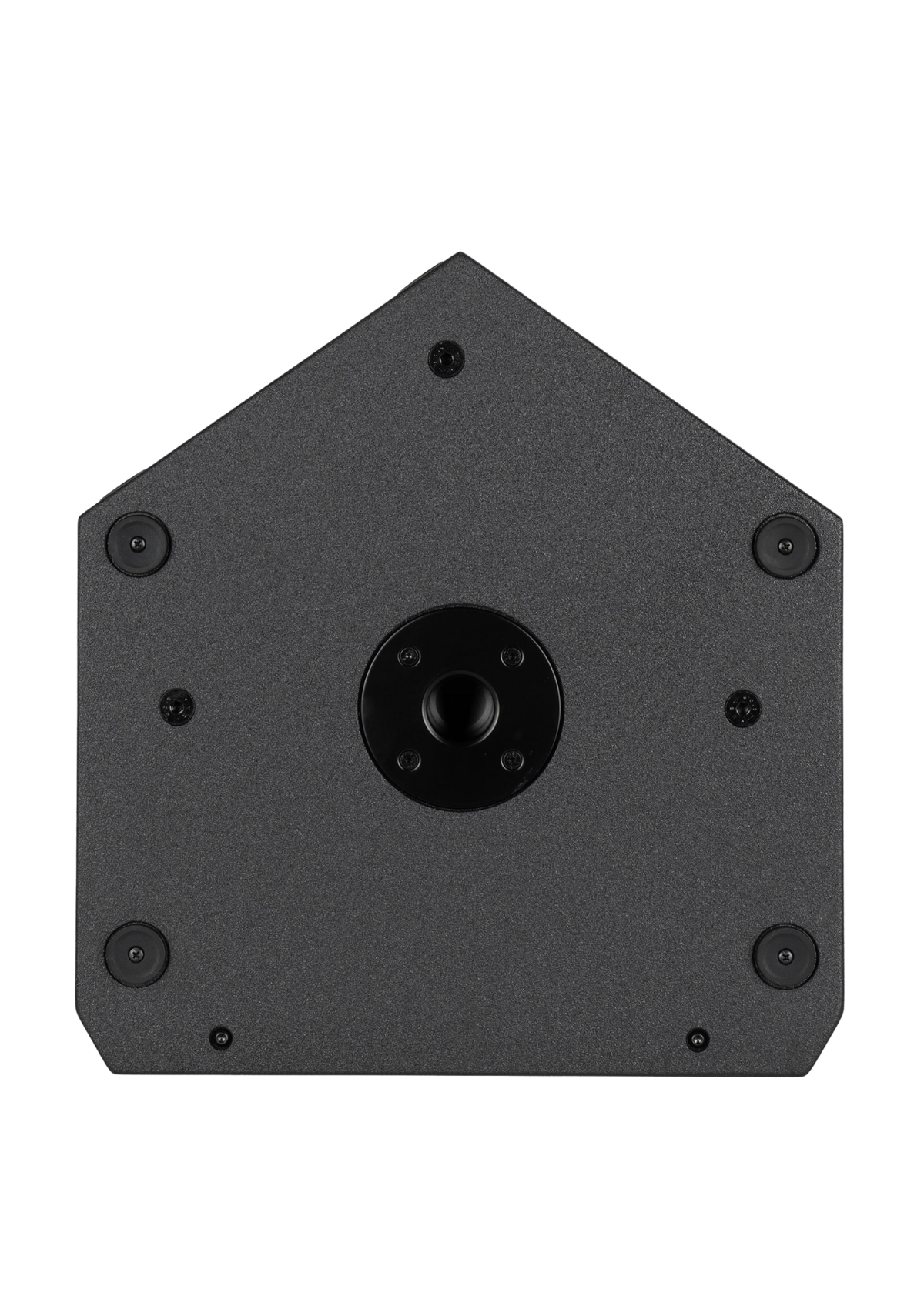

| Mounting | Pole Mount / Flown / Wall / Truss Installation |
| Enclosure Material | Tour-Grade Plywood Cabinet |
| Dimensions (H x W x D) | 705 x 420 x 451mm |
| Weight | 27.3kg |
| Colour | Black |
Ideal For
- Touring Productions
- Professional DJs
- Live Bands
- Concert Venues
- Festival Sound Systems
- Rental Companies
- Clubs & Nightlife
- Theatres
- Corporate Events
- Premium PA Systems
