RCF NX 985-A 2100W Active Speaker
Product Overview
The RCF NX 985-A is a premium professional three-way active loudspeaker designed for touring, live performances, DJs, clubs, rental companies, and high-output sound reinforcement systems. Combining RCF advanced transducer technology with a powerful 2100W Class-D amplifier, the NX 985-A delivers exceptional clarity, high SPL performance, and accurate sound reproduction.

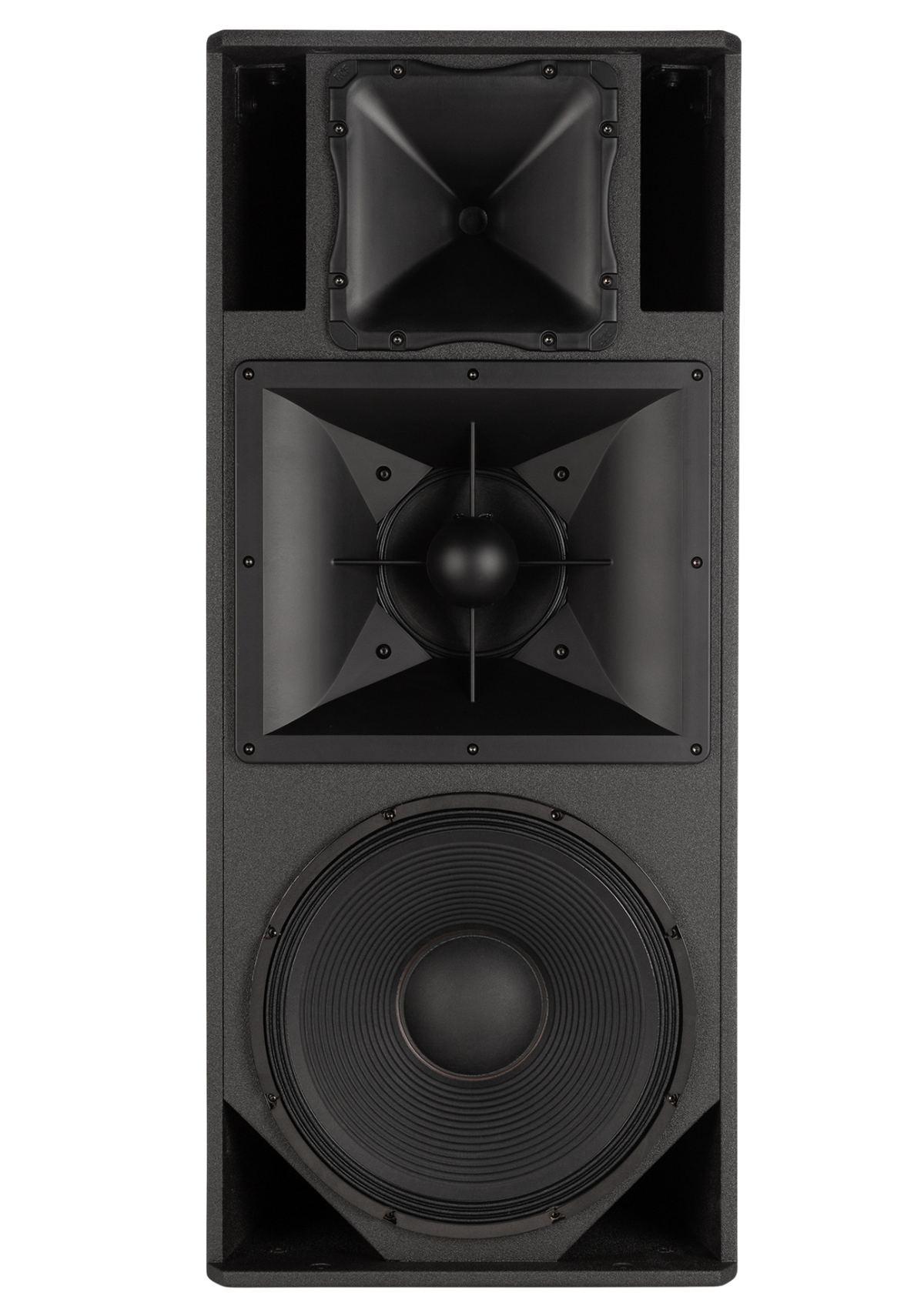

Featuring a dedicated 15-inch woofer, 8-inch midrange driver, and 1.75-inch neodymium compression driver, the NX 985-A provides outstanding separation between low, mid, and high frequencies. RCF FiRPHASE processing and Bass Motion Control technology ensure precise phase response, controlled bass, and consistent coverage.
Built with a rugged all-plywood cabinet, integrated M10 rigging points, PowerCON TRUE1 TOP connections, and professional DSP control, the NX 985-A is engineered for demanding touring environments, large events, theatres, clubs, and premium PA installations.
Key Features
3-Way Active Design
Dedicated LF, MF and HF drivers for superior sound definition.
2100W Class-D Amplifier
High-efficiency amplification for professional applications.
15" High Power Woofer
Powerful low-frequency output with deep controlled bass.
8" Neodymium Midrange
Dedicated mid driver for detailed vocals and instruments.
1.75" Compression Driver
High-frequency neodymium driver with advanced waveguide.
FiRPHASE DSP
Advanced processing for phase accuracy and natural sound.
Technical Specifications
| Product Type | 3-Way Active Professional Loudspeaker |
|---|---|
| Low Frequency Driver | 15" Woofer, 3" Voice Coil, Neodymium Magnet |
| Mid Frequency Driver | 8" Midrange Driver, 2.5" Voice Coil, Neodymium Magnet |
| High Frequency Driver | 1.75" Neodymium Compression Driver |
| Amplifier Type | Class-D Two Channel Amplifier |
| Total Power | 2100W Peak |
| LF Amplifier Power | 1400W Peak |
| MF Amplifier Power | 500W Peak |
| HF Amplifier Power | 200W Peak |
| Frequency Response | 40Hz - 20kHz |
| Maximum SPL | 138dB |
| Coverage Pattern | 100° Horizontal x 60° Vertical |
| DSP Processing | FiRPHASE Processing and Bass Motion Control |
| Crossover Frequencies |
Bass/Mid: 320Hz Mid/High: 1200Hz |
| Inputs | Combo XLR/Jack Balanced Inputs |
| Outputs | XLR Link Output |
| Controls | Linear, 2 Speakers, High Pass, Volume |
| Protection | Thermal, RMS, Excursion Protection and Soft Limiter |
| Power Connection | PowerCON TRUE1 TOP IN/OUT |
| Rigging | Multiple M10 Rigging Points |
| Enclosure Material | Tour-Grade Plywood Cabinet |
| Dimensions (H x W x D) | 1075 x 461 x 475mm |
| Weight | 45kg |
| Colour | Black |
Ideal For
- Touring Productions
- Large Live Events
- Concert Venues
- Festival Sound Systems
- Professional DJs
- Clubs & Nightlife
- Rental Companies
- Theatres
- Corporate Events
- Premium PA Systems
