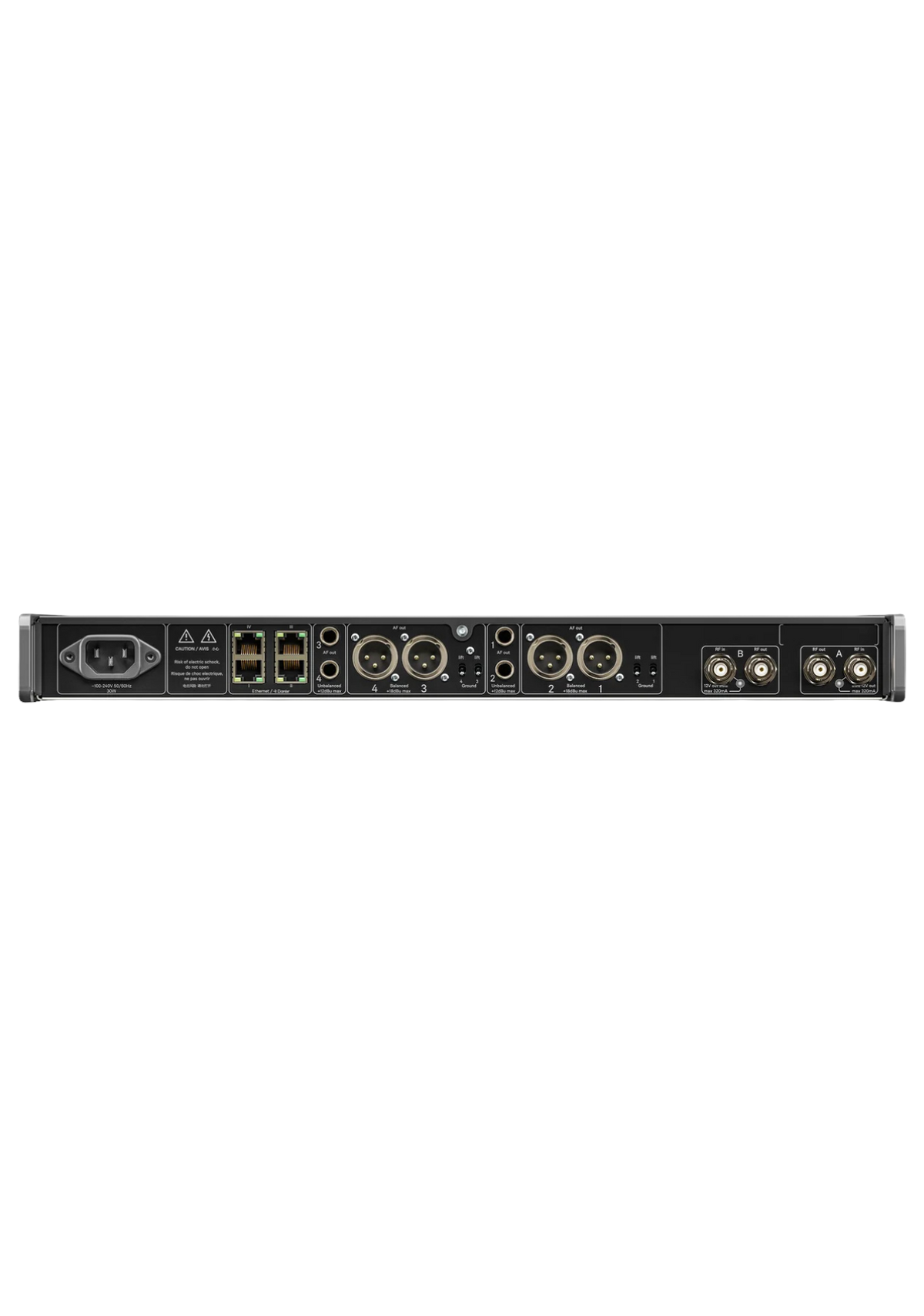

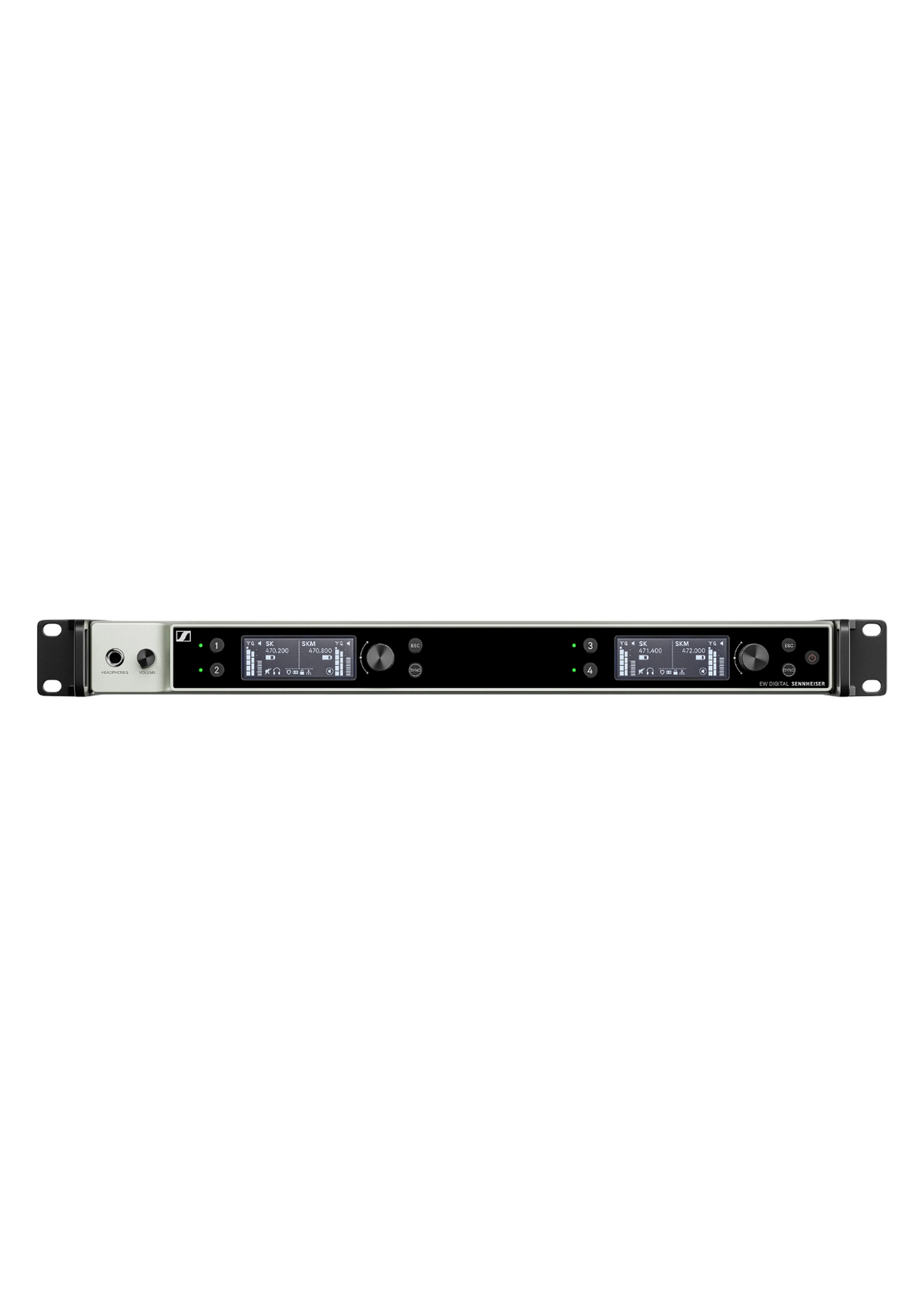

SENHISER EW-DX EM 4 DANTE QUAD 19" Wireless Receiver 1U (S1-10) CH38

SENNHEISER EW-DX EM 4 DANTE QUAD 19" Wireless Receiver 1U (S1-10) CH38

Product Description

The Sennheiser EW-DX EM 4 DANTE is a professional four-channel digital wireless receiver designed for advanced live sound, broadcast, theatre, corporate events, houses of worship, and large-scale production environments. Built in a rugged 19-inch 1U rackmount format, the EW-DX EM 4 DANTE provides reliable UHF digital wireless reception, Dante audio networking, advanced system management, and scalable multi-channel operation for professional wireless microphone installations. (Sennheiser)

Featuring four independent receiver channels, integrated Dante digital audio output, and a built-in antenna splitter, the EW-DX EM 4 DANTE allows multiple receiver units to be efficiently deployed in large wireless systems. The S1-10 frequency variant operates between 606.2–693.8MHz and provides up to 88MHz switching bandwidth, enabling flexible frequency coordination and high channel density for demanding professional environments. (Sennheiser)

The receiver uses Sennheiser's advanced digital transmission technology with 1.9ms system latency, 134dB dynamic range, AES-256 encryption, and Dante connectivity for seamless integration with modern digital audio networks. With remote control via Sennheiser software platforms, four configurable network ports, and an intuitive OLED display, the EW-DX EM 4 DANTE delivers exceptional reliability and control for high-performance wireless systems. (Sennheiser)

Key Features

• Four-channel digital UHF wireless receiver

• Full 19" rackmount 1U design

• Dante-enabled digital audio output

• S1-10 frequency range (606.2–693.8MHz)

• Up to 88MHz switching bandwidth

• Up to 293 compatible channels in Link Density mode

• Ultra-low 1.9ms system latency

• 134dB dynamic range for clean, detailed audio

• AES-256 encrypted wireless transmission

• Integrated antenna splitter with RF cascade capability

• Four configurable network ports

• OLED display with intuitive navigation

• Remote management via Sennheiser Control Cockpit and Wireless Systems Manager

• Compatible with EW-DX handheld, bodypack, and table stand transmitters (Sennheiser)

Specifications

• System Type: Digital UHF Wireless Receiver

• Receiver Format: Quad Channel Full Rack Receiver

• Rack Size: 19" / 1U

• Channels: 4 Independent Receiver Channels

• Frequency Band: S1-10

• Frequency Range: 606.2 – 693.8MHz

• Transmission Technology: Digital UHF

• Switching Bandwidth: Up to 88MHz

• Compatible Channels: Up to 146 Standard Mode / 293 Link Density Mode

• System Latency: 1.9ms

• Dynamic Range: 134dB

• Audio Frequency Response: 20Hz – 20kHz (-3dB)

• THD: ≤ -60dB @ 1kHz

• Dante Output: RJ45 Dante Digital Audio (48kHz / 96kHz, 24-bit)

• Analogue Output: Balanced Audio Outputs

• Audio Output Level: 18dBu Maximum

• Headphone Output: 2 x 70mW @ 32Ω

• Encryption: AES-256

• Network Connectivity: Ethernet IPv4

• Antenna System: Integrated Antenna Splitter with RF Loop Through

• RF Cascade: Up to 4 EW-DX EM 4 DANTE Receivers

• Power Supply: Internal Universal PSU (90–265V AC)

• Power Consumption: Maximum 37W

• Operating Temperature: -10°C to +55°C

• Dimensions (W × H × D): 483 × 44 × 373mm

• Weight: Approx. 4.56kg (without antennas and PSU) (Sennheiser)

Ideal For

• Professional Touring Productions

• Broadcast & Television Studios

• Theatre & Performing Arts Venues

• Corporate Events

• Houses of Worship

• Rental & Hire Companies

• Conference & Presentation Systems

• Live Music Venues

• Large-Scale Wireless Microphone Installations

• Dante-Based Professional Audio Networks

• High-Channel-Count Live Sound Systems
