SENHISER EW500 G4-GBW Handheld Mic System with E945 Supercardioid Mic CH38

SENNHEISER EW 500 G4-GBW Handheld Mic System with E945 Supercardioid Mic CH38

Product Description

The Sennheiser EW 500 G4-GBW is a professional UHF wireless handheld microphone system designed for demanding live performance, touring, corporate events, theatres, houses of worship, and broadcast applications. Combining the reliability of Sennheiser's evolution wireless G4 platform with the renowned e945 supercardioid dynamic capsule, this system delivers exceptional vocal clarity, powerful presence, and outstanding feedback rejection for professional performers and presenters. (Sennheiser)

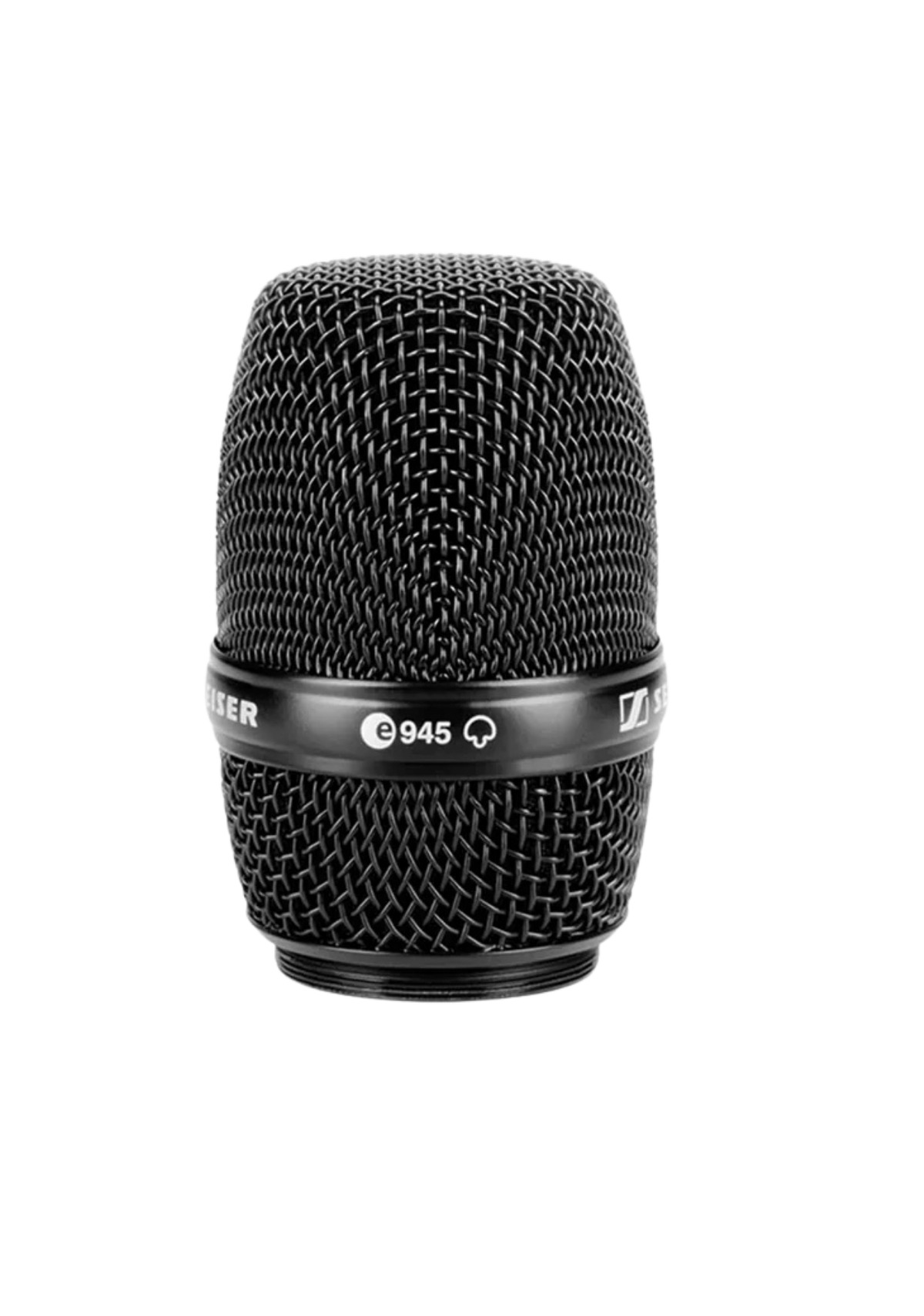

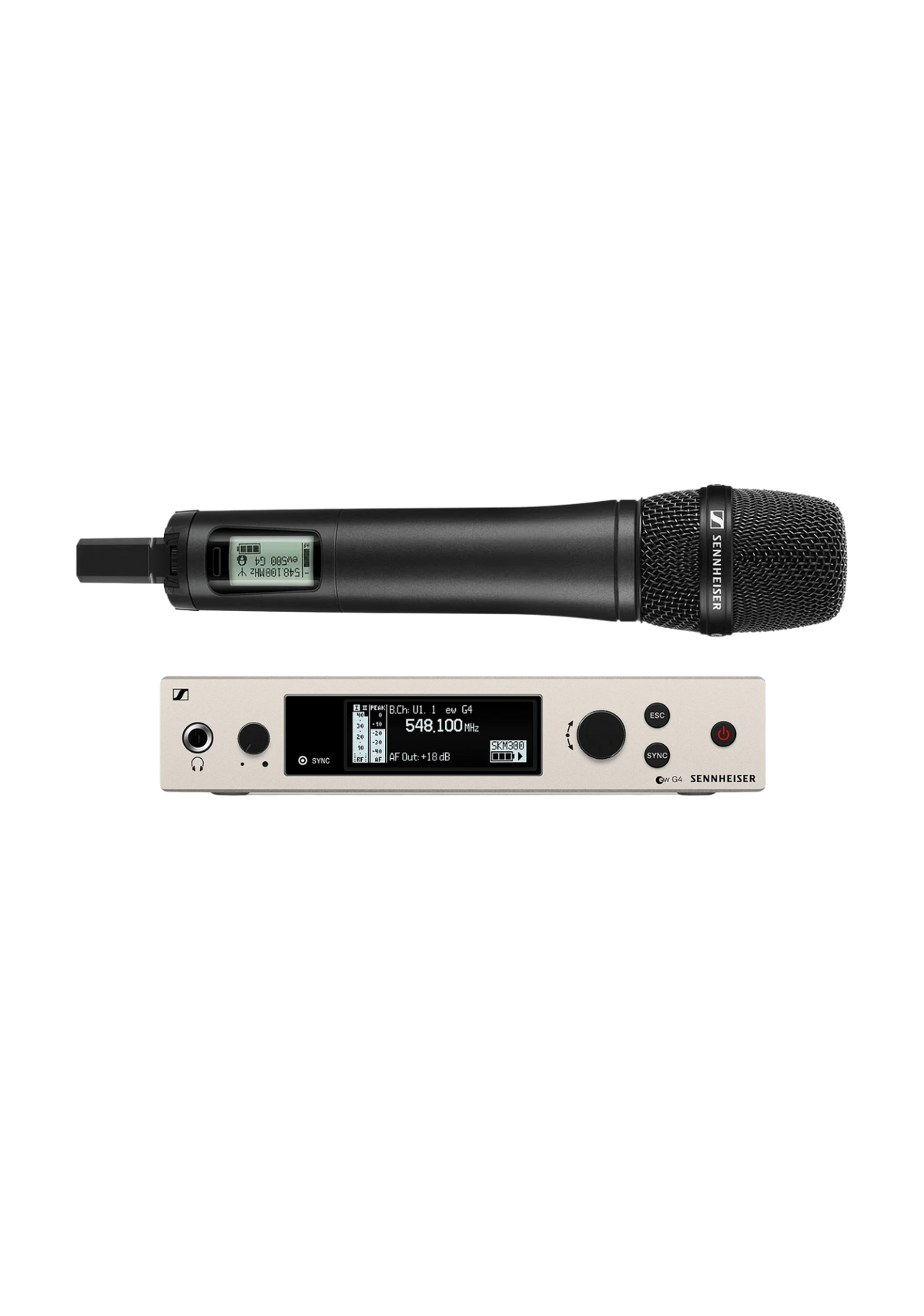

The system includes the SKM 500 G4 handheld transmitter fitted with the premium MMD 945 supercardioid capsule and the EM 300-500 G4 true diversity rackmount receiver. The e945 capsule provides a detailed, natural vocal response with excellent isolation from surrounding sound sources, making it ideal for high-volume stage environments where control and reliability are essential. (Sennheiser)

Featuring up to 88MHz switching bandwidth, up to 32 compatible channels, infrared frequency synchronisation, Ethernet connectivity for Wireless Systems Manager (WSM) software, and rugged all-metal receiver construction, the EW 500 G4-GBW provides professional-grade wireless performance for complex multi-channel setups. (Sennheiser)

Key Features

• Professional UHF wireless handheld microphone system

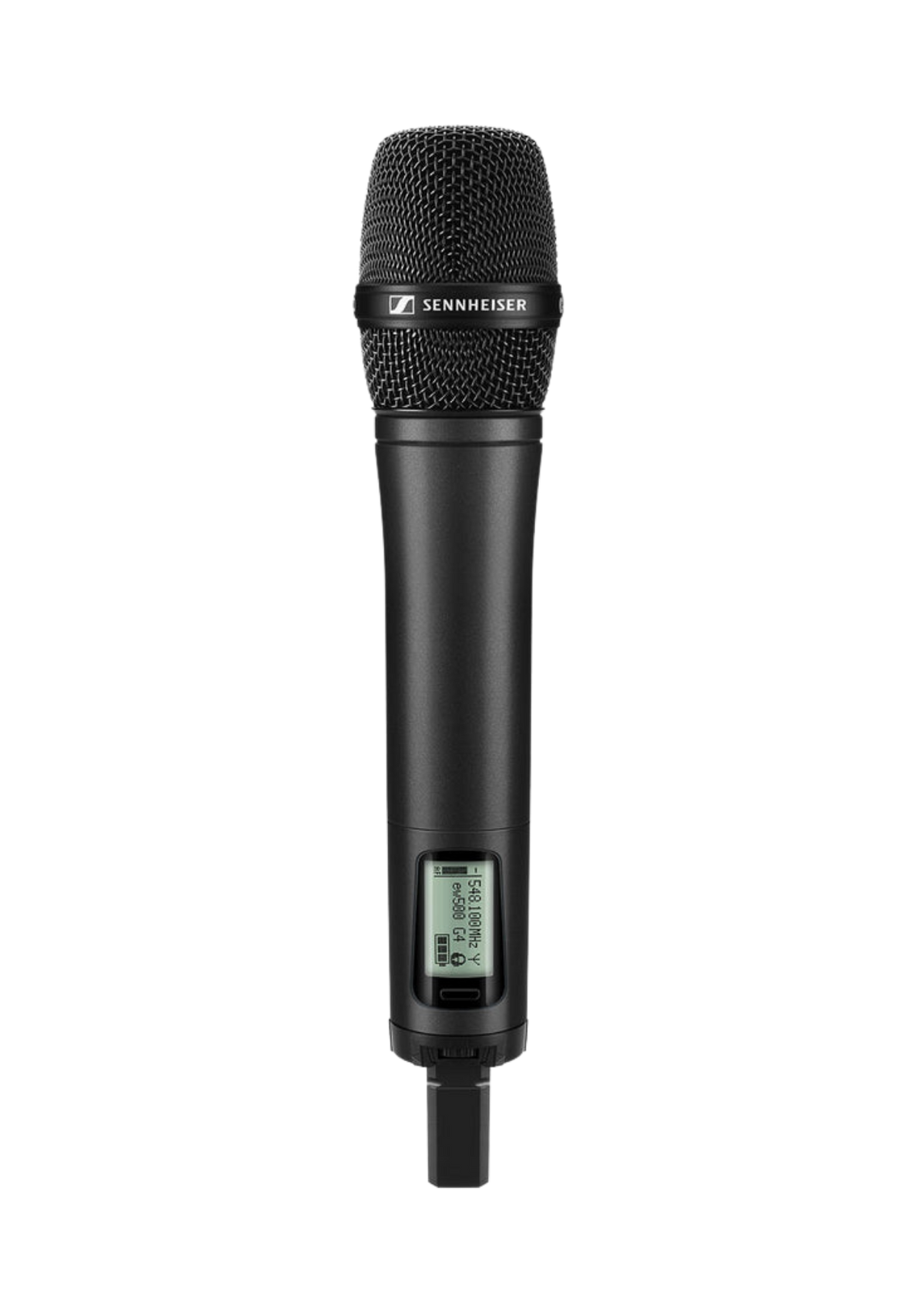

• Includes SKM 500 G4 handheld transmitter

• Premium e945 supercardioid dynamic microphone capsule

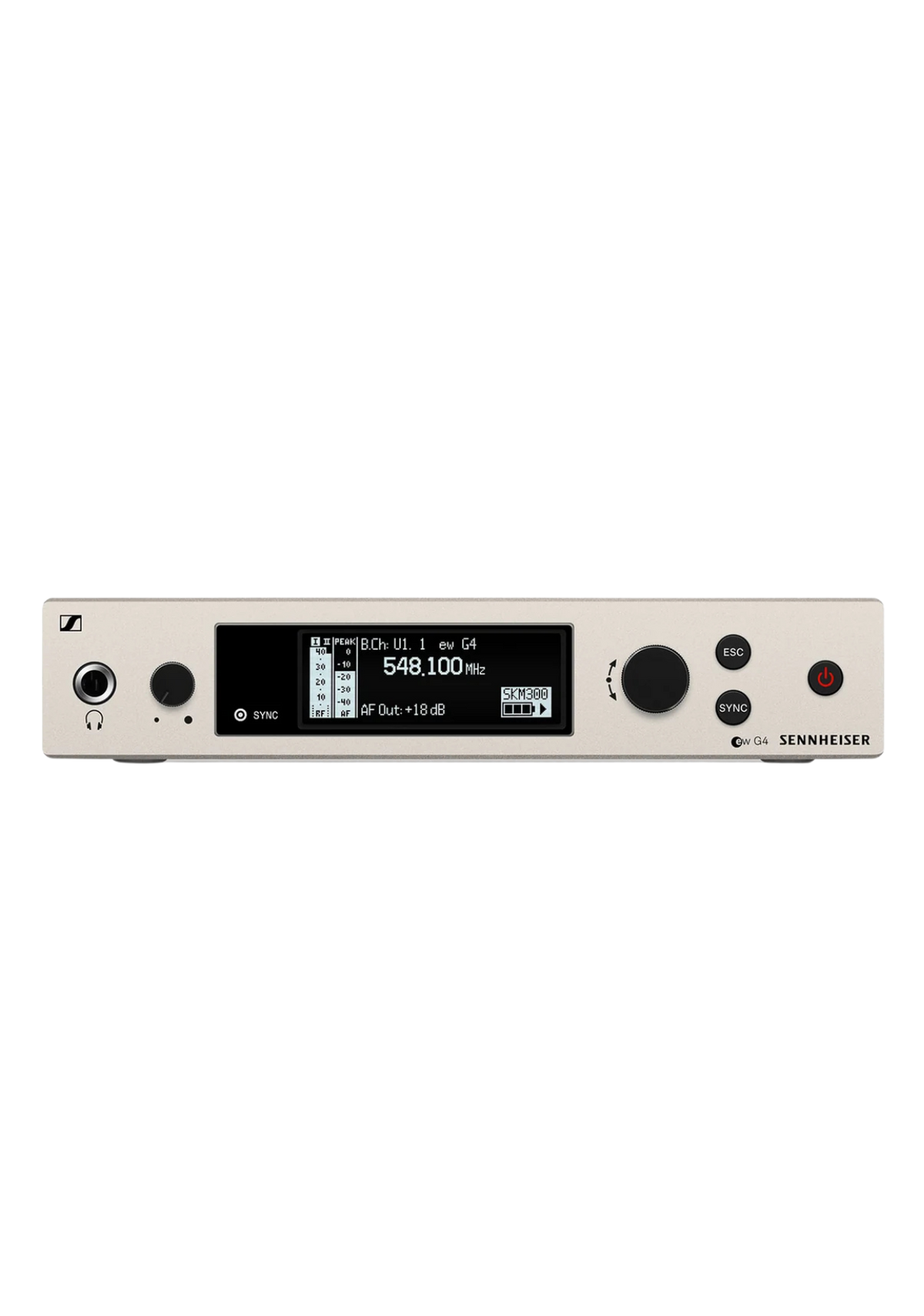

• EM 300-500 G4 true diversity rackmount receiver

• Up to 32 compatible channels

• Up to 88MHz switching bandwidth

• Infrared synchronisation between transmitter and receiver

• Ethernet connection for Wireless Systems Manager (WSM) control

• Rugged all-metal receiver housing

• HDX noise reduction system for clean audio transmission

• Up to 8 hours operating time with AA batteries

• Suitable for professional live performance and touring applications

Specifications

• System Type: UHF Wireless Handheld Microphone System

• Frequency Band: GBW (606–678MHz)

• Microphone Capsule: Sennheiser e945 Dynamic Capsule

• Polar Pattern: Supercardioid

• Transmitter Model: SKM 500 G4

• Receiver Model: EM 300-500 G4

• Receiver Type: True Diversity

• Frequency Range: Up to 88MHz Switching Bandwidth

• Compatible Channels: Up to 32 Channels

• Transmission Frequencies: Up to 3520 Selectable Frequencies

• Audio Frequency Response: 80Hz – 18kHz

• Signal-to-Noise Ratio: ≥115dBA

• Total Harmonic Distortion (THD): ≤0.9%

• RF Output Power: Up to 50mW (country dependent)

• Receiver Outputs: XLR Balanced + 6.3mm Jack Unbalanced

• Receiver Display: OLED Display

• Synchronisation: Infrared Sync

• Power Supply: 2 x AA Batteries or BA 2015 Rechargeable Pack

• Battery Life: Approx. 8 Hours

• Receiver Dimensions: Approx. 202 x 212 x 43mm

• Receiver Weight: Approx. 980g

• Mounting: Half-Rack Receiver with Rack Kit Included

• Colour: Black

Ideal For

• Professional Vocal Performers

• Live Bands & Musicians

• Touring Productions

• Theatres & Performing Arts Venues

• Houses of Worship

• Corporate Events

• Conference & Presentation Systems

• Broadcast & Streaming

• Rental & Hire Companies

• Professional Live Sound Reinforcement

(Sennheiser)
