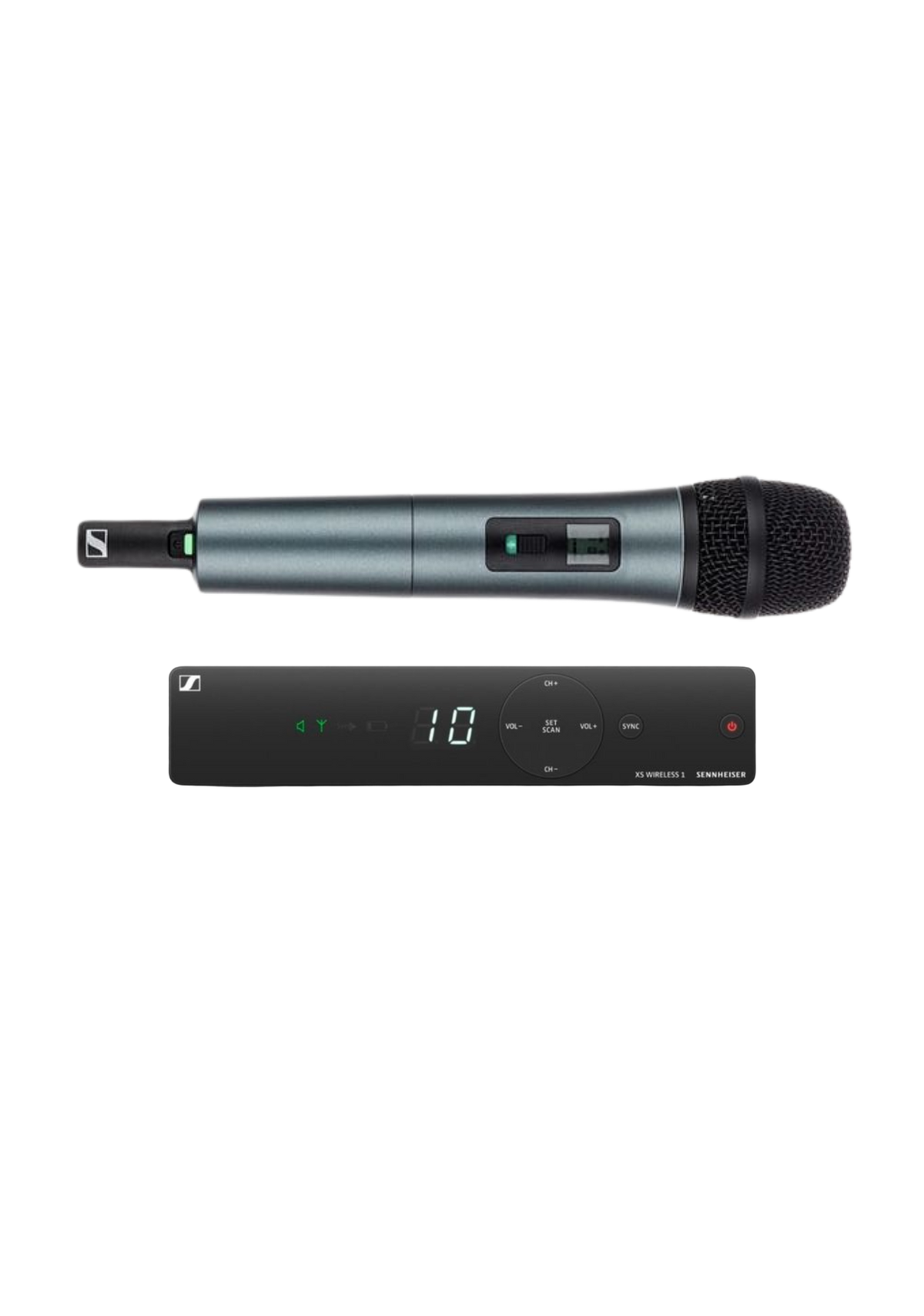

SENNHEISER XSW1-835 E Handheld Mic System with E835 Cardioid Transmitter CH70
SENNHEISER XSW1-835 E Handheld Mic System with E835 Cardioid Transmitter CH70
Couldn't load pickup availability
SENNHEISER XSW1-835 E Handheld Mic System with E835 Cardioid Transmitter CH70
Product Overview
The SENNHEISER XSW1-835 E is an easy-to-use professional wireless handheld microphone system designed for singers, presenters, performers, and live sound applications. Combining Sennheiser's renowned E835 cardioid dynamic microphone capsule with reliable UHF wireless transmission, it delivers clear vocal performance with dependable operation.
Featuring antenna-switching diversity reception, automatic frequency management, integrated antennas, and up to 10 compatible channels, the XSW1-835 E provides a simple setup solution for venues, events, rehearsals, and professional presentations.
The handheld transmitter delivers natural vocal reproduction with excellent feedback rejection, while the compact receiver provides straightforward operation for performers who need reliable wireless freedom on stage.
Key Features
E835 Cardioid Capsule
Professional dynamic vocal capsule with clear and focused sound.
UHF Wireless Transmission
Stable wireless connection for live performance applications.
Antenna Diversity Reception
Helps maintain reliable signal performance during use.
Automatic Frequency Management
Quick setup with simple frequency selection and synchronization.
Up To 10 Channels
Suitable for multi-microphone environments and events.
Easy Plug & Play Setup
Designed for singers, presenters and live performers.
Technical Specifications
| Product Type | Wireless Handheld Vocal Microphone System |
|---|---|
| Series | Sennheiser XS Wireless 1 |
| Microphone Capsule | E835 Dynamic Cardioid Capsule |
| Transducer Type | Dynamic |
| Polar Pattern | Cardioid |
| Frequency Range | CH70: 821 - 832 MHz / 863 - 865 MHz |
| Receiver Audio Frequency Response | 50Hz - 16kHz (-3dB) |
| Microphone Frequency Response | 80Hz - 16kHz |
| Signal-To-Noise Ratio | ≥103 dB(A) |
| Receiver Type | Stationary Wireless Receiver |
| Receiver Principle | Double Superheterodyne |
| Compatible Channels | Up To 10 Channels |
| Frequency Management | Automatic Frequency Management |
| RF Output Power | 10mW |
| Transmitter Battery | 2 x AA Batteries |
| Battery Life | Approx. 10 Hours |
| Receiver Outputs | XLR Balanced Output / 6.3mm Jack Output |
| Receiver Dimensions | Approx. 200 x 42 x 127mm |
| Receiver Weight | Approx. 340g |
| Handheld Transmitter Dimensions | Approx. 260 x 50mm |
| Transmitter Weight | Approx. 245g Without Batteries |
| Included Accessories | Receiver, Handheld Transmitter, Microphone Clip, Power Supply, Batteries |
| Colour | Black |
Ideal For
- Live Vocal Performance
- Singers
- Bands
- Presentations
- Corporate Events
- Conferences
- Houses of Worship
- Schools & Education
- Small Venues
- Entertainment Events
