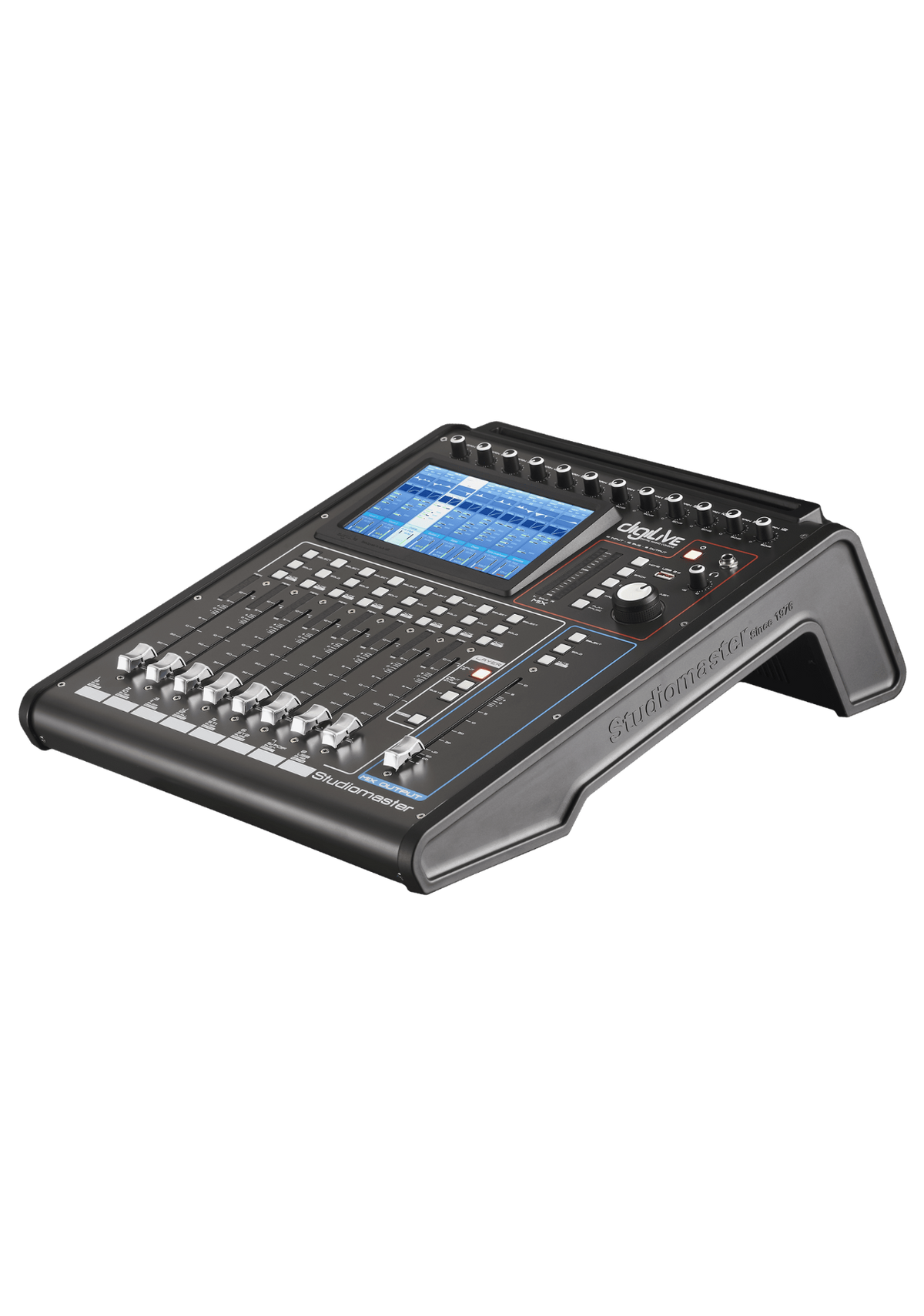

STUDIO MASTER digiLive 16 Digital Mixer 16 Inputs / 16 Bus / 12 Mic / 2 Stereo
Product Overview
The Studiomaster digiLive 16 is a compact professional digital mixer designed to deliver powerful live sound processing, flexible routing, and intuitive touchscreen control in a portable format. Featuring 16 input channels, 16 internal buses, 12 microphone inputs, and 2 stereo inputs, the digiLive 16 provides a complete mixing solution for live events, venues, installations, and mobile production. :contentReference[oaicite:0]{index=0}

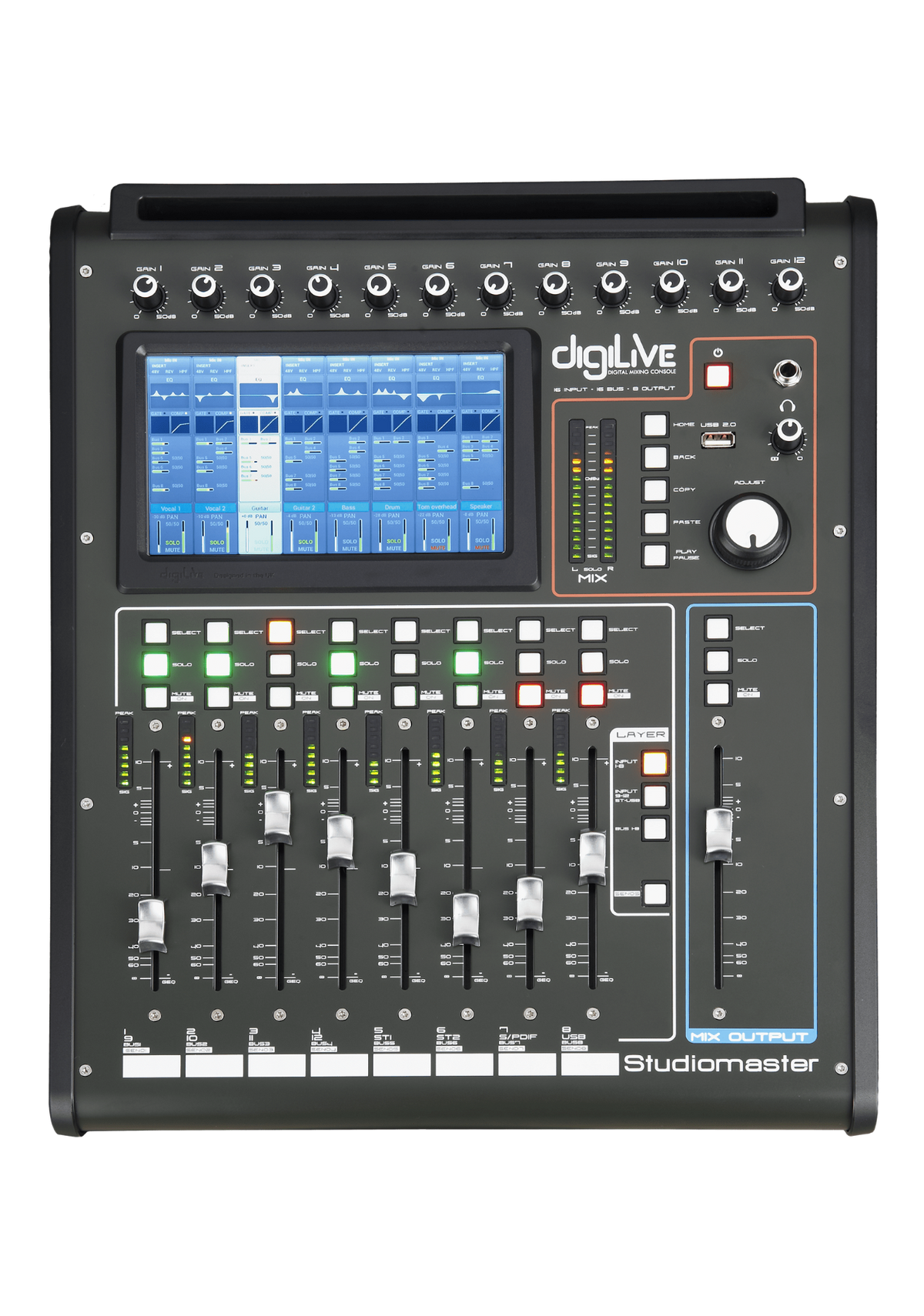

Equipped with a 7-inch high-resolution touchscreen, nine 100mm motorised faders, and advanced digital processing, the digiLive 16 offers fast access to channel control, effects, routing, and scene management. Remote control is available via iPad, allowing engineers to mix from anywhere in the venue. :contentReference[oaicite:1]{index=1}
With built-in effects, USB recording and playback, flexible smart outputs, and professional audio conversion, the digiLive 16 is an ideal choice for bands, theatres, houses of worship, corporate events, and compact live sound systems. :contentReference[oaicite:2]{index=2}
Key Features
16 Input Channels
12 mic inputs plus 2 stereo input channels.
16 Internal Buses
Flexible routing for monitors and effects.
Touchscreen Control
7-inch display with intuitive mixer operation.
Motorised Faders
9 x 100mm faders with scene recall.
Built-In Effects
Professional EQ, dynamics, and FX processing.
Remote Mixing
Control the mixer wirelessly via iPad.
Technical Specifications
| Product Type | Compact Digital Mixing Console |
|---|---|
| Total Inputs | 16 Input Channels |
| Microphone Inputs | 12 Channels (8 x XLR + 4 x Combo XLR/Jack) |
| Stereo Inputs | 2 Stereo Channels |
| Internal Buses | 16 Internal Buses |

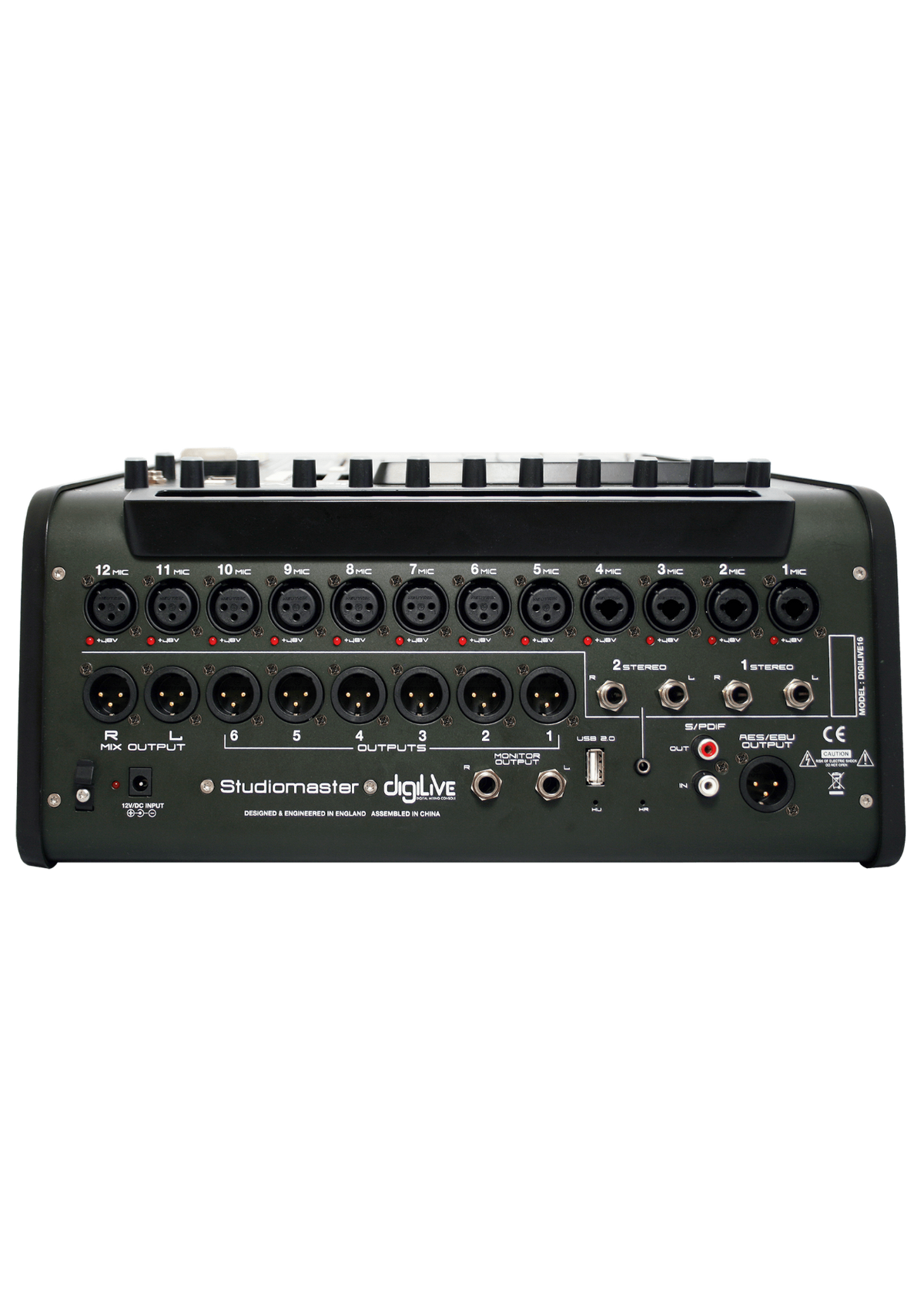

| Master Outputs | 2 x Balanced XLR (Left/Right) |
| Smart Outputs | 6 Assignable Balanced XLR Outputs |
| Monitor Output | 1 x TRS Jack Output |
| Headphone Output | 1 x TRS Jack Output |
| Display | 7-inch High Resolution Touchscreen |
| Faders | 8 x Motorised 100mm Channel Faders + 1 x Motorised Master Fader |
| Sample Rate | 48kHz |
| AD/DA Conversion | 192kHz / 24-bit |
| DSP | 40-bit Floating Point SHARC Processor |
| Effects | Up to 8 Assignable Effects Modules (Reverb, Delay, Modulation, Graphic EQ) |
| EQ Processing | 4-Band Fully Parametric EQ + Graphic EQ |
| USB Interface | USB Playback, Recording, Scene Storage and System Updates |
| Digital Connections | AES/EBU Output, S/PDIF Input & Output |
| Remote Control | iPad Remote Control via Wi-Fi Module |
| Power Supply | 90–240V AC |
| Dimensions (W x H x D) | 357 x 145 x 480mm |
| Weight | 5kg |
Ideal For
- Live Sound Engineers
- Bands & Musicians
- Corporate Events
- Houses of Worship
- Theatres & Venues
- Mobile Production
- Rental & Hire Companies
- Conference Systems
- Recording Applications
- Small Touring Productions
