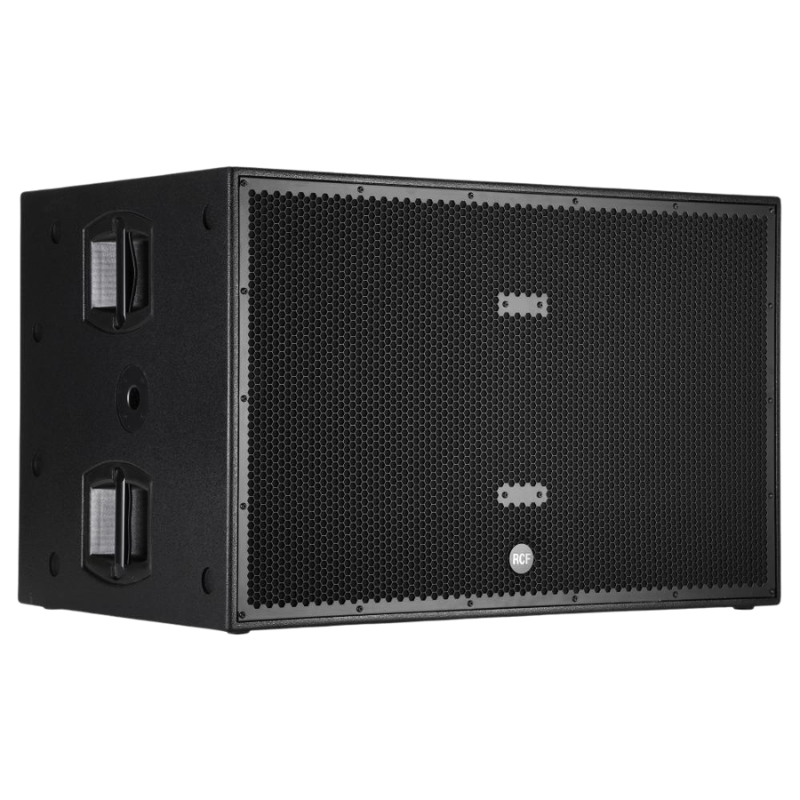

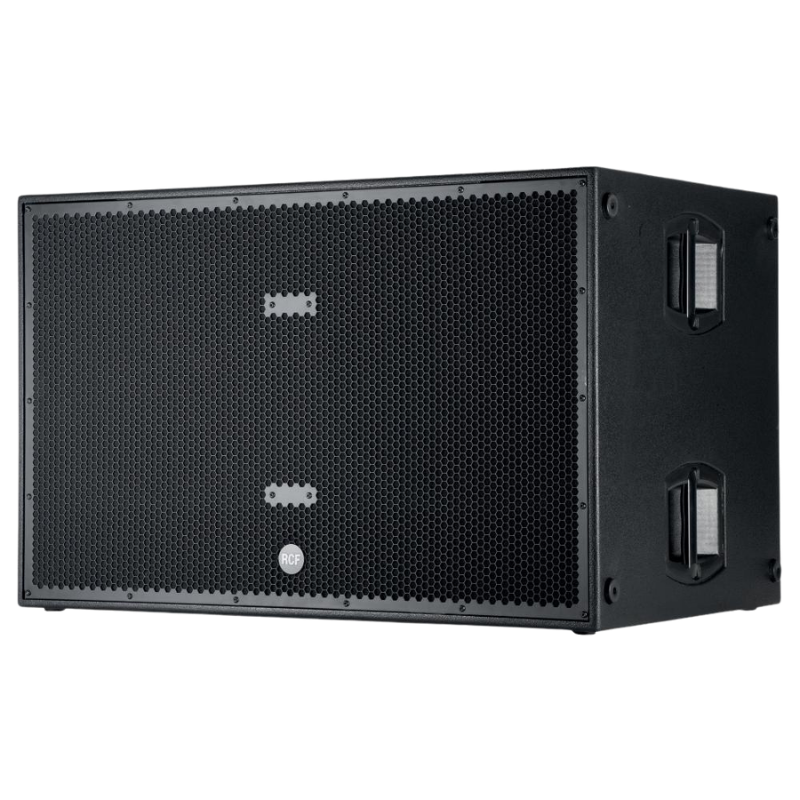

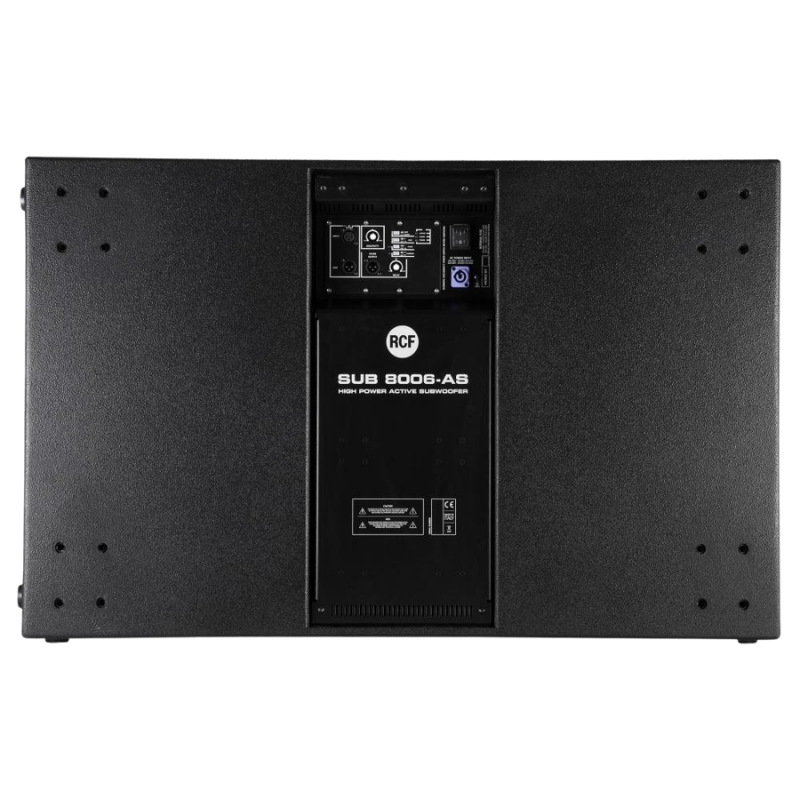

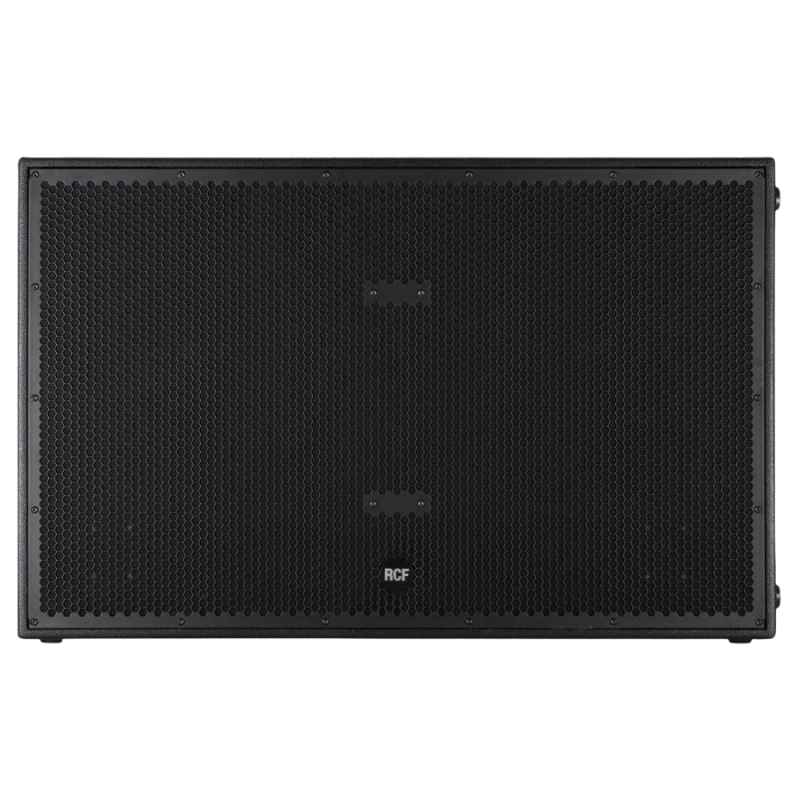

RCF SUB 8006-AS 2x18" Active High-Power Subwoofer 2500W Black
Product Overview
The RCF SUB 8006-AS is a high-power dual 18-inch active subwoofer designed for large-scale professional sound reinforcement, touring, festivals, clubs, and demanding live event applications. Featuring two high-excursion 18-inch transducers and a powerful 2500W RMS Class-D amplifier module, it delivers exceptional low-frequency impact and outstanding reliability.
With advanced DSP-controlled processing, selectable crossover settings, delay adjustment, cardioid configuration control, and powerful protection systems, the SUB 8006-AS provides precise bass management for complex professional PA systems.
Built using a tour-grade Baltic birch plywood enclosure with integrated mounting hardware and professional connectivity, the SUB 8006-AS is engineered for large venues, touring productions, and applications where maximum low-frequency output is required.
Key Features
Dual 18" Woofer System
Two high-performance 18-inch drivers deliver powerful deep bass.
2500W RMS Class-D Amplifier
High-efficiency amplifier designed for maximum output and reliability.
141dB Maximum SPL
Extreme output capability for large-scale sound reinforcement.
DSP Controlled Processing
Advanced EQ, crossover, delay and protection management.
Cardioid Bass Control
Advanced configuration options for directional low-frequency control.
Tour Grade Cabinet
Durable Baltic birch plywood enclosure built for professional use.
Technical Specifications
| Product Type | Active High-Power Subwoofer |
|---|---|
| Woofer Configuration | 2 x 18" High Power Woofer |
| Voice Coil | 4" Voice Coil |
| Amplifier Type | Class-D Digital Amplifier |
| Amplifier Power | 2500W RMS / 5000W Peak |
| Frequency Response | 30Hz - 120Hz |
| Maximum SPL | 141dB |
| Cabinet Design | Bass Reflex |
| DSP Processing | EQ Presets, Crossover Control, Delay Control, Limiting, Protection Systems |
| Crossover Frequencies | 80Hz - 100Hz Selectable |

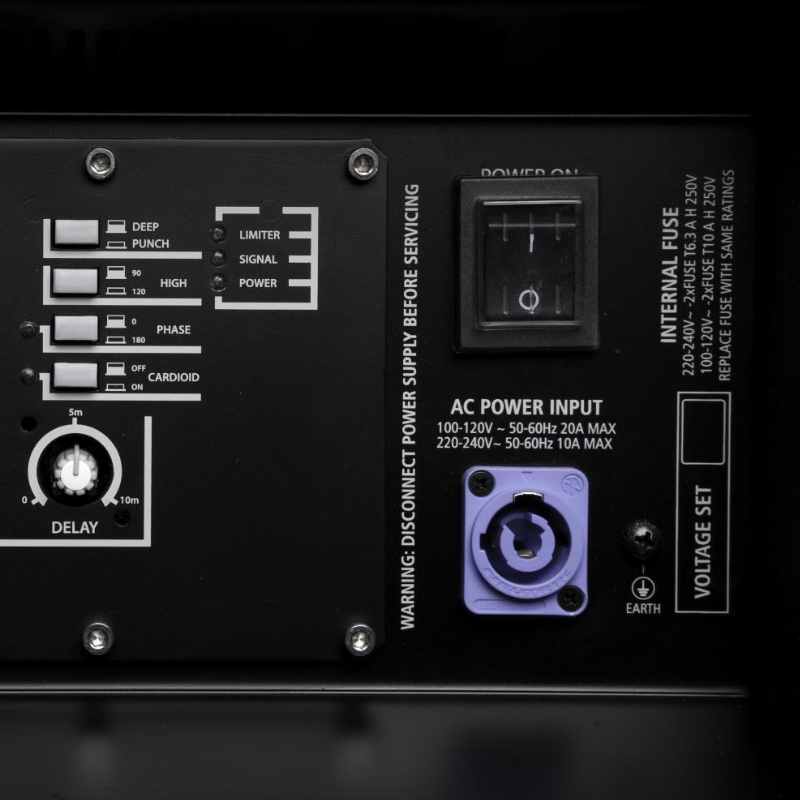

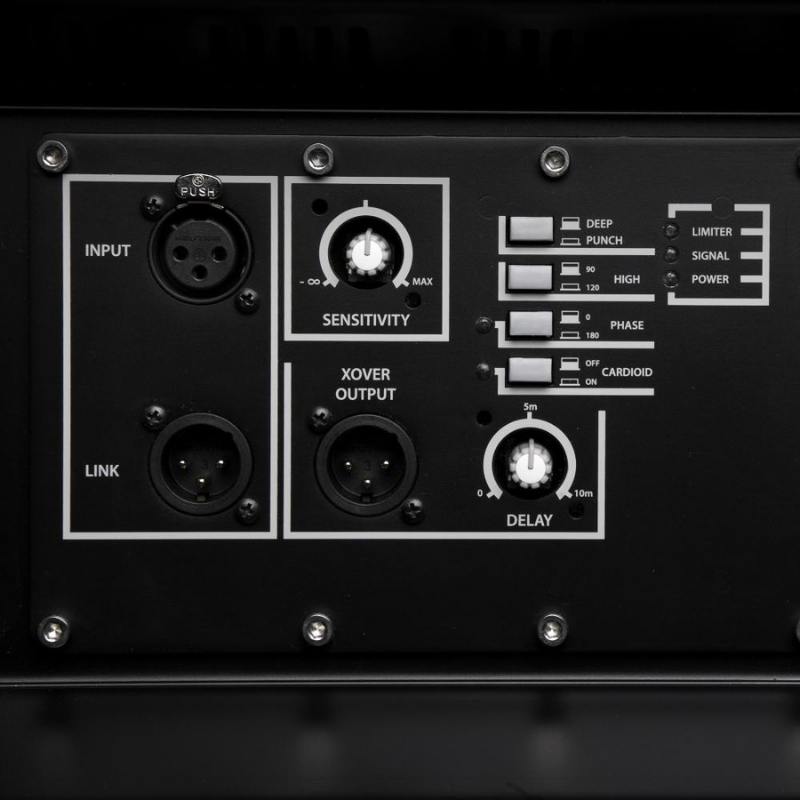

| Controls | Xover, Phase Switch, Deep/Punch, Output Delay, Cardioid Control |
| Protection Systems | Thermal Protection, RMS Protection, Fast Limiter |
| Inputs | XLR Balanced Inputs |
| Outputs | XLR Signal Outputs |
| Input Sensitivity | -2dBu / +4dBu |
| Power Connections | PowerCON Input / Output |
| Cooling | Convection Cooling |
| Enclosure Material | Baltic Birch Plywood |

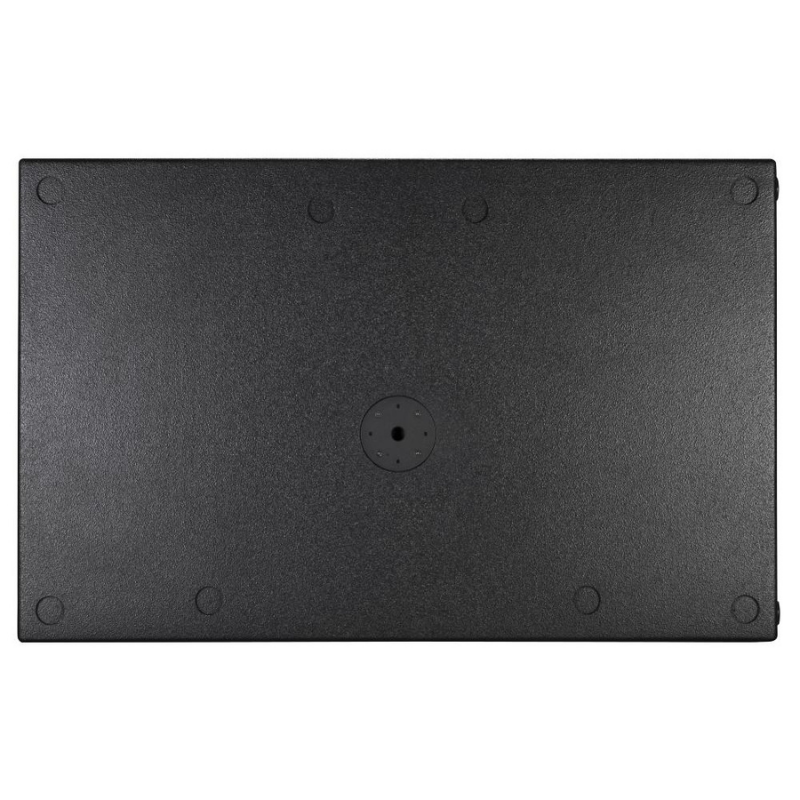

| Mounting | Integrated Mounting Points, M20 Pole Mount |

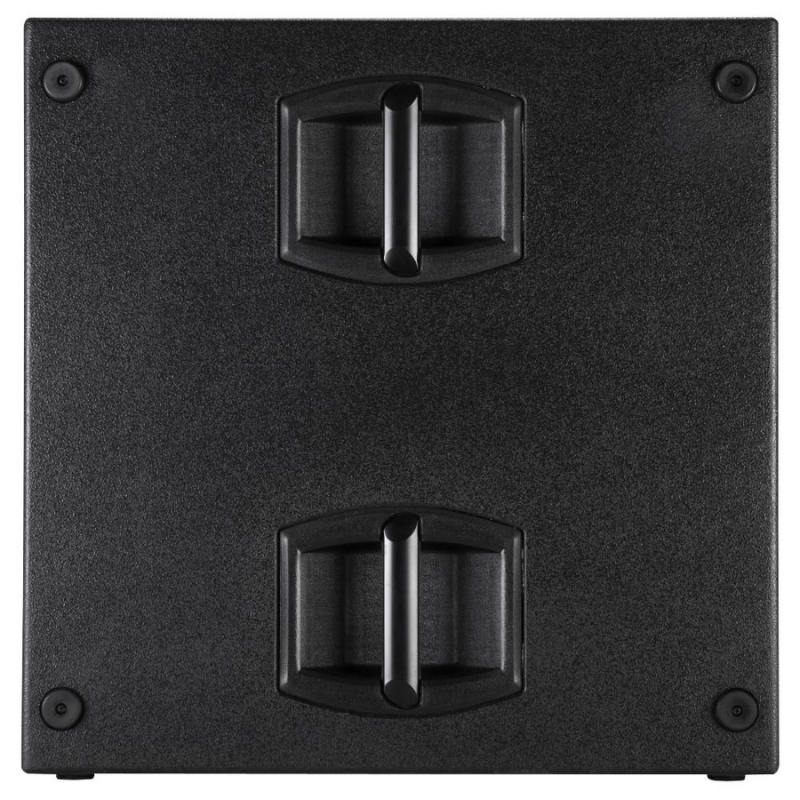

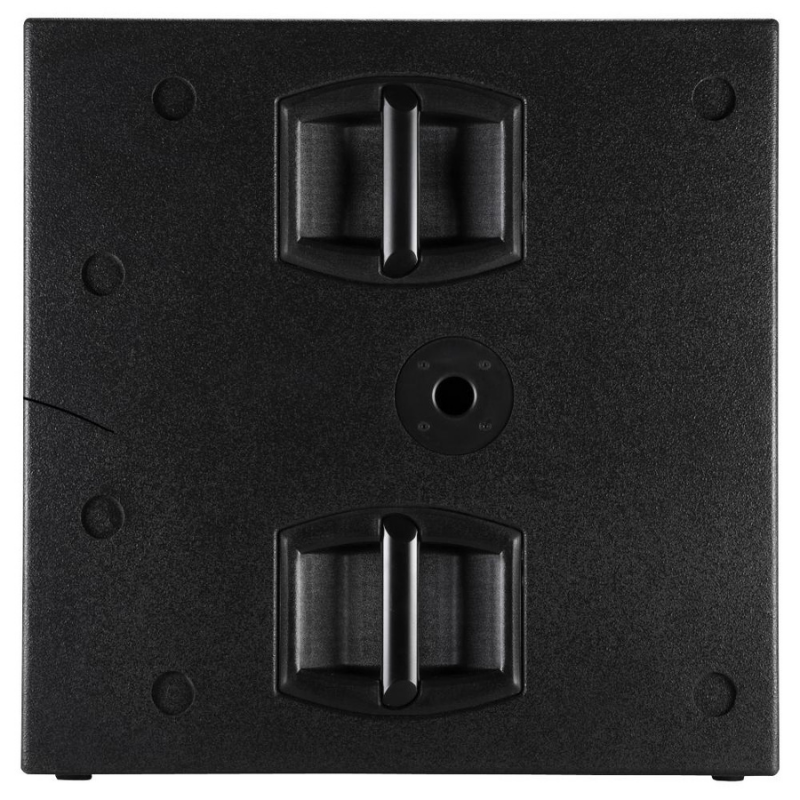

| Handles | 4 Side Handles |
| Dimensions (H x W x D) | 709 x 1109 x 700mm |
| Weight | Approx. 96.4kg |
| Colour | Black |
Ideal For
- Large Concerts
- Touring Systems
- Festivals
- Nightclubs
- Large Events
- Rental Companies
- Professional PA Systems
- Outdoor Events
- Live Sound Production
- High Output Bass Applications
