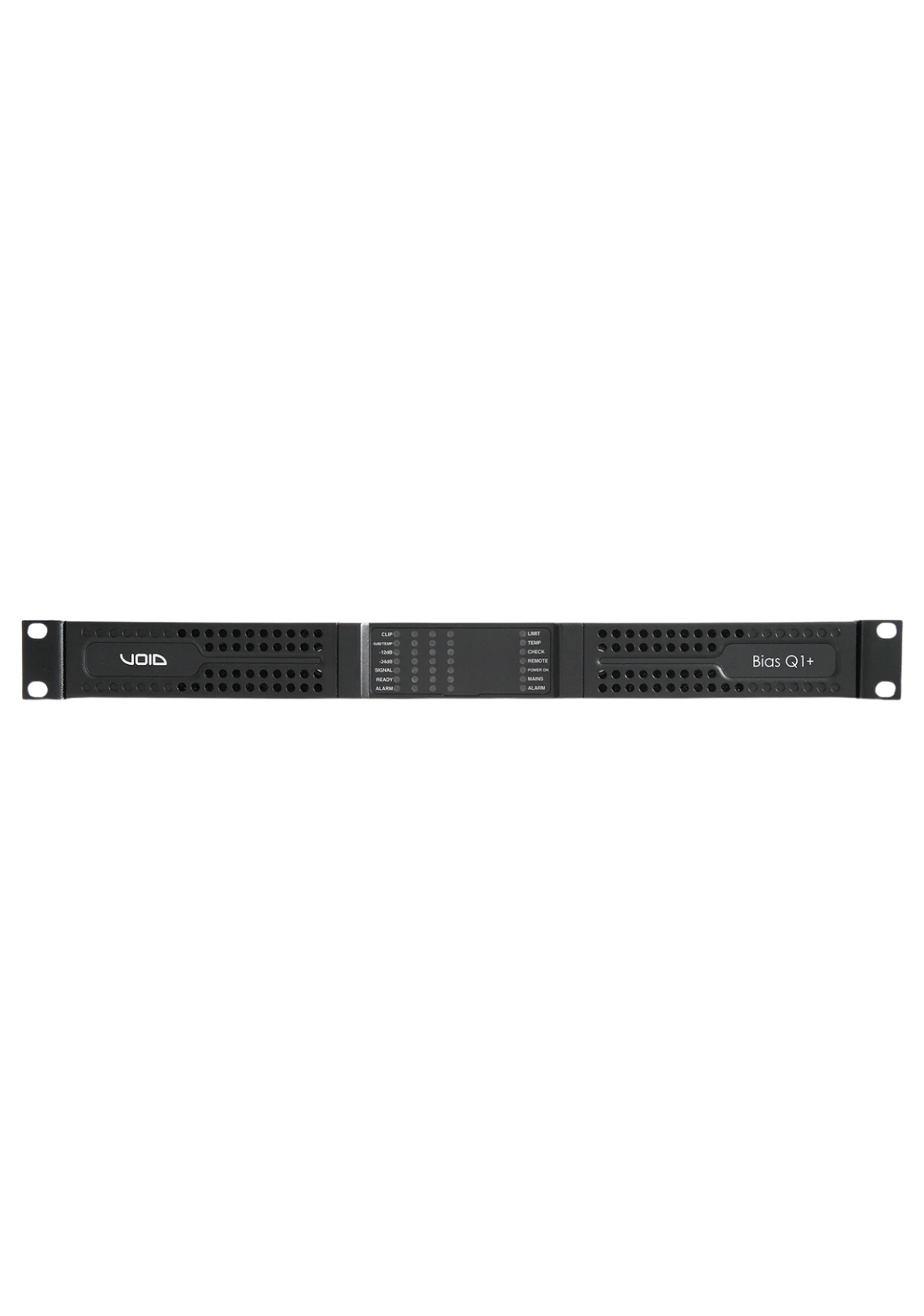

VOID ACOUSTICS BIAS Q1+ 4-Channel Power Amp with DSP Ñ 4 _ 300 W @ 4½
VOID ACOUSTICS BIAS Q1+ 4-Channel Power Amp with DSP Ñ 4 _ 300 W @ 4½
Couldn't load pickup availability
VOID Acoustics BIAS Q1+ 4-Channel Power Amplifier with DSP
Product Overview
The VOID Acoustics BIAS Q1+ is a compact professional four-channel power amplifier with integrated DSP, designed for efficient and reliable amplification in professional sound reinforcement, commercial audio, distributed systems, and fixed installations. Delivering 300W per channel at 4 Ohms and 8 Ohms, the BIAS Q1+ provides flexible multi-channel amplification in a lightweight 1U rackmount format.
Supporting low-impedance loudspeaker loads from 2 Ohms as well as 70V and 100V distributed audio systems, the BIAS Q1+ can be used across a wide range of loudspeaker configurations. Its Smart Rails Management technology and power-factor-corrected power supply provide efficient operation while helping reduce energy consumption and heat output.
The integrated DSP provides advanced system-management tools including equalisation, crossover filtering, delay, gain, polarity, and sophisticated protection limiters. With ArmoníaPlus software monitoring and control, the BIAS Q1+ is ideal for professional installations requiring precise loudspeaker processing and dependable four-channel amplification.
Key Features
4-Channel Amplification
Four independently controlled channels for flexible professional audio system configurations.
300W per Channel
Delivers 300W per channel at both 4 Ohms and 8 Ohms for reliable system performance.
Integrated DSP
Comprehensive processing with EQ, crossover, delay, gain, polarity and advanced limiting.
Class-D with SRM Technology
Highly efficient Class-D amplification using Smart Rails Management technology.
Low-Z & 70V / 100V Operation
Supports low-impedance loads from 2 Ohms alongside high-impedance distributed audio systems.
Compact 1U Design
Lightweight 19-inch rackmount construction for space-efficient professional installations.
Technical Specifications
| Product Type | 4-Channel Power Amplifier with DSP |
|---|---|
| Number of Channels | 4 |
| Amplifier Type | Class-D with SRM Technology |
| Output Power @ 2 Ohm | 400W per Channel |
| Output Power @ 4 Ohm | 300W per Channel |
| Output Power @ 8 Ohm | 300W per Channel |
| Bridged Output @ 4 Ohm | 800W |
| Bridged Output @ 8 Ohm | 600W |
| 70V Distributed Output | 300W per Channel |
| 100V Distributed Output | 300W per Channel |
| Output Configuration | 4 Hi-Z or Lo-Z Channels, Bridgeable per Channel Pair |
| Frequency Response | 20Hz - 20kHz ±0.5dB |
| Maximum Input Level | 20dBu |
| Input Impedance | 20k Ohm Balanced |
| Signal-to-Noise Ratio | >104dB(A) |
| THD+N | <0.1% Typical <0.05% |
| Crosstalk | Typical -70dB @ 1kHz |
| Gain Settings | 26dB, 29dB, 32dB, 35dB |
| DSP | Integrated Digital Signal Processing |
| AD Conversion | 24-Bit Tandem at 48kHz |
| DA Conversion | 24-Bit Tandem at 48kHz |
| DSP Internal Precision | 32-Bit Floating Point |
| DSP Latency | 2.5ms Fixed Latency Architecture |
| Delay | 2s Input + 100ms Output |
| Equalisation | Raised-Cosine, Custom FIR, Parametric IIR, Peaking, Hi/Lo-Shelving, All-Pass, Band-Pass, Band-Stop, Hi/Lo-Pass |
| Crossover | Linear Phase FIR, Butterworth, Linkwitz-Riley, Bessel, 6dB/oct - 48dB/oct |
| Limiters | TruePower, RMS Voltage, RMS Current, Peak Limiter |
| Damping Control | Active DampingControl and LiveImpedance Measurement |
| Input Channels | 4 Analog Inputs |
| Networking | Auto-Sensing Fast Ethernet, IEEE 802.3u, 100 Mbit/s |
| Control Software | ArmoníaPlus |
| Remote Interface | Ethernet / ArmoníaPlus |
| Power Supply | 100 - 240V AC, 50 - 60Hz |
| Power Factor | >0.95 at >500W Output |
| Cooling | Continuously Variable-Speed, Temperature-Controlled Fan |
| Airflow | Front to Rear |
| Operating Temperature | -10°C to 35°C |
| Form Factor | 1U / 19-inch Rack Mount |
| Dimensions (H x W x D) | 44.5 x 483 x 358mm |
| Weight | 7kg |
| IP Rating | IP20 |
Ideal For
- Professional PA Systems
- Nightclubs
- Hotels
- Restaurants
- Retail Installations
- Entertainment Venues
- Distributed Audio Systems
- 70V / 100V Installations
- Low-Impedance Loudspeaker Systems
- Multi-Zone Audio
- Fixed Installations
- Professional Sound Reinforcement
