YAMAHA
YAMAHA DM3 Compact Digital Mixer 16 Mono/ 1 Stereo/2 FX Return + Dante
YAMAHA DM3 Compact Digital Mixer 16 Mono/ 1 Stereo/2 FX Return + Dante
Couldn't load pickup availability
YAMAHA DM3 Compact Digital Mixer 16 Mono / 1 Stereo / 2 FX Return + Dante
Product Overview

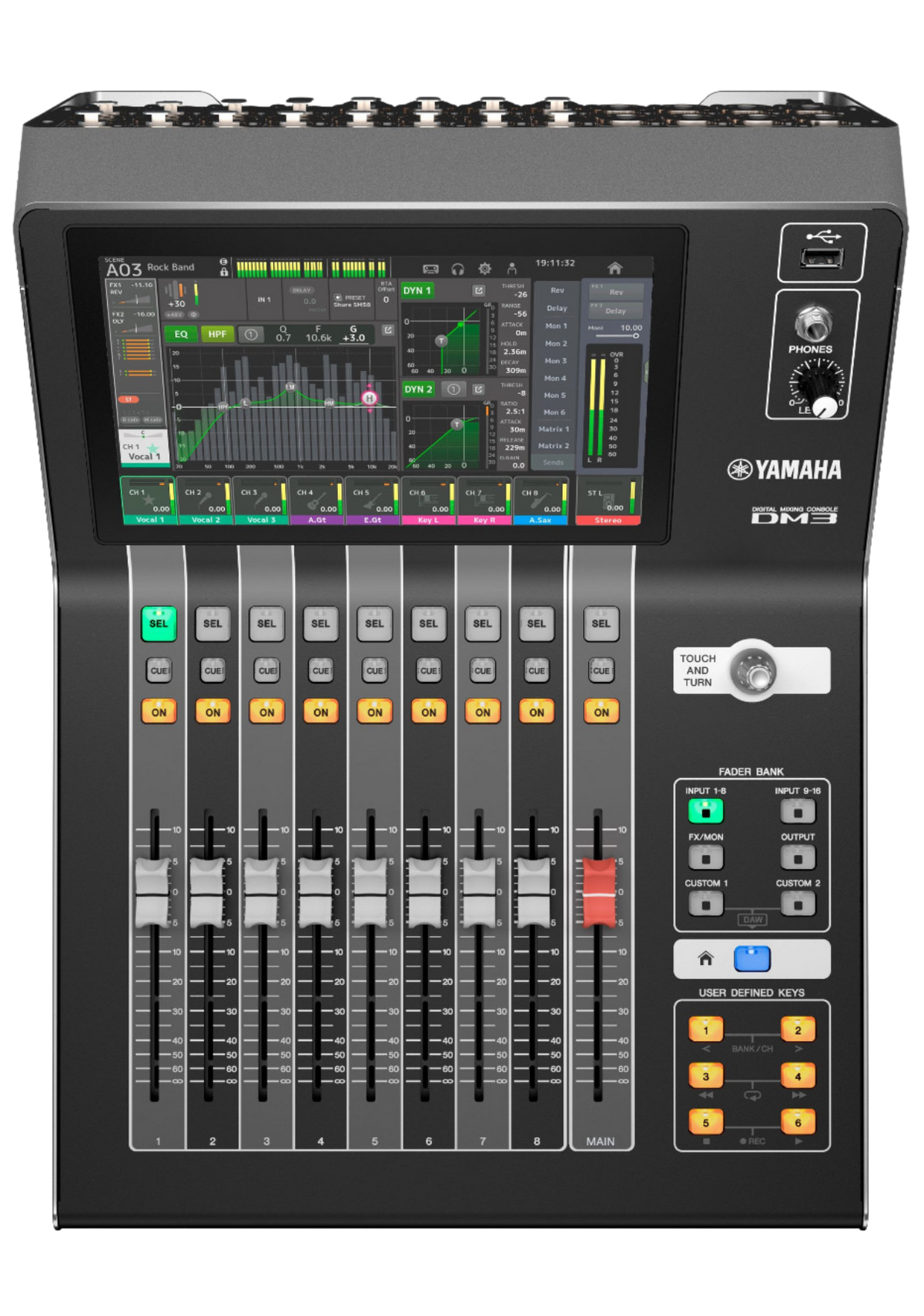

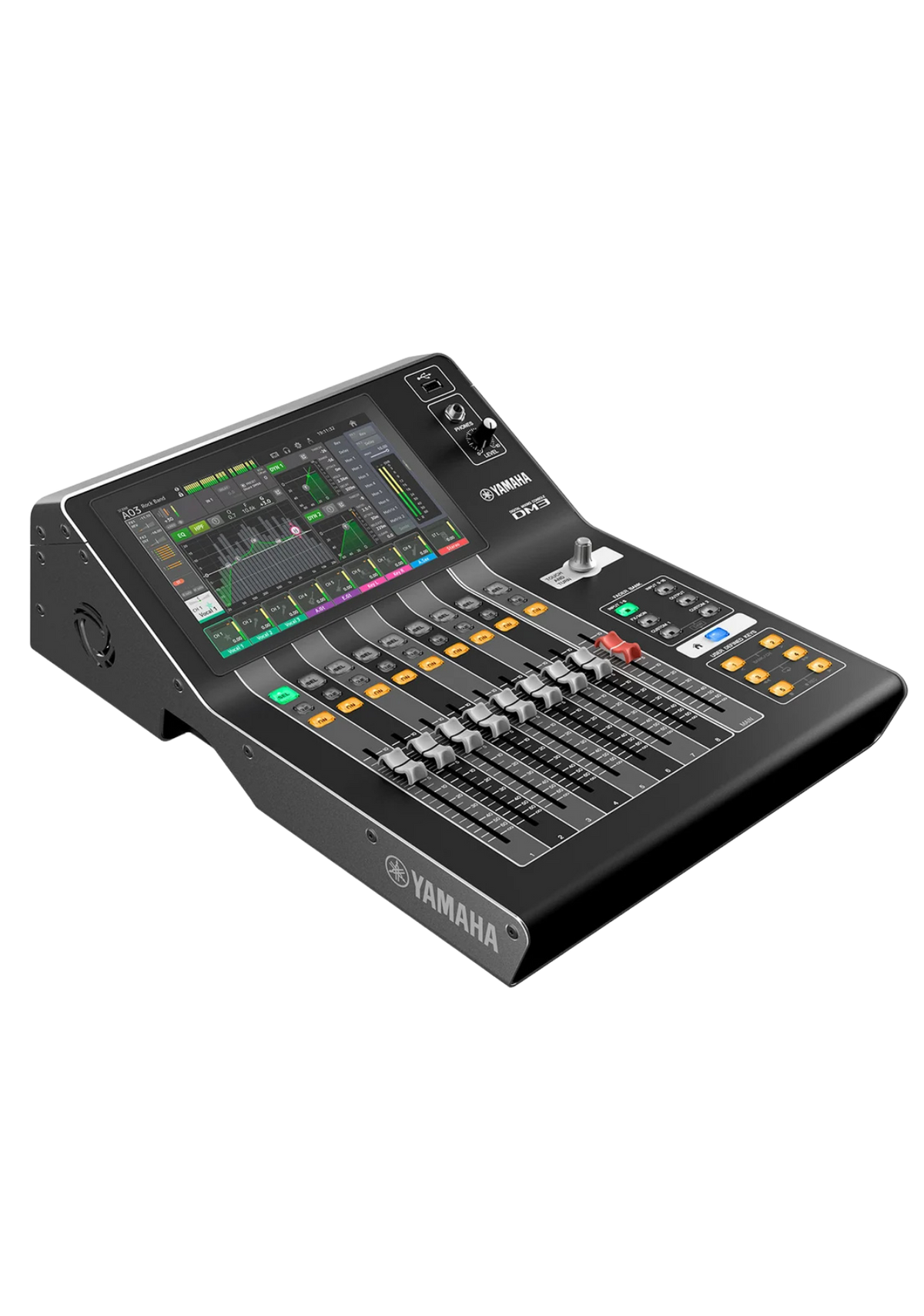

The Yamaha DM3 is a compact digital mixing console designed to deliver professional sound quality, advanced processing, and Dante networking in an ultra-portable format. Featuring 16 mono channels, 1 stereo channel, and 2 FX returns, the DM3 provides a powerful solution for live sound, streaming, corporate events, theatres, houses of worship, and mobile production environments.
Equipped with Yamaha's renowned digital mixing technology, the DM3 features a 9-inch multi-touch display, motorised faders, intuitive Touch & Turn control, and professional onboard processing. With support for 96kHz operation, 18-channel USB audio interface, and built-in Dante networking, the DM3 integrates seamlessly into modern digital audio systems.
The compact design provides exceptional portability without compromising performance. With Yamaha's trusted reliability, flexible routing, powerful effects, and network audio capabilities, the DM3 is an ideal choice for engineers requiring a professional mixer that can handle both live and installed applications.
Key Features
Dante Networking
Built-in Dante audio networking for professional systems.
Compact Design
Portable digital mixer with professional features.
96kHz Processing
High-resolution audio performance with Yamaha quality.
Touchscreen Control
9-inch multi-touch display with Touch & Turn operation.
USB Recording
18-channel USB audio interface for recording and playback.
Professional Effects
Built-in effects and processing for live applications.
Technical Specifications
| Product Type | Compact Digital Mixing Console with Dante |
|---|---|
| Input Channels | 16 Mono + 1 Stereo + 2 FX Return |
| Mix Buses | 6 Mix Buses |
| FX Buses | 2 FX Buses |
| Matrix Buses | 2 Matrix Buses |
| Sampling Rate | 48kHz / 96kHz |
| Dante Connectivity | 16 Input / 16 Output Dante Channels |

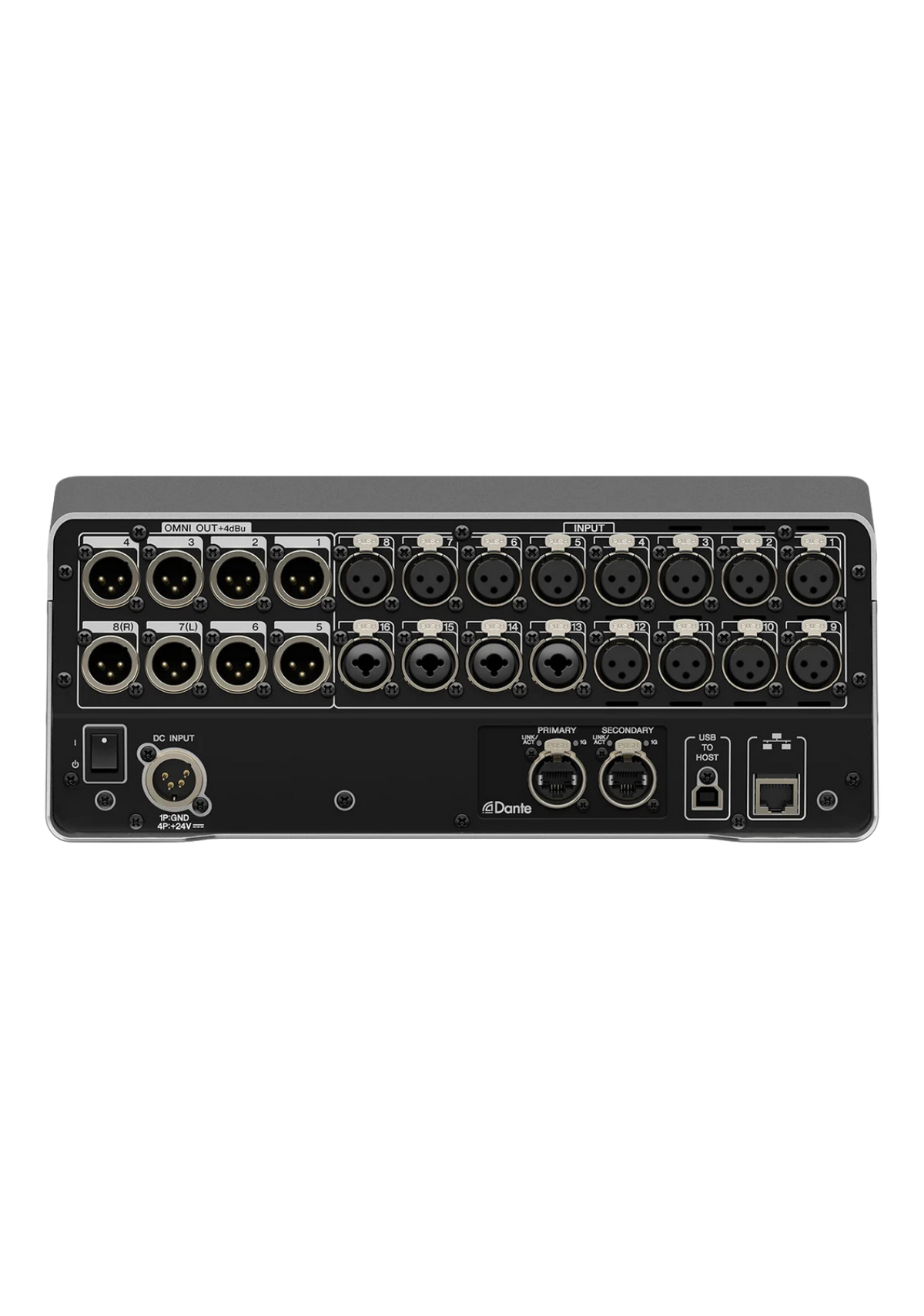

| Analogue Inputs | 16 Mic/Line Inputs (12 XLR + 4 XLR/TRS Combo) |
| Analogue Outputs | 8 x XLR Outputs |
| USB Audio Interface | 18 Input / 18 Output USB Audio |
| Effects | 18 Effects Processors |
| Equalisation | GEQ on Mix 1-6 and Stereo Channels |
| User Interface | 9-inch Multi-Touch Screen + Touch & Turn Encoder |
| Faders | 9 x Motorised Faders (8 Channels + Main) |
| Recording | 18-Track USB Recording / 18-Track Playback |
| Latency | Less than 1.3ms (96kHz) |
| Frequency Response | 20Hz – 20kHz |
| Dynamic Range | 110dB Typical |
| Network Connection | Dante etherCON Primary/Secondary + RJ45 Network |
| Rack Mounting | Optional Rack Kit Available |
| Dimensions (W x H x D) | 320 x 140 x 455mm |
| Weight | 6.5kg |
Ideal For
- Live Sound Engineers
- Small Touring Productions
- Corporate Events
- Houses of Worship
- Theatres & Venues
- Live Streaming
- Broadcast Applications
- Recording & Production
- Rental & Hire Companies
- Dante Audio Networks
