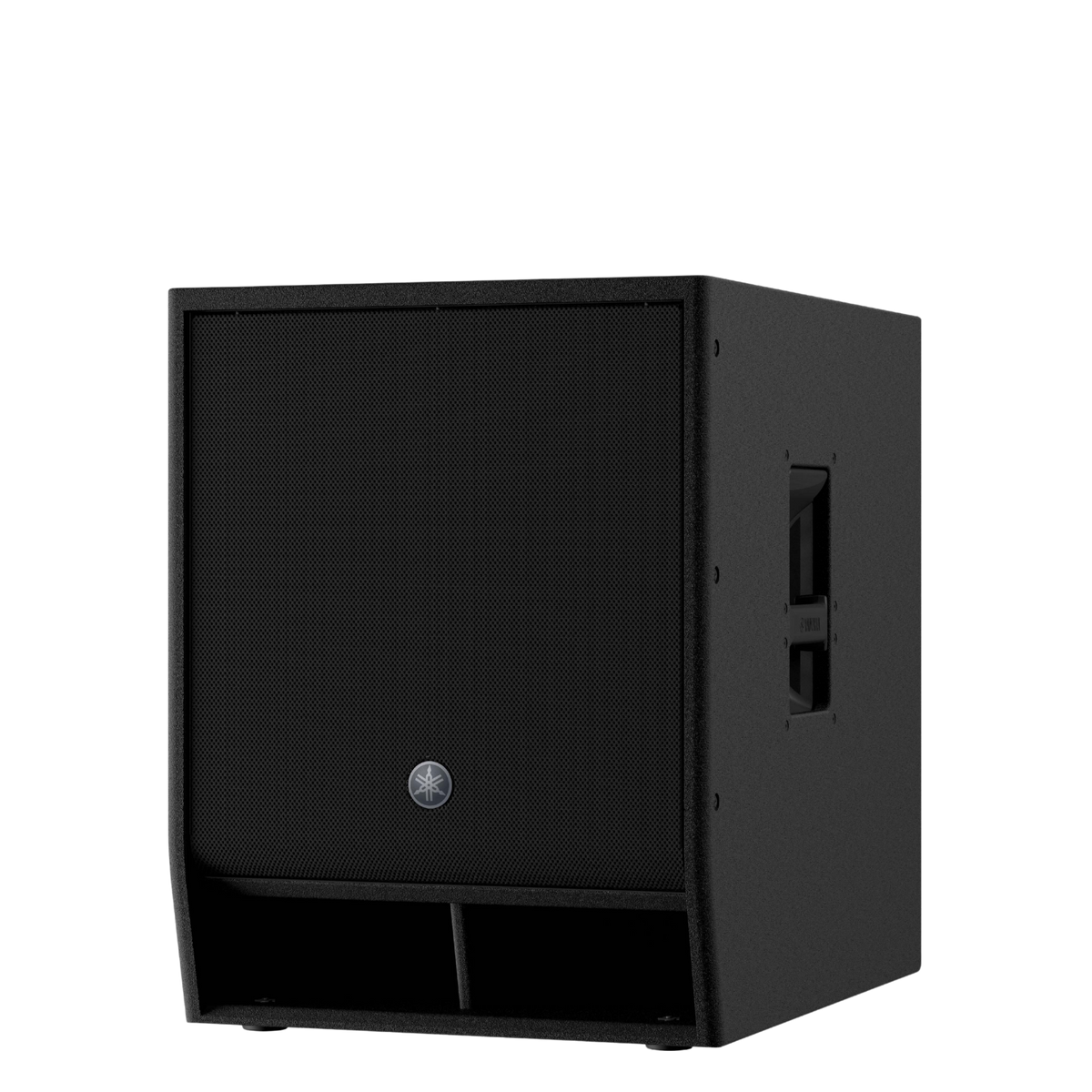

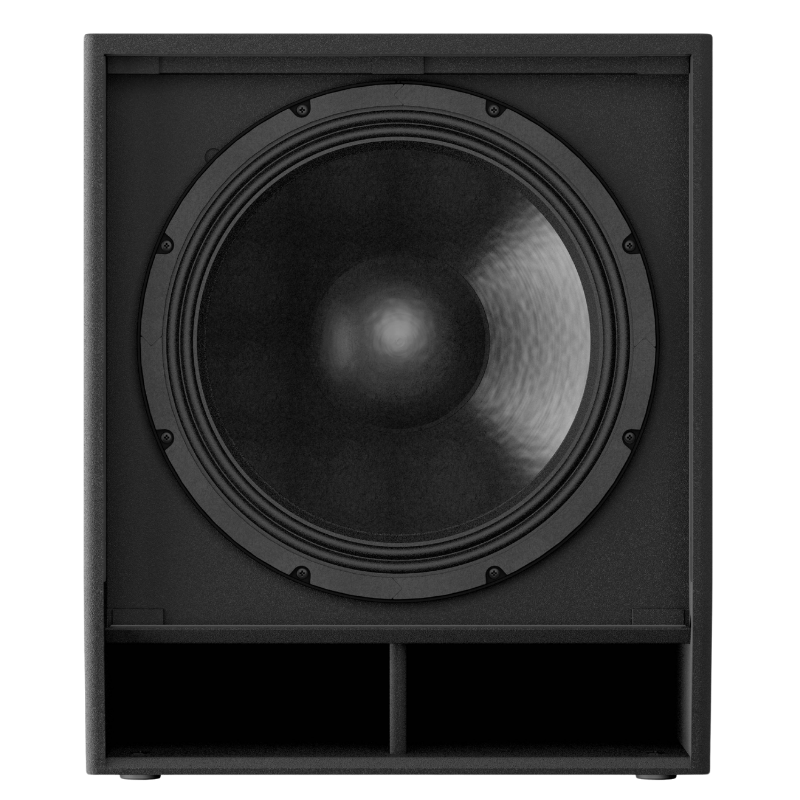

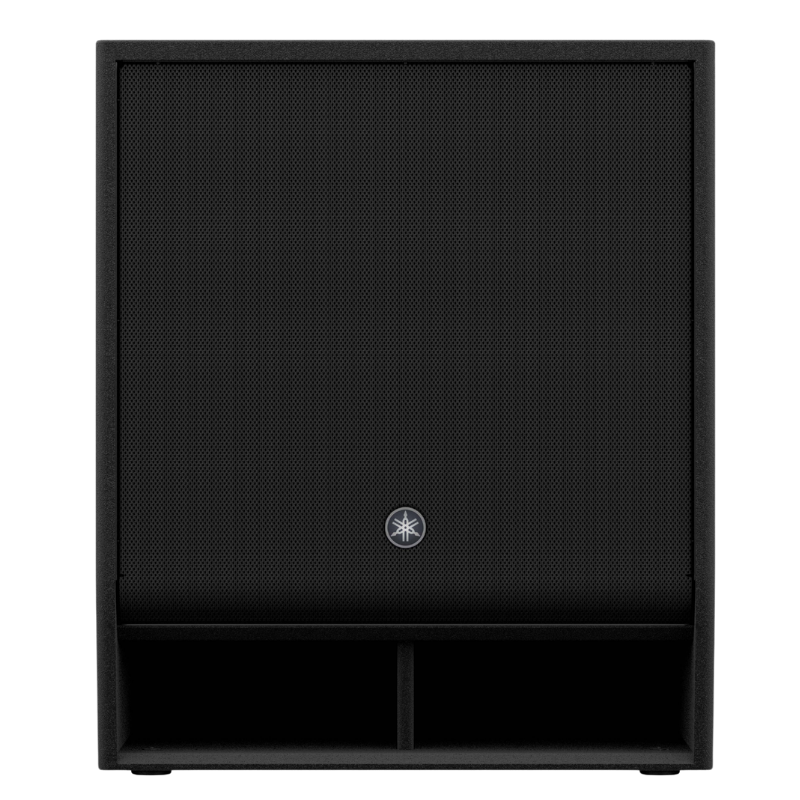

YAMAHA DXS15XLF 1600w Powered 15" Subwoofer with 4" Voice Coil
YAMAHA DXS15XLF 1600w Powered 15" Subwoofer with 4" Voice Coil
Couldn't load pickup availability
YAMAHA DXS15XLF 1600W Powered 15" Subwoofer with 4" Voice Coil
Product Overview
The Yamaha DXS15XLF is a high-performance 15-inch powered subwoofer designed for professional live sound, touring, DJs, and premium portable PA systems. Featuring a powerful 1600W Class-D amplifier, 4" voice coil woofer, and extended low-frequency response, the DXS15XLF delivers deep, powerful bass with exceptional clarity and control. :contentReference[oaicite:0]{index=0}
Equipped with advanced 96kHz DSP processing, D-XSUB processing, cardioid mode capability, and an intuitive LCD display, the DXS15XLF allows precise system tuning with adjustable EQ, delay, routing, and presets for different applications. :contentReference[oaicite:1]{index=1}
Built with a durable plywood cabinet, premium Polyurea coating, professional input and output connections, and compatibility with Yamaha DZR full-range speakers, the DXS15XLF is engineered for demanding venues, events, and professional sound reinforcement systems. :contentReference[oaicite:2]{index=2}
Key Features
1600W Amplifier
High-power Class-D performance.
15" Woofer
Deep bass with 4" voice coil.
96kHz DSP
Advanced sound processing.
Cardioid Mode
Improved bass direction control.
LCD Display
Easy setup and adjustments.
Tour Ready Build
Durable plywood cabinet design.
Technical Specifications
| Product Type | Powered Bass Reflex Subwoofer |
|---|---|
| Woofer Size | 15" Cone Woofer |
| Voice Coil | 4" Voice Coil |
| Magnet Type | Ferrite Magnet |
| Amplifier Type | Class-D Amplifier |
| Power Output | 1600W Dynamic / 1200W Continuous |
| Frequency Range (-10dB) | 33Hz - 150Hz |
| Maximum SPL | 136dB SPL |
| DSP Processing | 96kHz DSP with D-XSUB Processing |
| DSP Functions | EQ, Delay, Routing, Presets, Cardioid Mode |
| Display | LCD Control Display |
| Inputs | 2 x XLR Combo Inputs |
| Outputs | 2 x XLR Outputs |
| Input Level | Maximum +24dBu |
| Input Impedance | 20kΩ |
| Cabinet Material | Plywood Cabinet with Polyurea Coating |
| Grille | Protective Steel Grille |
| Frequency Processing | Bass Reflex Design |
| Power Connection | AC Power Input |
| Dimensions (H x W x D) | 550 x 450 x 570mm |
| Weight | 38kg |
| Colour | Black |
Ideal For
- Live Concerts
- Mobile DJs
- Touring Systems
- Rental Companies
- Corporate Events
- Large Venues
- Festival Sound
- Portable PA Systems
- Professional Installations
- Sound Reinforcement
