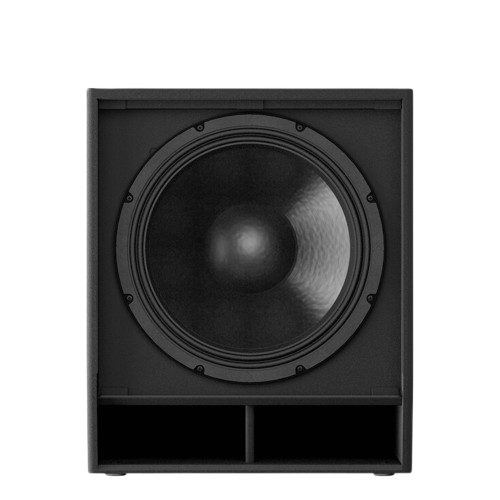

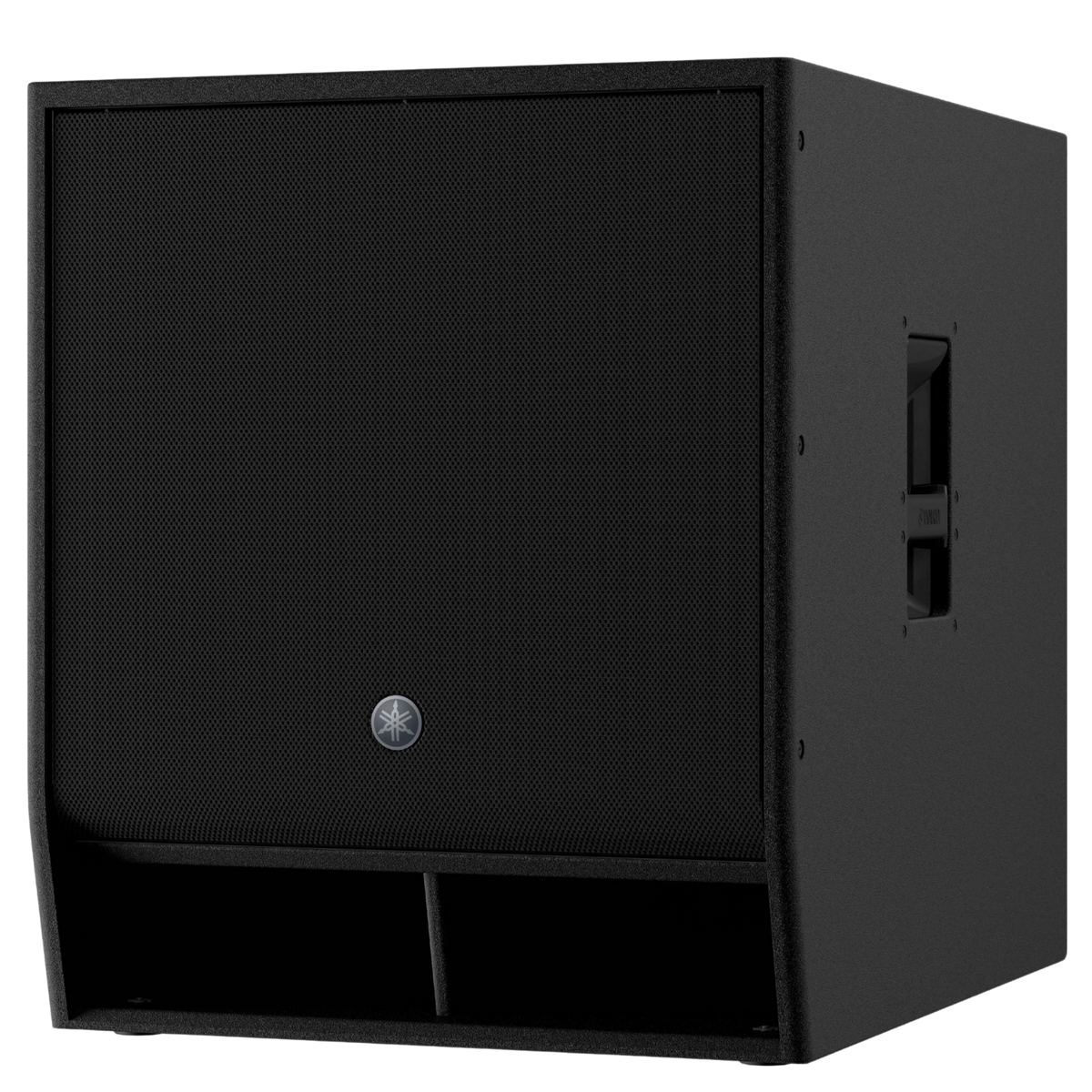

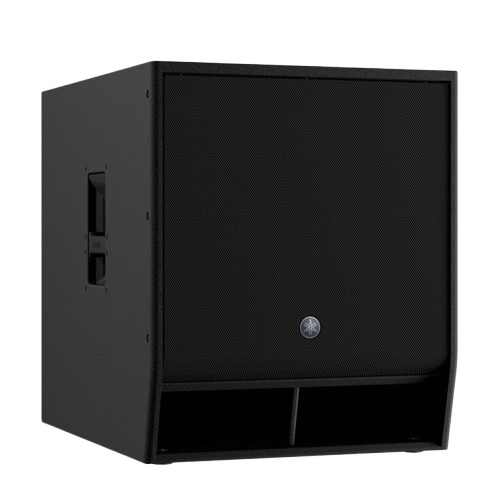

YAMAHA DXS18XLF 1600W Powered 18" Subwoofer with 4" Voice Coil
Product Overview
The Yamaha DXS18XLF is a professional 18-inch powered subwoofer designed for high-performance live sound, touring, DJs, concerts, clubs, and professional PA systems. Featuring a powerful 1600W Class-D amplifier, advanced 96kHz DSP processing, and a high-excursion 18-inch driver with a 4-inch voice coil, the DXS18XLF delivers deep, powerful and controlled low-frequency performance.
Designed to complement Yamaha DZR full-range loudspeakers, the DXS18XLF provides extended low-frequency response down to 30Hz with exceptional clarity and impact. Integrated D-XSUB processing, cardioid mode capability, and advanced DSP controls allow precise system optimisation for different applications and venues.
Built with a durable plywood enclosure and premium protective coating, the DXS18XLF is engineered for professional touring environments, installations, mobile DJs, festivals, and demanding live sound applications where powerful bass output is required.
Key Features
18" High Output Woofer
Large low-frequency driver with 4" voice coil for powerful bass.
1600W Class-D Amplifier
High-efficiency amplification delivering professional output.
96kHz DSP Processing
High-resolution digital processing for accurate sound control.
D-XSUB Processing
Advanced bass optimisation with selectable response modes.
Cardioid Mode
Directional bass control for professional multi-sub setups.
Touring Grade Cabinet
Durable plywood enclosure with professional protective finish.
Technical Specifications
| Product Type | Powered Bass Reflex Subwoofer |
|---|---|
| Low Frequency Driver | 18" Cone Woofer |
| Voice Coil Size | 4" Voice Coil |
| Magnet Type | Ferrite Magnet |
| Amplifier Type | Class-D Power Amplifier |
| Power Rating | 1600W Dynamic Power |
| Continuous Power | 1200W |
| Frequency Range | 30Hz - 150Hz (-10dB) |
| Maximum SPL | 136dB SPL |
| DSP Processing | 96kHz DSP with D-XSUB Processing and Cardioid Mode |
| DSP Functions | PEQ, Delay, Routing, Presets and System Optimisation |
| Analog Inputs | 2 x XLR/TRS Combo Inputs |
| Outputs | 2 x XLR Outputs (THRU / DSP OUT) |
| Sampling Frequency | 96kHz |
| Enclosure Material | Plywood Cabinet with Premium Protective Coating |
| Cooling System | Advanced Internal Cooling System |
| Power Supply | AC 100-240V, 50/60Hz |
| Dimensions (W x H x D) | 563 x 600 x 721mm |
| Weight | 49kg |
| Colour | Black |
Ideal For
- Touring Sound Systems
- Mobile DJs
- Concert Events
- Festivals
- Nightclubs
- Live Bands
- Corporate Productions
- Professional Venues
- Outdoor Events
- High Output PA Systems
