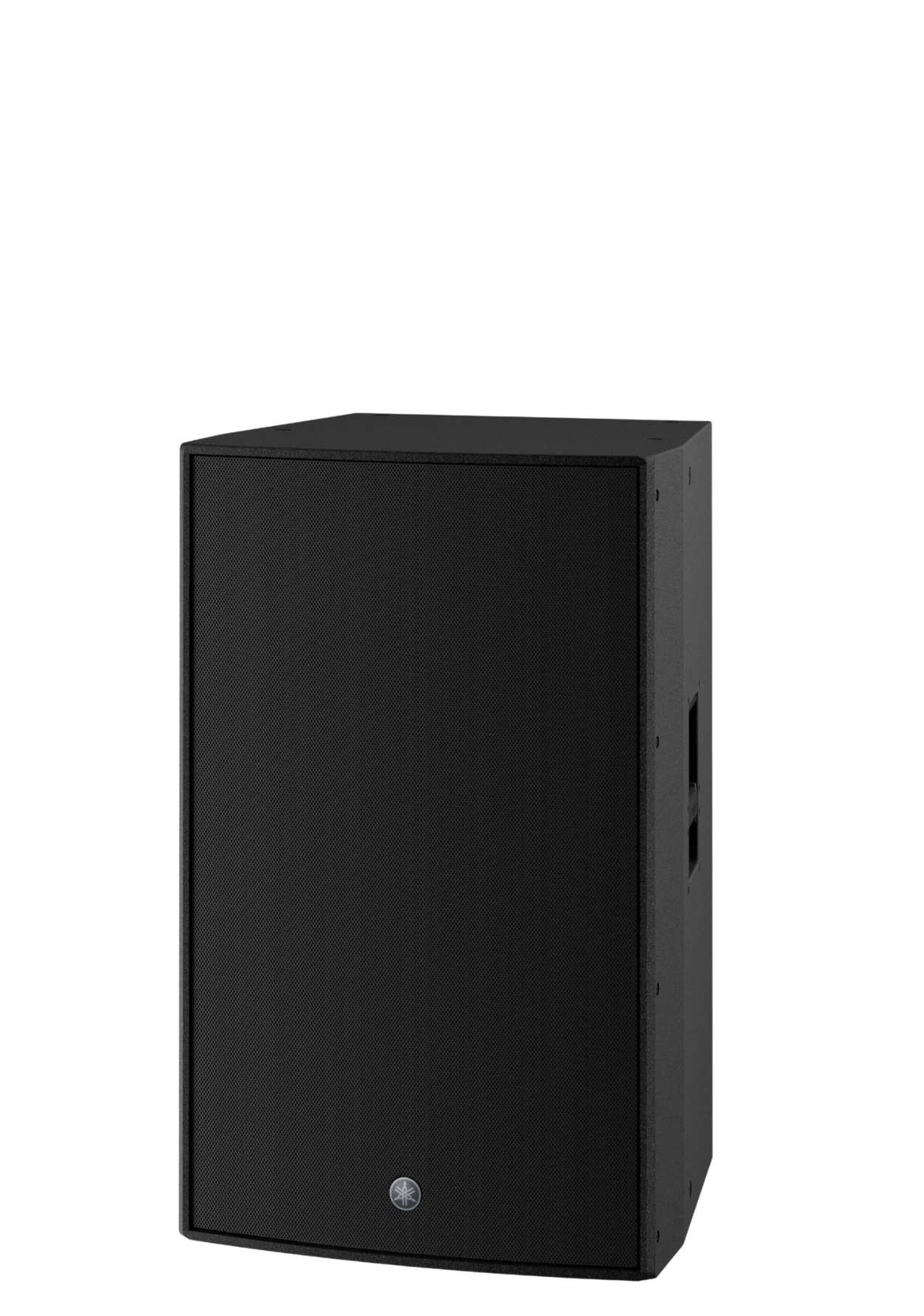

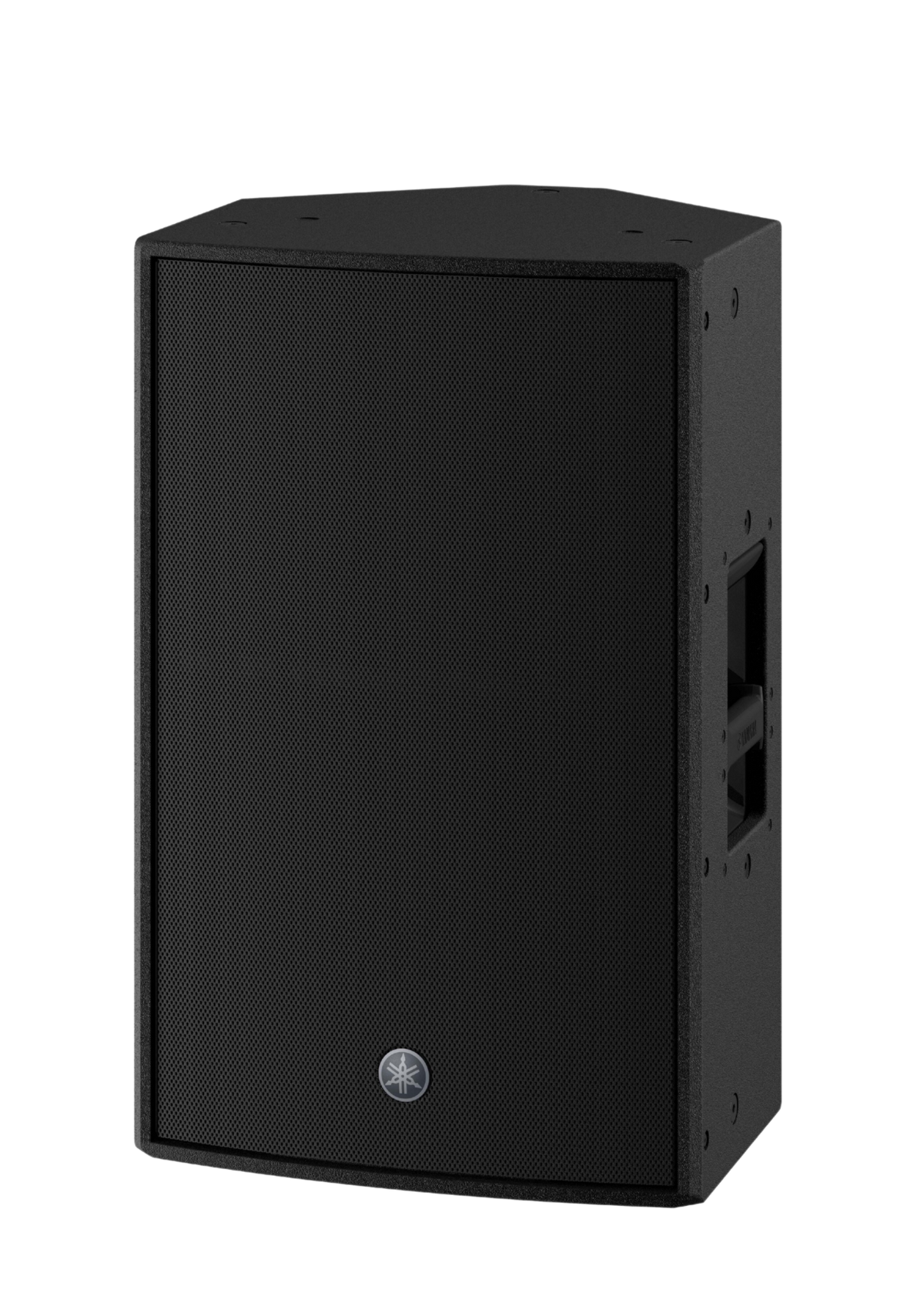

YAMAHA DZR12 2000W Bi-Amped Powered Speaker 12" LF + 2" HF
Product Overview
The Yamaha DZR12 is a premium professional 12-inch bi-amped powered loudspeaker designed for touring, live sound, DJs, concerts, installations, and high-performance PA systems. Featuring a powerful 2000W Class-D amplifier module, advanced 96kHz DSP processing, and Yamaha's FIR-X tuning technology, the DZR12 delivers exceptional clarity, powerful output, and precise sound reproduction.
Equipped with a high-performance 12-inch low-frequency driver and a 2-inch titanium diaphragm compression driver, the DZR12 provides powerful bass response, clear vocals, and detailed high frequencies. The advanced DSP system provides accurate crossover management, phase optimisation, EQ control, and professional system tuning.
Built with a durable plywood enclosure, premium Polyurea protective coating, rotatable horn design, LCD DSP control interface, and flexible mounting options, the DZR12 is ideal for touring productions, mobile DJs, theatres, corporate events, venues, and professional sound reinforcement.
Key Features
12" Two-Way System
Professional full-range speaker design with excellent clarity.
2000W Class-D Amplifier
High-output amplifier module for professional applications.
2" HF Compression Driver
Titanium diaphragm driver for accurate high-frequency detail.
12" LF Driver
High-power woofer with 3" voice coil and neodymium magnet.
96kHz FIR DSP
Advanced processing with FIR filtering and FIR-X tuning.
Professional Cabinet
Lightweight plywood enclosure with durable Polyurea coating.
Technical Specifications
| Product Type | 2-Way Bi-Amped Powered Loudspeaker |
|---|---|
| Low Frequency Driver | 12" Cone Driver, 3" Voice Coil, Neodymium Magnet |
| High Frequency Driver | 2" Voice Coil, 1" Throat Compression Driver, Titanium Diaphragm |
| Amplifier Type | Class-D Bi-Amped Amplifier Module |
| Power Rating | 2000W Dynamic Power |
| Continuous Power | 950W |
| Frequency Range | 39Hz - 20kHz (-10dB) |
| Maximum SPL | 139dB SPL |
| Coverage Pattern | 90° x 60° Rotatable Horn |
| Crossover Frequency | 1.8kHz FIR-X Tuning |
| DSP Processing | 96kHz DSP with FIR Filters and Advanced FIR-X Processing |
| DSP Functions | PEQ, Delay, Routing, Presets and D-Contour Processing |

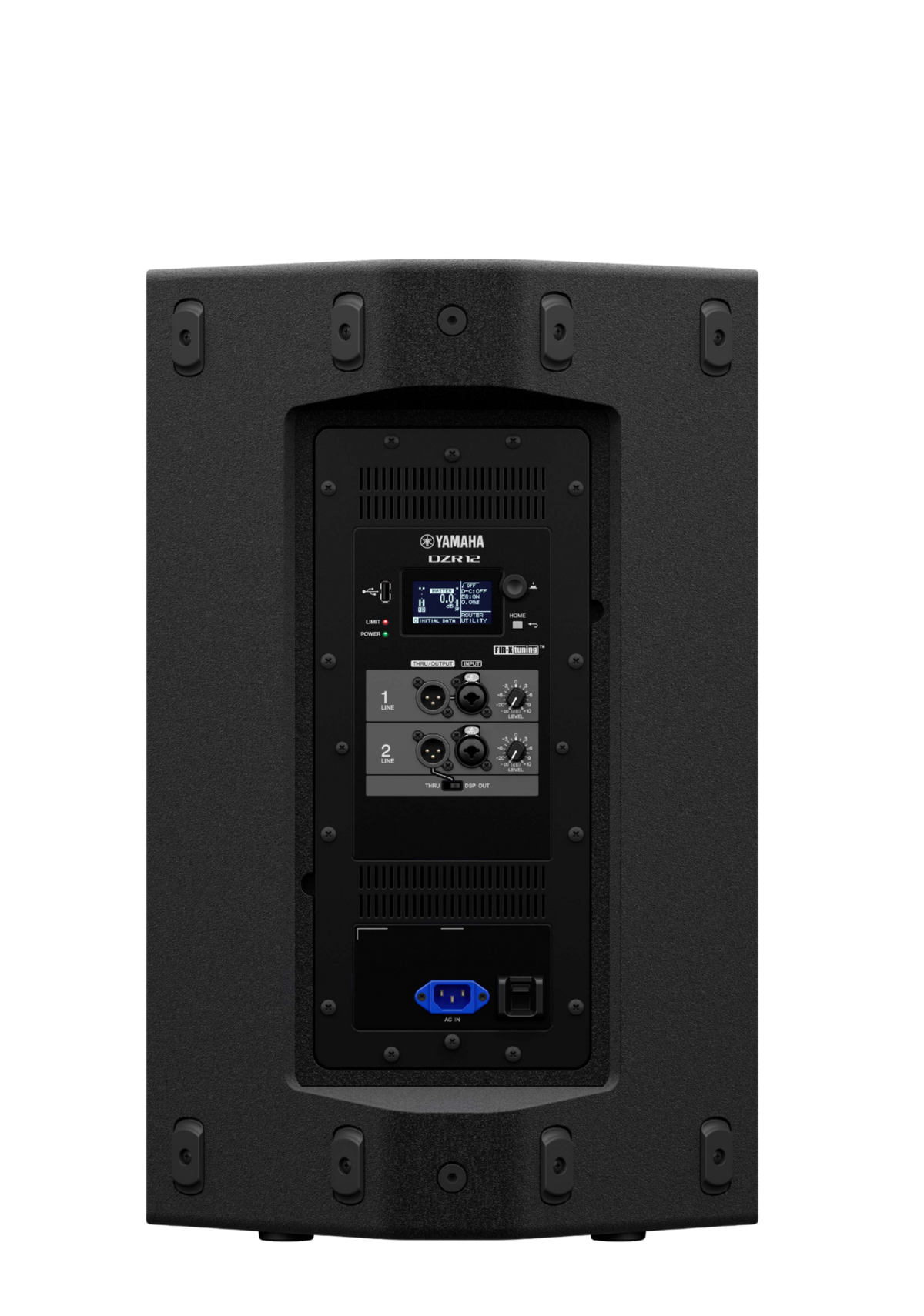

| Inputs | 2 x XLR/TRS Combo Inputs |
| Outputs | 2 x XLR Outputs (THRU / DSP OUT) |
| Display | LCD DSP Control Interface |
| Monitoring Mode | Floor Monitor Configuration Support |
| Rigging | Optional U-Bracket and M10 Mounting Options |
| Enclosure Material | Plywood Cabinet with Premium Polyurea Coating |
| Power Supply | AC 100-240V, 50/60Hz |
| Dimensions (W x H x D) | 410 x 646 x 394mm |
| Weight | 23.6kg |
| Colour | Black |
Ideal For
- Touring Systems
- Front Of House PA
- Mobile DJs
- Live Bands
- Concert Events
- Corporate Productions
- Theatres
- Professional Venues
- Stage Monitoring
- Premium PA Systems
