YAMAHA DZR15 2000W Bi-Amped Powered Speaker 15" LF + 2" HF
Product Overview

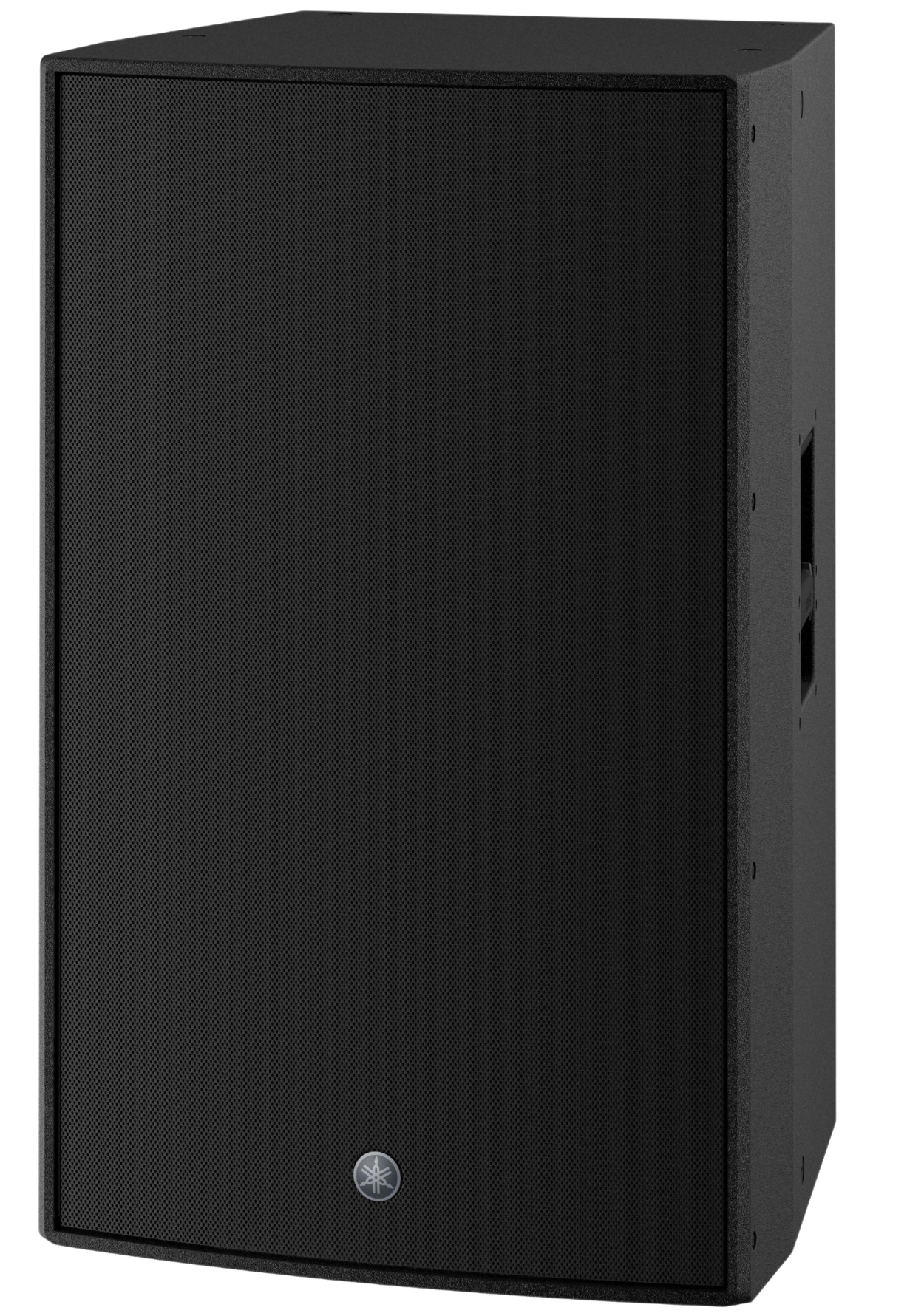

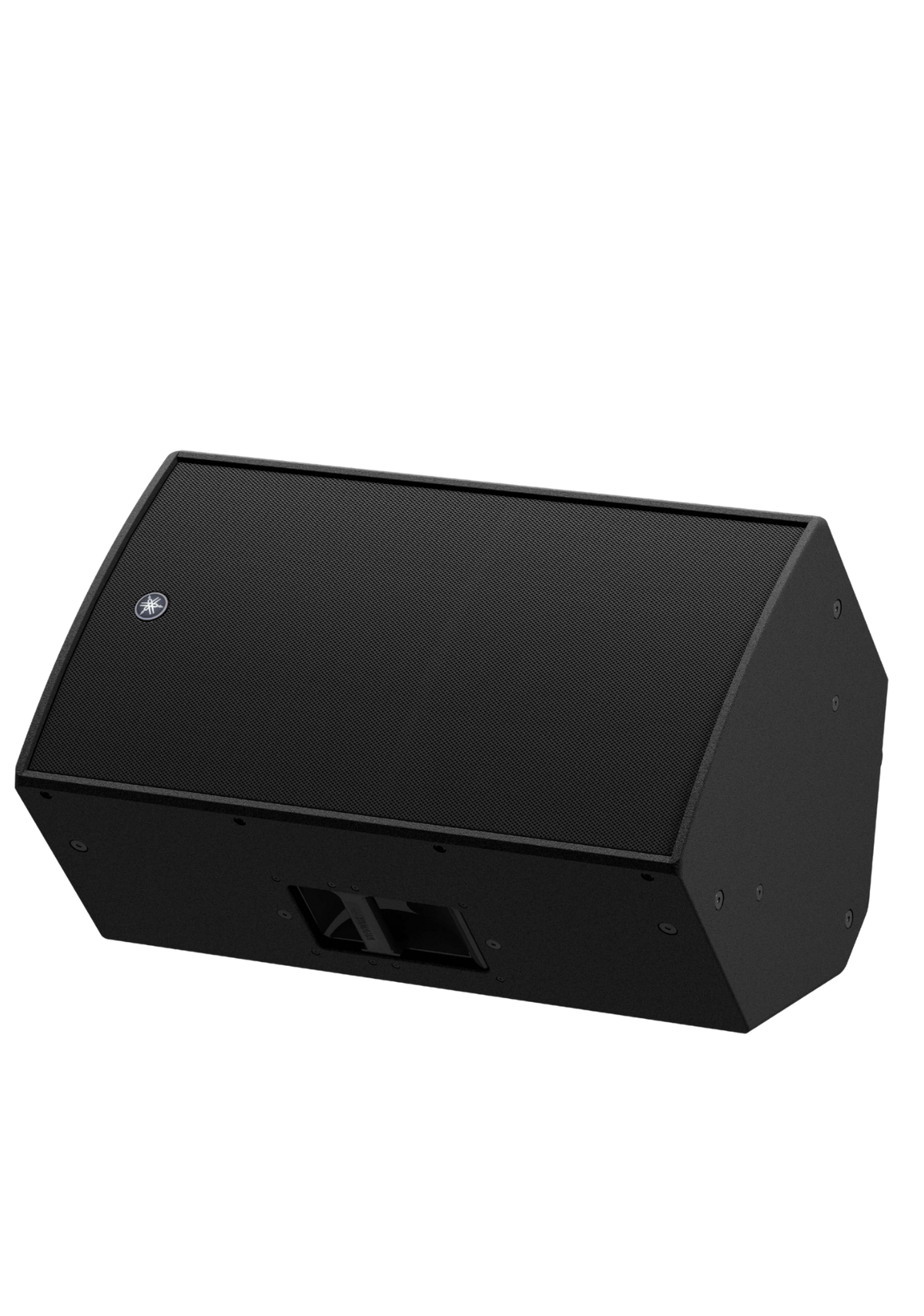

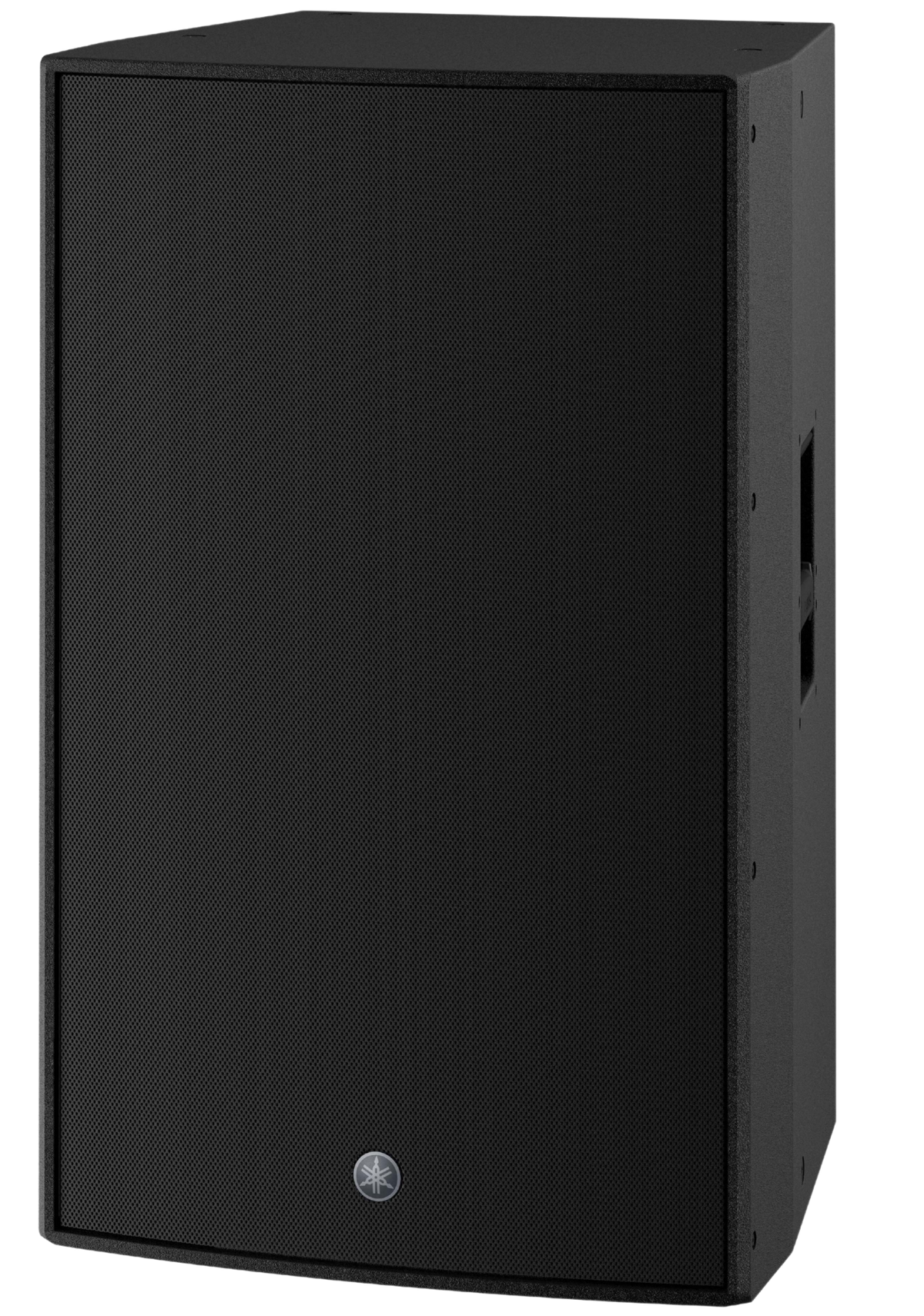

The Yamaha DZR15 is a premium professional 15-inch bi-amped powered loudspeaker designed for touring, live sound, DJs, concerts, installations, and high-performance PA systems. Featuring a powerful 2000W Class-D amplifier module, advanced 96kHz DSP processing, and Yamaha's FIR-X tuning technology, the DZR15 delivers exceptional clarity, power, and low-frequency performance.

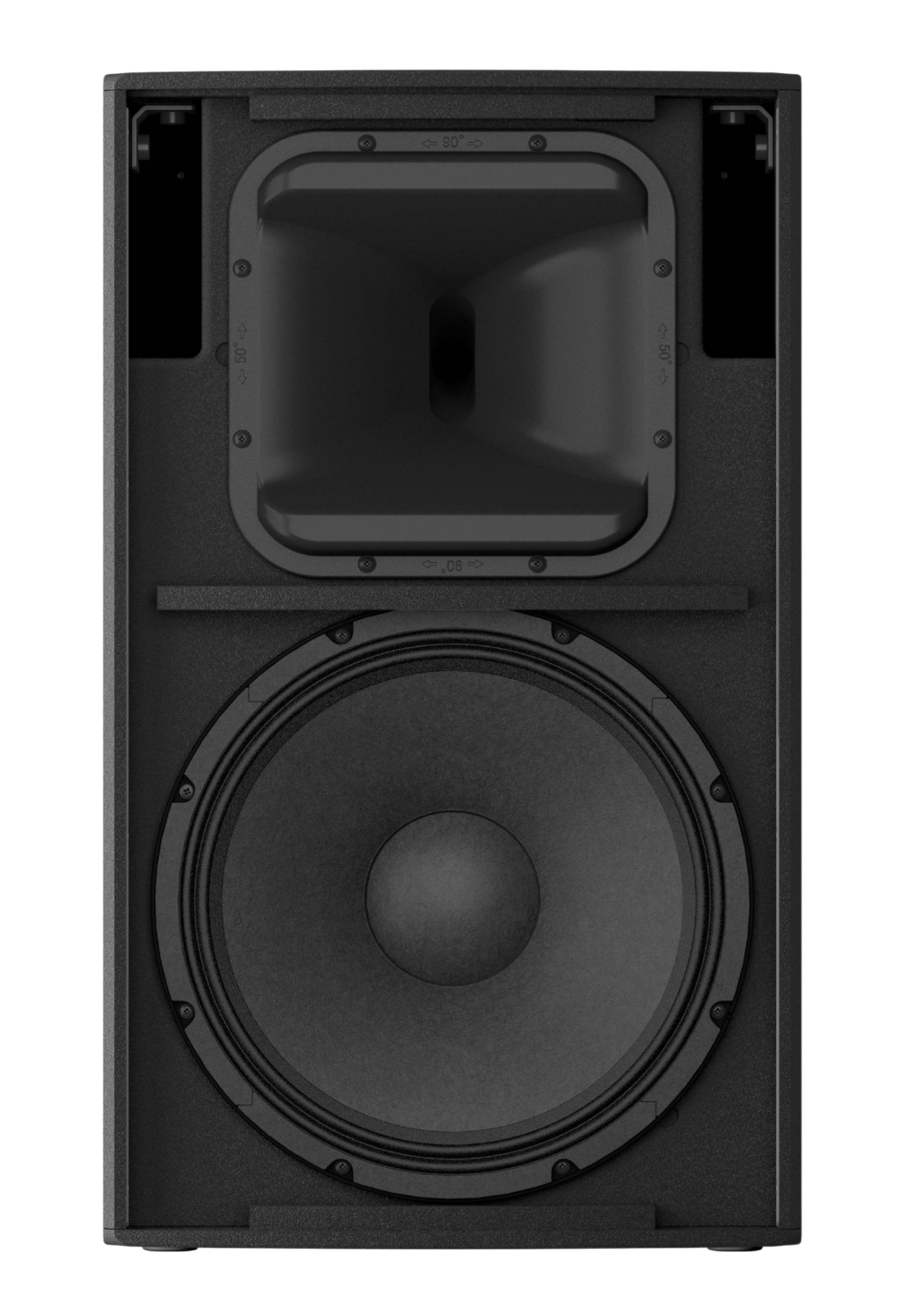

Equipped with a high-output 15-inch low-frequency driver and a 2-inch titanium diaphragm compression driver, the DZR15 provides powerful bass, clear vocals, and detailed high frequencies. The advanced DSP system provides precise crossover management, phase alignment, EQ optimisation, and professional system control.
Built with a durable plywood enclosure, premium Polyurea protective coating, rotatable horn design, integrated DSP display, and rigging options, the DZR15 is engineered for demanding applications including touring productions, professional DJs, venues, theatres, and large-scale sound reinforcement systems.
Key Features
15" Two-Way System
Professional full-range design with powerful low-end response.
2000W Class-D Amplifier
High-output amplification for professional live applications.
2" HF Compression Driver
Titanium diaphragm driver for detailed high-frequency reproduction.
15" LF Driver
High-power woofer with 3" voice coil and neodymium magnet.
96kHz FIR DSP
Advanced processing with FIR-X tuning for accurate sound.
Plywood Cabinet
Durable professional enclosure with premium Polyurea coating.
Technical Specifications
| Product Type | 2-Way Bi-Amped Powered Loudspeaker |
|---|---|
| Low Frequency Driver | 15" Cone Driver, 3" Voice Coil, Neodymium Magnet |
| High Frequency Driver | 2" Voice Coil Compression Driver, Titanium Diaphragm |
| Amplifier Type | Class-D Bi-Amped Amplifier Module |
| Power Rating | 2000W Dynamic Power |
| Continuous Power | 950W |
| Frequency Range | 34Hz - 20kHz (-10dB) |
| Maximum SPL | 139dB SPL |
| Coverage Pattern | 90° x 50° Rotatable Horn |
| Crossover Frequency | 1.7kHz FIR-X Tuning |
| DSP Processing | 96kHz DSP with FIR Filters and FIR-X Advanced Tuning |
| DSP Functions | PEQ, Delay, Routing, Presets and D-Contour Processing |

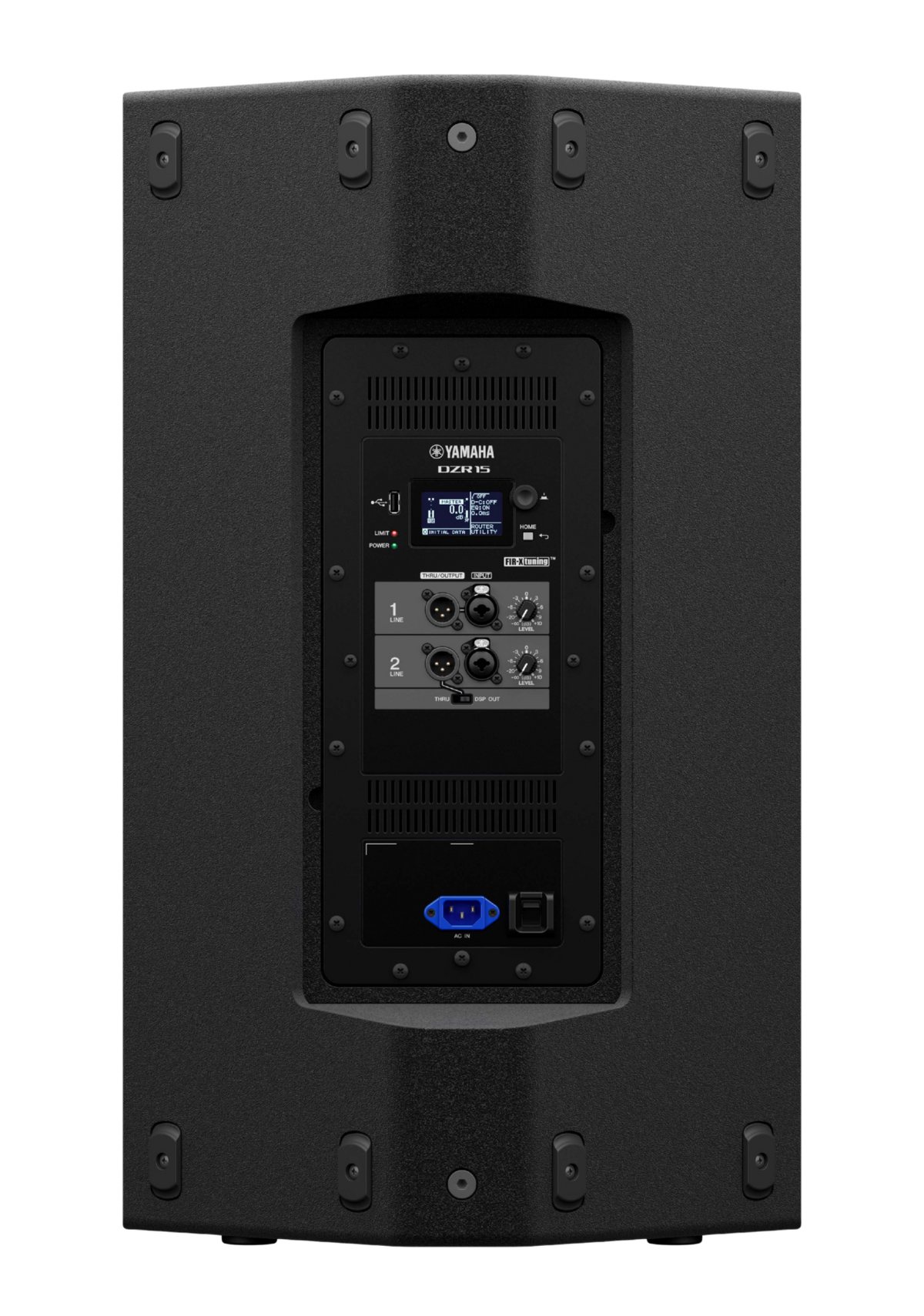

| Inputs | 2 x XLR/TRS Combo Inputs |
| Outputs | 2 x XLR Outputs (THRU / DSP OUT) |
| Display | LCD DSP Control Interface |
| Rigging | Integrated M10 Suspension Points |
| Enclosure Material | Plywood Cabinet with Premium Polyurea Coating |
| Power Supply | AC 100-240V, 50/60Hz |
| Dimensions (W x H x D) | 420 x 692 x 382mm |
| Weight | 25.0kg |
| Colour | Black |
Ideal For
- Touring Systems
- Front Of House PA
- Mobile DJs
- Live Bands
- Concert Events
- Festivals
- Theatres
- Corporate Productions
- Professional Venues
- Premium PA Systems
