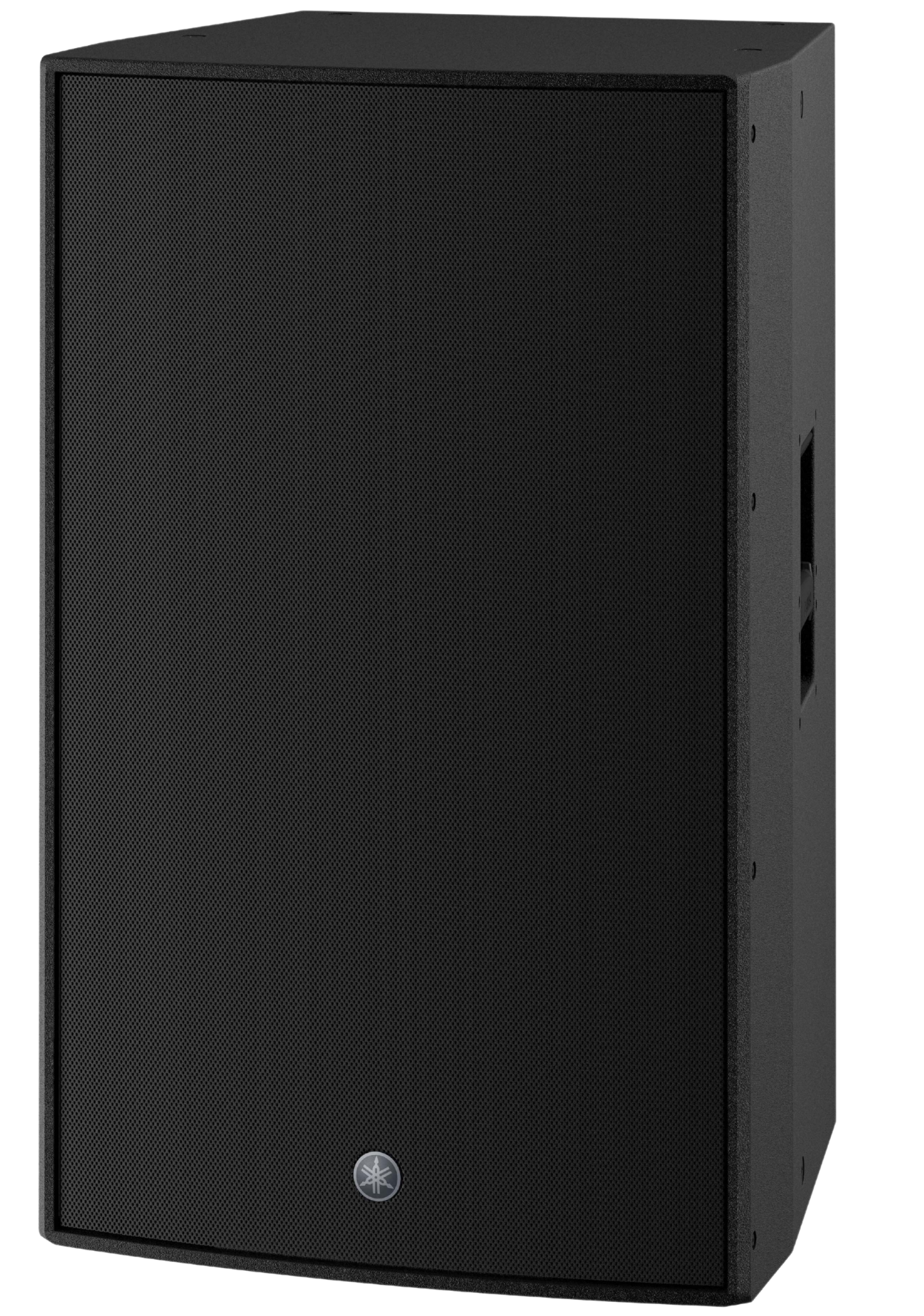

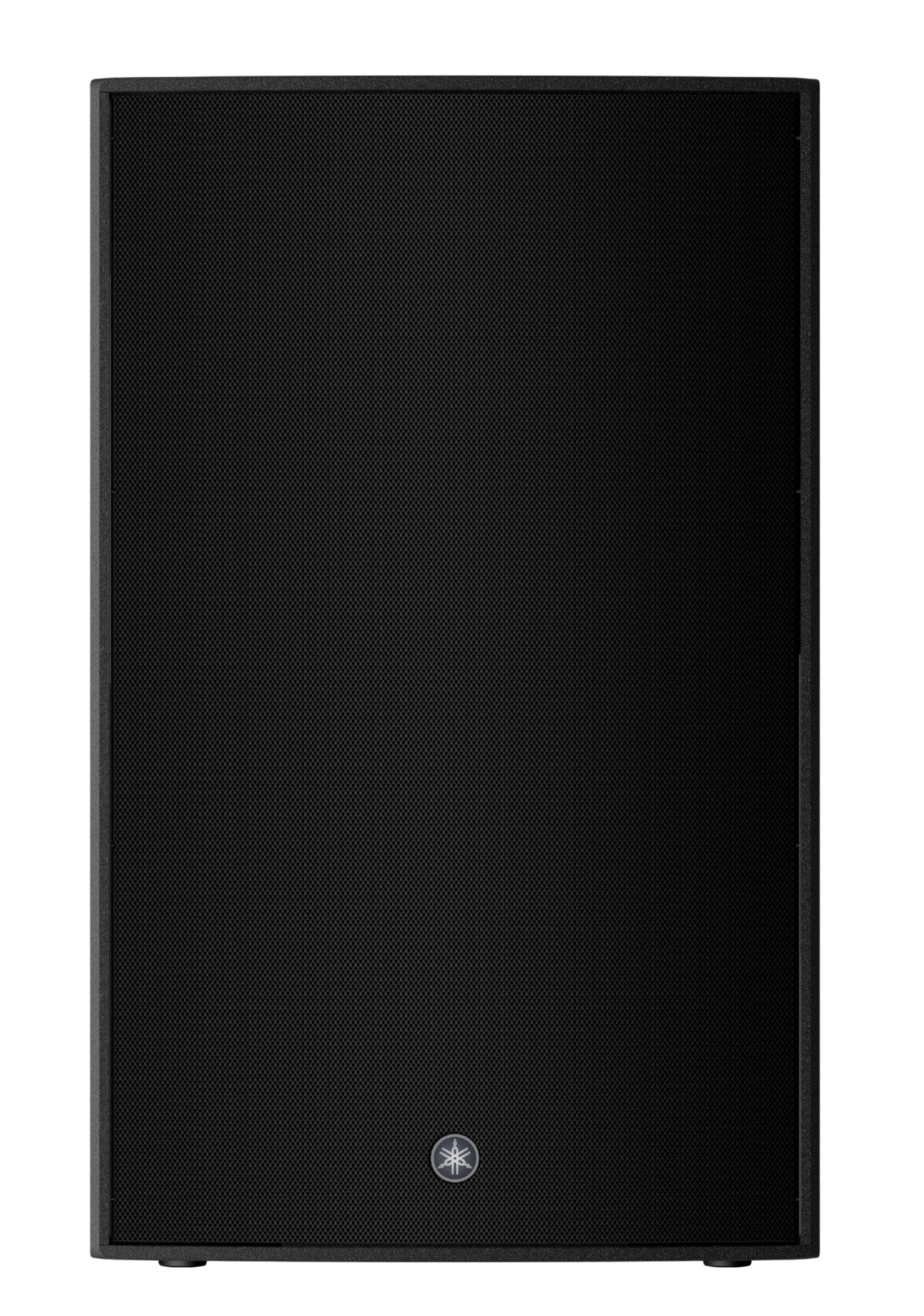

YAMAHA DZR315 2000W Bi-Amped Powered Speaker 15" LF + 8" MF + 2" HF
Product Overview
The Yamaha DZR315 is a premium professional 3-way bi-amped powered loudspeaker designed for touring, live sound, large events, DJs, installations, and high-performance PA systems. Featuring a powerful 2000W Class-D amplifier module, advanced 96kHz DSP processing, and a dedicated 15-inch LF, 8-inch MF, and 2-inch HF driver configuration, the DZR315 delivers exceptional clarity, power, and accuracy.
Designed as Yamaha's flagship DZR full-range speaker, the DZR315 combines high-output performance with advanced FIR-X tuning technology, providing precise phase alignment, improved vocal clarity, and outstanding sound definition across the entire frequency range.
Built with a durable plywood cabinet, premium protective coating, integrated DSP controls, and M10 rigging points, the DZR315 is ideal for professional touring systems, front-of-house applications, theatres, large venues, and demanding live sound environments.
Key Features

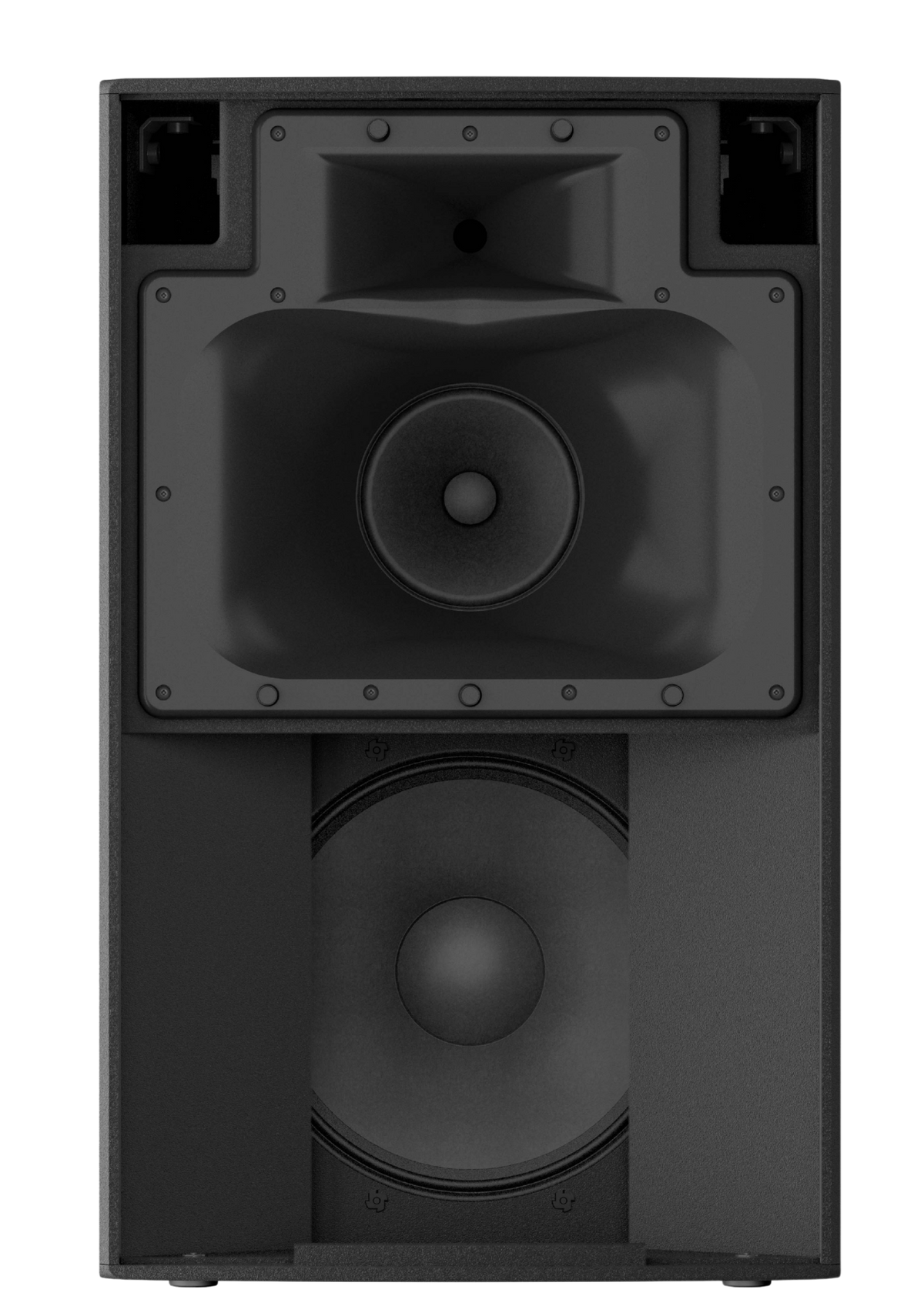

3-Way Bi-Amped Design
Dedicated low, mid and high-frequency drivers for superior clarity.
2000W Class-D Amplifier
High-output amplification for professional sound reinforcement.
15" LF Driver
Powerful low-frequency performance with extended bass response.
8" Mid Driver
Dedicated midrange reproduction for detailed vocals and instruments.
2" HF Compression Driver
Titanium diaphragm driver for clear high-frequency detail.
96kHz FIR DSP
Advanced processing with FIR-X tuning and system optimisation.
Technical Specifications
| Product Type | 3-Way Bi-Amped Powered Loudspeaker |
|---|---|
| Low Frequency Driver | 15" Cone Woofer, 3" Voice Coil, Neodymium Magnet |
| Mid Frequency Driver | 8" Cone Driver, 1.5" Voice Coil, Ferrite Magnet |
| High Frequency Driver | 2" Voice Coil Compression Driver, Titanium Diaphragm |
| Amplifier Type | Class-D Bi-Amped Amplifier Module |
| Power Rating | 2000W Dynamic (LF: 1000W / MF-HF: 1000W) |
| Continuous Power | 950W (LF: 850W / MF-HF: 100W) |
| Frequency Range | 31Hz - 20kHz (-10dB) |
| Maximum SPL | 143dB SPL |
| Coverage Pattern | 75° Horizontal x 50° Vertical |
| Crossover | 700Hz (FIR-X) / 2.5kHz Passive |
| DSP Processing | 96kHz DSP with FIR Filters and FIR-X Tuning |
| DSP Functions | PEQ, Delay, Routing, Presets and D-Contour Processing |

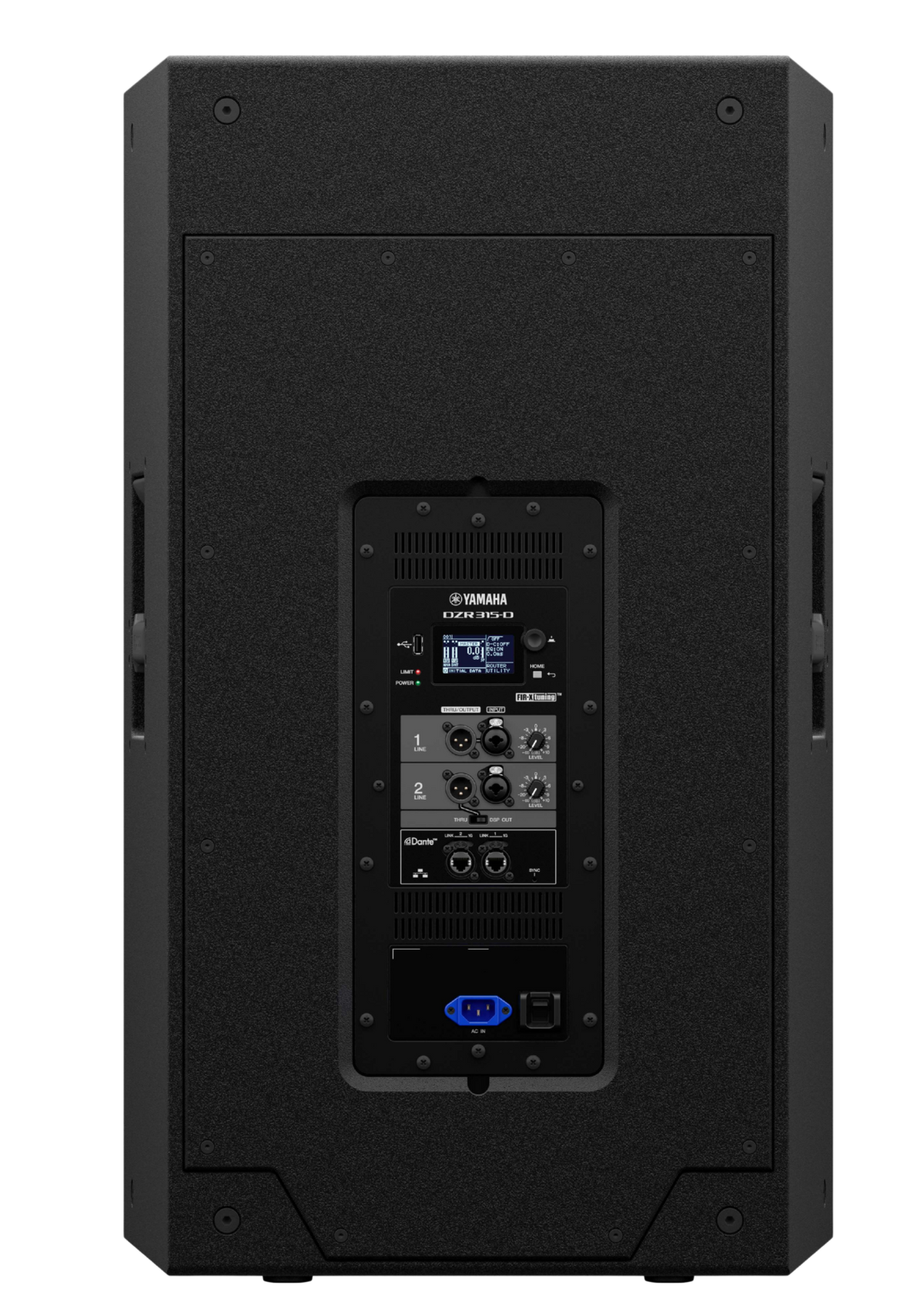

| Inputs | 2 x XLR/TRS Combo Inputs |
| Outputs | 2 x XLR Outputs (THRU / DSP OUT) |
| Rigging | Integrated M10 Suspension Points |
| Enclosure Material | Durable Plywood Cabinet with Premium Polyurea Coating |
| Display | LCD DSP Control Interface |
| Power Supply | AC 100-240V, 50/60Hz |
| Dimensions (W x H x D) | 444 x 897 x 460mm |
| Weight | 49.9kg |
| Colour | Black |
Ideal For
- Front Of House PA
- Touring Productions
- Concert Events
- Festivals
- Large Mobile DJs
- Theatres
- Corporate Events
- Professional Venues
- Installed Sound Systems
- High Output Live Sound
