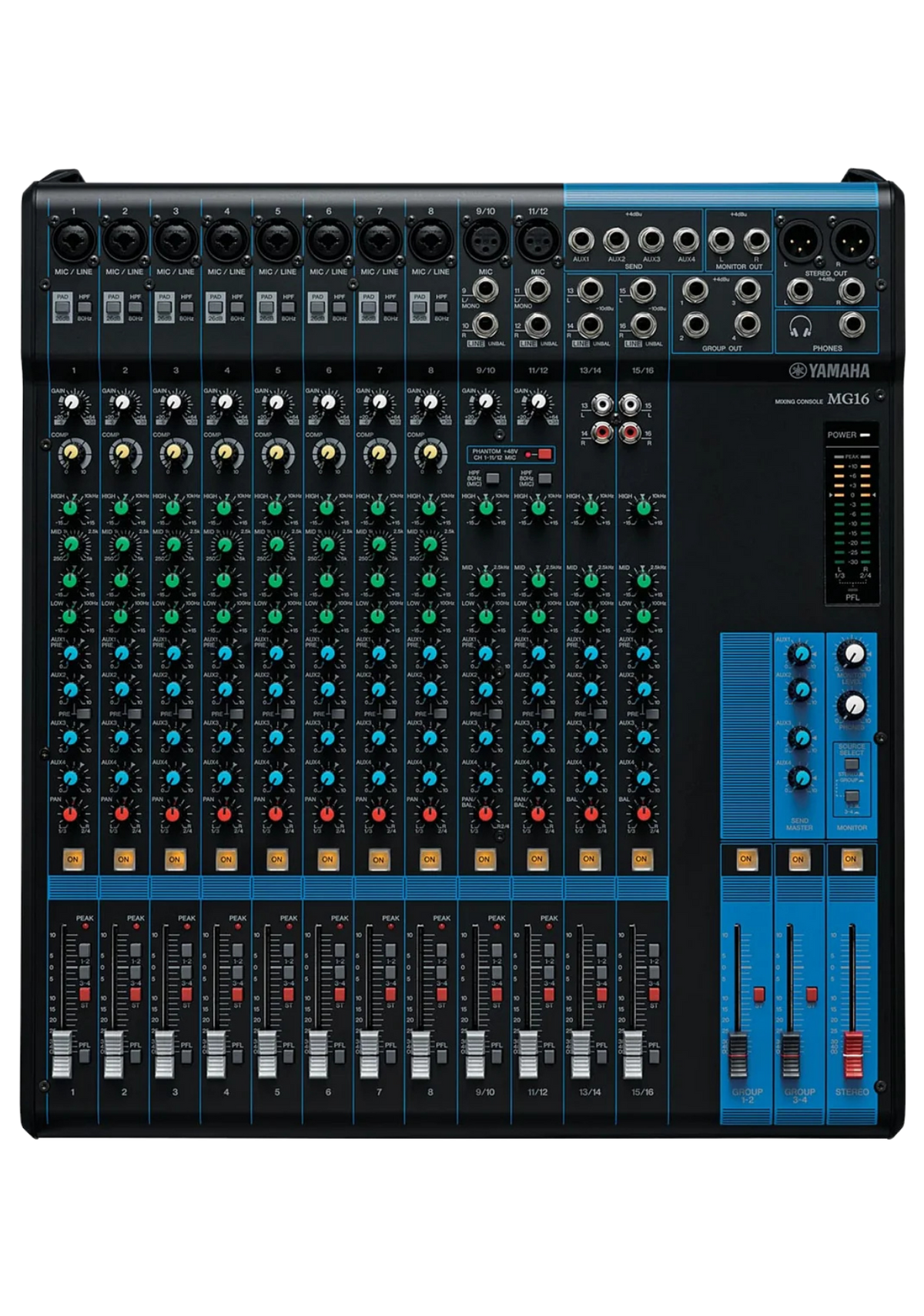

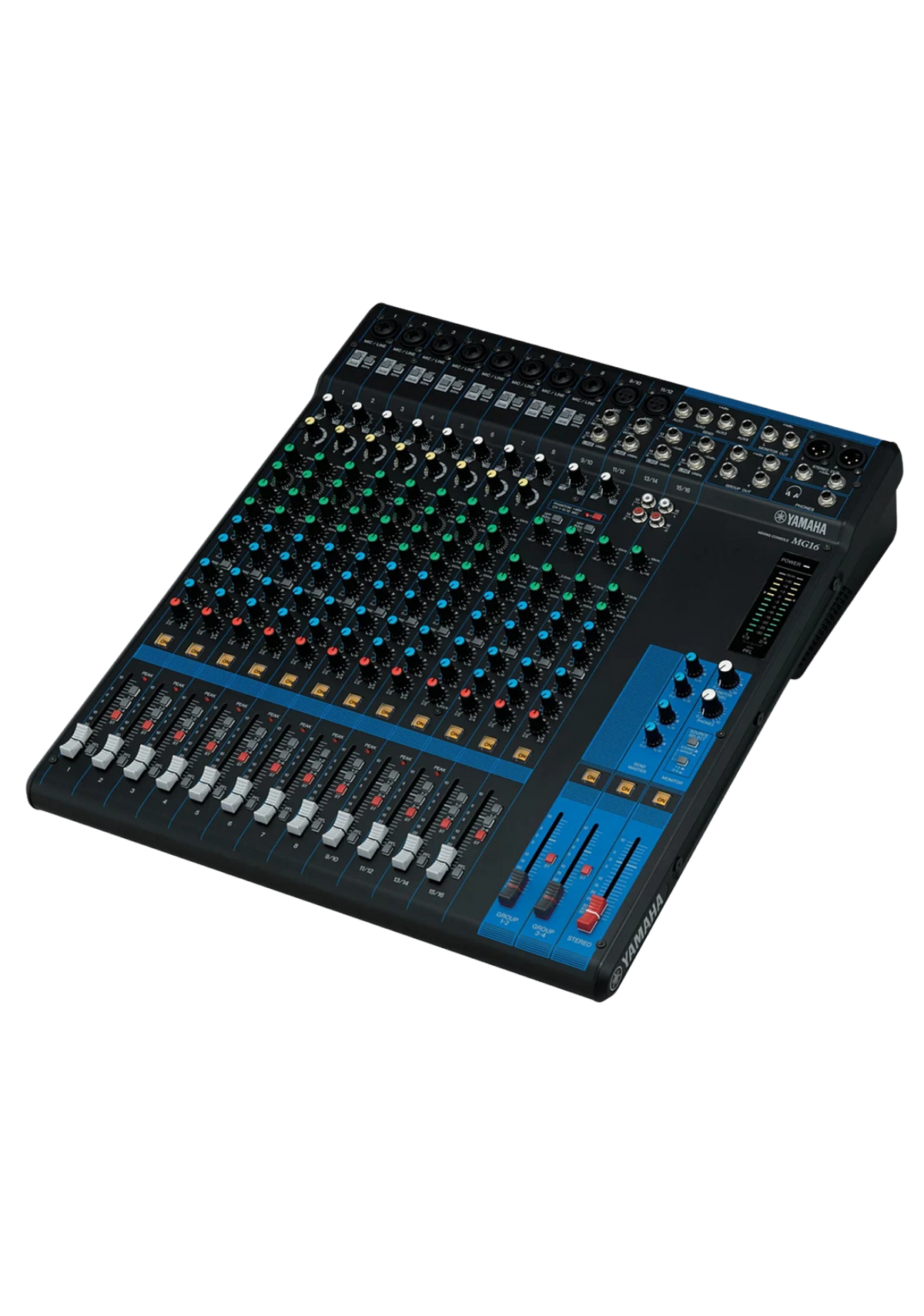

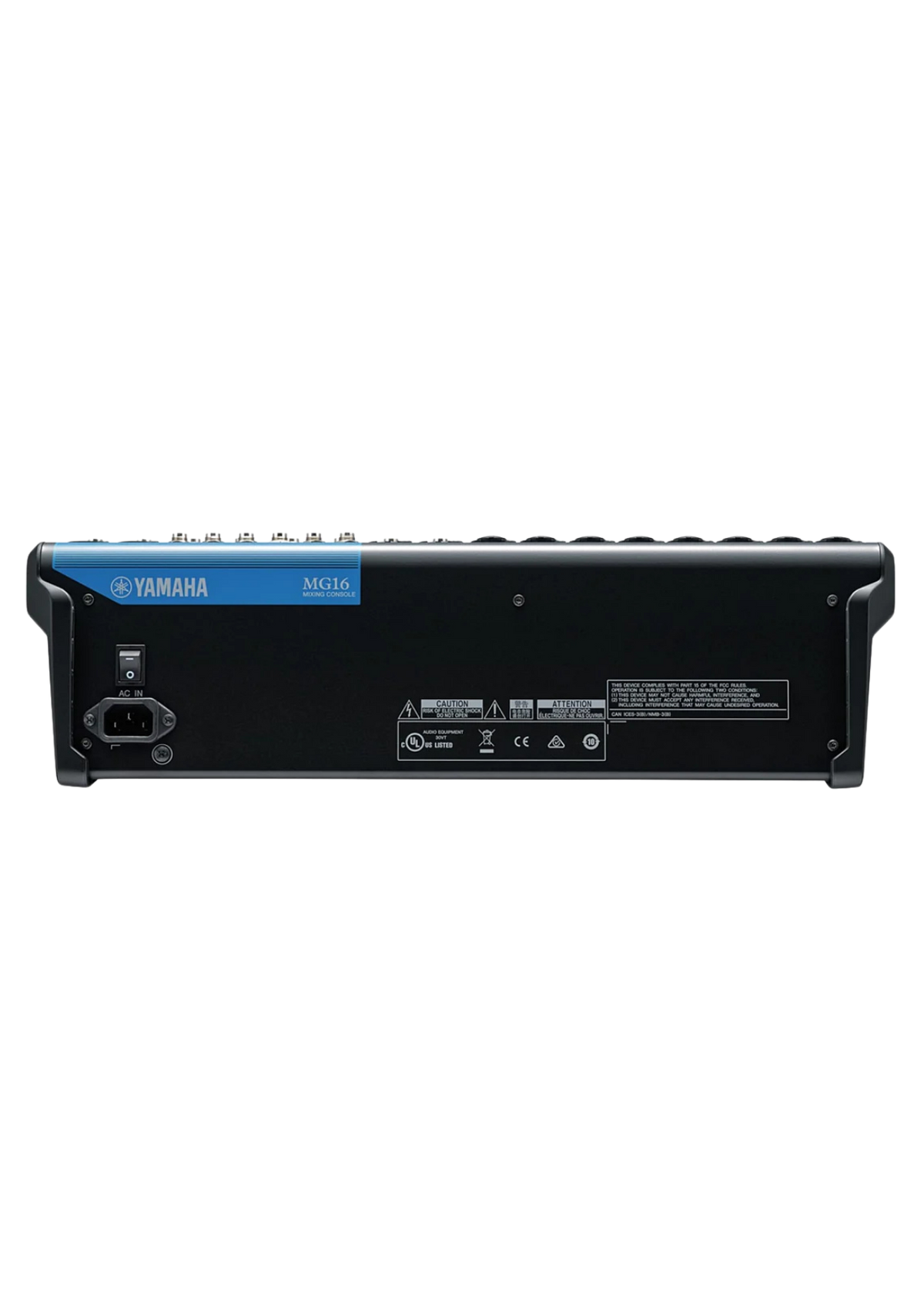

YAMAHA MG16 16-Channel Mixing Console 10 Mic / 16 Line with Faders
YAMAHA MG16 16-Channel Mixing Console 10 Mic / 16 Line with Faders
Couldn't load pickup availability
YAMAHA MG16 16-Channel Mixing Console 10 Mic / 16 Line with Faders
Product Overview
The Yamaha MG16 is a professional 16-channel analogue mixing console designed for live sound, installations, touring, and recording applications. Offering up to 10 microphone inputs and 16 line inputs, the MG16 combines Yamaha's trusted audio engineering with a simple, intuitive control layout for reliable professional performance. :contentReference[oaicite:0]{index=0}
Featuring Yamaha D-PRE microphone preamps, 1-knob compressors, 3-band EQ, AUX sends, group buses, and smooth 60mm faders, the MG16 provides precise hands-on control for engineers who prefer a traditional analogue mixing workflow. :contentReference[oaicite:1]{index=1}
Built with a rugged metal chassis, rackmount capability, phantom power, and flexible connectivity, the Yamaha MG16 is an ideal choice for bands, venues, theatres, houses of worship, corporate events, and professional PA systems. :contentReference[oaicite:2]{index=2}
Key Features
16-Channel Mixer
Professional analogue mixing with flexible inputs.
D-PRE Preamps
Clear and natural microphone sound.
60mm Faders
Precise control over channel levels.
Flexible Routing
Group buses and AUX sends for monitoring.
Professional EQ
3-band EQ with high-pass filtering.
Rack Mountable
Suitable for installations and touring.
Technical Specifications
| Product Type | Analogue Mixing Console |
|---|---|
| Total Channels | 16 Channels |
| Microphone Inputs | Maximum 10 Mic Inputs |
| Line Inputs | 16 Line Inputs |
| Input Configuration | 8 Mono Mic/Line Inputs + 4 Stereo Inputs |
| Microphone Preamps | Yamaha D-PRE Microphone Preamps with Inverted Darlington Circuit |
| Channel EQ | 3-Band EQ with High-Pass Filter |
| High-Pass Filter | 80Hz High-Pass Filter |
| Compressor | 1-Knob Compressor on Selected Channels |
| Faders | 60mm Channel Faders |
| Group Buses | 4 Group Buses + Stereo Bus |
| AUX Sends | 4 AUX Sends |
| Phantom Power | +48V Phantom Power |
| Outputs | XLR Stereo Outputs, Monitor Outputs, Group Outputs, AUX Sends |
| Footswitch Input | FX Return Control |
| USB Interface | No USB Audio Interface |
| Effects Processor | No Built-In Effects |
| Construction | Metal Chassis |
| Power Supply | Internal Universal Power Supply |
| Rack Mounting | Rack Mount Kit Included |
| Dimensions (W x H x D) | 444 x 130 x 500mm |
| Weight | 6.6kg |
| Colour | Black |
Ideal For
- Live Bands
- Small Venues
- Houses of Worship
- Theatre Productions
- Corporate Events
- Touring Systems
- Recording Applications
- Mobile PA Systems
- Installation Projects
- Professional Sound Engineers
