YAMAHA
YAMAHA MG16XU 16-Ch Mixing Console 10 Mic / 16 Line + SPX with Faders
YAMAHA MG16XU 16-Ch Mixing Console 10 Mic / 16 Line + SPX with Faders
Couldn't load pickup availability

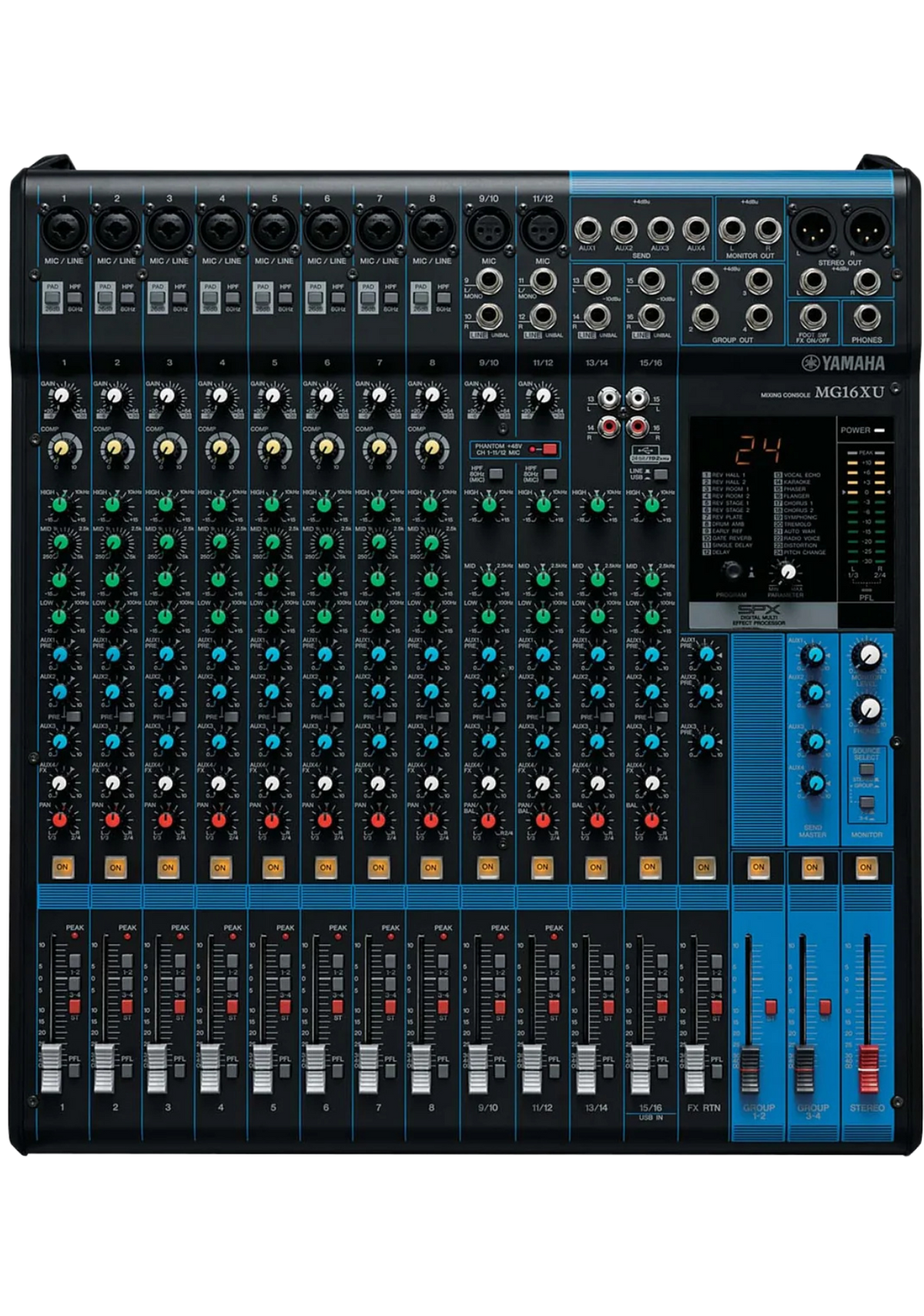

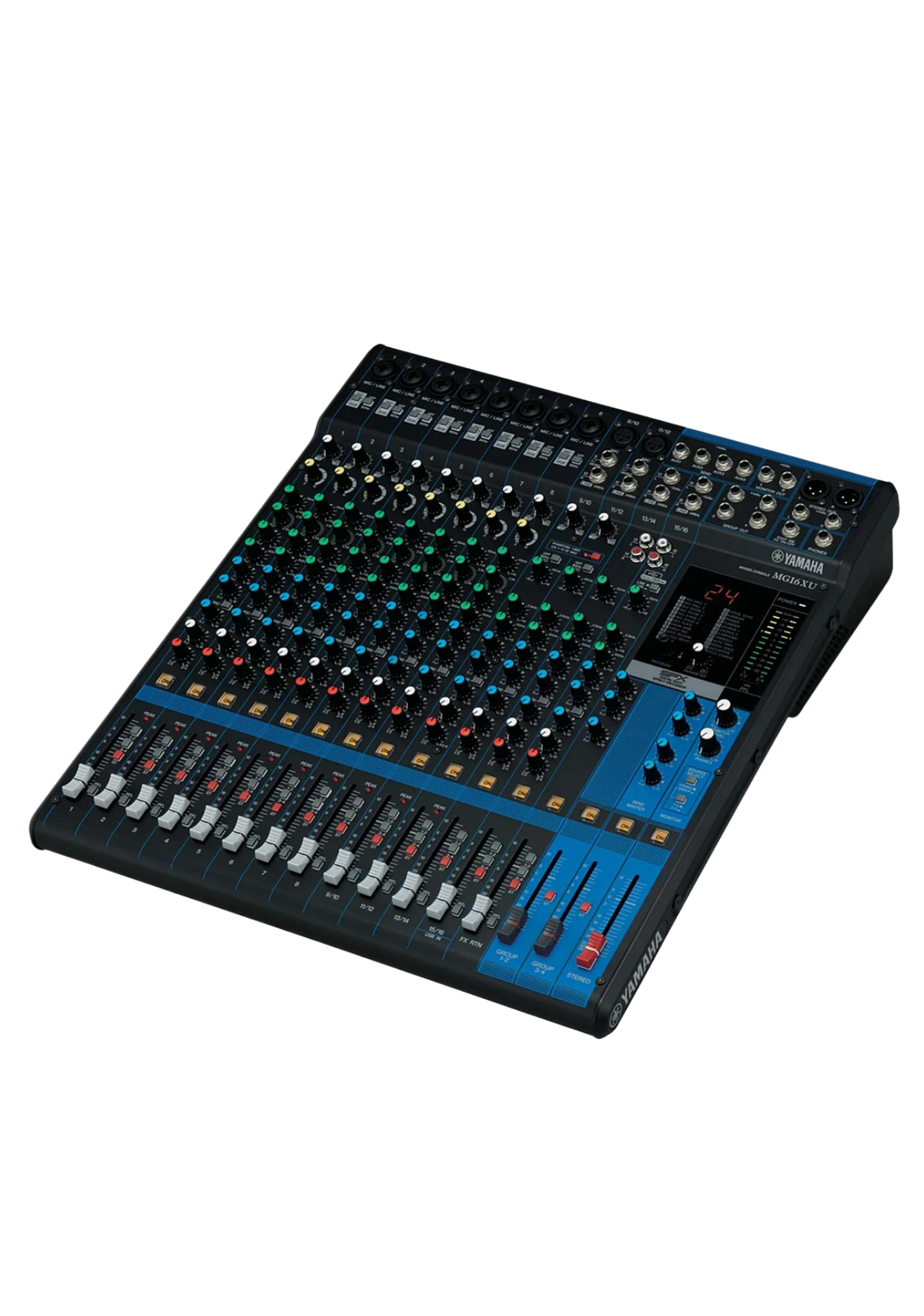

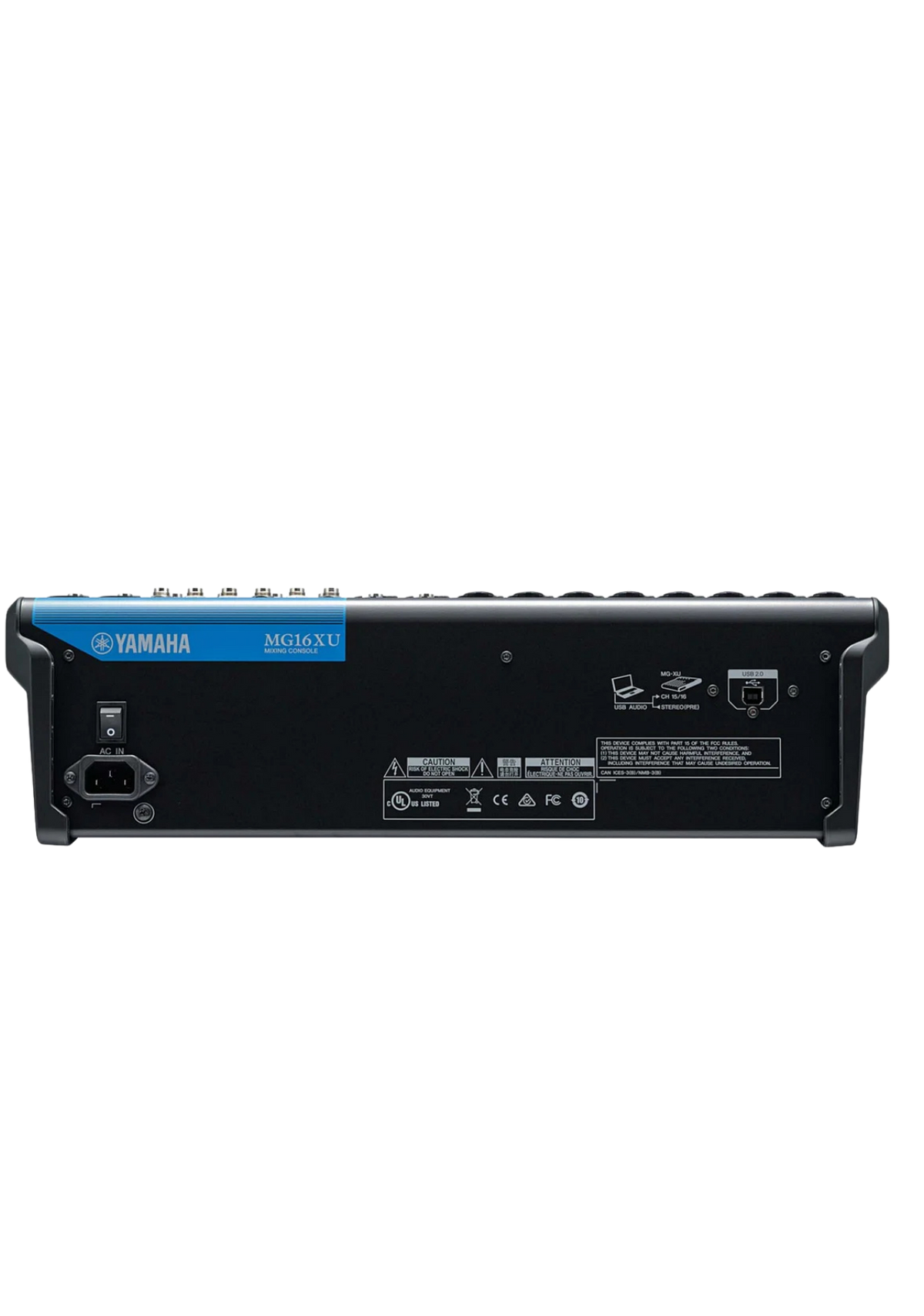

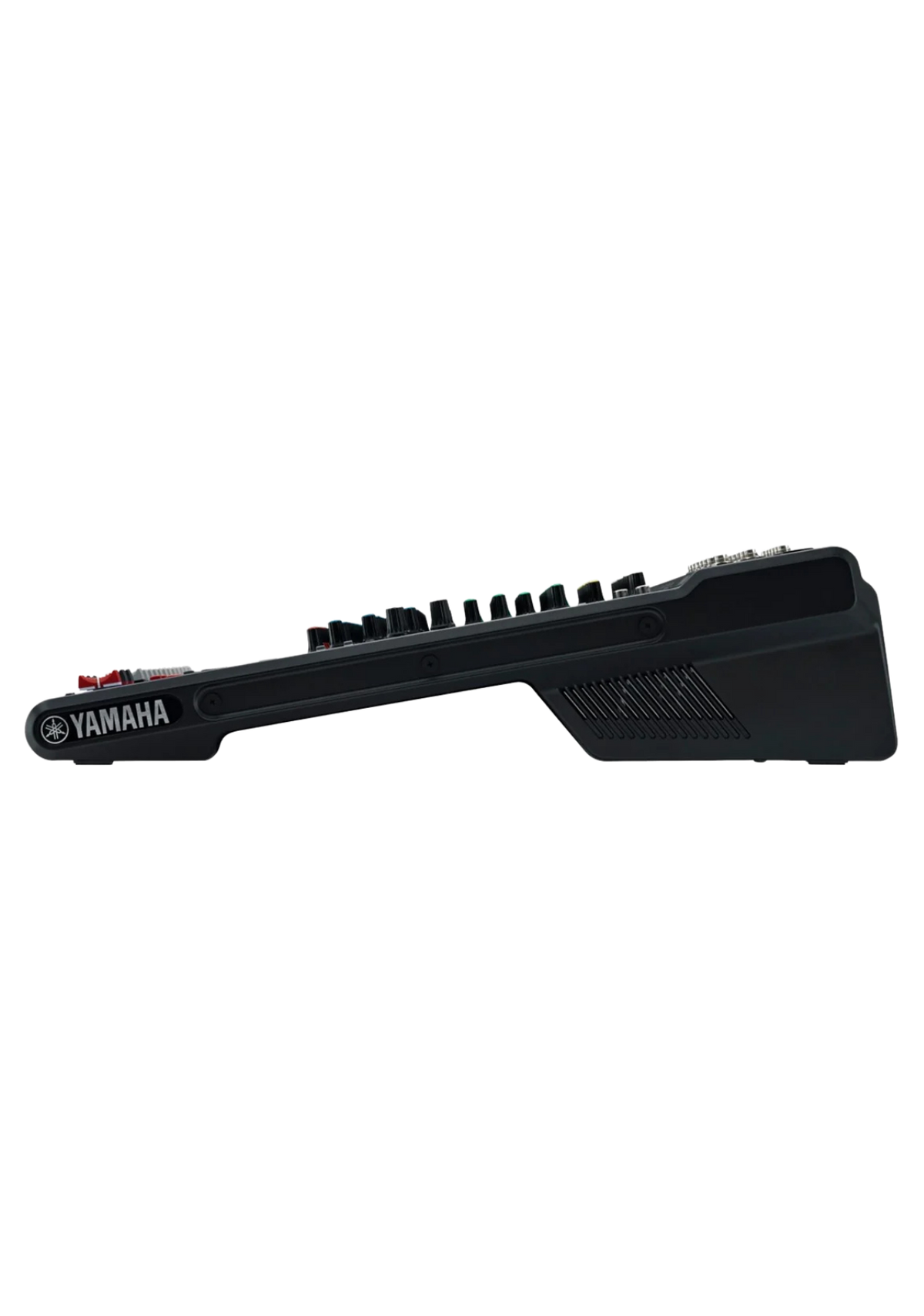

YAMAHA MG16XU 16-Channel Mixing Console 10 Mic / 16 Line + SPX Effects
Product Overview
The Yamaha MG16XU is a professional 16-channel analogue mixing console designed for live sound, recording, installations, and portable PA applications. Featuring 10 microphone inputs, 16 line inputs, Yamaha D-PRE microphone preamps, built-in SPX digital effects, and a USB audio interface, the MG16XU delivers exceptional sound quality with a familiar hands-on mixing workflow.
Designed for reliability and ease of use, the MG16XU features smooth 60mm faders, one-knob compressors, 3-band EQ, AUX sends, group buses, and flexible routing options. Its intuitive layout makes it suitable for professional engineers, musicians, venues, and production companies requiring dependable analogue control.
With Yamaha's high-quality components, built-in effects processor, phantom power, and USB connectivity, the MG16XU provides a complete mixing solution for live performances, recording sessions, corporate events, houses of worship, and professional PA systems.
Key Features
16-Channel Mixer
Professional analogue mixing with flexible inputs.
D-PRE Preamps
Natural sound with low-noise microphone amplification.
SPX Effects
Built-in Yamaha digital effects processor.
USB Audio
Connect directly for recording and playback.
60mm Faders
Precise control over every channel.
Rack Mountable
Suitable for touring and installations.
Technical Specifications
| Product Type | Analogue Mixing Console |
|---|---|
| Total Channels | 16 Channels |
| Mono Inputs | 8 Mic / Line Inputs |
| Mic Inputs | 10 x XLR Microphone Inputs |
| Line Inputs | 16 x Line Inputs |
| Stereo Inputs | 4 Stereo Line Inputs |
| Microphone Preamps | Yamaha D-PRE Microphone Preamps |
| Channel EQ | 3-Band EQ on Mono Channels, 3-Band EQ on Stereo Channels |
| High-Pass Filter | 80Hz High-Pass Filter |
| Compressor | 1-Knob Compressor on Selected Channels |
| Faders | 60mm Channel Faders |
| Bus Outputs | 4 Group Buses + Stereo Main Output |
| AUX Sends | 4 AUX Sends + 2 FX Sends |
| Effects Processor | Yamaha SPX Digital Multi-Effects (24 Presets) |
| USB Interface | 2 Input / 2 Output USB Audio Interface |
| USB Resolution | 24-bit / 192kHz USB Audio |
| Phantom Power | +48V Phantom Power |
| Outputs | Stereo XLR Output, Monitor Output, Group Outputs, AUX Sends |
| Metering | 12-Segment LED Level Meters |
| Frequency Response | +0.5 / -1.0dB, 20Hz–48kHz |
| Power Supply | Internal Universal Power Supply |
| Rack Mounting | Optional Rack Mount Kit Available |
| Dimensions (W x H x D) | 444 x 130 x 500mm |
| Weight | 6.8kg |
| Colour | Black |
Ideal For
- Live Bands
- Recording Studios
- Small Venues
- Houses of Worship
- Corporate Events
- Theatre Productions
- Mobile PA Systems
- Touring Applications
- Installation Projects
- Professional Sound Engineers
