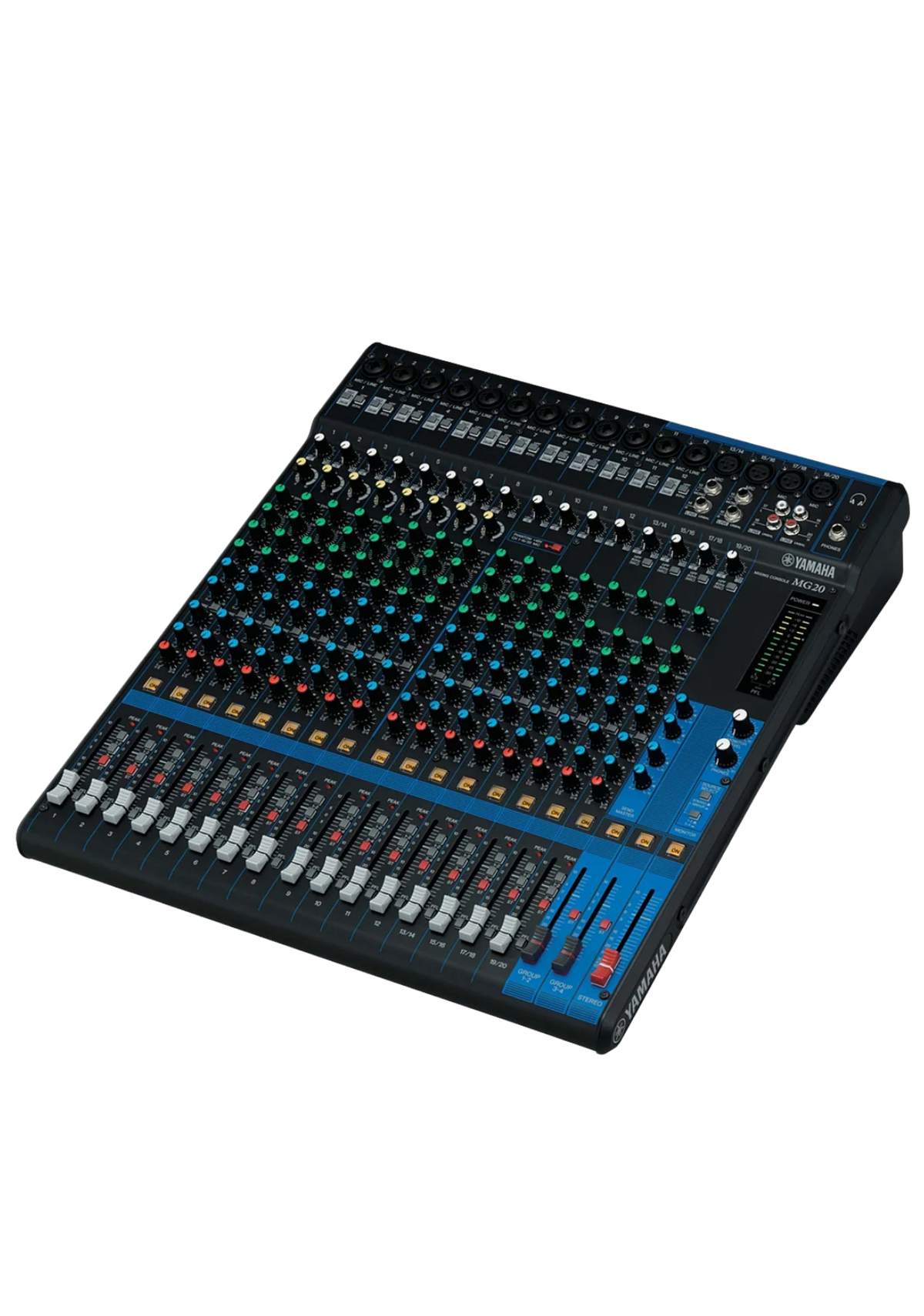

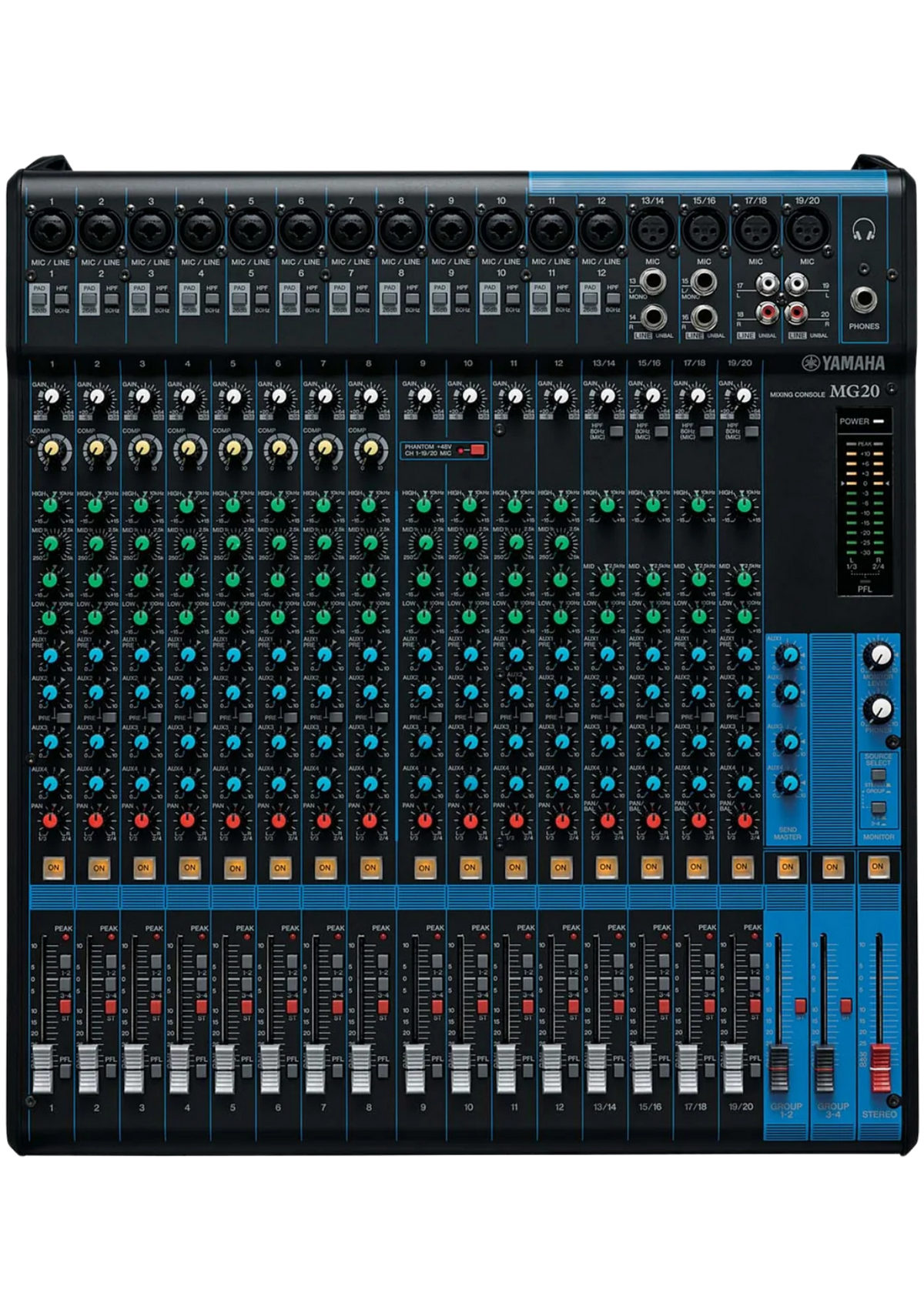

YAMAHA MG20 20-Channel Mixing Console 16 Mic / 20 Line with Faders
Product Overview
The Yamaha MG20 is a professional 20-channel analogue mixing console designed for live sound, installations, touring, and recording applications. Featuring 16 microphone inputs, 20 line inputs, Yamaha's high-quality D-PRE microphone preamps, and a traditional analogue workflow, the MG20 delivers clear, reliable sound with precise hands-on control.
Designed for engineers who prefer direct control, the MG20 features 60mm faders, 3-band EQ, one-knob compressors, AUX sends, group buses, and flexible routing options. Its intuitive layout provides fast operation while maintaining the professional audio quality expected from Yamaha's MG series.
With rugged construction, rackmount capability, phantom power, and extensive connectivity, the MG20 is an excellent choice for bands, venues, houses of worship, theatres, corporate events, and professional PA systems requiring a dependable analogue mixer.
Key Features
20-Channel Mixer
Professional analogue mixing with flexible routing.
D-PRE Preamps
High-quality microphone preamps with low noise.
60mm Faders
Accurate hands-on level adjustment.
Professional EQ
3-band channel EQ for precise sound shaping.
Flexible Routing
Multiple AUX and group outputs.
Rack Mountable
Suitable for touring and fixed installations.
Technical Specifications
| Product Type | Analogue Mixing Console |
|---|---|
| Total Channels | 20 Channels |
| Mono Inputs | 16 Mic / Line Inputs |
| Stereo Inputs | 4 Stereo Line Inputs |
| Microphone Inputs | 16 x XLR Inputs with D-PRE Preamps |
| Line Inputs | 20 x Line Inputs |
| Channel EQ | 3-Band EQ on Mono Channels, 2-Band EQ on Stereo Channels |
| High-Pass Filter | 80Hz High-Pass Filter |
| Compressor | 1-Knob Compressor on Selected Mono Channels |
| Faders | 60mm Channel Faders |
| Bus Outputs | 4 Group Buses + Stereo Main Output |
| AUX Sends | 6 AUX Sends |
| Phantom Power | +48V Phantom Power |

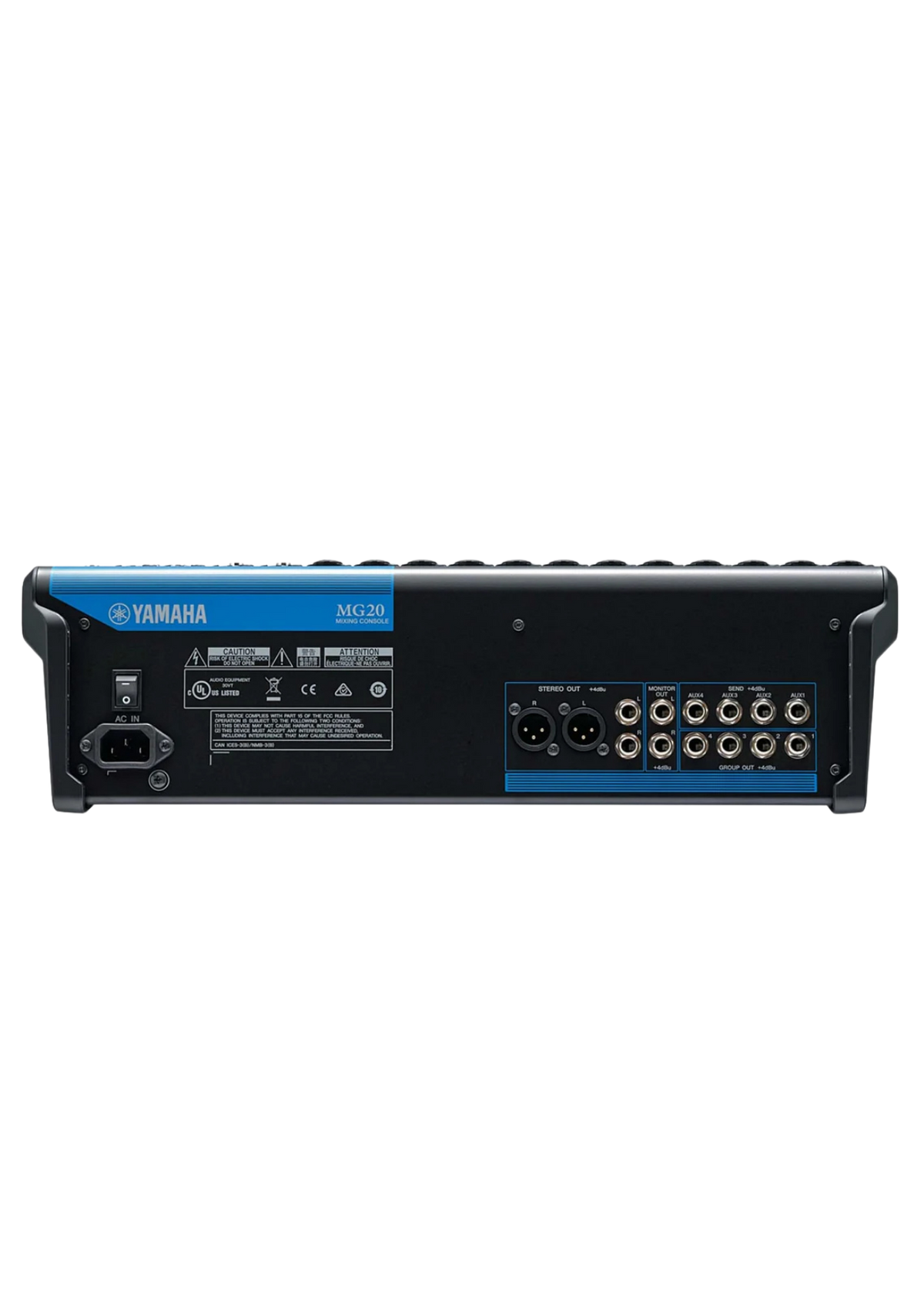

| Outputs | Stereo XLR Output, Monitor Output, Group Outputs, AUX Sends |
| Metering | 12-Segment LED Level Meters |
| Noise Level | -128dBu Equivalent Input Noise |
| Frequency Response | +0.5 / -1.0dB, 20Hz–48kHz |
| Power Supply | Internal Universal Power Supply |
| Rack Mounting | Optional Rack Mount Kit Available |
| Dimensions (W x H x D) | 444 x 130 x 500mm |
| Weight | 7.1kg |
| Colour | Black |
Ideal For
- Live Bands
- Concert Venues
- Houses of Worship
- Theatre Productions
- Corporate Events
- Touring Systems
- Recording Applications
- Mobile PA Systems
- Installation Projects
- Professional Sound Engineers
